Description

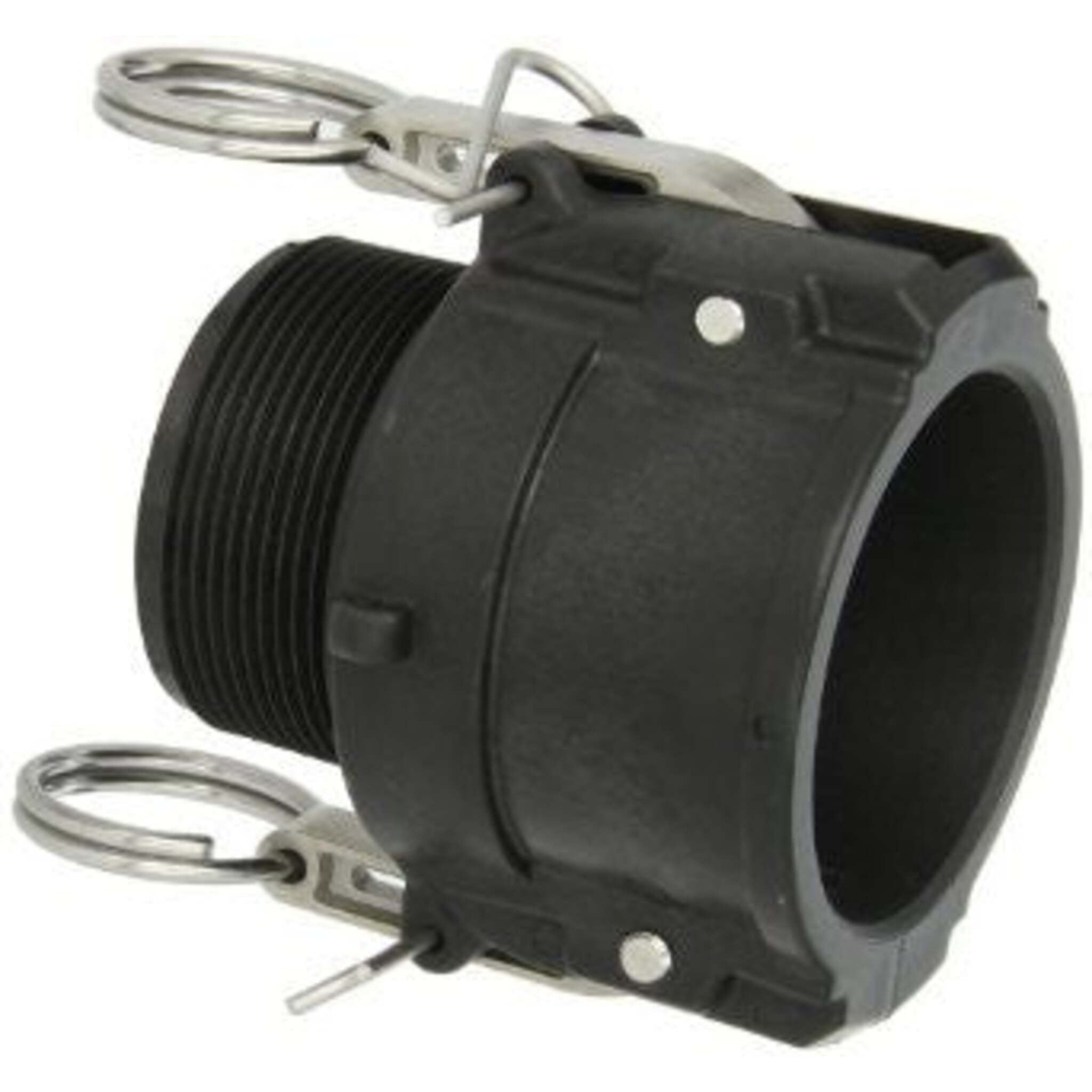

Manage Fluids Effectively with Polypropylene Camlock Type B
Type B Black Polypropylene Camlocks provide a practical and economical solution for handling various chemicals. These camlocks feature a female camlock socket and male NPT threading, making them suitable for a range of applications. The black polypropylene material offers resistance to a wide array of chemicals, adding to their versatility. With their affordability and chemical compatibility, these cam and groove connectors are an excellent choice for diverse industrial settings.
Key Features: Chemical Resistance, Affordability, and Appropriate Pressure Ratings
- Female Camlock to Male NPT Threading: Enables secure and adaptable connections.
- Polypropylene Construction: Offers resistance to a broad spectrum of chemicals.
- Working Pressure and Temperature: Suitable for pressures up to 100 PSI (for sizes 3/4" to 2") and 50 PSI (for sizes 3" and 4"), with a temperature range of -20°C to 70°C.
- Size Availability: Available from 1" to 4", accommodating various hose sizes.
Camlock Size Identification Guide
| Nominal Camlock Size | Type B — Female Coupler OD** |
|---|---|
| 3/4" | approx. 1.63" |
| 1" | approx. 1.93" |
| 1-1/4" | approx. 2.30" |
| 1-1/2" | approx. 2.64" |
| 2" | approx. 3.23" |
| 2-1/2" | approx. 3.72" |
| 3" | approx. 4.33" |
| 4" | approx. 5.67" |
* For male camlock adapters, measure straight across the outside of the adapter end that connects into the female coupler.
** For female camlock couplers, measure straight across the outside of the coupler body, excluding the handles.
Optimize Chemical Handling with Polypropylene Camlock Type B
Type B Black Polypropylene Camlocks are more than just connectors; they are an essential tool for managing fluids in environments where chemical resistance is crucial. Whether used in agricultural, industrial, or laboratory settings, these camlocks provide a cost-effective and reliable solution for efficient fluid management in systems that encounter a variety of chemicals.
