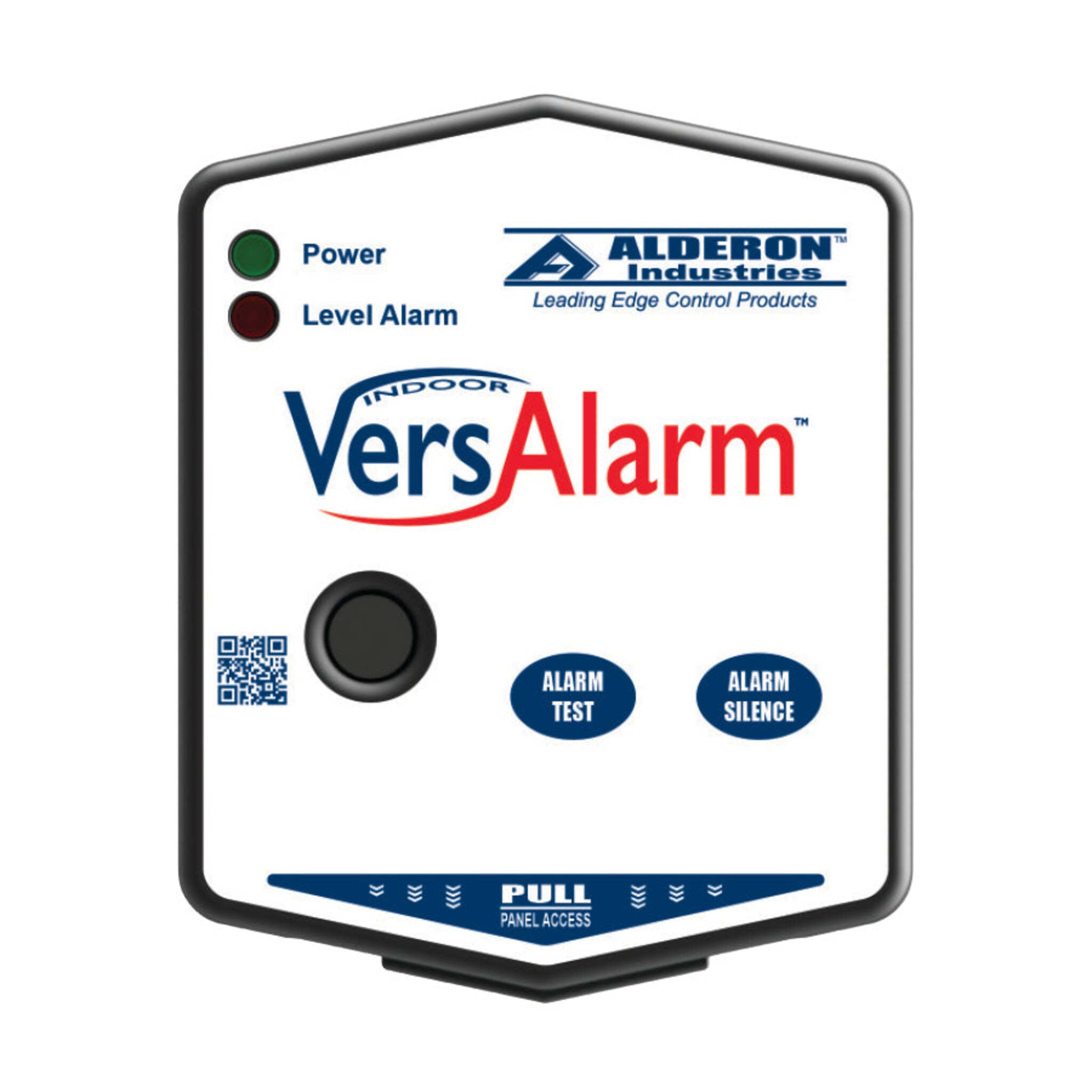

Alderon's VersAlarm™ Tank Alarm with Auto Reset and Battery Backup provides audio and visual warnings of potential threatening liquid level conditions. Septic tank, sewage holding tank, cisterns, and other high and low water and sewage applications can be monitored depending on the float switch model used. If an alarm condition occurs, the horn sounds and alarm light activates. The horn can be turned off, but the alarm light remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
Installing a 9VDC battery (not included) provides battery backup during power outages. Use the auxiliary contacts to connect to building automation systems (BAS) and phone dialers. Multiple sensors (signaling device) can be connected for expanded monitoring.
An alarm condition occurs when the sensor (signaling device) contact is activated, during which the red alarm LED will illuminate (solid), buzzer will annunciate (solid), and the auxiliary contacts will activate. The alarm condition will stay on until the sensor is deactivated. If the alarm silence pushbutton is pressed during an alarm condition, it will silence the buzzer while the alarm LED remains on. The silence condition will reset when the sensor deactivates and the alarm panel will auto reset for the next alarm cycle.
- Any "dry" contact that can be connected to the alarm panel that can cause the contact to close can be used with this panel. We list the alarm by itself to allow you to connect any contact of your choice, and we also list it as a package with commonly requested float switches for high/low water alarm conditions. Examples of contacts able to be used include: pressure switches, float switches (new or existing), liquid level sensors, etc.
- Primary power: 120VAC, 50/60 Hz
- Circuit board primary power: 11.1VDC, 500mA maximum
- Circuit board secondary power: 9VDC - standard 9VDC battery (battery backup; not included)
- Watts: 1.4 Watts
- Field connection sensor: 9-10VAC/DC, 200 mA minimum (signaling device)
- Auxiliary contacts: 24VDC, 500mA maximum. Normally open, single pole, single throw
- Auxillary alarm power: 8-10.2VDC, 150 mA maximum
- LEDs: Green (power) and Red (alarm)
- Buzzer: 85 dB at 10 feet
- Wall mounted power supply: 120VAC, 50/60 HZ (input), 11.1VDC, 500mA maximum (output) (6-foot cord)
- Enclosure: Thermoplatic 5 x 4 x 1.3 (inches). Type 1, Indoor. Removable cover.
- Certifications: CSA (US and Canada), FCC Part 15 (US and Canada)
- Three-Year Limited Warranty
Floats can be wired to be either normally open (high level), or normally closed (low level) depending on your application.
