Description
Spring-Loaded PE Pipe Peeler for 6" to 12" HDPE Electrofusion Preparation. Compatible with Metric Pipe Sizes.
Overview

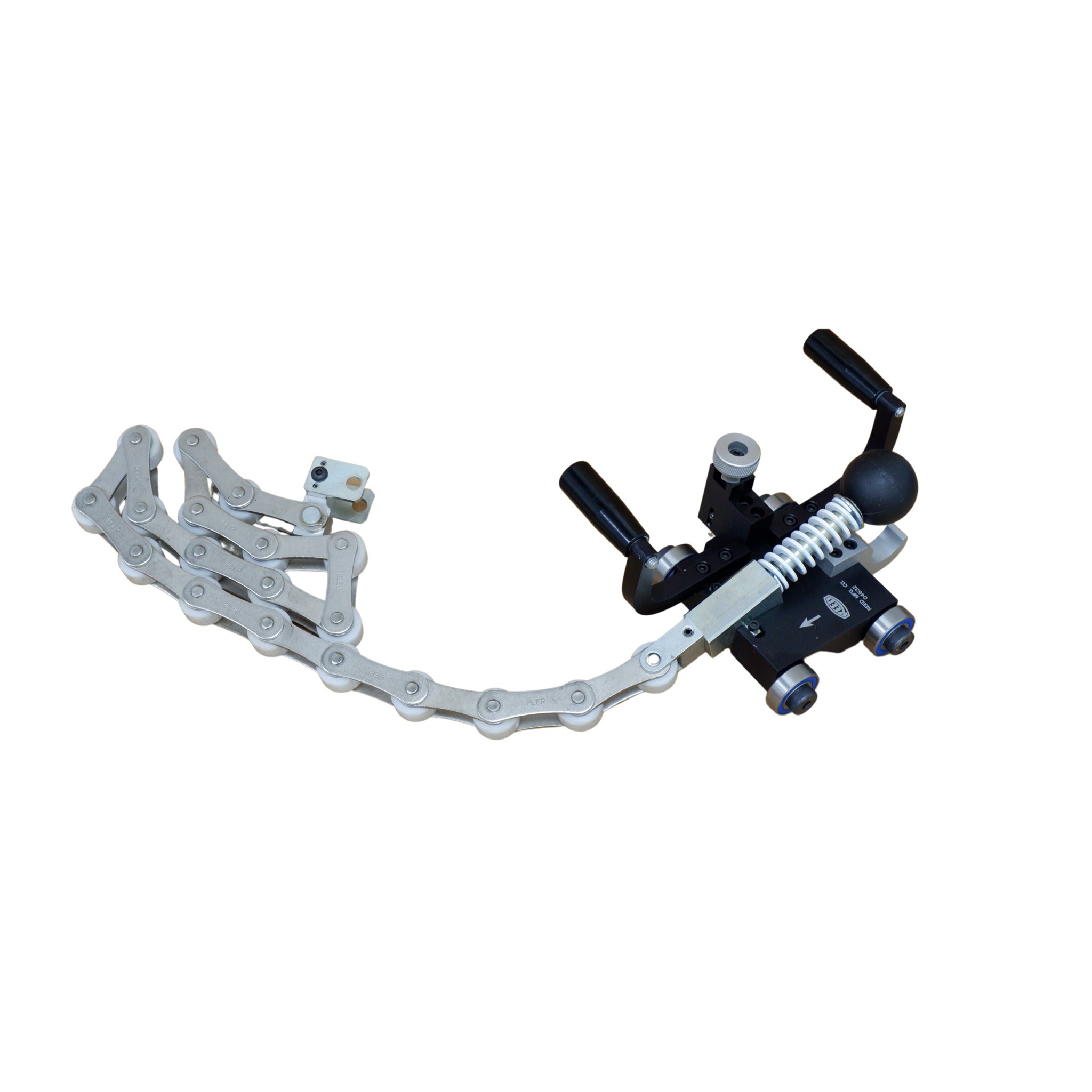

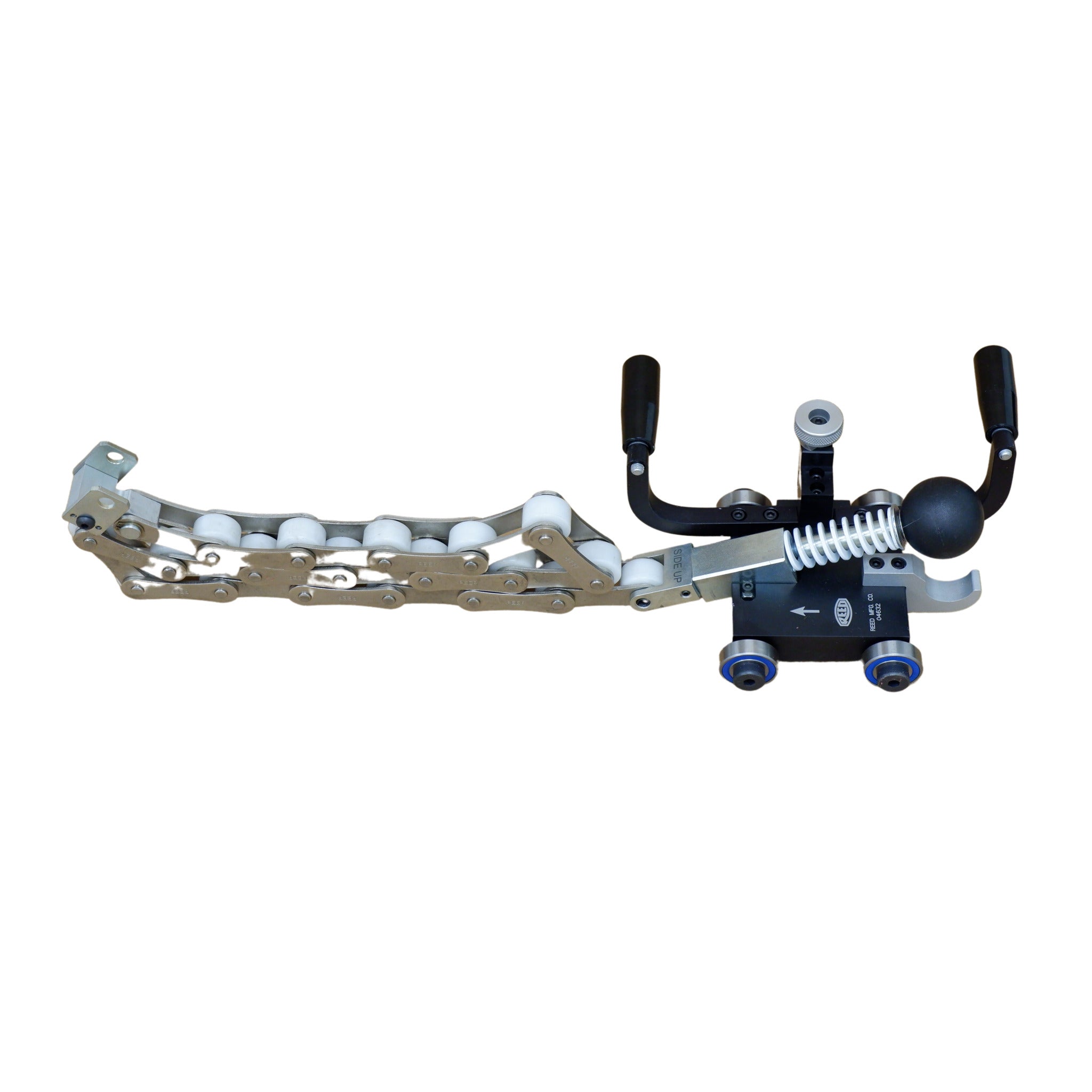

The Reed PEPEEL12 is a PE pipe peeler that removes the oxidized surface layer from 6" to 12" polyethylene pipe before electrofusion. Its spring-loaded blade adjusts to high and low spots on out-of-round pipe, producing a uniform peel on every revolution. The tool covers the full size range with a single setup and works on PE, HDPE, and PP-RCT.
Specifications
| Specification | Detail |
|---|---|
| Catalog No. | PEPEEL12 |
| Item Code | 04632 |
| Pipe Capacity (Nominal IPS) | 6" to 12" |
| Pipe Capacity (Actual O.D.) | 168-324 mm (6.6" minimum) |
| Compatible Materials | PE, HDPE, PP-RCT |
| Peel Depth | .010" ribbon |
| Clearance Required | 6 1/2" (165 mm) |
| Weight | 10.9 lbs (5.0 kg) |
| Metric Compatibility | Yes |
| Warranty | 5 years |
Key Features
- Spring-Loaded Blade. Maintains constant pressure on the pipe surface, adjusting automatically for high and low spots to keep peel depth consistent regardless of pipe roundness.
- Single-Tool Coverage. One HDPE pipe peeler handles every nominal IPS size from 6" to 12" without swapping parts or adapters.
- Spiral Tracking. The tool spirals back onto the pipe automatically, peeling a clean path on every revolution without operator repositioning.
- Corrosion-Resistant Chain. Thermoplastic rollers and plated side plates resist moisture and corrosion in wet trench and underground work environments.
- Mid-Pipe and End-Pipe Use. Works anywhere along the pipe with 6 1/2" clearance for electrofusion pipe preparation at couplings, end connections, and tapping saddle locations.
Applications
The PEPEEL12 is an HDPE pipe peeler used for pipe surface preparation in:
- Electrofusion coupling and fitting joints
- Tapping saddle installations
- Municipal water and sewer line construction
- Gas distribution piping
- Industrial HDPE piping systems
- Field repairs on installed pipelines

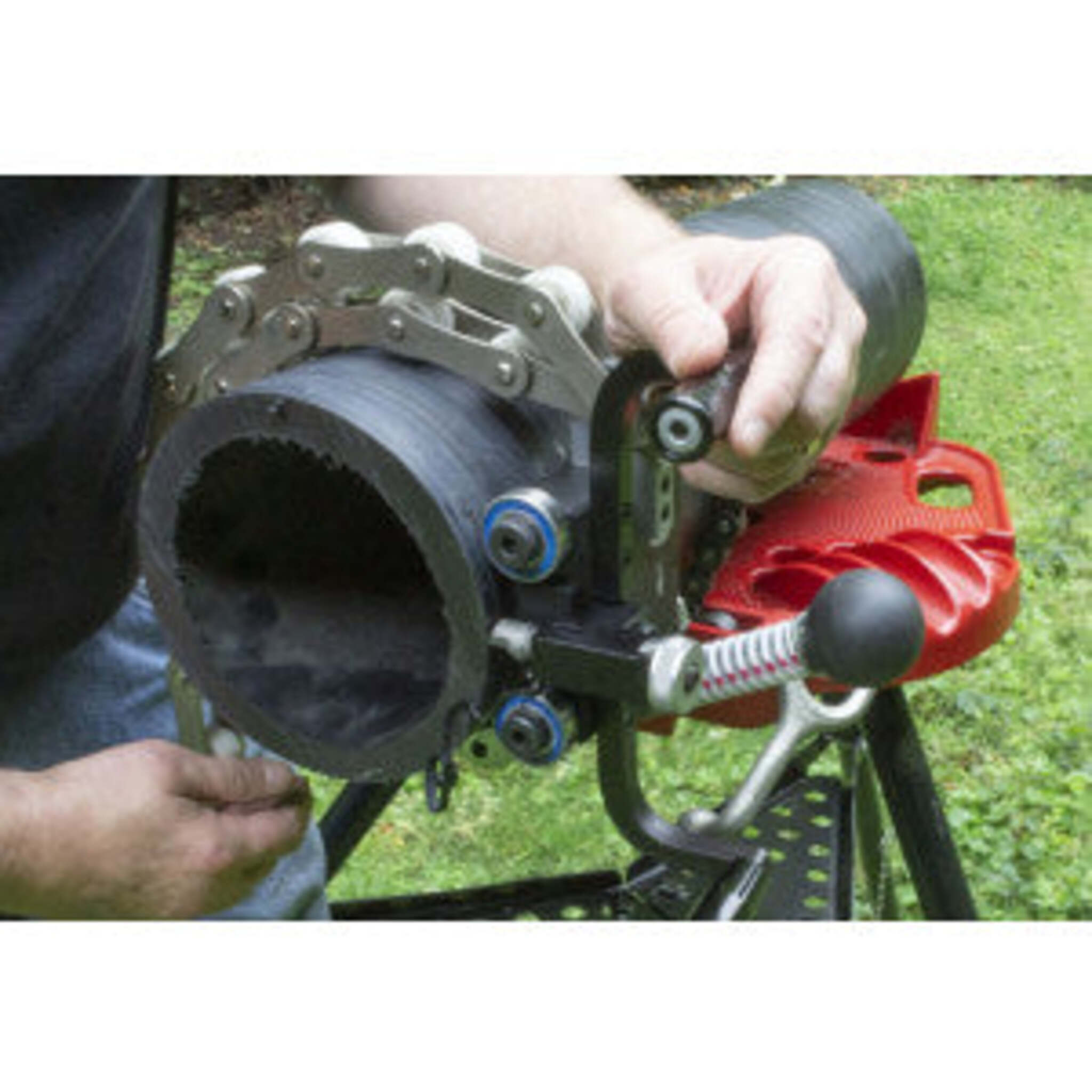

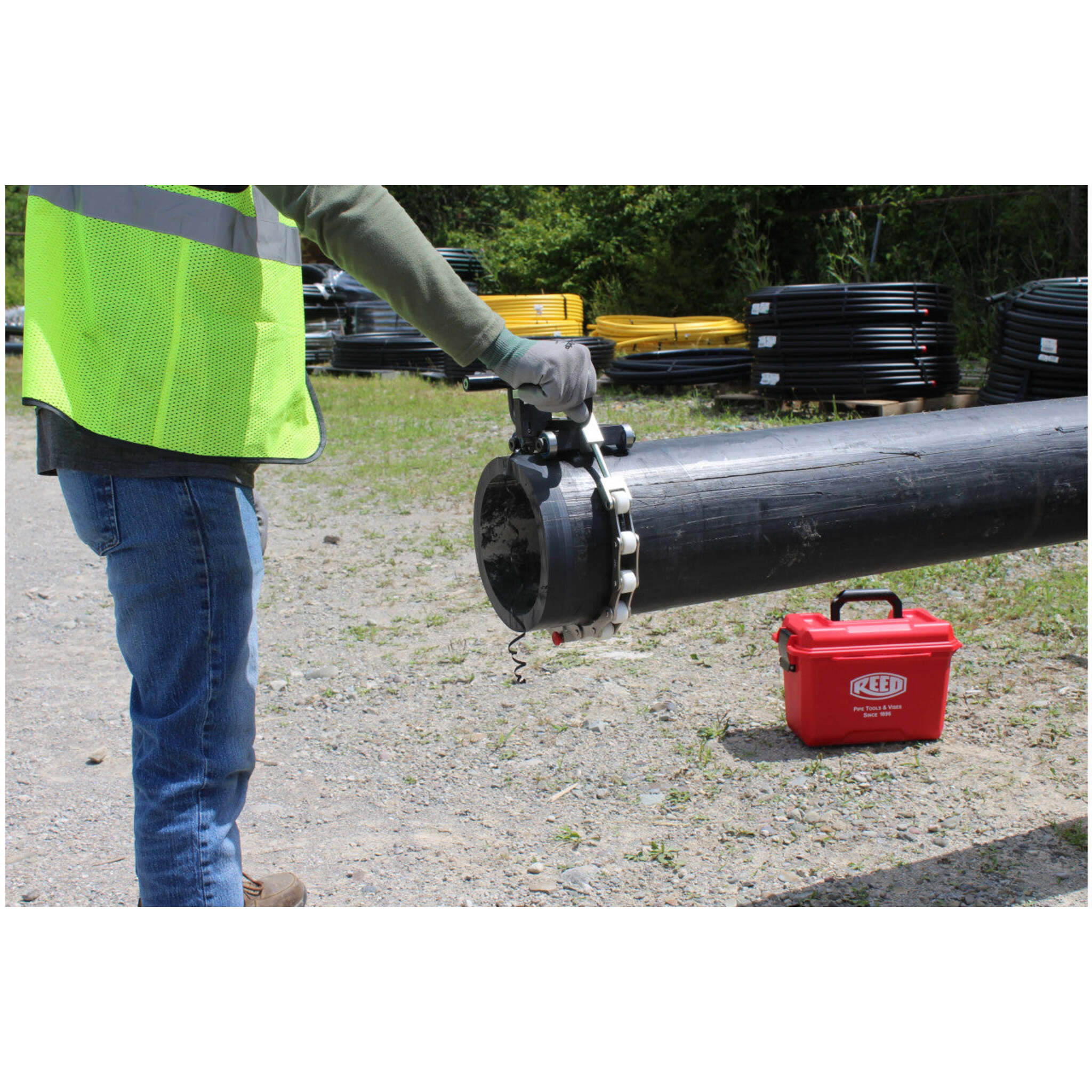

How to Peel PE Pipe for Electrofusion
These steps apply to the Reed PEPEEL12 and Reed PEPEEL6. Always wear safety glasses.
- With the blade raised, place the peeler on the pipe and attach the chain.
- Orient the tool so the rollers align with the edge of the pipe. Lightly tighten the chain.
- Wrap excess chain around itself and secure with the chain keeper. Lower the blade.
- Rotate the tool clockwise until the pipe is peeled to the required length for your fitting.
Score the outside layer before peeling if the chip does not break cleanly. When peeling mid-pipe, position the blade to rotate clockwise as the operator faces it. Peel length depends on fitting insertion depth, which varies by manufacturer. Chamfer the pipe end before installing electrofusion fittings to prevent fitting damage.
Buy Reed PEPEEL12 PE Pipe Peeler Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed dealer serving customers across Canada and the United States. Free shipping on orders over $199, with a 30-day return policy. The Reed PEPEEL12 is backed by a 5-year Reed warranty.
See our complete selection of Reed pipe tools and pipe tools.
Frequently Asked Questions
What is a PE pipe peeler?
A rotary tool that removes the oxidized surface layer from polyethylene pipe before electrofusion. Electrofusion fittings require a clean, uncontaminated pipe surface to form a reliable welded joint. The peeler wraps around the pipe and strips a controlled ribbon of material as it rotates.
How to peel PE pipe for electrofusion?
Attach the peeler to the pipe with its chain, lower the blade, and rotate clockwise. The spring-loaded blade tracks the surface and removes a .010" ribbon of material per revolution. Peel to the insertion depth specified by the fitting manufacturer. See the procedure above for full detail.
PE pipe peeler vs pipe scraper: what is the difference?
A PE pipe peeler like the PEPEEL12 wraps around the pipe and spirals along it, removing a controlled ribbon at consistent depth. A polyethylene pipe scraper is typically a handheld blade drawn along the surface manually. Peelers produce a more uniform result on larger diameters where consistent removal depth matters for joint integrity.
What is the best pipe peeler for HDPE electrofusion?
It depends on pipe size. The Reed PEPEEL12 is an HDPE pipe peeler that covers 6" to 12" nominal IPS in a single tool and adjusts for out-of-round pipe. For smaller diameters, the Reed PEPEEL6 handles 1 1/2" to 6".
How to prepare PE pipe for electrofusion?
Mark the insertion depth on the pipe, then peel the surface to that length using a pipe peeler for electrofusion. Chamfer the pipe end to avoid damaging the fitting. Clean the peeled surface with a lint-free cloth and the fitting manufacturer's recommended solvent before fusing.
