Description
33 Gallon Pre-Charged Hydro-Pneumatic Tank for Residential Water Wells and Irrigation
Product Overview
The Well-Rite WR-120R Well Pressure Tank is a pre-charged hydro-pneumatic tank crafted for residential and commercial water well systems, pressure booster applications, and irrigation. This WR120R pressure tank minimizes pump cycling and stabilizes water pressure. It features a patented controlled-action diaphragm for superior drawdown and separation of air and water.
Quick Specs:
- Capacity: 33.4 Gallons
- Maximum Pressure: 125 PSI
- Connection Size: 1" NPT Stainless Steel
- Pre-Charge: 38 PSI (Adjustable)
- Certification: NSF/ANSI 61
⚠️ Important Compatibility Note
Optional installation kits include a pressure switch factory pre-set to 30/50 PSI. The switch is fully adjustable and can be set to other common residential pressure settings, such as 40/60 PSI.
Key Features of Well-Rite WR120R Pressure Tank
- The tank is constructed from 16-gauge solid steel with a high-quality urethane paint finish for corrosion resistance.
- A patented welded stainless steel water connection includes separate air and water seals to prevent leaks.
- The internal design features a 100% butyl rubber bladder and an anti-microbial copolymer polypropylene lower water chamber.
- Condensation-reducing design helps eliminate external corrosion in damp basements or crawl spaces.
- The diaphragm is sized specifically for each tank to reduce wear and abrasion against tank walls.
- The Well-Rite WR-120 33.4-gallon storage tank is factory pre-charged to 38 PSI for well applications.
Tank Installation Kit Options (Adjustable Pressure Switch Included)

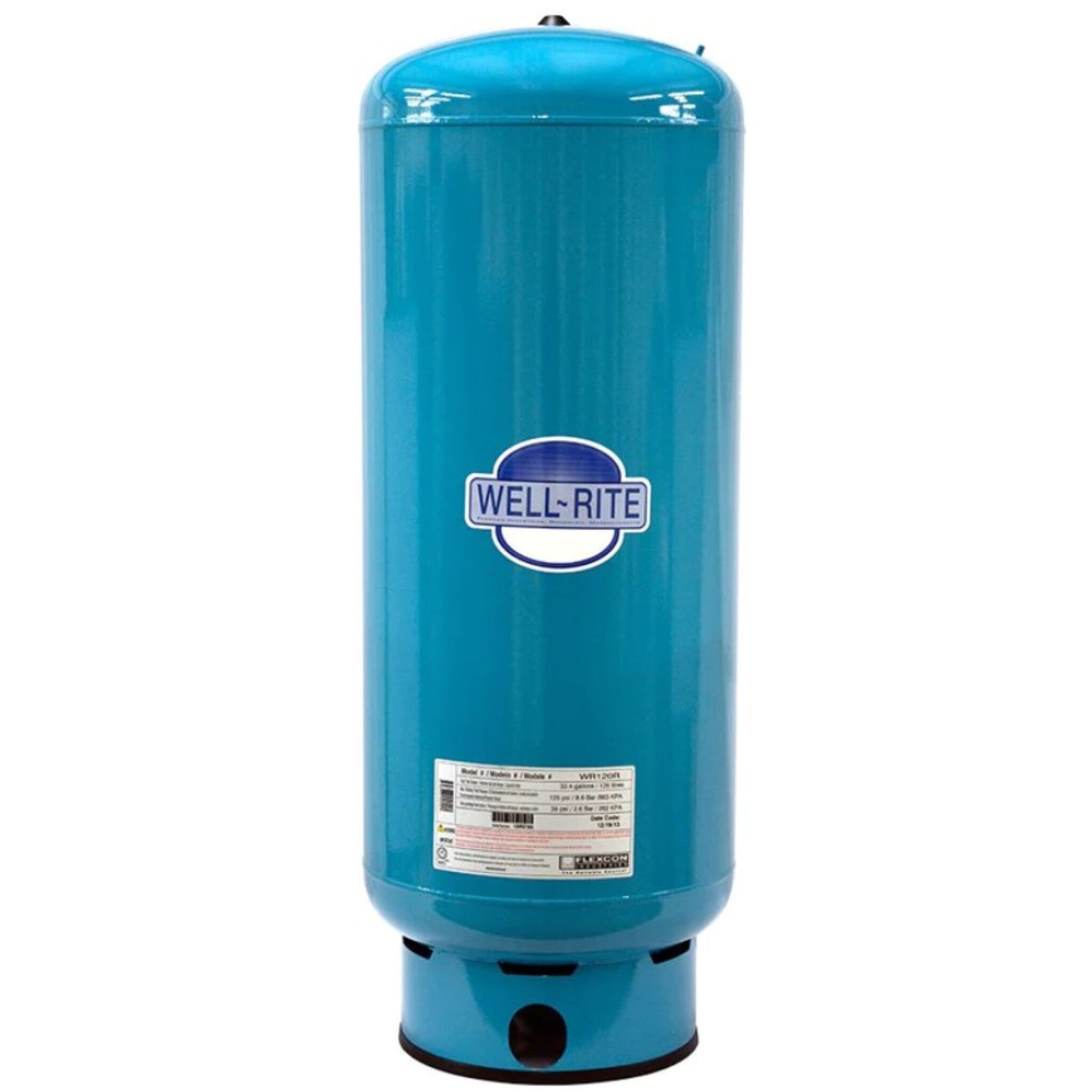

Tank Only
Includes the 33.4-gallon Flexcon Well-Rite WR-120R pressure tank only. No pressure switch, gauge, or installation fittings are included.

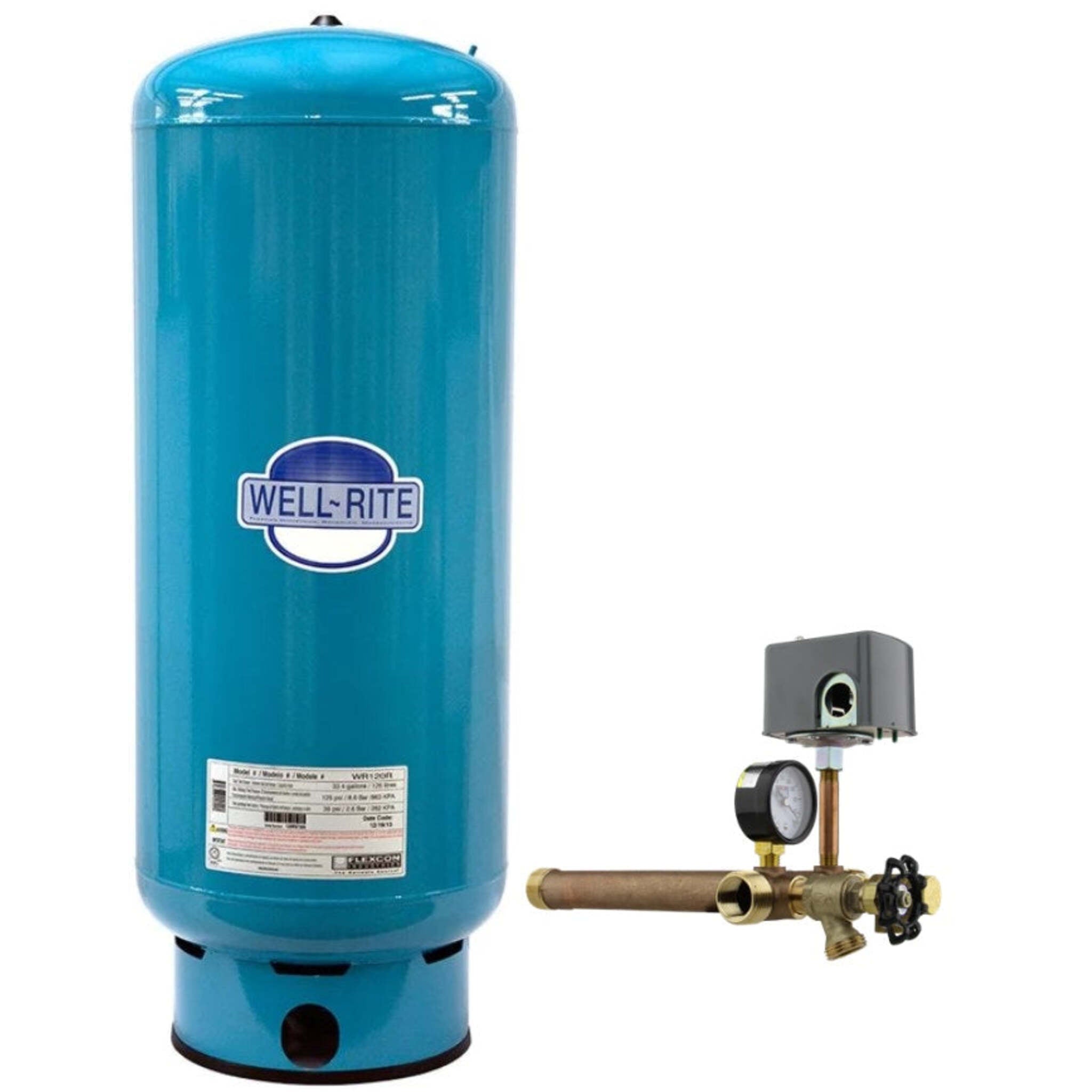

Tank with Brass Install Kit
Includes the WR-120R pressure tank paired with a durable brass tank tee assembly, ideal for reliable well system installations. The brass kit offers corrosion resistance and easy servicing.

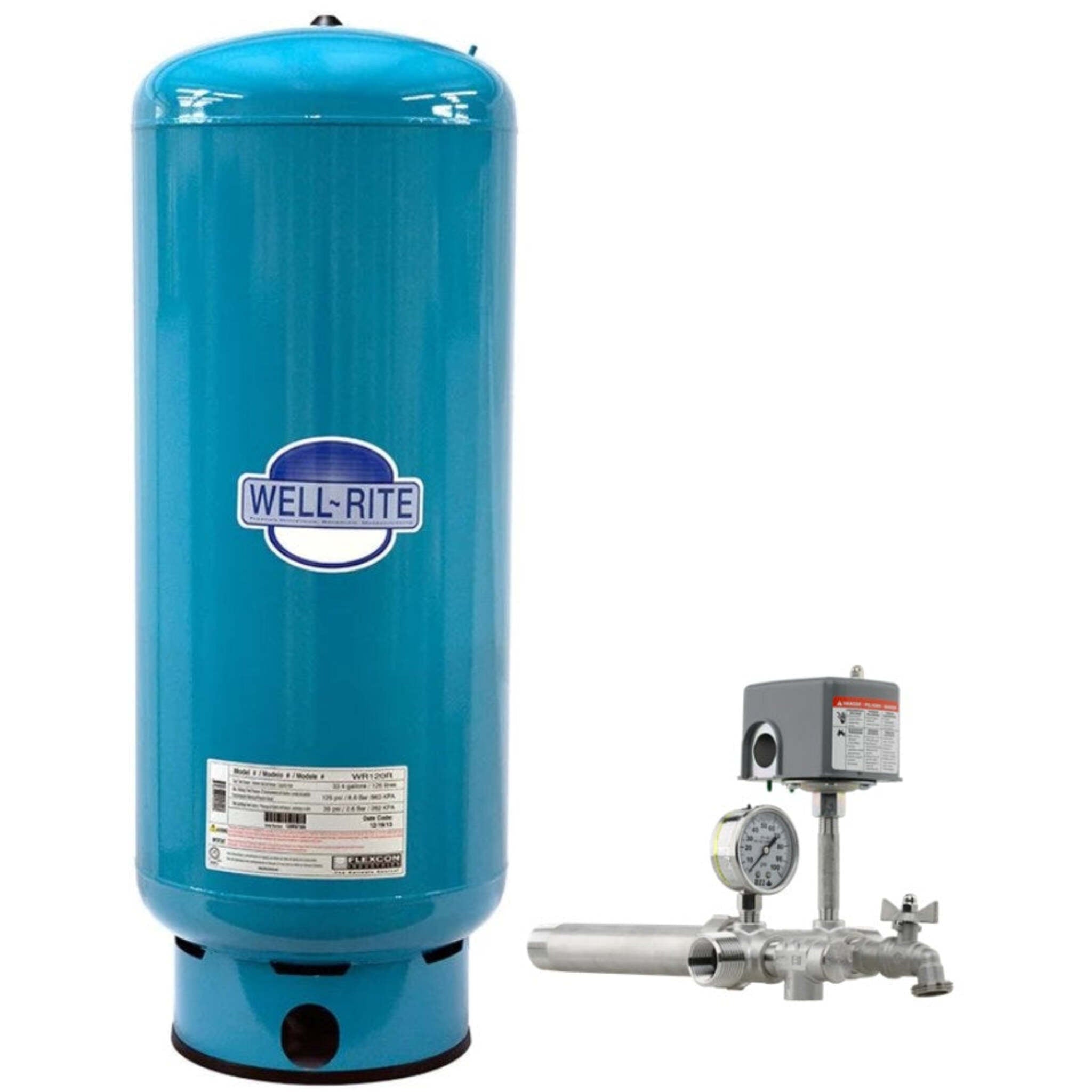

Tank with Stainless Steel Install Kit
Includes the WR-120R tank paired with a 304 stainless steel tank installation kit, designed for enhanced corrosion resistance and long-term durability.
Each tank install kit includes:
- 304 stainless steel tank tee
- Adjustable pressure switch
- Pressure gauge
- Pressure relief valve
- Union fitting
- Hose bib / drain valve
Well-Rite WR-120R Well Pressure Storage Tank Steel Specifications
| Category | Details |
|---|---|
| Model Number | WR-120R (WR120) |
| Capacity | 33.4 Gallons (100 Litres) |
| Body Material | Metal |
| Diaphragm Materials | Butyl Rubber |
| Material Of Construction | Drawn Steel w/ Epoxy Finish |
| Dimensions | 16" Diameter x 42.75" Height |
| Connection | 1" NPT Stainless Steel Elbow |
| Maximum Pressure | 125 PSI |
| Pre-Charge | 38 PSI (Adjustable) |
| Drawdown (30/50 Switch) | 11.3 Gallons |
| Drawdown (40/60 Switch) | 9.7 Gallons |
| Maximum Temperature | 140°F |
| Connection Type | Female (FPT) |
| Product Weight (lbs) | 65 |
| Warranty | 5 Years |
| Application | Residential, Commercial, Irrigation, RO |
Dimensions
- Tank Diameter: 16"
- Tank Height: 42.75"
- Connection Size: 1" NPT pipe tap size.
Ideal System Applications
- Residential well water systems require consistent pressure.
- Commercial water storage and pressure regulation.
- Pressure booster pump applications for low-flow scenarios.
- Large-scale reverse osmosis systems (requires pre-charge adjustment).
- Lawn and garden irrigation systems.
- Cottage or seasonal property water systems.
Common Pressure System Problems
If You're Experiencing:
- Well Rite pressure tank is cycling on and off too rapidly (short-cycling).
- Fluctuating water pressure when multiple faucets are open.
- Pump overheating due to frequent starts.
- Water hammer or banging noises in pipes.
- Corrosion or rust on your existing steel tank.
The Well-Rite WR-120R Well Pressure Storage Tank Steel uses CAD-2 technology to maximize drawdown and reduce pump cycles, significantly extending the life of your pump while delivering steady water flow.
Key Benefits of this Well Rite Pressure Tank
- Heavy-duty 16-gauge steel construction ensures durability in harsh environments.
- An anti-microbial liner maintains cleaner water storage and hygiene.
- Stainless steel connections resist corrosion better than mild steel alternatives.
- Efficient drawdown reduces energy consumption by limiting pump starts.
- Suitable for both indoor and outdoor installation due to appliance-quality paint.
Installation & Maintenance
- Pre-charged to 38 PSI; adjust air pressure to 2 PSI below your pump's cut-in pressure (e.g., 28 PSI for a 30/50 switch).
- For reverse osmosis systems, reduce pre-charge to approximately 7 PSI.
- Compatible with standard 1" tee kits and pressure tank installation kit components.
Maintenance Guidelines:
- Check internal air pressure annually to ensure proper system operation.
- Visually inspect the tank exterior for any signs of damage or corrosion.
- Ensure the air valve cap is securely tightened to prevent air loss.
Accessories & Add-Ons
To complete your installation, consider pairing this 33-gallon well pressure tank with a compatible tank tee kit. We also recommend checking your pressure pumps to ensure they match the tank's capacity.
For low-pressure issues, explore our range of Booster Pumps. Don't forget essential pressure tank accessories like gauges and relief valves.
Get the Well-Rite WR-120R from Cleanflow
Cleanflow is your trusted source for Canadian water treatment solutions. We supply the Flexcon pressure tank, which is directly delivered to customers across Canada and the USA. As an authorized distributor of Flexcon products, we ensure you receive genuine, high-performance equipment.
Frequently Asked Questions
Can I use this as a 33-gallon well pressure tank replacement?
Yes, the WR-120R is a direct replacement for most standard 33 or 32-gallon pressure tanks. It offers a 33.4-gallon volume and standard 1" connections for easy swapping.
Is this tank suitable for Reverse Osmosis?
Yes. While it ships pre-charged for well applications (38 PSI), the Well-Rite WR-120R Well Pressure Tank works excellently for RO applications when the pre-charge is lowered to 7 PSI.
Where is the Well-Rite tank manufactured?
Flexcon Industries manufacture these tanks in the USA, ensuring high quality and compliance with North American standards like NSF 61.
How often should I check the air pressure?
You should check the pre-charge pressure annually. The tank must be completely empty of water when checking the air pressure to get an accurate reading.
Does the tank come with a warranty?
Yes, the well-rite 33-gallon pressure tank comes with a 5-year limited warranty from the manufacturer, covering defects in materials and workmanship.
What is the difference between the WR120 and WR120R?
The model numbers are often used interchangeably. The "R" typically denotes the standard residential retail version of the Well Rite wr120r, which includes the same 33.4-gallon capacity and specifications.
