Description

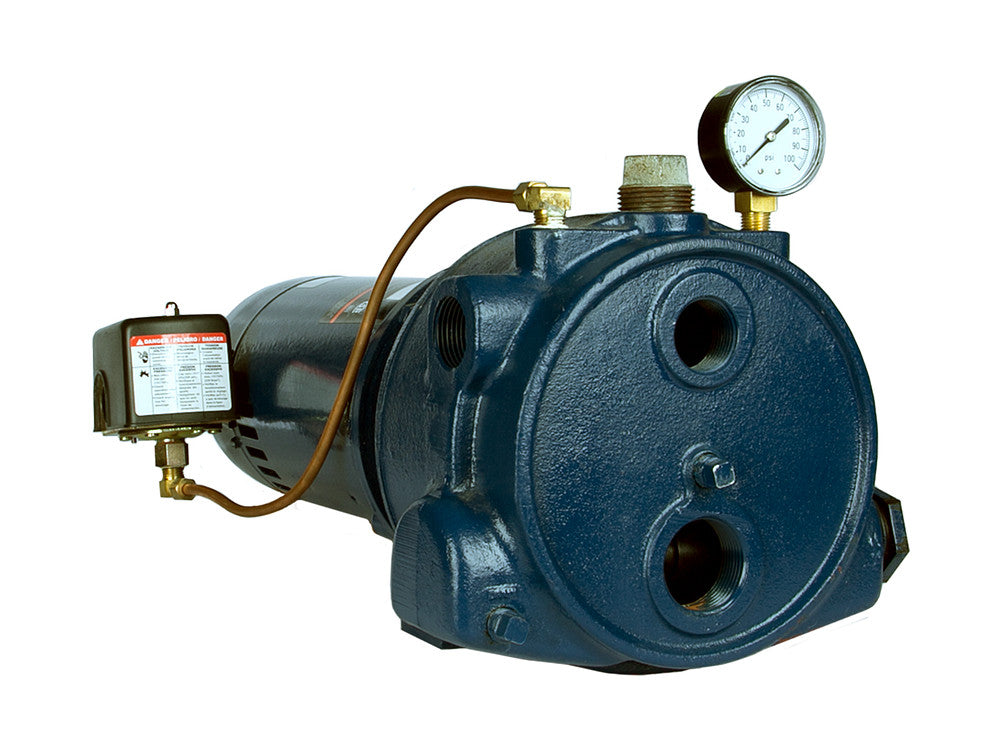

Rugged Cast Iron Pump for Shallow or Deep Well Applications
The Franklin Electric Convertible Pro RM2 Series Cast Iron Jet Pump provides reliable water supply for residential and light commercial use. It is designed for adaptable use in either a shallow well or deep well configuration, drawing water from depths up to 100 feet. With a durable cast iron case and stainless steel impeller, this pump is a dependable component for homes, farms, and cabins requiring consistent water pressure. This series offers a straightforward solution from Franklin Electric, known for its durable water systems.
Key Benefits of the Convertible Jet Pump Pro (RM2) Series
- Delivers high performance with a stainless steel impeller for optimum durability.
- Converts easily from a shallow well jet pump to a deep well setup.
- Provides consistent water pressure with a factory-installed 30/50 psi switch.
- Ensures leak-free operation with a carbon/ceramic faced mechanical shaft seal.
- Operates safely with potable water, as certified to NSF/ANSI/CAN 372 standards.
- Offers powerful performance with a high service factor 56C-frame motor.
- Achieves suction lifts up to 100 feet in a deep well configuration.
Product Specifications
| Category | Specification | Details |
|---|---|---|
| Ratings | HP (60Hz) | 1/2 hp, 3/4 hp, 1 hp |
| Phases | Single-Phase, Three-Phase (1 hp model) | |
| Voltage | 115 VAC / 230 VAC (Single-Phase), 230 VAC / 460 VAC (Three-Phase) | |
| Operation | Maximum Fluid Temp. | 140 °F (60 °C) |
| Max. Working Pressure | 150 PSI | |
| Motor Enclosure | ODP (Open Drip Proof) | |
| Materials of Construction | Pump Body | Heavy-duty Cast Iron |
| Impeller | Stainless Steel | |
| Diffuser | Thermoplastic | |
| Shaft Seal | Carbon/Ceramic face with Nitrile Elastomer | |
| Dimensions | Inlet (Suction) | 1-1/4" Threaded - FNPT |
| Outlet (Discharge) | (3) 1" Threaded - FNPT ports | |
| Pump Length | Varies by model (17.91" - 19.06") |
What's Included
- Convertible Jet Pump with factory-installed shallow well injector
- Adjustable pressure switch (set at 30/50 psi)
Electrical information
(All single-phase variants are dual-voltage.)
All single-phase models are dual-voltage (115/230 VAC).
| Horsepower | Phase | Voltage | Full Load Amps @ 230V |
|---|---|---|---|
| ½ HP | Single-Phase | 115/230 VAC | 5.9 A |
| ¾ HP | Single-Phase | 115/230 VAC | 7.4 A |
| 1 HP | Single-Phase | 115/230 VAC | 8.4 A |
- All models use dual-voltage motors that are field convertible between 115 VAC and 230 VAC single-phase operation.
- Amp ratings listed above are at 230V; amperage is higher when wired for 115V.
Key Features – RM2 Series
-
Convertible Design
Ships with an internal shallow well injector for lifts up to 25 feet. For deep well applications, the injector is replaced with a bypass plug to accommodate an external jet assembly, enabling lifts up to 100 feet.
-
Durable Cast Iron Case
The heavy-duty case includes a 1-1/4" inlet and three 1" outlet ports, providing robust construction and plumbing flexibility for various installations.
-
High-Efficiency Hydraulics
A stainless steel impeller paired with a precision-molded thermoplastic diffuser ensures optimal hydraulic performance and resistance to corrosion and abrasion.
-
Serviceable Motor Connection
Features a shaft coupling specifically designed for easy removal of the keyed shaft 56C-frame motor, simplifying maintenance and service.
-
Certified for Potable Water
The pump is certified to NSF/ANSI/CAN 372 standards, confirming its compliance with low-lead requirements for safe use in drinking water systems.
Performance Overview
The Franklin Convertible Pro (RM2) Series offers versatile performance based on its configuration. As a shallow well jet pump, it can deliver up to 23 GPM. When configured for deep well applications with the appropriate jet assembly, it can lift water from as deep as 100 feet. The performance varies by horsepower and total suction lift, making it adaptable for small homes with a 1/2 hp model or larger residences with the 1 hp model. This flexibility makes it one of the most functional jet pumps available.
Common Applications
- Supplying fresh water to rural homes, farms, and cabins
- Private water pressure systems
- Lawn watering and sprinkler systems
- Light commercial water transfer
- Shallow well and deep well water retrieval
- Cottage and residential irrigation
Critical Installation and Usage Notes
- This pump must be fully primed before its initial startup to prevent damage.
- A deep-well injector kit must be ordered separately for deep well applications.
- Parallel pipe injectors are required for all deep well installations.
- The minimum required inside well diameter for deep-well injectors is 4 inches.
- The motor is designed for dependable performance in indoor or outdoor installations, but requires proper weather protection.
Get the Franklin Electric Convertible Pro RM2 from Cleanflow
Cleanflow Utility Supply Company is your prime source of products and supplies for water and wastewater treatment infrastructure across Canada and the USA. Our mission is to provide the high-quality products your facility needs with the quick and attentive service you deserve at a competitive price. We ensure the availability and reliability of all our Franklin Electric products.
Frequently Asked Questions
What is the difference between a shallow well and deep well setup?
A shallow well setup uses the factory-installed injector for suction lifts of 0–25 ft. A deep well setup requires replacing the injector with a bypass plug and installing a two-pipe jet assembly in the well for lifts up to 100 ft.
Which horsepower pump should I choose?
The ½ HP model suits small homes or cottages. The ¾ HP model supports medium household demand, while the 1 HP model is best for larger homes, heavier use, and longer piping runs.
Can the RM2 Series lift water from 100 ft?
Yes. When configured as a deep well jet pump with the correct deep well jet assembly, the two-pipe system allows water to be lifted from depths up to 100 ft.
Are these pumps suitable for potable water?
Yes. The pumps are certified to NSF/ANSI/CAN 372 standards, confirming compliance with low-lead requirements for drinking water systems.
Do these pumps come with a pressure switch?
Yes. Every RM2 pump includes an adjustable 30/50 psi pressure switch pre-installed from the factory.
Can the RM2 be used for irrigation?
Yes. With flow rates up to 23 GPM and a convertible system design, it is well suited for irrigation, lawn watering, and sprinkler applications.
Is the motor outdoor rated?
The RM2 Series uses a 56C-frame motor designed for dependable indoor or outdoor installation when properly protected from weather exposure.
How does this pump compare to the VersaJet Pro shallow well jet pump?
The Convertible Pro (RM2) is designed for both shallow and deep wells, while the VersaJet Pro is a dedicated shallow well jet pump with interchangeable nozzles for optimizing shallow well performance.
What are the main advantages of a cast-iron pump body?
The heavy-duty cast iron body provides durability, reduces operational noise, and supports long service life in demanding environments.
Can the pressure switch setting be changed?
Yes. The pressure switch is adjustable. It comes factory-set to 30/50 psi but can be modified to meet specific system requirements.
