Description
Heavy-Duty Sewage Pump Auto-Coupling System for Safe and Efficient Maintenance
Product Overview

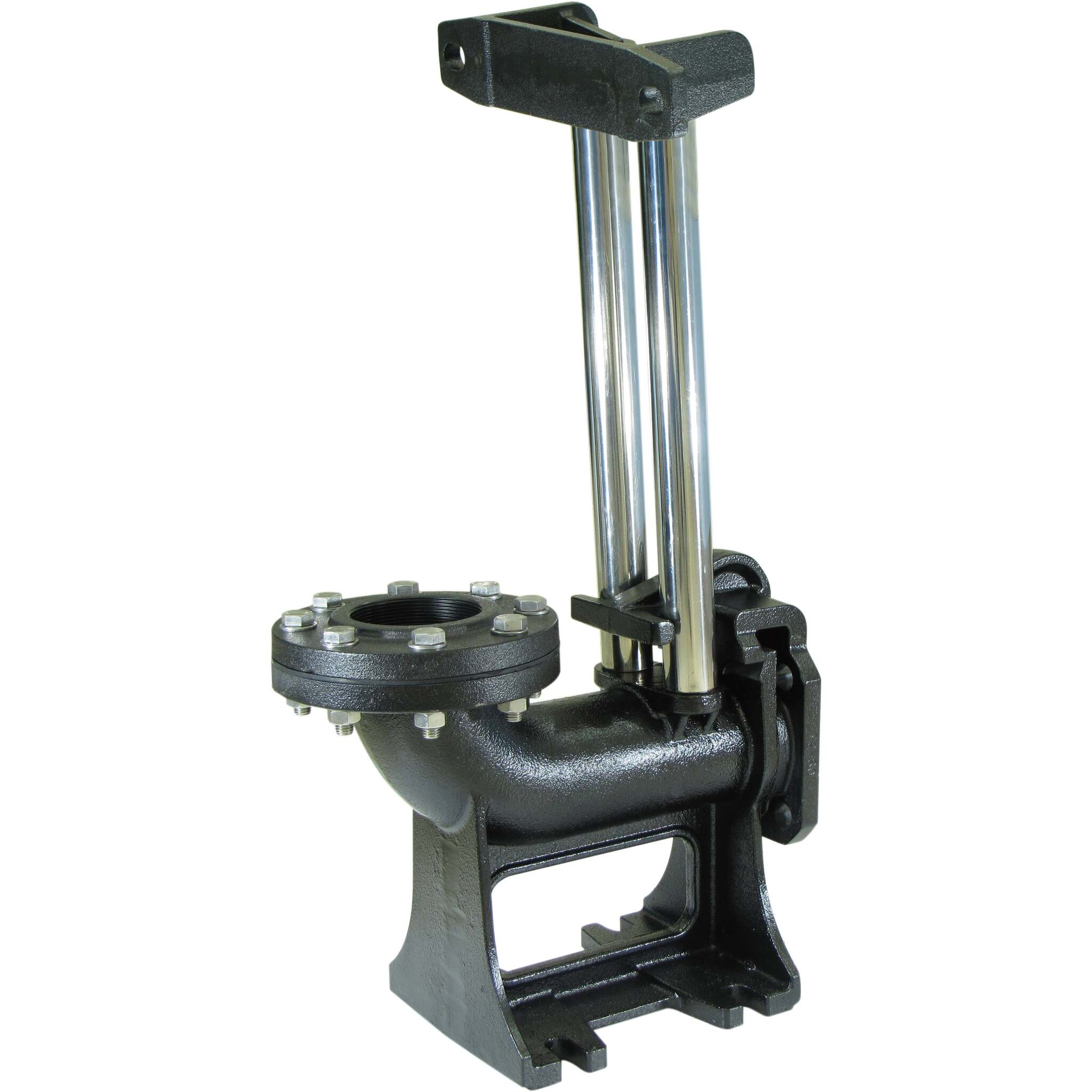

The HCP Guide Rail System is a heavy-duty pump auto-coupling system designed for 3-inch HCP sewage pumps. It is used to streamline pump installation and maintenance in wastewater systems by enabling seamless removal and installation of submersible pumps without personnel entering the sewage pit.
Commonly installed in sewage lift stations and wastewater treatment facilities, this system features a durable cast iron discharge elbow and base. It fits this use case by bolting directly to the discharge flange, ensuring a secure connection and precise positioning via the top guide pipe bracket. This HCP guide rail system enhances safety and operational control.
Key Benefits of the HCP Guide Rail System
- Enable safer maintenance by allowing submersible pump removal without pit entry.
- Provides a tailored fit as a precise HCP guide rail system for 3-inch sewage pumps.
- Ensures long-term durability with robust cast-iron pump rail system construction.
- Secures the connection tightly with a specialized adapter kit that bolts to the discharge flange.
- Offers superior control during installation, with a top guide pipe bracket for accurate positioning.
- Allows flexible setup using standard Schedule 40 guide pipes ordered to required lengths.
- Functions as a complete wastewater pump installation kit for safe and efficient maintenance.
HCP Guide Rail System Specifications
| Category | Details |
|---|---|
| Product Type | Guide Rail System / Auto-Coupling System |
| Discharge Size | 3-Inch |
| Material | Cast Iron Discharge Elbow/Base |
| Compatibility | 3" HCP Sewage Pumps (verify model compatibility prior to purchase) |
| Application | Sewage Pits, Lift Stations, Wastewater Treatment |
| Guide Pipe Requirement | Standard Schedule 40 (Ordered separately) |
| Mounting | Bolts to discharge flange |
| Features | Top guide pipe bracket, Secure adapter kit |
| Function | Pump removal/installation without pit entry |
What’s Included
- 3" Cast Iron Discharge Elbow/Base
- Guide Rail Adapter Kit
- Top Guide Pipe Bracket
- Bolts for Flange Connection
Key Features of HCP Guide Rail System
Seamless Pump Management
This feature enables the removal and reinstallation of pumps without personnel entry, significantly improving safety protocols in hazardous sewage environments.
Precision-Engineered Compatibility
Designed specifically as a 3" sewage pump guide rail, it ensures a perfect fit for HCP pumps, eliminating compatibility issues and ensuring optimal seal performance.
Cast Iron Construction
The discharge elbow and base are crafted from high-quality cast iron, providing the necessary durability to withstand corrosive wastewater environments.
Secure Adapter Kit
This sewage lift station adapter bolts directly to the pump's discharge flange, ensuring a tight, leak-free connection is essential for maintaining system pressure.
Top Guide Pipe Bracket
Included to secure the upper end of the rails, this bracket ensures the pump slides smoothly into the discharge elbow base every time.
Performance Overview
The HCP Guide Rail System is a static installation component designed to facilitate the performance of compatible pumps, rather than having dynamic metrics itself. It is critical for high-use environments where maintenance speed is a priority.
- Hydraulic Connection: The cast iron discharge elbow provides a secure and stable connection point for the pump discharge.
- Operational Duty: Suitable for continuous submersion in wastewater applications.
- Optimal Operating Conditions: Designed for sewage pits and lift stations where entering the pit is hazardous or prohibited.
Applications
- Municipal sewage lift stations
- Industrial wastewater treatment plants
- Commercial building sewage drainage
- Agricultural waste management
- Large-scale septic systems
- Hotel and restaurant grease trap systems
Common Use
- Submersible pump removal without pit entry
- Guide rail system for non-clogging sewage pumps
- HCP GRS installation for submersible pumps
Installation & Use Notes
- Pipe Requirements: Requires standard Schedule 40 pipes for the rails, which must be cut to the specific depth of your pit.
- Compatibility: Specifically engineered for 3" HCP pumps; verify model compatibility (typically for models above 5HP) before purchase.
- Anchoring: The discharge elbow base must be securely anchored to the floor of the sump or wet well to handle the torque of the pump.
- Safety: This system removes the need for confined space entry during routine pump maintenance, but initial installation requires pit access.
- Maintenance: Periodically inspect the guide rails and the auto-coupling seal for wear or debris buildup to ensure smooth operation.
Accessories & Add-Ons
- Schedule 40 Guide Pipes (Cut to length)
- Lifting Chains (Stainless steel or galvanized)
- Float Switches for level control
- Control Panels for pump automation
Get the HCP Guide Rail System for 3" Sewage Pumps from Cleanflow
Cleanflow provides the HCP Guide Rail System to help you upgrade your waste management infrastructure. We ensure that industrial operators and municipal contractors have access to this essential 3-inch discharge pump rail adapter kit for safer, more efficient maintenance. Whether you are outfitting a new station or retrofitting an existing one, we offer the expertise to support your setup.
While you are here, browse our selection of submersible dewatering pumps for other drainage needs.
Cleanflow is your reliable source for the complete HCP pump lineup across Canada and the USA.
Frequently Asked Questions
Does this system come with the guide rails?
No, the system includes the brackets and discharge elbow components. Standard Schedule 40 guide pipes must be supplied separately and cut to the required pit depth.
What pumps are compatible with this system?
This guide rail system is engineered specifically for 3-inch HCP sewage pumps. It is typically compatible with models above 5 HP that use the triangular handle configuration. Always verify model compatibility before installation.
Do I need to enter the pit to disconnect the pump?
No. The auto-coupling system allows the pump to be lifted out using a chain, automatically disconnecting it from the discharge elbow without requiring confined space entry during routine maintenance.
Is the discharge elbow included?
Yes, the kit includes a 3-inch cast iron discharge elbow and base designed for secure installation in sewage pits and lift stations.
What material is the system made of?
The primary discharge elbow and base components are constructed from durable cast iron to withstand harsh wastewater environments.
Can this system be used with non-HCP pumps?
This system is designed specifically for compatible HCP sewage pumps. Using it with other brands may result in misalignment, improper sealing, or performance issues.
Is hardware included?
Yes, the kit includes the necessary bolts for attaching the adapter to the pump discharge flange. Anchoring hardware for securing the base to the pit floor is typically selected based on site-specific requirements.
