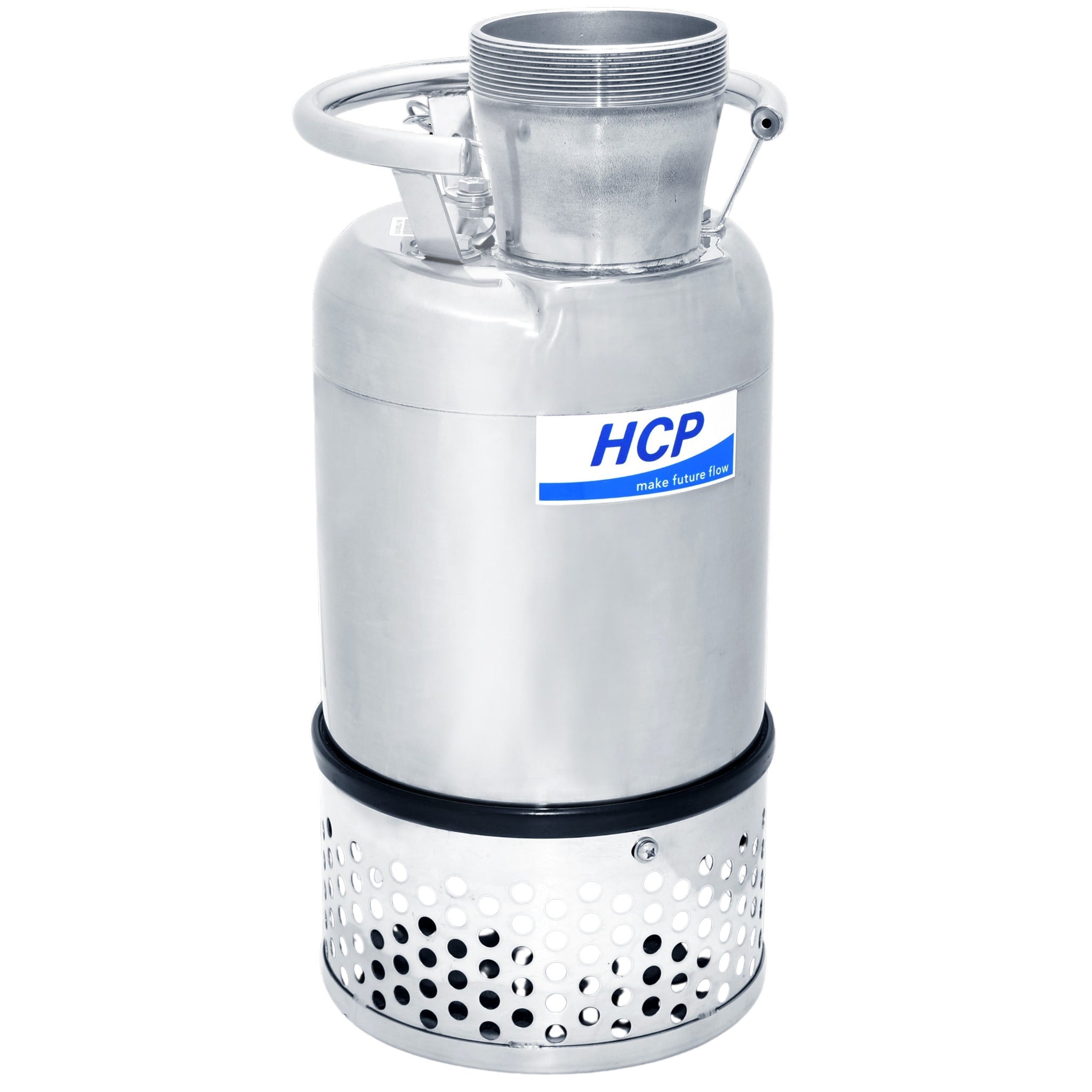

HCP Submersible XL Volume Dewatering Pump Model L-41A-6117EP – 4" Discharge, 1 HP, 120V, 255 GPM

High-Volume Submersible Pump for Heavy-Duty Dewatering, Irrigation, and Flood Control

The L-41A-6117EP is a commercial-grade submersible pump used for construction dewatering, flood control, and agricultural or aquaculture water removal. Its 1 HP 120V motor delivers high-capacity pumping up to 255 GPM, while cast iron, 304 stainless steel, and an aluminum bronze impeller provide durability in muddy or silty conditions. This dependable pump is a strong choice within our professional submersible dewatering pumps collection and complements the reliable solutions found in our HCP pumps range.

Key Benefits of the XL Volume Dewatering Pump

• Delivers high-volume pumping performance up to 255 GPM
• Handles solids up to 3/8" for muddy and silty water conditions
• Resists corrosion and wear with cast iron and 304 stainless steel construction
• Improves durability with a heavy-duty aluminum bronze impeller
• Protects the motor using dual mechanical seals and food-grade oil lubrication
• Reduces clogging with a sturdy bottom suction strainer
• Prevents overheating with an embedded thermal protection switch
• Supports optional automation with a piggyback float switch

HCP L-41A-6117EP Pump Specifications

What’s Included

• HCP L-41A-6117EP Submersible Pump
• 30-ft Power Cable with molded 120V three-prong plug
• Bottom suction strainer

Key Features of HCP L-41A-6117EP

High-Volume Output

Designed for large-scale dewatering, this pump moves up to 255 gallons per minute, helping contractors and operators remove water quickly and efficiently.

Durable Construction

A combination of cast iron, 304 stainless steel, and an aluminum bronze impeller provides strength, corrosion resistance, and long service life in demanding environments.

Debris-Resistant Design

The solid bottom-end strainer reduces the risk of clogging by preventing large debris from reaching the impeller.

Thermal Motor Protection

An integrated thermal switch automatically protects the motor from overheating during extended use.

Advanced Seal Protection

Dual mechanical seals with food-grade oil lubrication guard against water intrusion and reduce wear on critical components.

Optional Float Switch

An optional piggyback float switch can provide automatic on/off pump operation based on water levels.

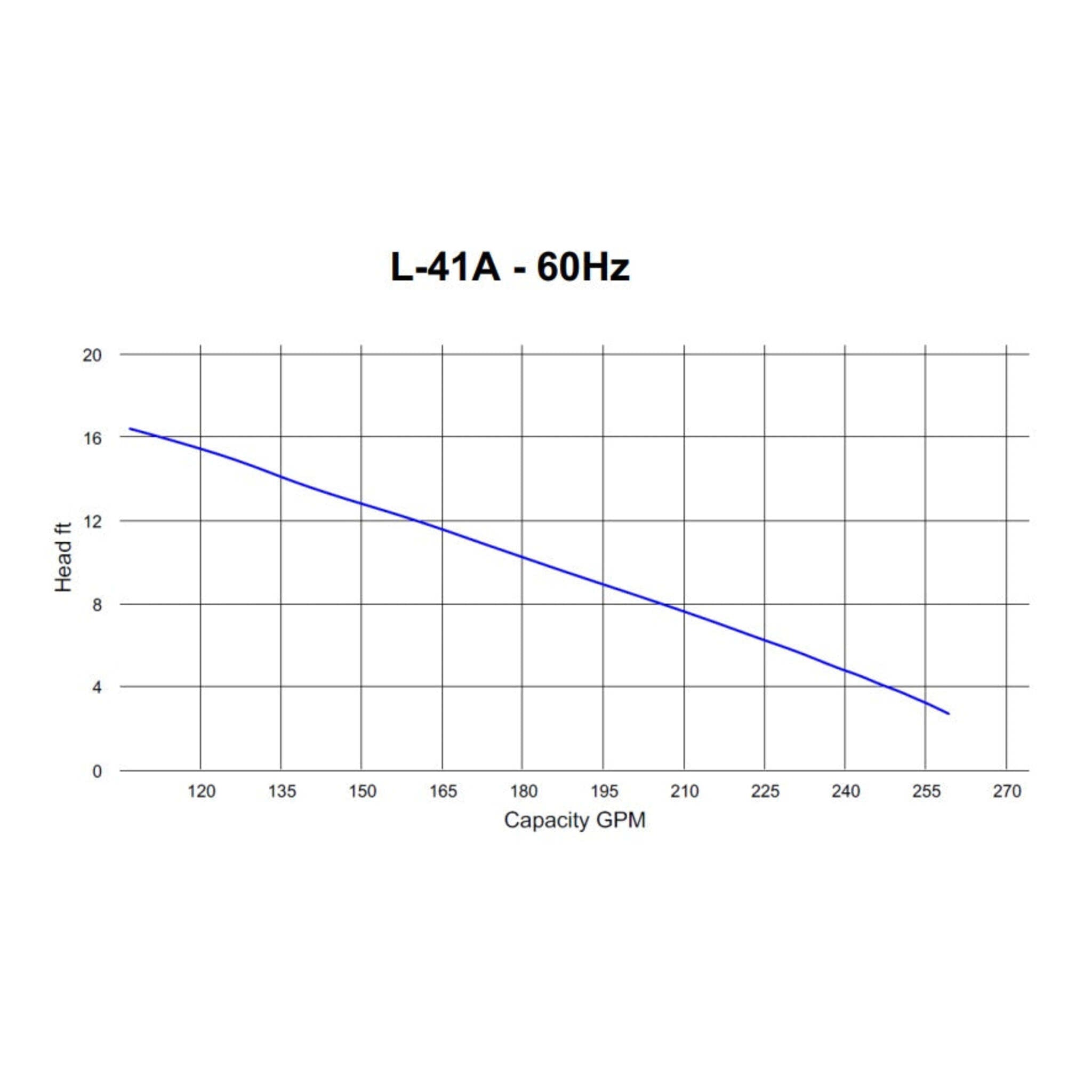

Performance Overview

This 120V submersible dewatering pump is built for continuous-duty operation within safe temperature limits. It performs best in high-volume, low-head situations where rapid water transfer is needed. Its design allows reliable operation in muddy, silty, or debris-prone water conditions.

Applications

• Agricultural irrigation
• Flood control and emergency water removal
• Aquaculture operations
• Construction site dewatering
• Ponds, lagoons, and reservoirs
• Municipal and industrial water management

Installation and Usage Guidelines

• Designed for submersible use only
• Do not run the pump dry
• Place on a stable base to avoid sinking into soft ground
• Use within rated head and temperature limits
• Pair with a piggyback float switch for automatic operation

Accessories & Add-Ons

Enhance your setup with:

• 4" Layflat Discharge Hose: Flexible, durable hose for high-volume discharge that rolls flat for easy storage.
• Aluminum Camlock Fittings: Quick-connect fittings for fast, secure hose setup.
• Piggyback Float Switch: Automatically controls pump on/off based on water level.

Professional-Grade Pumping Solutions from Cleanflow

Cleanflow provides a wide range of HCP pumps trusted by contractors and industrial operators across Canada and the USA. With expert support and reliable availability, Cleanflow helps match you with the right pumping solution. The HCP L-41A-6117EP stands out as a dependable choice for high-volume dewatering needs.

Frequently Asked Questions
