Posi-Lock PM5 Puller Set - Versatile 3-Jaw & 2-Jaw Configurations, 2-20 Ton Capacity - Engineered for Precision & Durability in Demanding Applications

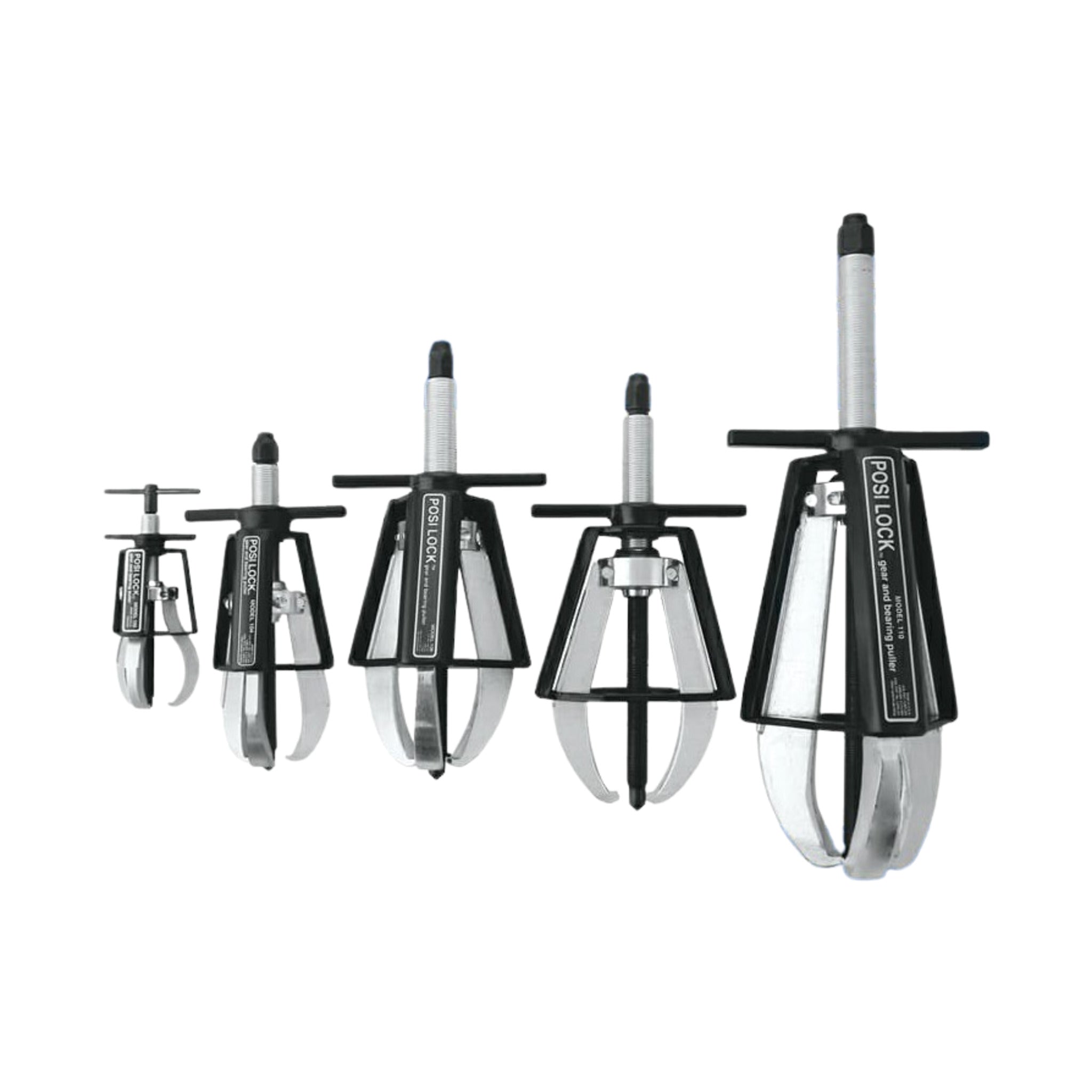

Posi-Lock PM5 Puller Set

Introducing the Posi-Lock PM5 Puller Set, your ultimate solution for a wide range of pulling tasks. This versatile set includes five robust pullers designed to meet the demands of various applications, ensuring you have the right tool for every job. Engineered for precision and durability, the Posi-Lock PM5 Puller Set delivers exceptional performance, making it an essential addition to any professional toolkit.

Key Features: Strength and Versatility for Every Task

Model 103 Puller | 3-Jaw | 2 Ton (18 kN)

• • Jaws: 3
  • Capacity: 2 ton (18 kN)
  • Reach (B): 3 in (76.2 mm)
  • Spread Range (C): 0.25 to 4.5 in (6.4 to 114.3 mm)
  • Weight: 1.3 lbs (0.59 kg)
  • Center Bolt Diameter (A): 0.37 in (9.4 mm)
  • Overall Length (D): 7 in (177.8 mm)
  • Jaw Width (E): 0.31 in (8 mm)

Model 104 Puller | 3-Jaw | 5 Ton (44 kN)

• • Jaws: 3
  • Capacity: 5 ton (44 kN)
  • Reach (B): 4 in (102 mm)
  • Spread Range (C): 0.5 to 5 in (13 to 127 mm)
  • Weight: 4.1 lbs (1.9 kg)
  • Center Bolt Diameter (A): 0.5 in (12.7 mm)
  • Overall Length (D): 10.05 in (255.3 mm)
  • Jaw Width (E): 0.62 in (15.8 mm)
  • Hex Socket Size (F): 0.75 in (19 mm)
  • Maximum Torque: 40 ft./lb. (54 N·m)

Model 106 Puller | 3-Jaw | 10 Ton (89 kN)

• • Jaws: 3
  • Capacity: 10 ton (89 kN)
  • Reach (B): 6 in (152 mm)
  • Spread Range (C): 0.5 to 7 in (13 to 178 mm)
  • Weight: 8 lbs (3.6 kg)
  • Center Bolt Diameter (A): 0.62 in (15.8 mm)
  • Overall Length (D): 13.32 in (338.3 mm)
  • Jaw Width (E): 0.75 in (19 mm)
  • Hex Socket Size (F): 0.75 in (19 mm)
  • Maximum Torque: 130 ft./lb. (176 N·m)

Model 206 Puller | 2-Jaw | 6 Ton (53 kN)

• • Jaws: 2
  • Capacity: 6 ton (53 kN)
  • Reach (B): 6 in (152 mm)
  • Spread Range (C): 0.5 to 7 in (13 to 178 mm)
  • Weight: 7 lbs (3.2 kg)
  • Center Bolt Diameter (A): 0.62 in (15.8 mm)
  • Overall Length (D): 13.32 in (338.3 mm)
  • Jaw Width (E): 0.75 in (19 mm)
  • Hex Socket Size (F): 0.75 in (19 mm)
  • Maximum Torque: 75 ft./lb. (101 N·m)

Model 110 Puller | 3-Jaw | 20 Ton (178 kN)

• • Jaws: 3
  • Capacity: 20 ton (178 kN)
  • Reach (B): 9.67 in (245 mm)
  • Spread Range (C): 1 to 15 in (25 to 381 mm)
  • Weight: 16 lbs (7.3 kg)
  • Center Bolt Diameter (A): 0.75 in (19 mm)
  • Overall Length (D): 20.41 in (518.4 mm)
  • Jaw Width (E): 1 in (25.4 mm)
  • Hex Socket Size (F): 1 in (25.4 mm)
  • Maximum Torque: 275 ft./lb. (372 N·m)

Protective Accessories

• • (1) P4 Tip Protector
  • (2) P6 Tip Protectors
  • (1) P10 Tip Protector

Tool Board & Accessories

• • Tool Board Size: 16 x 26 in (406 x 660 mm)
  • Weight: 51 lbs (23.2 kg)

Unleash Maximum Efficiency with the Posi-Lock PM5 Puller Set

Equip your workshop with the Posi-Lock PM5 Puller Set and experience unparalleled efficiency and reliability. This set provides you with the tools you need to handle any pulling task with ease. Upgrade your toolkit today and discover the difference that Posi-Lock quality and performance can make in your work.
