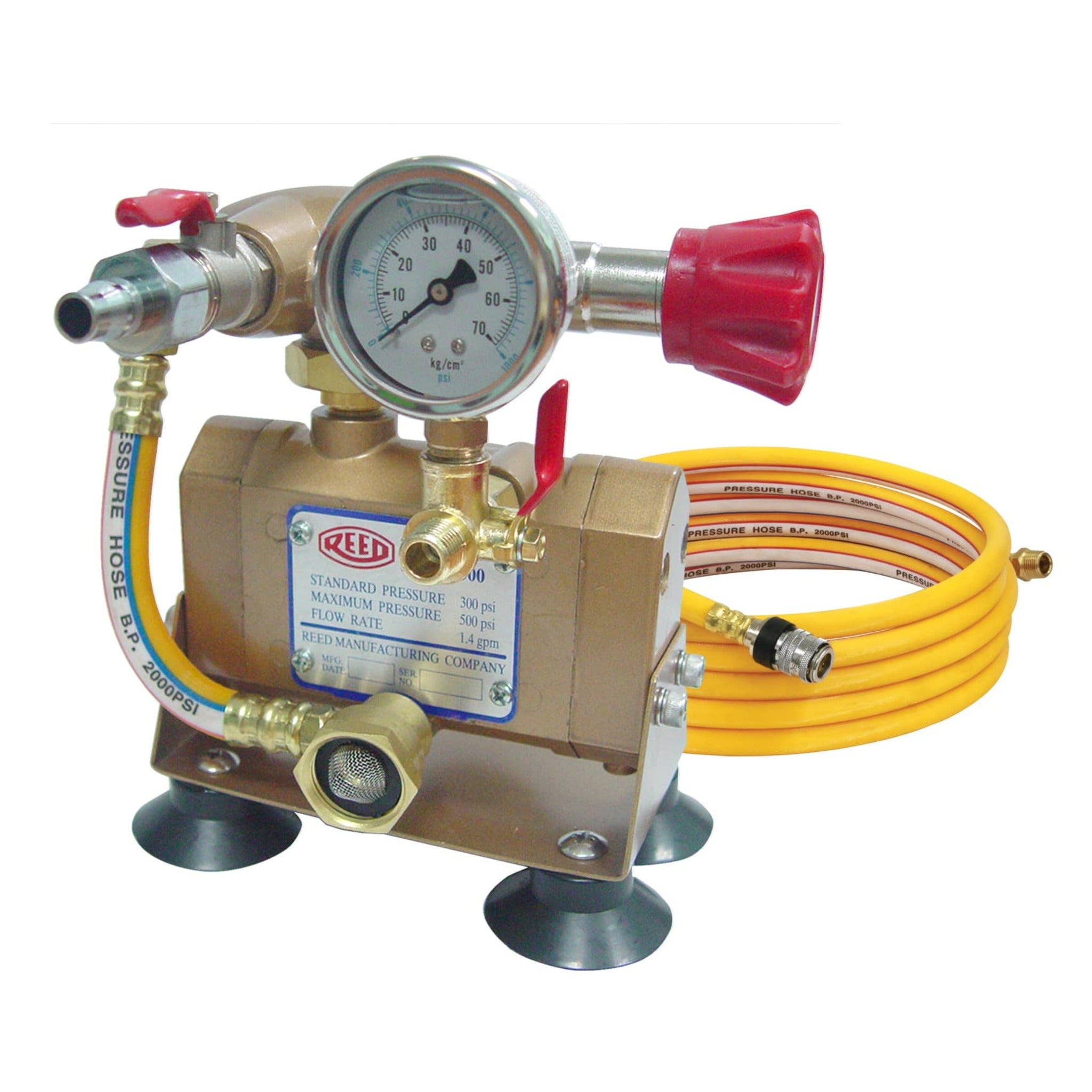

REED DPHTP500 Hydrostatic Test Pump
Use of a cordless drill for power keeps weight off the pump, making it lightweight and portable. Included high pressure hose allows for filling the system and includes a quick connect feature. This 15 foot hose allows the pump to be set in a convenient location instead of being held next to the worksite. DPHTP500 uses a 1/2” chuck on an electric or cordless drill 18V or higher, capable of 1500 RPM (drill not included). These pumps are designed for pressure testing both residential and commercial water systems.
Key Features of this Hydrostatic Test Pump:
- The separate drill power source keeps weight off the pump, making it lightweight and portable.
- Works on commercial and residential water systems.
- Pumps are self-priming and work with pressurized or non-pressurized water supply.

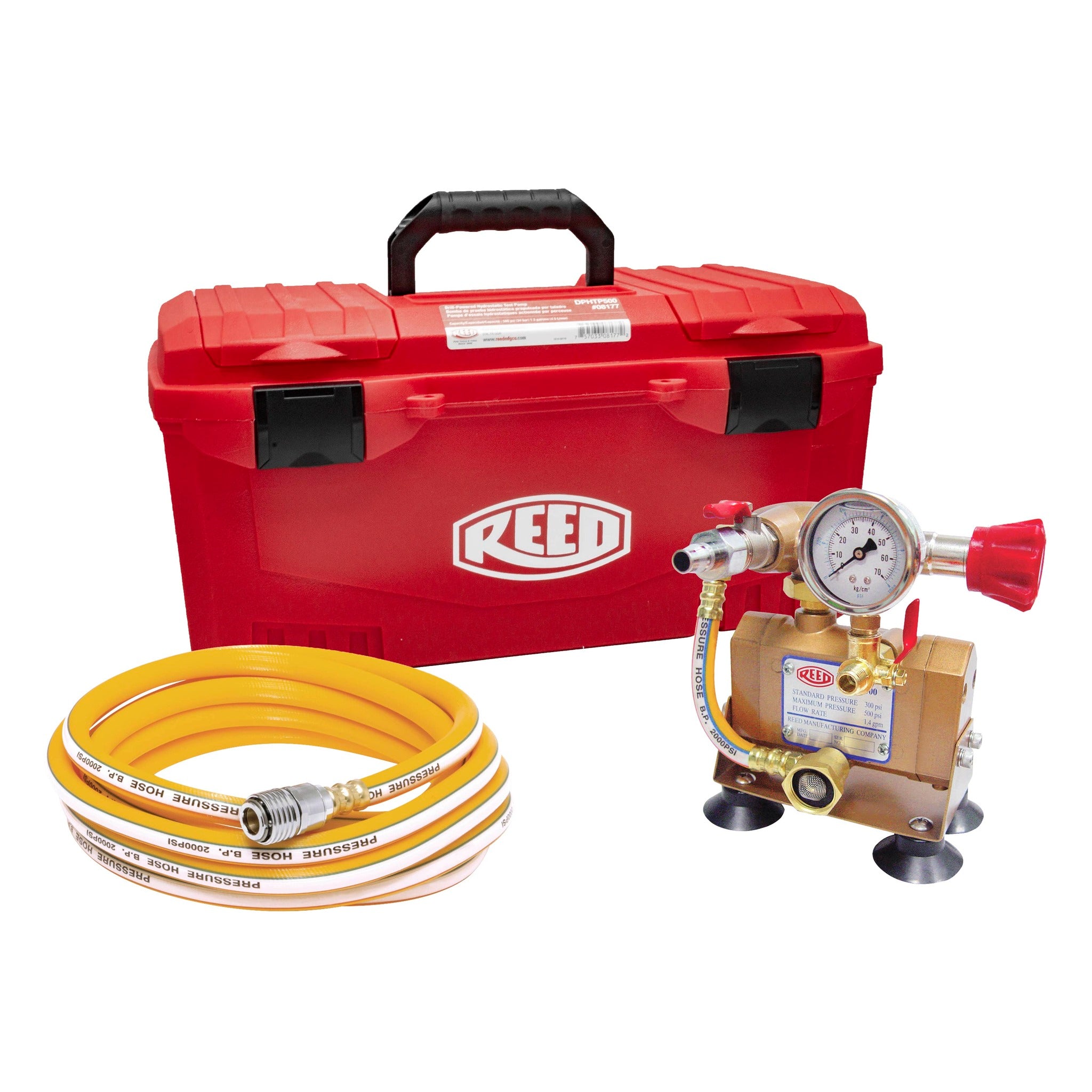

- Storage case keeps the pump clean and organized.
- No drop cord needed when used with a cordless drill.
- Requires 18V cordless or ½” corded drill with 1500 RPM (not included).
| Specifications |
|
| Inlet |
3/4" GHT |
| Outlet |
1/2" NPSM |
| Maximum Capacity |
1.3 gal/min |
| Maximum Pressure |
500 PSI |
| Weight |
10 Lbs |
