Description
AWWA Water Main Drill Tap for Cast Iron Pipe and Ductile Iron
Product Overview
AWWA Tapping Competition-winning teams have relied on the Reed DT75 drill tap for over 25 years. This water main drill tap uses six cutting edges to cut clean CC threads in cast iron and ductile iron pipe under pressure. The Reed DT100 drill tap handles 1 in. service connections. PVC variants (DT75P and DT100P) use a three-flute design for C900 pipe.
Key Features of Reed DT75 & DT100 Water Main Drill Taps

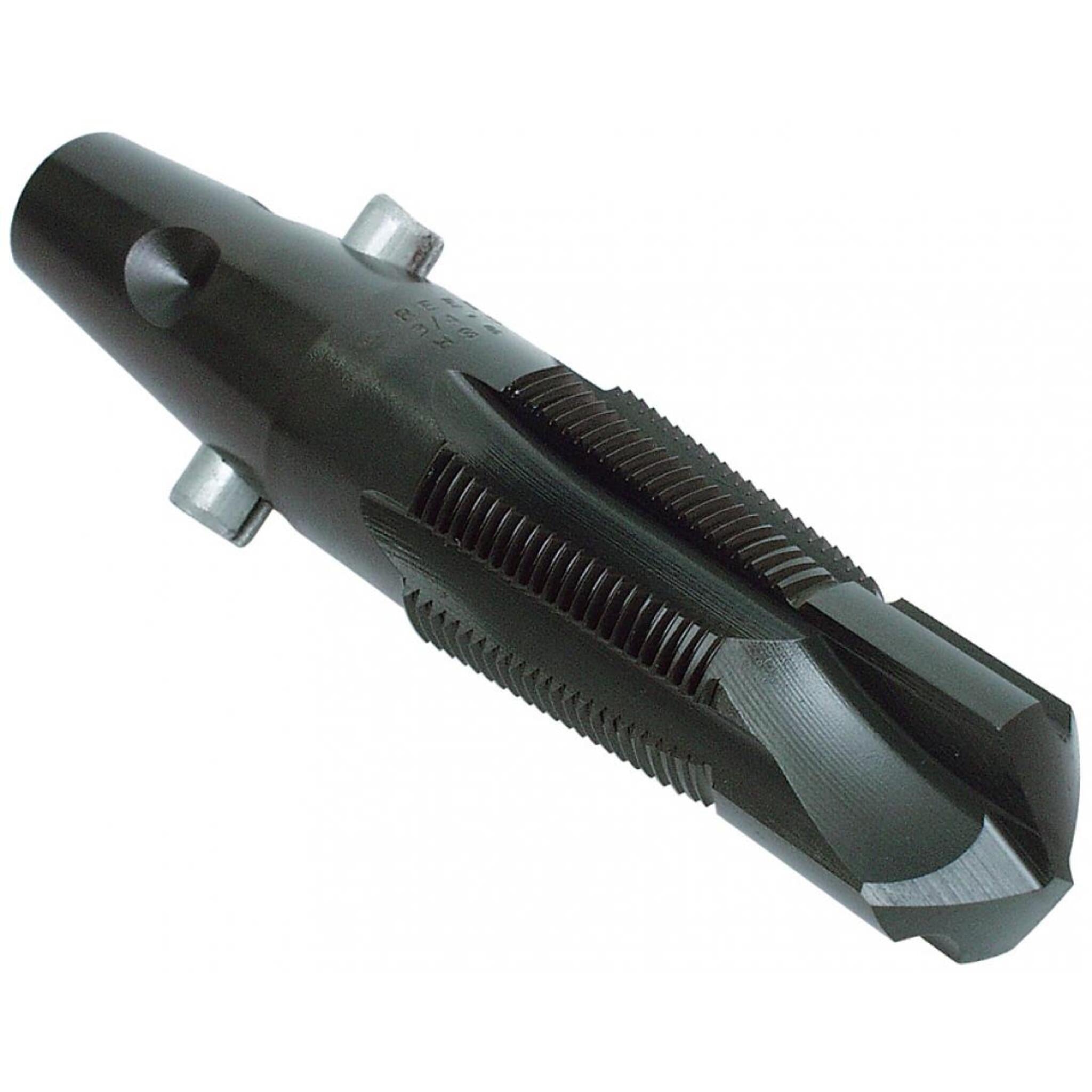

Six Cutting Edges for Clean Threads
Each Reed DT75 drill tap has six cutting edges that produce clean CC threads, reducing the chance of leaks at the corporation stop connection.
Sharp Centering Point
A sharp centering point bites into the pipe wall on first contact, keeping the tap aligned for a clean start on pressurized mains.
AWWA Approved (DT75 and DT100)
Both the DT75 and DT100 carry AWWA approval as a drill tap for cast iron pipe and ductile iron, meeting the standard required by most municipal water specifications.

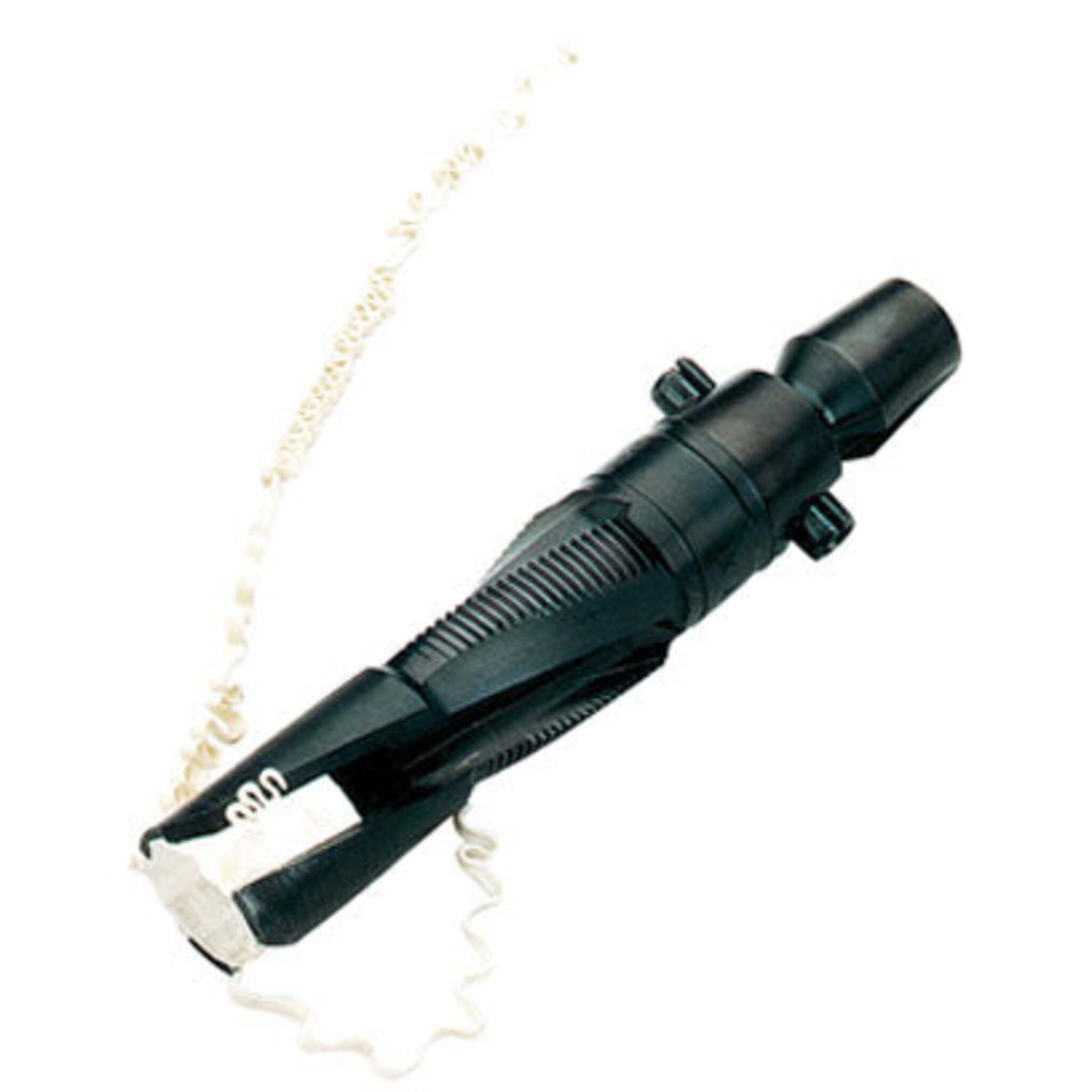

Three-Flute PVC Variants (DT75P and DT100P)
The DT75P and DT100P use a three-flute design that retains the coupon and cuttings inside the tap body, preventing debris from entering C900 PVC water mains during live tapping.
Broad Tapping Machine Compatibility
Both the DT75 and DT100 work as a drill tap for tapping machine models from Reed, Mueller, and Romac. Crews already running a TM1100, B-101, or Transmate can use these taps without adapters.
Two Service Connection Sizes
The DT75 handles 3/4 in. CC service connections, and the Reed DT100 drill tap handles 1 in., covering the two most common residential and commercial water service sizes.
Compatible Tapping Machines
Each Reed drill tap for tapping machine use is manufactured to fit specific equipment. Confirm your machine is listed below before ordering.
| Tapping Machine | DT75 (3/4 in) | DT100 (1 in) |
|---|---|---|
| Reed TM1100 | Yes | Yes |
| Reed CDTM1100 | Yes | Yes |
| Reed CDTM2100 | Yes | Yes |
| Mueller B-100 | Yes | Yes |
| Mueller B-101 | Yes | Yes |
| Mueller A-3 | No | Yes |
| Romac Transmate B-1 | Yes | Yes |
| Romac Transmate B-Too | Yes | Yes |
| Footage | No | Yes |
For under-pressure drilling without CC threading, see the Reed DM2100 Universal Drilling Machine, which handles 3/4 in to 2 in connections on cast iron, PVC, and PE pipe.
Specifications
All four models are CC thread drill taps, cutting Corporation Cock threads that match standard water service corporation stops.
| Specification | DT75 | DT100 | DT75P | DT100P |
|---|---|---|---|---|
| Item Code | 04390 | 04391 | 04396 | 04397 |
| Drill Size | 3/4 in | 1 in | 3/4 in | 1 in |
| Thread Type | CC | CC | CC | CC |
| Pipe Material | Cast/Ductile Iron | Cast/Ductile Iron | C900 PVC | C900 PVC |
| Cutting Design | Six cutting edges | Six cutting edges | Three-flute | Three-flute |
| Retains Coupon | No | No | Yes | Yes |
| Weight | 1.1 lbs (0.5 kg) | 1.3 lbs (0.6 kg) | 1.0 lbs (0.5 kg) | 1.4 lbs (0.6 kg) |
| AWWA Approved | Yes | Yes | No | No |
Applications
- Municipal water service tapping on pressurized cast iron and ductile iron mains
- New residential and commercial water service connections (3/4 in and 1 in)
- Water distribution system expansion and branch tapping
- C900 PVC water main connections (DT75P and DT100P)
- AWWA tapping competitions and utility crew training
Buy Reed DT75 & DT100 Water Drill Tap Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed supplier, stocking the full AWWA water service drill tap lineup and PVC variants. These water main drill taps ship across Canada and the USA, with free shipping on orders over $199. For returns or exchanges, email info@cleanflow.ca within 30 days.
Browse the full Reed Drilling and Tapping collection for compatible tapping machines, drilling machines, and accessories.
Frequently Asked Questions
What is the difference between the Reed DT75 vs DT100?
The DT75 taps 3/4 in CC service connections, and the DT100 taps 1 in connections. Both use six cutting edges on cast iron and ductile iron pipe. The DT100 also fits the Mueller A-3 and Footage machines.
What drill tap fits the Mueller B-101 and other tapping machines?
Both the Reed DT75 and DT100 fit the Mueller B-101, B-100, Reed TM1100, CDTM1100, CDTM2100, and Romac Transmate B-1 and B-Too. The DT100 also fits the Mueller A-3 and Footage machines.
How does a water main drill tap work?
A water main drill tap drills through the pipe wall and threads a CC connection point in one pass while the main stays pressurized. The CC thread drill tap is fed into the pipe by a tapping machine under controlled pressure.
What is the DT75 vs DT75P difference?
The DT75 is for cast iron and ductile iron pipe with a six-cutting-edge design. The DT75P is for C900 PVC pipe with a three-flute design that retains the coupon and cuttings inside the tap body. The DT75 is AWWA approved; the DT75P is not.
What is the best drill tap for water main tapping?
The Reed DT75 drill tap has been the choice of AWWA Tapping Competition winning teams for over 25 years, a proven AWWA water service drill tap for cast iron and ductile iron mains. For 1 in. connections, choose the DT100. For PVC, choose the DT75P or DT100P.
