HCP 80AFU21.5 2 HP 3" Sewage Lift Station Pump – Single & Three Phase, 175 GPM

Heavy Duty Cast Iron Sewage Pump for Municipal Lift Stations and Industrial Wastewater Management

Product Overview

The HCP 80AFU21.5 is a 2 HP submersible sewage lift station pump for municipal and industrial solids-handling applications. It is commonly installed in small lift stations and wastewater treatment systems to replace failing pumps. The unit features a Cast Iron Vortex Impeller and a high-efficiency dry motor housed in durable cast-iron construction. This design fits this use case by effectively passing stringy materials and cloth wipes without clogging. HCP is a manufacturer of submersible wastewater pumps for municipal and industrial use.

Key Benefits of the HCP 80AFU21.5 Sewage Lift Station Pump

• Achieves efficient wastewater removal with a maximum flow rate of 175 GPM.
• Handles difficult stringy items and solids up to 2 inches using a Cast Iron Vortex Impeller.
• Ensures long-term durability with Double Mechanical Seals in a food-grade oil-filled chamber.
• Prevents moisture intrusion with a specialized epoxy resin seal cable base.
• Reduces maintenance frequency by effectively managing modern debris like cloth wipes.
• Adapts to existing lift stations with a 3-inch horizontal flange discharge compatible with standard guide rail systems.
• Operates reliably in municipal and industrial wastewater environments.

HCP 80AFU21.5 Sewage Lift Pump Specifications

What’s Included

• HCP 80AFU21.5 Submersible Sewage Pump
• 30-ft Power Cable
• 3" Horizontal Flange Discharge

Key Features of HCP 80AFU21.5 Sewage Pumps

Cast Iron Vortex Impeller

Creates a whirlpool effect to pass slurry and long fibrous materials without contact, preventing clogs common in standard pumps.

High Efficiency Dry Motor

Provides a high-efficiency dry motor wastewater pump solution that reduces energy consumption while maintaining high torque for startup.

Double Mechanical Seals

Features a carbon/ceramic upper seal and silicon/carbide lower seal to protect the motor from fluid ingress and extend operational life.

Epoxy Resin Cable Base

Prevents moisture from wicking into the motor through the core wires, a common cause of electrical failure in submersible pumps.

Robust Cast Iron Construction

Utilizes FC200 Cast Iron (ASTM-30) for the casing and motor frame, offering superior resistance to industrial wastewater and physical wear.

Auto-Cut Thermal Protector

Protects the motor from burnout due to high temperature or excess amperage draw by automatically shutting down and resetting when cool.

Performance Overview

The HCP 80AFU21.5 sewage pump delivers consistent performance for Wastewater Treatment Systems, effectively balancing flow and head pressure.

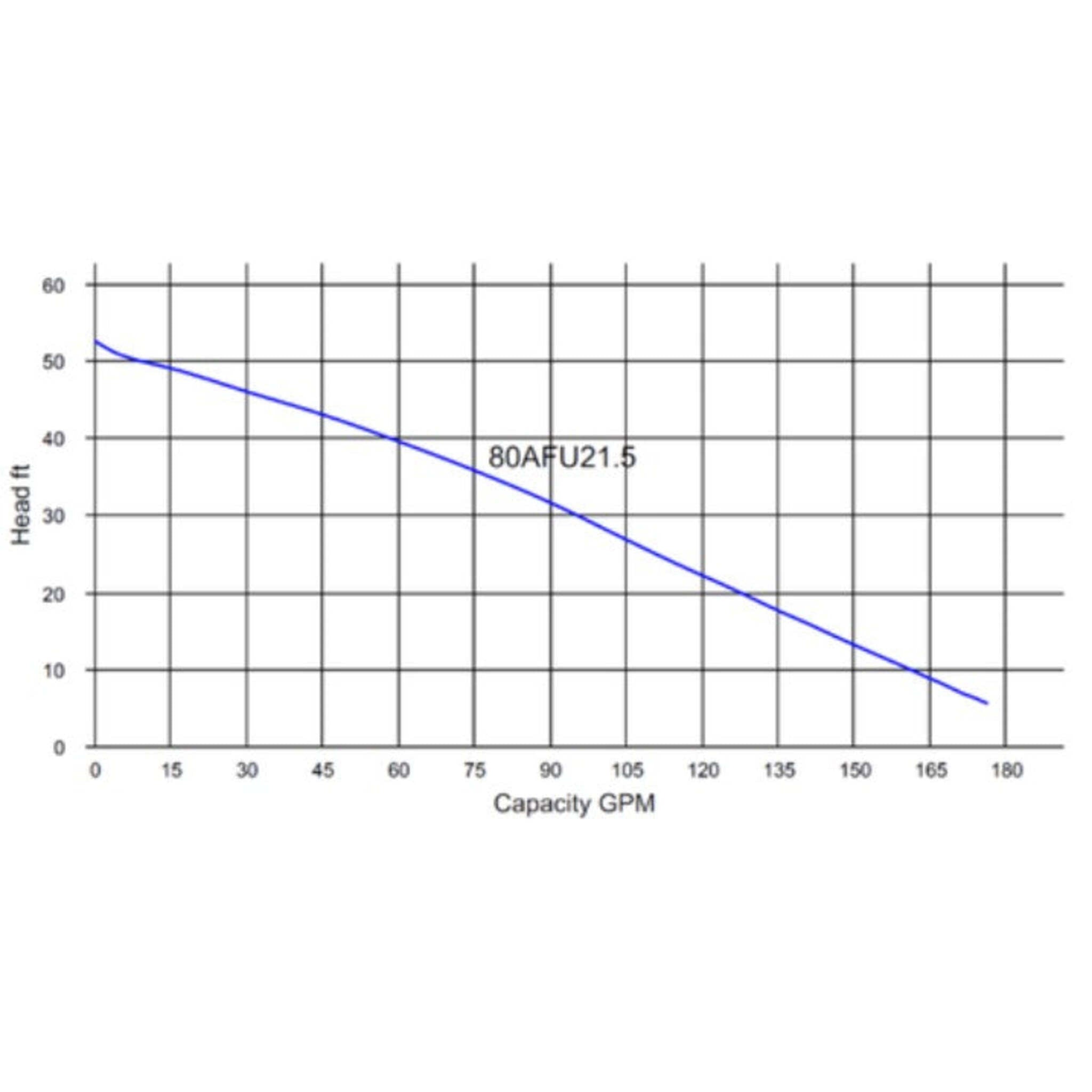

• Flow and Lift Performance: Designed for lift stations, this pump delivers 175 GPM at 5 feet of head and maintains flow up to a shut-off head of 49 feet.
• Solids Handling: The non-clog submersible pump ensures reliable operation, even with 2-inch solids or fibrous materials.
• Ideal Operating Conditions: Suitable for submerged use in temperatures from 32°F to 104°F (0–40°C), it efficiently handles sewage, industrial wastewater, and stormwater.

Applications

• Municipal lift station upgrades
• Industrial Wastewater Management
• Municipal Water Treatment facilities
• Commercial sewage systems
• Husbandry and poultry sewage management
• Stormwater and wastewater lift stations
• Sanitary sewer pumping

Common Use

• Replacing existing 2 HP sewage pumps in lift station systems
• Managing wastewater with high concentrations of cloth wipes
• Pumping stations for apartment complexes

Installation & Use Notes

• Guide Rail Compatibility: This unit is a guide rail system compatible sewage pump, fitting most manufacturer systems for easy retrieval.
• Electrical: Ensure the correct voltage and phase match your control panel (available in single-phase (208/230V) and three-phase (208/230V, 460V, 575V) configurations).
• Venting: Verify the basin is properly vented to prevent air locking.
• Submersion: Designed for continuous duty when fully submerged; avoid running dry for extended periods.

Accessories & Add-Ons

Enhance your lift station setup with these recommended accessories:

• Sewage Pump Accessories for check valves and floats.
• Pump Lifting Equipment, such as chains and hoists, for safe maintenance.
• For clean water applications, consider our submersible dewatering pumps.

Get Your HCP 80AFU21.5 2 HP 3" Sewage Pumps Here

Cleanflow supplies the complete lineup of HCP pumps, supporting contractors, municipalities, and industrial operators across Canada and the USA with available inventory and technical assistance. Browse our HCP pump collection for more HCP options.
