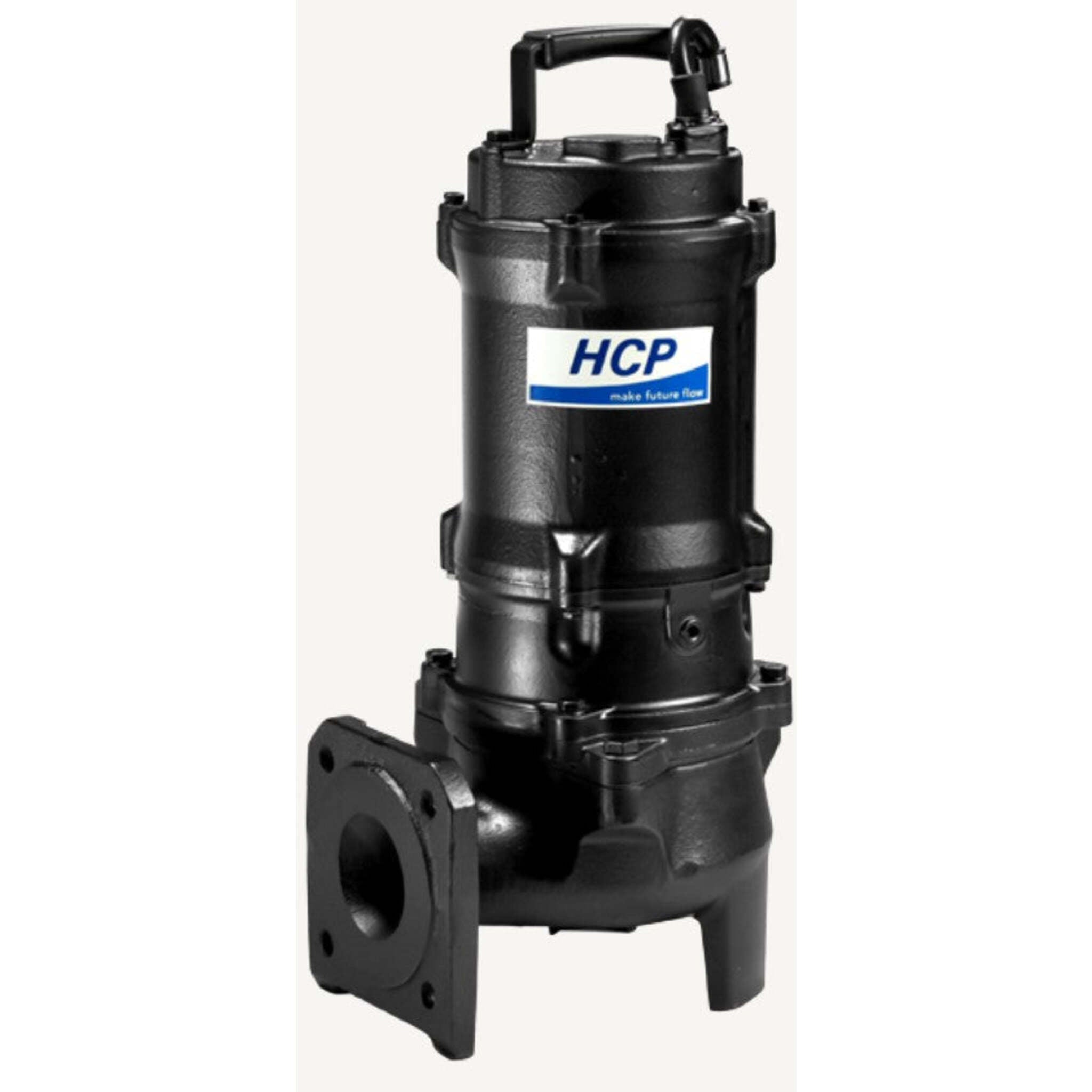

HCP 80AFU22.2L Sewage Lift Station Pump – 3 HP, 208-240V / 575V, 238 GPM

Heavy-Duty Submersible Pump for Sewage Lift Stations and Wastewater Management

This municipal-quality cast iron pump is used for reliable and efficient wastewater management in sewage lift stations and treatment plants. Its robust construction and high-efficiency motor make it a dependable solids handling pump for demanding applications. As Taiwan's most successful submersible pump manufacturer, HCP delivers proven performance in wastewater management equipment.

Key Benefits of the Solids Handling Pump

• Prevents system clogs with a 3" solids handling capability for uninterrupted operation.
• Ensures extended operational life and reliability with a durable cast iron construction.
• Handles fibrous materials and solid waste efficiently with a non-clogging vortex impeller.
• Reduces energy consumption and operational costs with a high-efficiency 3 HP dry motor.
• Offers enhanced protection against leakage with a dual mechanical seal system.
• Provides CSA-certified electrical safety compliance for wastewater applications.
• Adapts easily to existing infrastructure as an ideal replacement pump for guide rail systems.

HCP 80AFU22.2L Sewage Pump Specifications

What’s Included

• HCP 80AFU22.2L Submersible Pump
• 30-ft Power Cable

Key Features of HCP 80AFU22.2L Sewage Lift Station Pump

Cast Iron Construction

The pump body uses durable cast iron with a high solids epoxy coating for superior corrosion resistance and long-term performance in harsh wastewater environments.

Vortex Impeller

This U-type non-clogging impeller creates a whirlpool effect, allowing slurry, long fibrous materials, and solid waste to pass through without contacting the impeller, preventing blockages.

High-Efficiency Motor

The 3 HP dry motor provides powerful performance while minimizing energy use, making this a cost-effective, high-efficiency motor sewage pump for continuous operation.

Dual Seal System

A dual mechanical seal design, featuring a carbon/ceramic upper seal and a silicon/carbide lower seal in an oil-filled chamber, prevents leakage and protects the motor.

Adaptable Flange Discharge

The 3" four-bolt horizontal discharge flange is adaptable to most guide rail systems, simplifying installation for lift station pump replacements and upgrades.

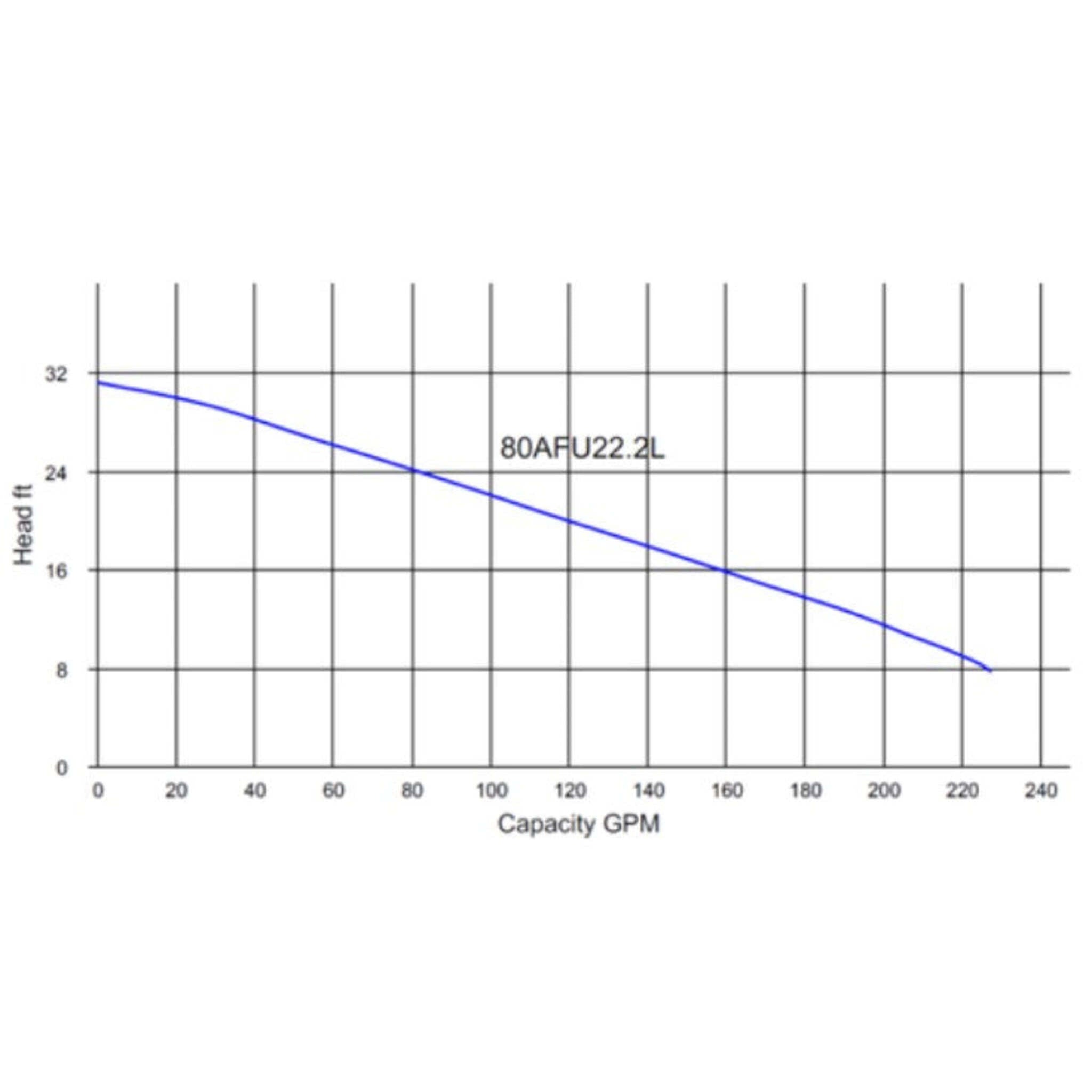

Performance Overview

This non-clogging submersible pump delivers high flow rates at lower head conditions, making it ideal for lift stations. Its design is suitable for continuous duty in wastewater applications when properly submerged and operated within its performance curve. The pump operates best when fully submerged in liquids, with temperatures between 32°F and 104°F.

Applications

• Sewage lift stations
• Wastewater treatment plants
• Municipal sewage systems
• Replacement pump for guide rail systems
• Commercial building wastewater drainage
• Livestock farming and sewage treatment

Installation & Use Notes

• This is a submersible pump and must be fully immersed during operation.
• The pump's four-bolt horizontal discharge is adaptable to most guide rail systems.
• Voltage options include 208-240V (single or three-phase) and 575V (three-phase).
• Verify motor protector connections to the control panel to prevent overheating.
• For other dewatering needs, explore our collection of submersible dewatering pumps.
• For a complete installation, browse sewage pump accessories.
• To facilitate safe and easy pump handling, check out our pump lifting equipment.

Your Professional-Grade Pumping Solution from Cleanflow

Cleanflow offers the complete lineup of HCP pumps, providing contractors and industrial operators across Canada and the USA with durable, high-performance equipment. We ensure you get the right HCP pump for your job, along with a full range of sewage pump accessories and pump lifting equipment, all backed by expert support and reliable availability.

Frequently Asked Questions
