Description

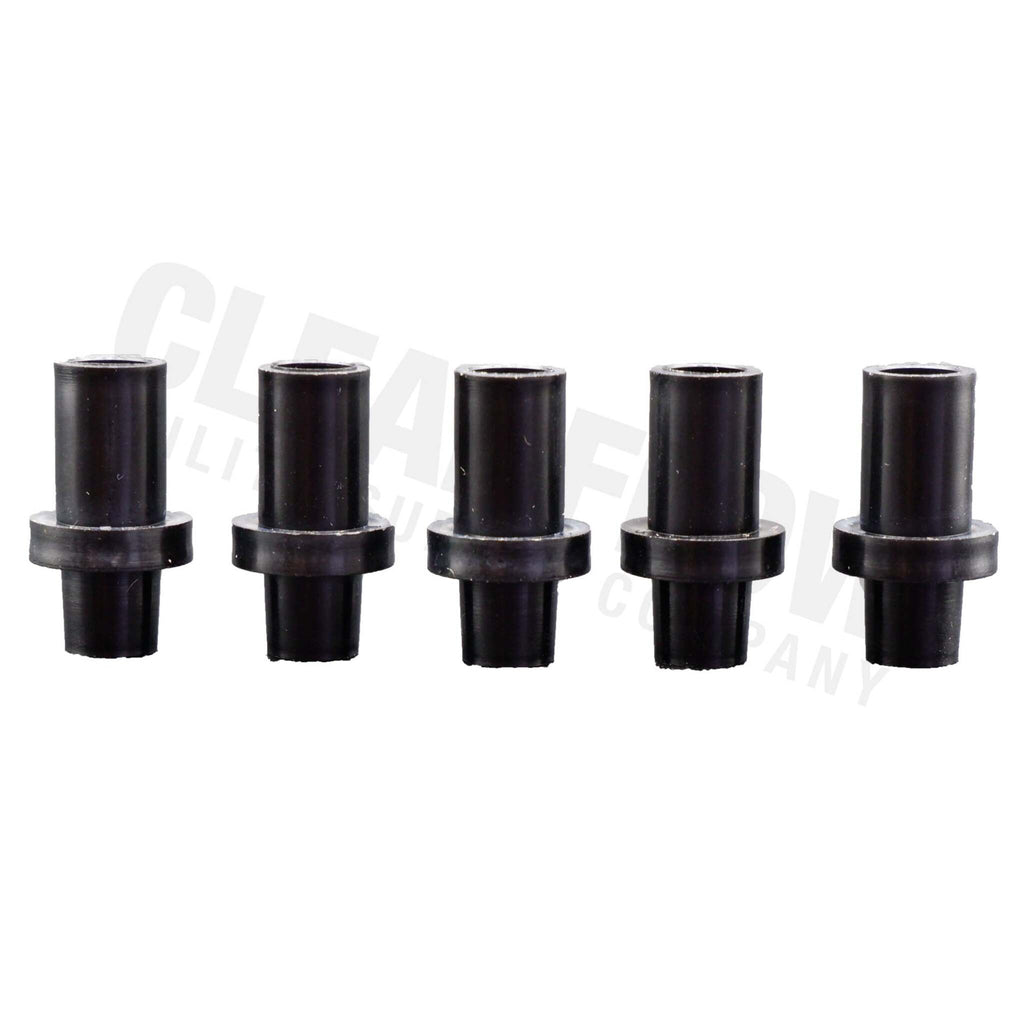

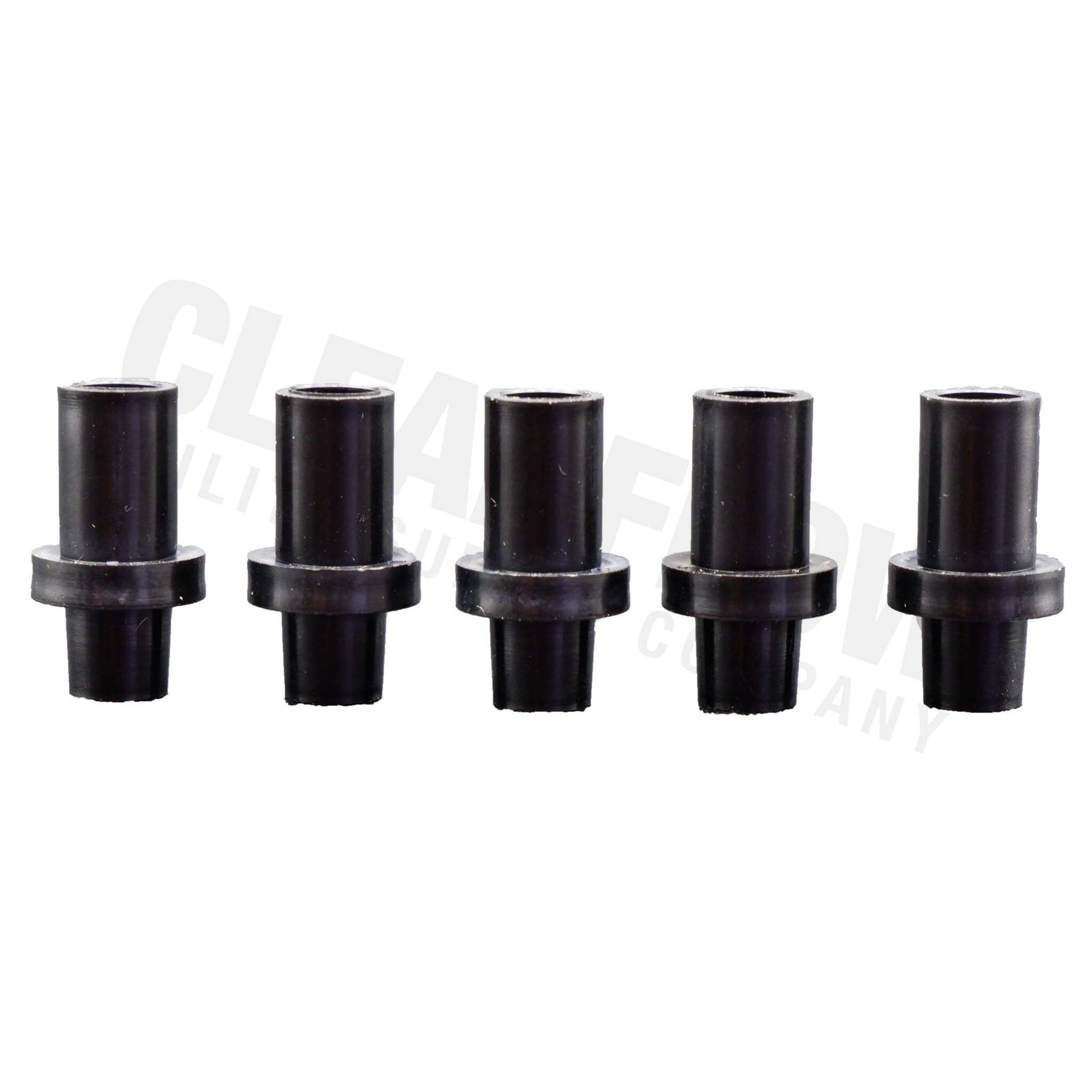

Genuine LMI 1/4" OD Polypropylene Ferrules For Liquipro Tubing Connections
The LMI Liquipro 1/4" Tubing Connection Ferrule (MPN 28663) is a polypropylene compression ferrule that seals 1/4" OD chemical tubing to LMI Liquipro fittings, injection valves, foot valves, suction valves, and discharge valves. Sold in packs of 5. Single-piece design specific to the 1/4" size.
Key Features of LMI Liquipro 1/4" Tubing Connection Ferrules
- Polypropylene (PP) construction — resists the chemistries LMI Liquipro pumps typically dose, including sodium hypochlorite, caustic, and most water-treatment chemicals.
- Single-piece design specific to 1/4" OD tubing — unlike LMI's 3/8" and 1/2" ferrule sets, which are two-piece (inside + outside ferrule), the 1/4" ferrule is one piece.
- Compatible with all 1/4" LMI Liquipro fittings — including injection valve assemblies, foot valve assemblies, suction valves, and discharge valves on Liquipro chemical metering pumps and older LMI pump models.
- Pack of 5 — enough for several tubing replacements or a full system rebuild without reordering.
- Genuine OEM LMI Milton Roy part — manufactured to original LMI tolerances, so it matches the fitting geometry your pump was built around.
Installation & Single-Use Warning
Per LMI's installation manual, ferrules are single-use components. Once compressed onto chemical tubing, they cannot be removed and reused on new tubing. They deform during installation to form the seal.
Correct install procedure (from the LMI Quick Start Guide):
- Cut tubing square, no angled or jagged cuts
- Slide the coupling nut onto the tubing first, threads facing the fitting
- Slide the ferrule onto the tubing behind the coupling nut
- Insert the tubing into the LMI Liquipro fitting until it bottoms out
- Hand-tighten the coupling nut until snug, then turn an additional 1/8 to 1/4 turn
Critical: Do NOT use pliers or a pipe wrench on coupling nuts or fittings. Over-tightening can crack the ferrule or damage the fitting. If a connection leaks after installation, replace the ferrule with a new one. Do not attempt to re-seat the used ferrule.
Compatibility
MPN 28663 fits 1/4" OD chemical tubing on:
- LMI Liquipro injection valve assemblies (1/4" variants)
- LMI Liquipro foot valve assemblies (1/4" variants)
- LMI Liquipro suction valves and discharge valves (1/4" variants)
- Four-function discharge valves (4FV) on older Liquipro pump models with 1/4" tubing connections
- Coupling nut assemblies on Liquipro chemical metering pumps configured for 1/4" OD tubing
Not sure if your pump uses 1/4" tubing? Most modern LMI Liquipro pumps use 3/8" or 1/2" OD tubing. The 1/4" size is more common on older models and small-flow configurations. Measure your tubing OD or contact our team with your pump's model number.
Applications
Operators replace LMI 1/4" ferrules when:
- Re-tubing a chemical metering pump after wear or chemical exposure
- Installing a new LMI Liquipro pump and connecting the supplied tubing
- Rebuilding a liquid end and reconnecting discharge or suction tubing
- Repairing a leaking tubing connection at an injection point
- Stocking spare connection components for routine pump maintenance
Why Choose Cleanflow for LMI Liquipro Parts?
Cleanflow stocks LMI metering pump parts in Canada, with same-business-day shipping from our Winnipeg warehouse to Canadian and US destinations. US-based LMI distributors ship cross-border at extra cost and lead time. Cleanflow customers get genuine OEM LMI Liquipro ferrules and fittings, mix-and-match volume pricing across the LMI line, and a 30-day return window.
Buy LMI Liquipro 1/4" Ferrules Online from Cleanflow
In stock and ready to ship from our Winnipeg warehouse, typically same- or next-business-day across Canada and the USA. Browse the full LMI Liquipro tubing connection range — ferrules, coupling nuts, and complete connection kits at Cleanflow.
Frequently Asked Questions
What is LMI MPN 28663?
MPN 28663 is LMI Milton Roy's official part number for the 1/4" OD polypropylene tubing connection ferrule used on LMI Liquipro chemical metering pumps. Cleanflow's SKU 28663-5 contains five of these ferrules per pack.
Can I reuse an LMI ferrule once it's been installed?
No. Per LMI's installation manual, ferrules compress and deform onto the tubing during installation to form the seal. Once compressed, a ferrule cannot be removed and reused on new tubing. Always install a fresh ferrule when reconnecting a tubing fitting, that's why these are sold in packs of 5.
How do I install the LMI 28663 ferrule correctly?
Slide the coupling nut onto the tubing first, then the ferrule. Insert the tubing into the LMI fitting until it bottoms out. Hand-tighten the coupling nut, then turn an additional 1/8 to 1/4 turn. Do not use pliers or a pipe wrench over-tightening can crack the ferrule or fitting.
What's the difference between the 1/4", 3/8", and 1/2" LMI ferrules?
The 1/4" ferrule (MPN 28663) is a single-piece design. The 3/8" and 1/2" ferrule sets are two-piece one inside ferrule and one outside ferrule per set. All three sizes are polypropylene and follow the same install procedure, but they're not interchangeable. Match the ferrule to your tubing OD.
Which LMI pumps use the 1/4" ferrule?
The 1/4" ferrule fits older LMI Liquipro pump models and small-flow configurations using 1/4" OD chemical tubing. Most current Liquipro pumps use 3/8" or 1/2" tubing. If you're unsure of your tubing size, measure the outside diameter of your existing tubing or contact our team with your pump's model number.
My tubing connection is leaking — should I replace the ferrule?
Yes. If a previously sealed connection starts leaking, replace the ferrule rather than re-tightening the coupling nut. The ferrule has likely deformed past its sealing range or developed a hairline crack. Cut back the tubing past the old ferrule mark, install a fresh ferrule and coupling nut, and reconnect.
