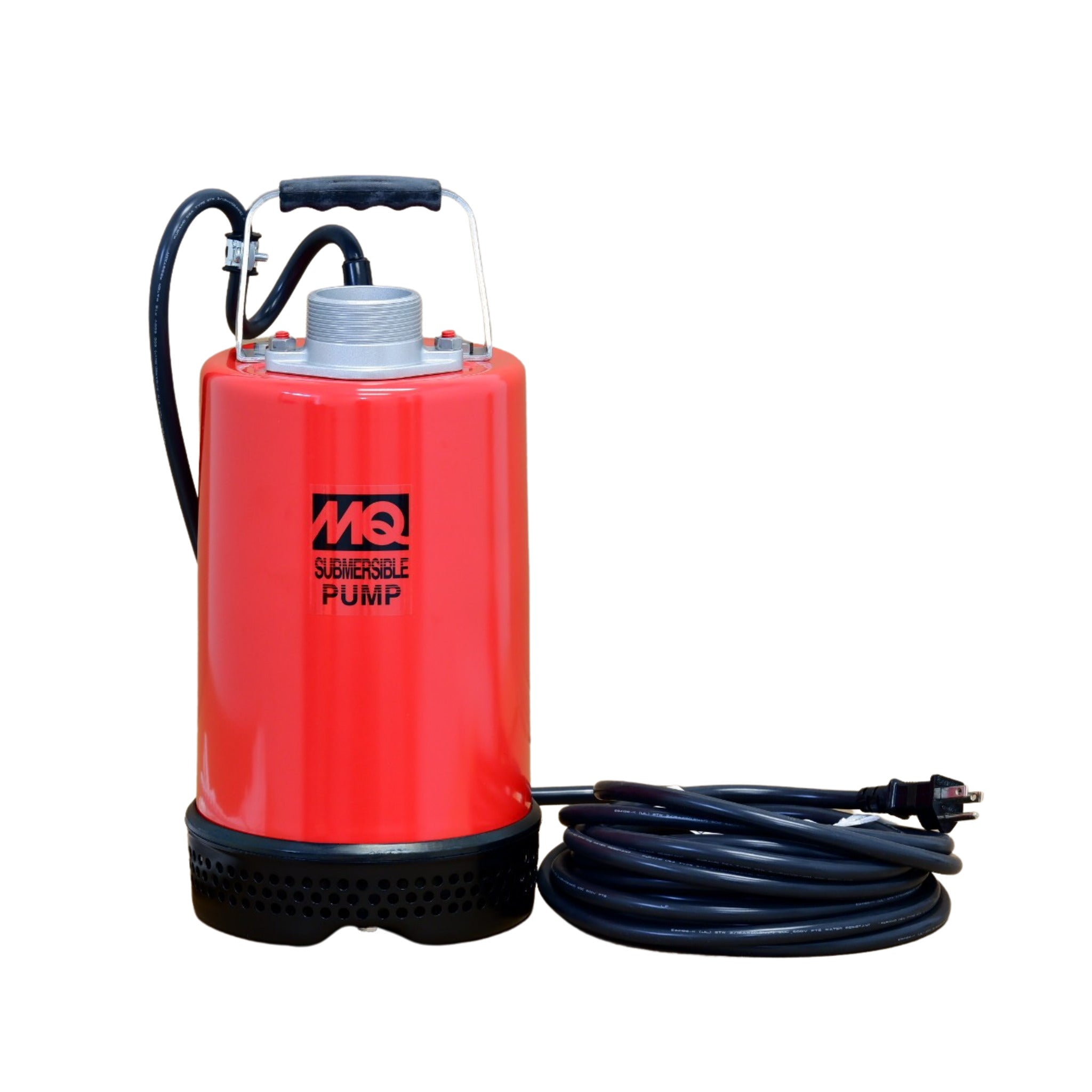

Multiquip ST2037 Submersible Dewatering Pump – 1 HP / 73 GPM / 115V

Versatile 1 HP Submersible Pump 2-Inch Discharge For Dependable Water Removal And Job Site Drainage

Product Overview

The Multiquip ST2037 is a compact centrifugal pump engineered for moving water in confined spaces and open areas. It serves contractors, municipalities, and homeowners for tasks ranging from basement flooding to job site runoff management. Operable in upright positions on platforms, it features a rugged cast aluminum housing and a powerful 1 HP motor. This ST2037 Multiquip submersible pump offers a reliable solution for demanding drainage applications where durability counts.

Key Benefits of this Submersible Dewatering Pump

• Delivers a maximum flow rate of 73 GPM for rapid water displacement.
• Pumps water up to a maximum head of 37 feet to handle deep excavations.
• Features a lightweight 31 lb design for easy portability around job sites.
• Protects internal components with thermal overload protection against overheating.
• Simplifies setup with a standard Multiquip 2" submersible pump discharge port.
• Ensures long service life with dual shaft seals and sealed ball bearings.

Multiquip ST2037 Specifications

What’s Included

• Multiquip ST2037 Submersible Dewatering Pump
• 25-ft Molded Power Cord with Strain Relief
• Carrying Handle

Available Sizes

• Pump Only

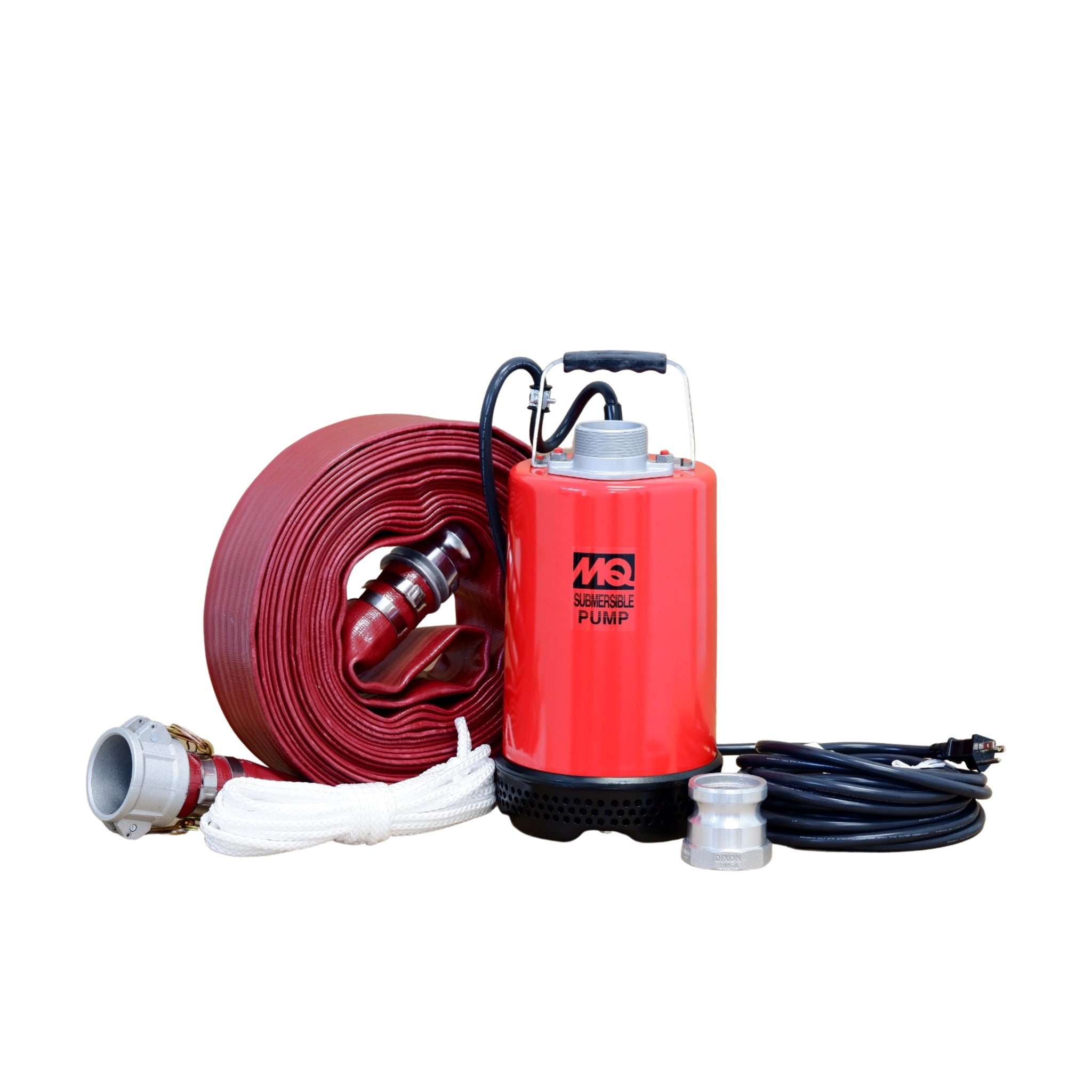

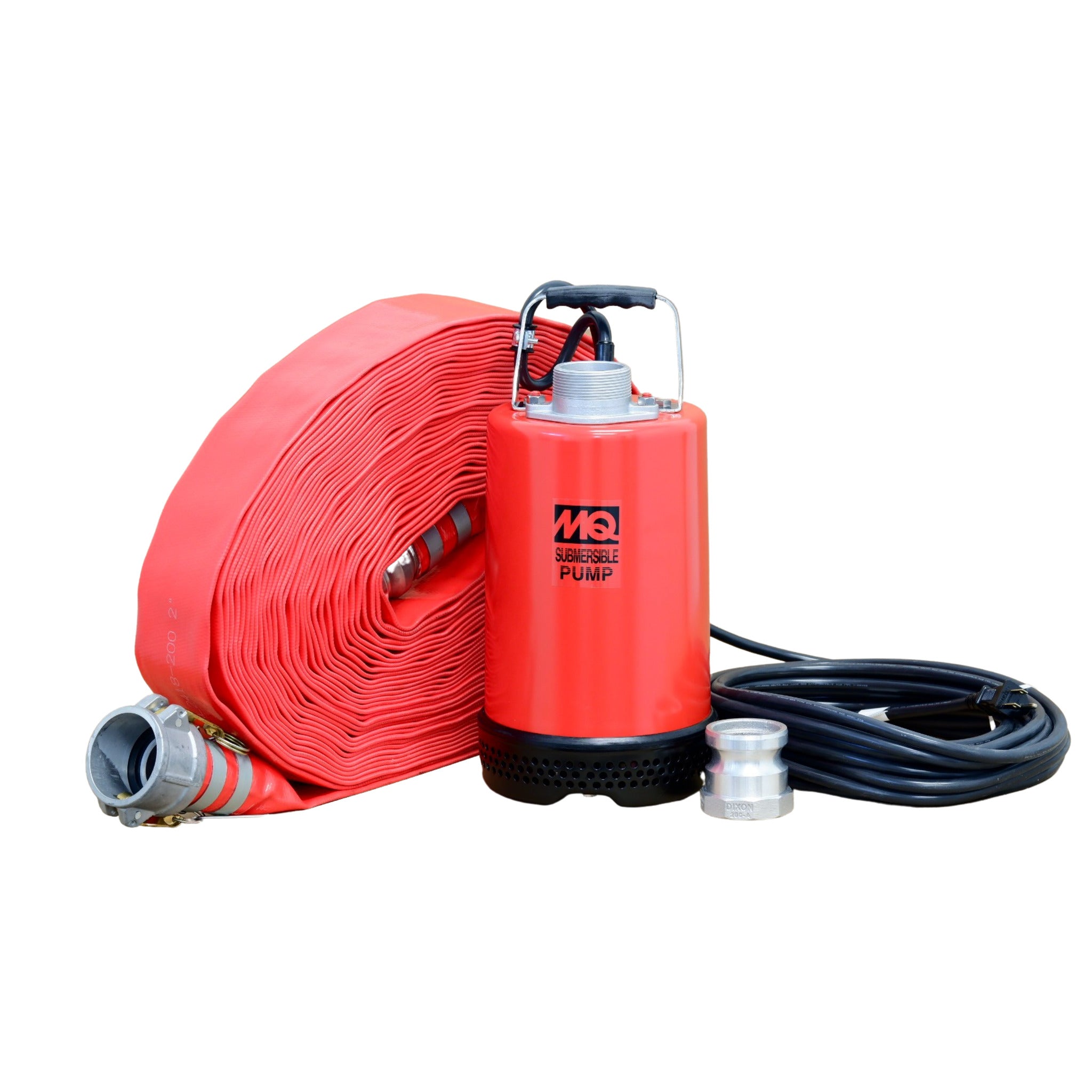

• Pump w/ 50-Ft Layflat Discharge Hose
• Pump w/ 100-Ft Layflat Discharge Hose

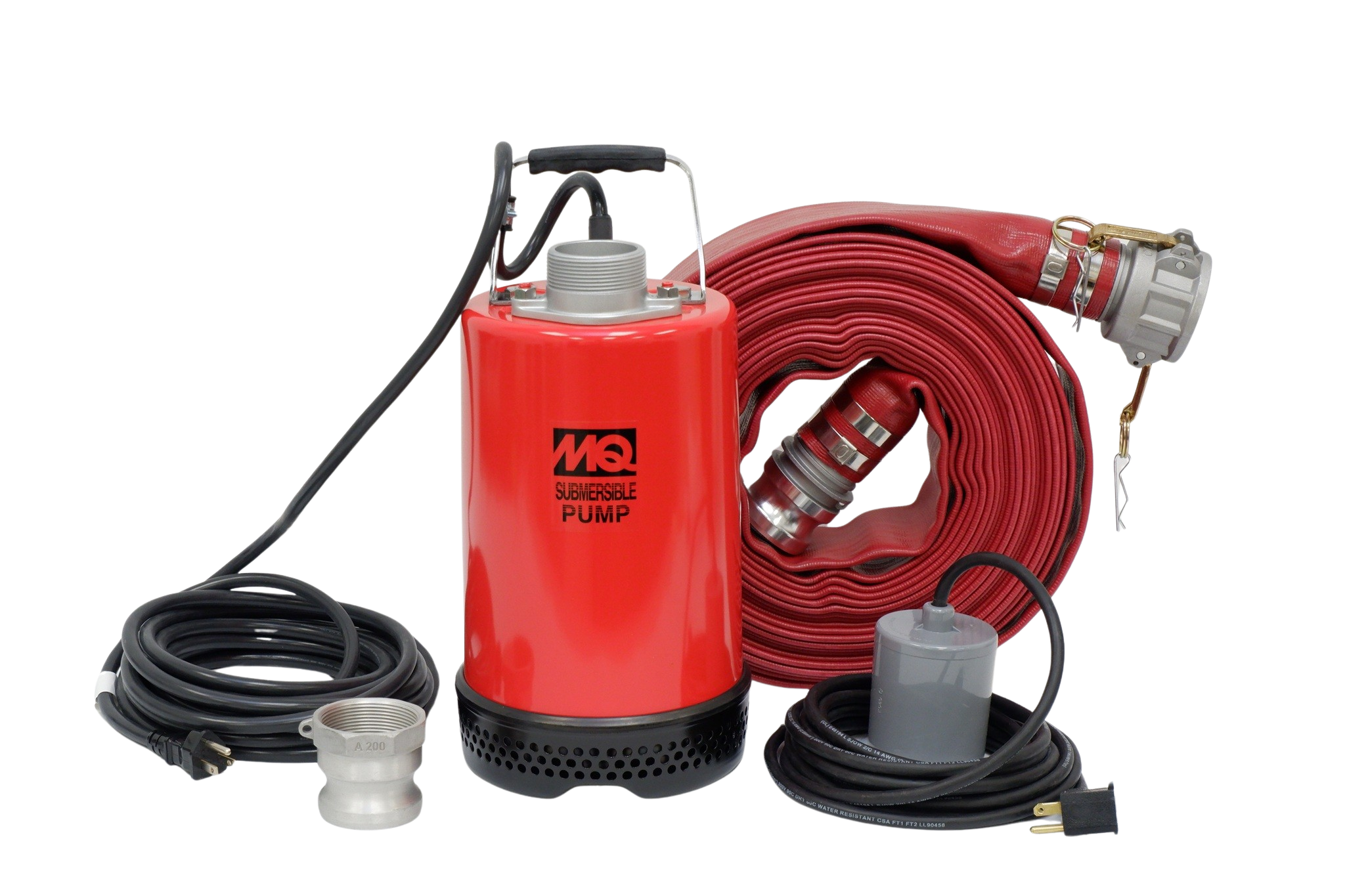

• Pump w/ 50-Ft Layflat Discharge Hose + Float Switch

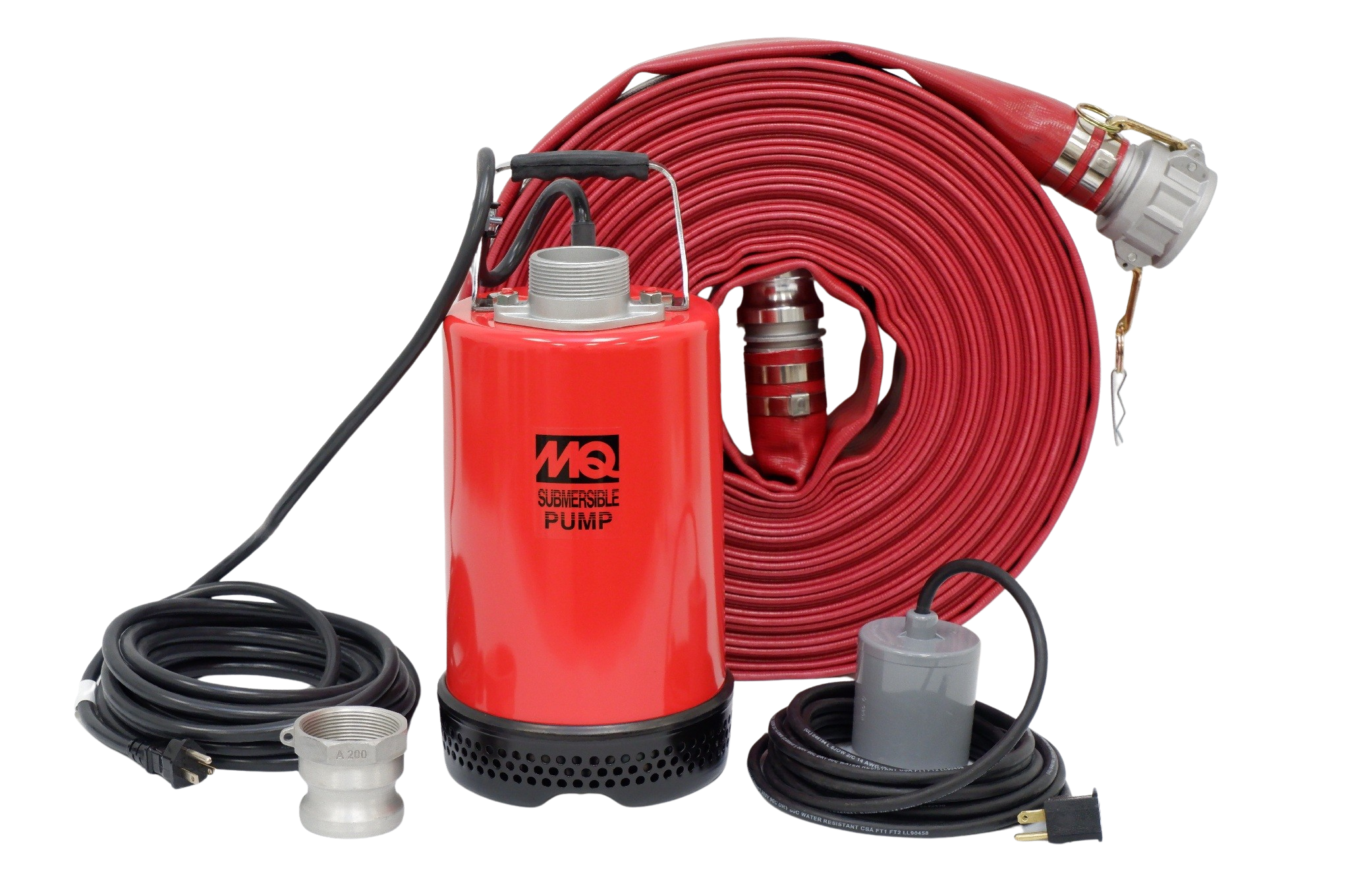

• Pump w/ 100-Ft Layflat Discharge Hose + Float Switch

Key Features of the Multiquip ST2037

Internal Thermal Overload Protection

Prevents motor burnout by shutting down operation if temperatures exceed safe limits, ensuring the longevity of the Multiquip ST2037.

Dual Shaft Seals

Reliable double mechanical oil-filled seals provide superior leak protection, separating the pump section from the motor for extended durability.

Cast Aluminum Housing

The rugged housing offers excellent resistance to wear and corrosion while keeping the unit lightweight enough for single-person transport.

Neoprene Rubber Impeller

The impeller is constructed of Neoprene rubber over cast iron, minimizing wear and prolonging service life during general dewatering tasks.

Heat-Conducting Motor Casing

The cast iron/steel motor casing acts as a heat conductor, allowing the pump to handle liquids up to 120°F efficiently.

Performance Overview

The ST2037 provides a balance of flow and lift, offering a maximum head of 37 feet and a peak capacity of 73 GPM. It is designed for intermittent or continuous duty in clean water applications, capable of dewatering flat surfaces down to 1/2-inch levels. While not a high-pressure submersible pump, it delivers consistent volume for standard drainage needs. Best performance is achieved with short discharge hoses and minimal elevation changes.

Applications

• Draining swimming pools
• Clearing well casings
• Construction site dewatering
• Cofferdams and manholes
• Transformer vaults
• Excavation drainage
• Basement sump pits

Common Use

• General water transfer
• Emergency flood relief
• Utility maintenance

Installation & Operation Guidelines

• Water Only: This unit is a dewatering pump designed for water; it has a solids handling capacity of 0 inches. For trash applications, consider the Multiquip ST2010TCUL 2" High Capacity Trash Pump.
• Positioning: Always operate the pump in an upright position on a stable platform to prevent burrowing into mud or sand.
• Solids Handling: Do not use where heavy mud, grit, or silt is present without a platform or additional screening.
• Power Requirements: Requires a 115V, single-phase power source with a grounded receptacle.
• Manual Operation: The standard ST2037 is a manual pump; automatic operation requires the addition of a float switch or specific control box configuration.
• Low Water Levels: For surfaces requiring drainage down to 1/16", the Multiquip ST2038P Puddle Sucker may be a better fit.

Accessories & Add-Ons

• Discharge Hose: Pair with a 2-inch layflat hose for water disposal. View Hose and Fittings Collection.
• Float Switches: Optional tethered float switches (like Model SW-1 or SW-2) enable unattended automatic operation.
• Camlock Fittings: Standard 2" camlock connectors allow for quick and secure hose connections.

Get the Multiquip ST2037 Submersible Pump from Cleanflow

Cleanflow provides high-quality submersible dewatering pumps, including the Multiquip ST2037, to customers throughout Canada and the USA. Multiquip, founded in 1973, is a distinguished manufacturer celebrated for its world-class products in the construction and industrial sectors.

At Cleanflow, we ensure you get the right equipment for your dewatering projects, supported by dependable service and prompt shipping.
