Description
115V • Single-Phase • 1.0 HP • 95 GPM • 45 ft Total Head

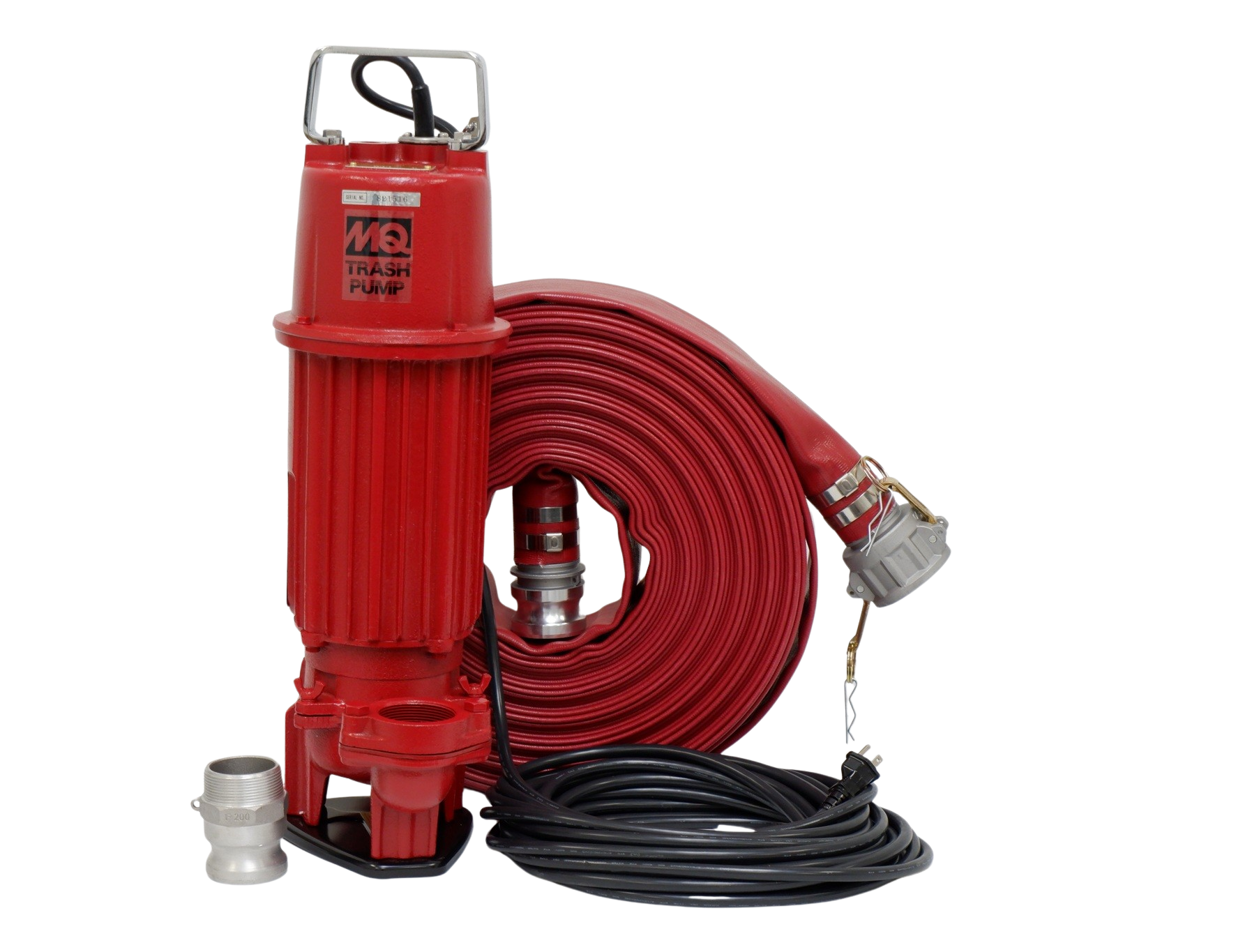

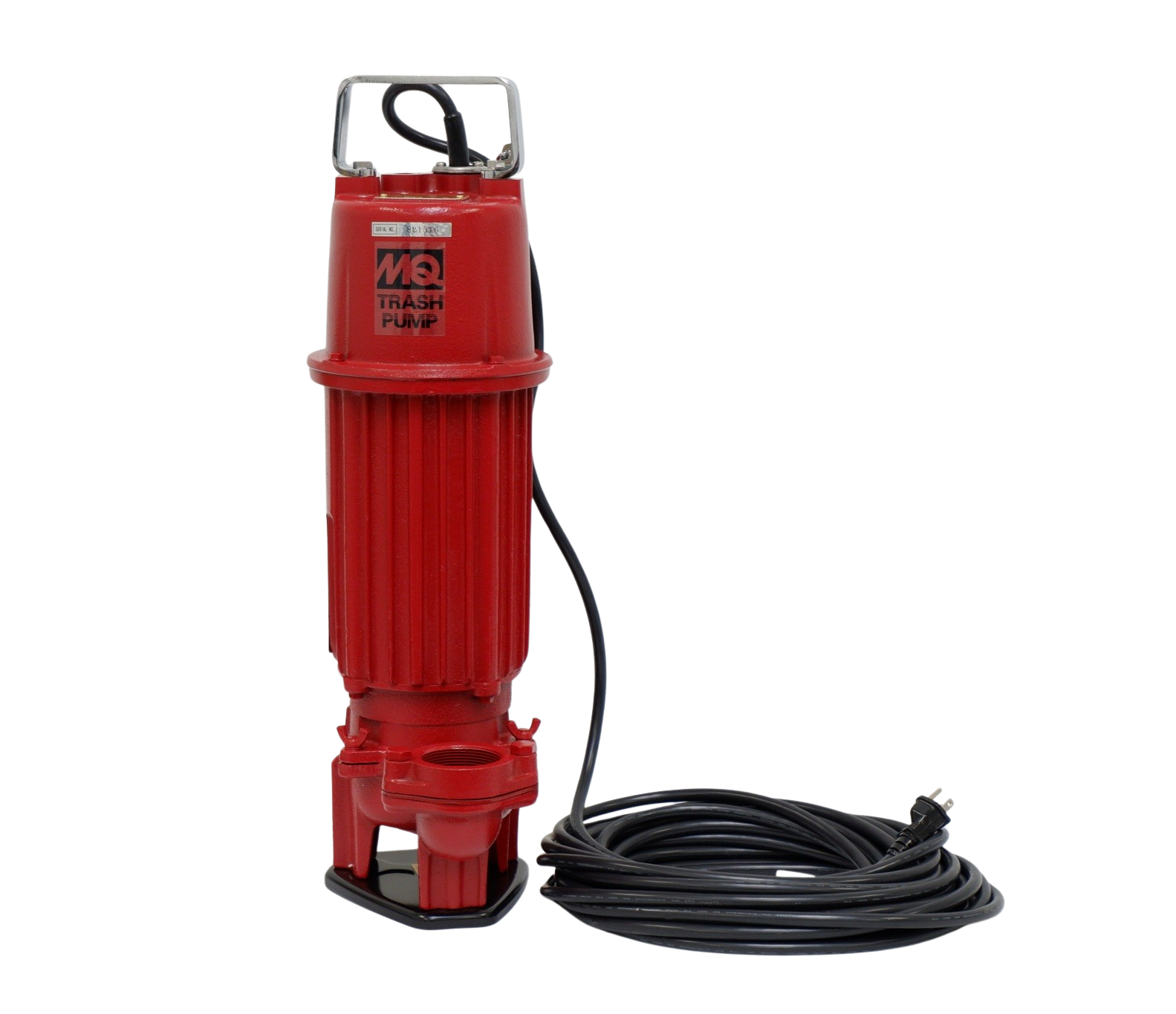

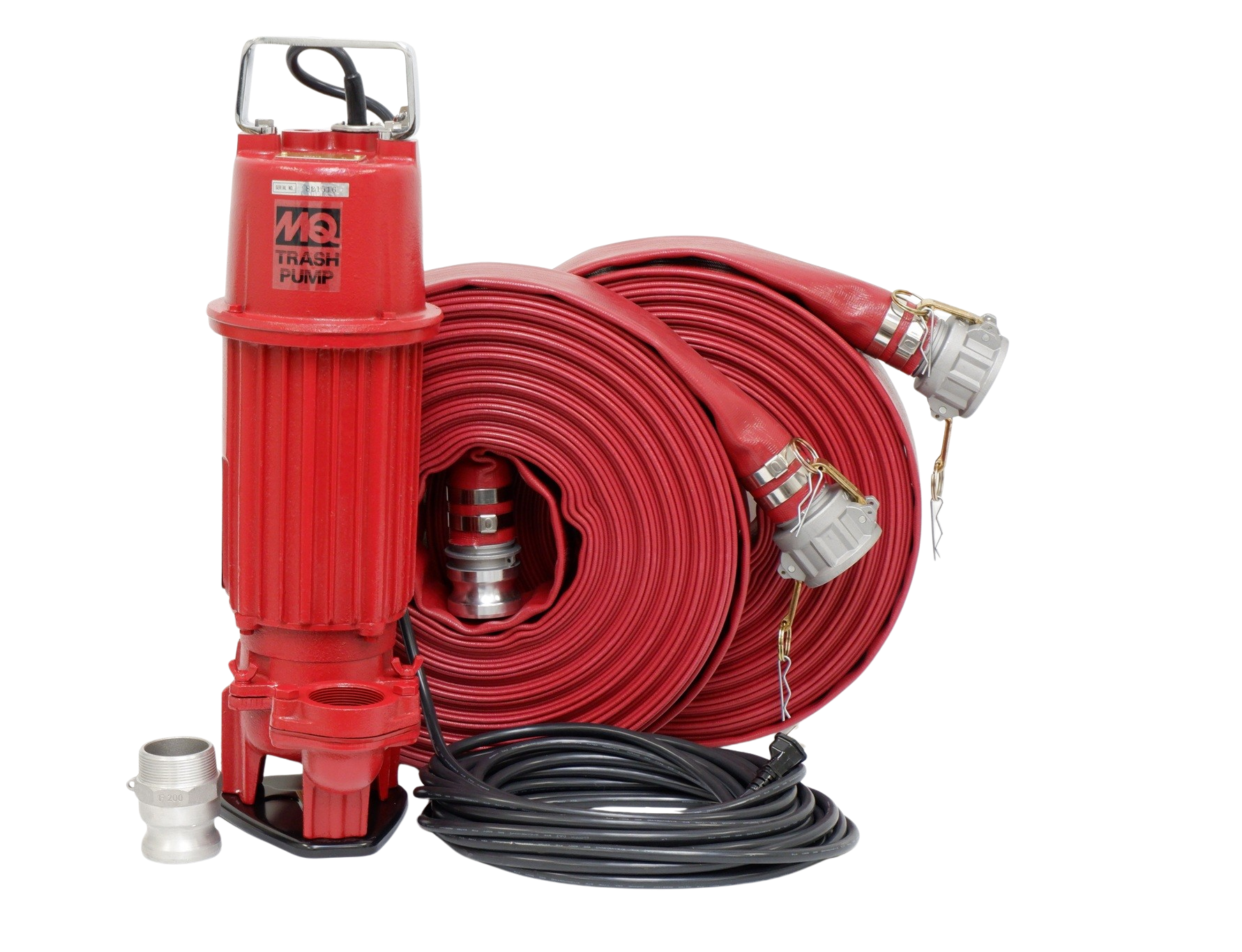

The ST2010TCUL submersible trash pump is a compact, heavy-duty solution engineered for moving water that contains debris in tough dewatering environments. Designed to handle solids up to 1 inch, this pump is built for consistent performance in demanding applications where durability and reliability are critical.
Its industrial-grade cast iron housing and abrasion-resistant cast iron impeller are designed to withstand heavy usage operations, while integrated protective features help extend service life. The ST2010TCUL also offers convenient handling and maintenance features that support efficient jobsite operation.
This model operates on 115V single-phase power, making it suitable for locations where standard electrical service is required, and is capable of dewatering flat surfaces down to 2 inches.
ST2010TCUL 2" Submersible Trash Pump Key Applications
The ST2010TCUL Submersible Trash Pump is designed for dewatering tasks where water contains debris and solids that standard clear-water pumps cannot handle. Typical applications include:
- Construction site dewatering
- Utility pits and service vaults
- Flooded areas containing debris
- Flat-surface water removal
- General-purpose industrial dewatering
Its ability to pump debris-laden water while maintaining stable performance makes it a practical choice for contractors, utilities, and industrial operators.
Technical Specifications
Pump & Performance Specifications
| Specification | Value |
|---|---|
| Discharge Size | 2 in |
| Discharge Type | Female NPT |
| Maximum Flow Rate | 95 GPM |
| Total Head | 45 ft |
| Maximum Solid Size | 1 in |
| Maximum Liquid Temperature | 120°F |
| Flat Surface Dewatering | Down to 2 in |
| Impeller Type | Neoprene Rubber over Cast Iron |
| Impeller Disc Size | 2 in (51 mm) |
Electrical Specifications
| Specification | Value |
|---|---|
| Motor Power | 1.0 HP (0.75 kW) |
| Voltage | 115 V |
| Phase | Single-Phase |
| Running Amperage | 6.8 A |
| Starting Amperage | 30 A |
| Motor Certification | UL & CUL Listed |
| Built-In Protection | Thermal Overload |
Dimensions & Weight
| Specification | Value |
|---|---|
| Pump Diameter | 10.3 in (262 mm) |
| Overall Height | 24.5 in (622 mm) |
| Operating Weight | 77 lb (35 kg) |
| Power Cable Length | 25 ft (7.6 m) |
Performance Highlights
- Maximum Flow Rate: Up to 95 GPM
- Total Head: Up to 45 ft
- Maximum Solid Size: 1 inch
- Maximum Liquid Temperature: 120°F
- Flat Surface Dewatering: Down to 2 inches
Construction & Design Features
- Heavy-duty cast iron housing for durability
- Abrasion-resistant cast iron impeller with neoprene rubber over-mold
- Sealed ball bearings for extended service life
- Dual shaft seals for added protection
- Built-in thermal overload protection
- Integrated carrying handle for portability
- Easy impeller clean-out for reduced downtime
- Molded power cable with strain relief
Safety & Compliance
- UL & CUL listed electric motor
- Built-in thermal overload protection
- Industrial-grade construction for professional use
Buy ST2010TCUL 2" Submersible Trash Pump from Cleanflow
Shop ST2010TCUL 2" Submersible Trash Pump with confidence at Cleanflow. Serving customers across Canada and the USA, Cleanflow proudly supplies Multiquip products, an established, proven manufacturer of world-class industrial equipment and solutions trusted by professionals for quality, performance, and reliability.
Frequently Asked Questions
What type of water can the ST2010TCUL pump?
The ST2010TCUL is designed to pump water containing debris, with a maximum solid size of up to 1 inch.
What power supply is required?
This pump operates on a 115V single-phase power supply and draws 6.8 amps during normal operation.
How low can the pump dewater?
The ST2010TCUL can dewater flat surfaces down to a 2-inch water level.
Is the motor protected against overload?
Yes. The pump includes built-in thermal overload protection to help prevent motor damage during heavy or continuous use.
What is the maximum liquid temperature?
The pump can handle liquids with temperatures up to 120°F.
Can a 1.0 HP submersible pump run continuously?
Yes, a 1.0 HP submersible pump can run continuously if it is designed for continuous-duty operation, properly cooled by the pumped liquid, and operated within its rated voltage, temperature, and load limits. Built-in thermal protection further supports safe continuous use.
What is the flow capacity of the ST2010TCUL?
The ST2010TCUL delivers a maximum flow rate of up to 95 gallons per minute (GPM), depending on head height and operating conditions.
How many hours can a submersible pump run continuously?
A submersible pump can typically run continuously for 6 to 24 hours, and many industrial models are designed for extended or 24/7 operation, provided operating conditions such as cooling, voltage, and fluid temperature remain within specifications.
How much power does a 1.0 HP submersible pump use?
A 1.0 HP submersible pump consumes approximately 0.75 kW of electricity when operating at full load. Actual power usage may vary based on efficiency, voltage, and operating conditions.
