Posi-Lock PM4 Puller Set - Comprehensive 3-Jaw & 2-Jaw Configurations, 5-20 Ton Capacity - Precision Engineered for Heavy-Duty Pulling Tasks

SKU: PWTPTPM4

Price:
Sale price$1,568.52
Free shipping
Stock:
In stock
Brand-Wide Volume Discounts: More Items, More Savings!

Description

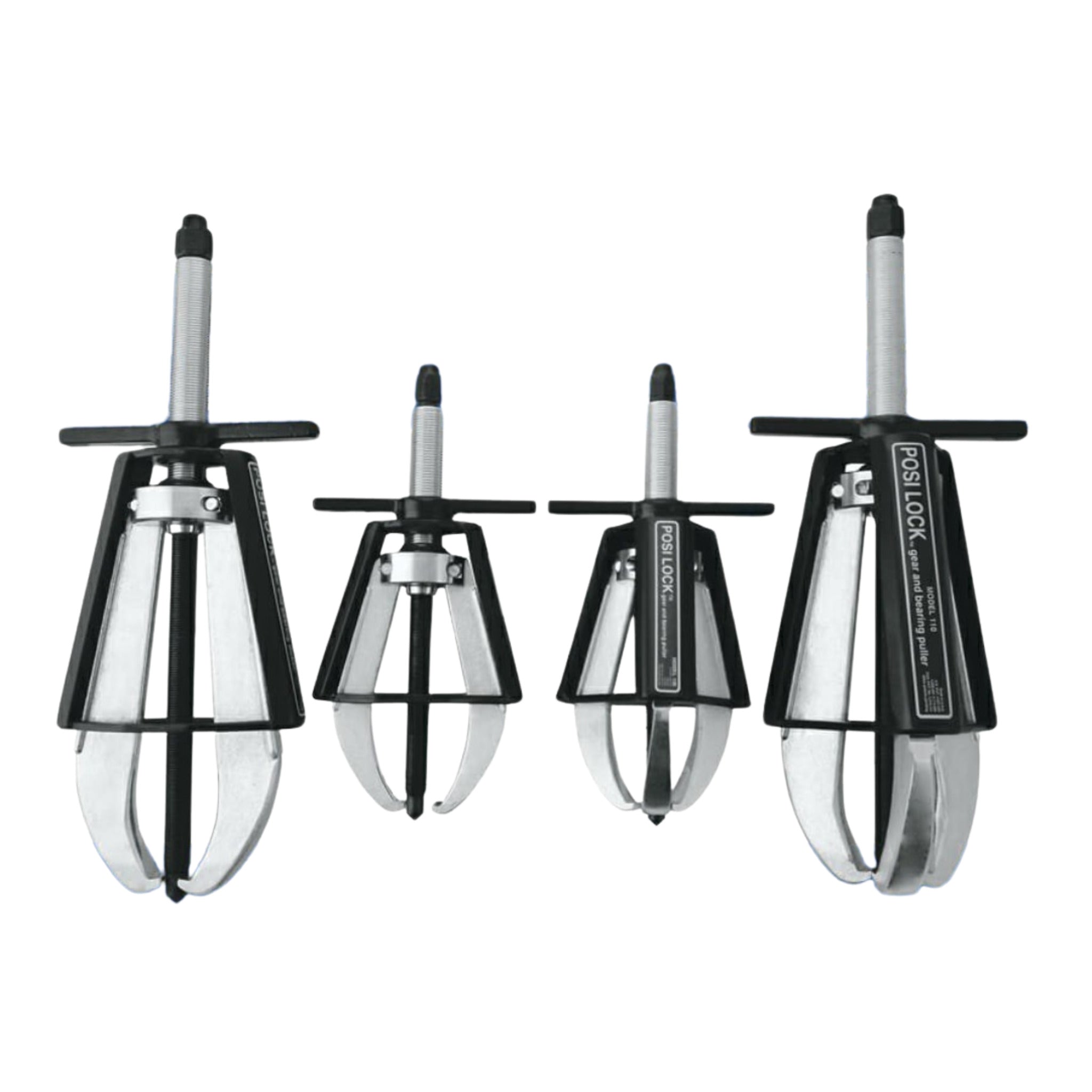

Posi-Lock PM4 Puller Set

Introducing the Posi-Lock PM4 Puller Set, the ultimate solution for heavy-duty pulling applications. This comprehensive set includes a variety of pullers designed to tackle a range of tasks with ease and efficiency. Whether you're dealing with light, medium, or heavy pulling jobs, the Posi-Lock PM4 Puller Set has you covered. Each puller in this set is engineered for maximum performance and durability, ensuring you can get the job done right the first time.

Key Features: Precision and Power for Every Job

Model 104 Puller | 3-Jaw | 5 Ton (44 kN)

    • Jaws: 3
    • Capacity: 5 ton (44 kN)
    • Reach (B): 4 in (102 mm)
    • Spread Range (C): 0.5 to 5 in (13 to 127 mm)
    • Weight: 4.1 lbs (1.9 kg)
    • Center Bolt Diameter (A): 0.5 in (12.7 mm)
    • Overall Length (D): 10.05 in (255.3 mm)
    • Jaw Width (E): 0.62 in (15.8 mm)
    • Hex Socket Size (F): 0.75 in (19 mm)
    • Maximum Torque: 40 ft./lb. (54 N·m)

Model 106 Puller | 3-Jaw | 10 Ton (89 kN)

    • Jaws: 3
    • Capacity: 10 ton (89 kN)
    • Reach (B): 6 in (152 mm)
    • Spread Range (C): 0.5 to 7 in (13 to 178 mm)
    • Weight: 8 lbs (3.6 kg)
    • Center Bolt Diameter (A): 0.62 in (15.8 mm)
    • Overall Length (D): 13.32 in (338.3 mm)
    • Jaw Width (E): 0.75 in (19 mm)
    • Hex Socket Size (F): 0.75 in (19 mm)
    • Maximum Torque: 130 ft./lb. (176 N·m)

Model 206 Puller | 2-Jaw | 6 Ton (53 kN)

    • Jaws: 2
    • Capacity: 6 ton (53 kN)
    • Reach (B): 6 in (152 mm)
    • Spread Range (C): 0.5 to 7 in (13 to 178 mm)
    • Weight: 7 lbs (3.2 kg)
    • Center Bolt Diameter (A): 0.62 in (15.8 mm)
    • Overall Length (D): 13.32 in (338.3 mm)
    • Jaw Width (E): 0.75 in (19 mm)
    • Hex Socket Size (F): 0.75 in (19 mm)
    • Maximum Torque: 75 ft./lb. (101 N·m)

Model 110 Puller | 3-Jaw | 20 Ton (178 kN)

    • Jaws: 3
    • Capacity: 20 ton (178 kN)
    • Reach (B): 9.67 in (245 mm)
    • Spread Range (C): 1 to 15 in (25 to 381 mm)
    • Weight: 16 lbs (7.3 kg)
    • Center Bolt Diameter (A): 0.75 in (19 mm)
    • Overall Length (D): 20.41 in (518.4 mm)
    • Jaw Width (E): 1 in (25.4 mm)
    • Hex Socket Size (F): 1 in (25.4 mm)
    • Maximum Torque: 275 ft./lb. (372 N·m)

Protective Accessories

    • (1) P4 Tip Protectors
    • (2) P6 Tip Protectors
    • (1) P10 Tip Protector

Tool Board & Accessories

    • Tool Board Size: 16 x 26 in. (406 x 660 mm)
    • Weight: 42 lbs (19.1 kg)

Elevate Your Pulling Tasks with the Posi-Lock PM4 Puller Set

With the Posi-Lock PM4 Puller Set, you're equipped with top-tier tools designed for precision and reliability. This set ensures that you have the right puller for any task, from small, delicate jobs to heavy-duty industrial applications. Enhance your workshop's capabilities and achieve exceptional results every time with the Posi-Lock PM4 Puller Set.
