Description

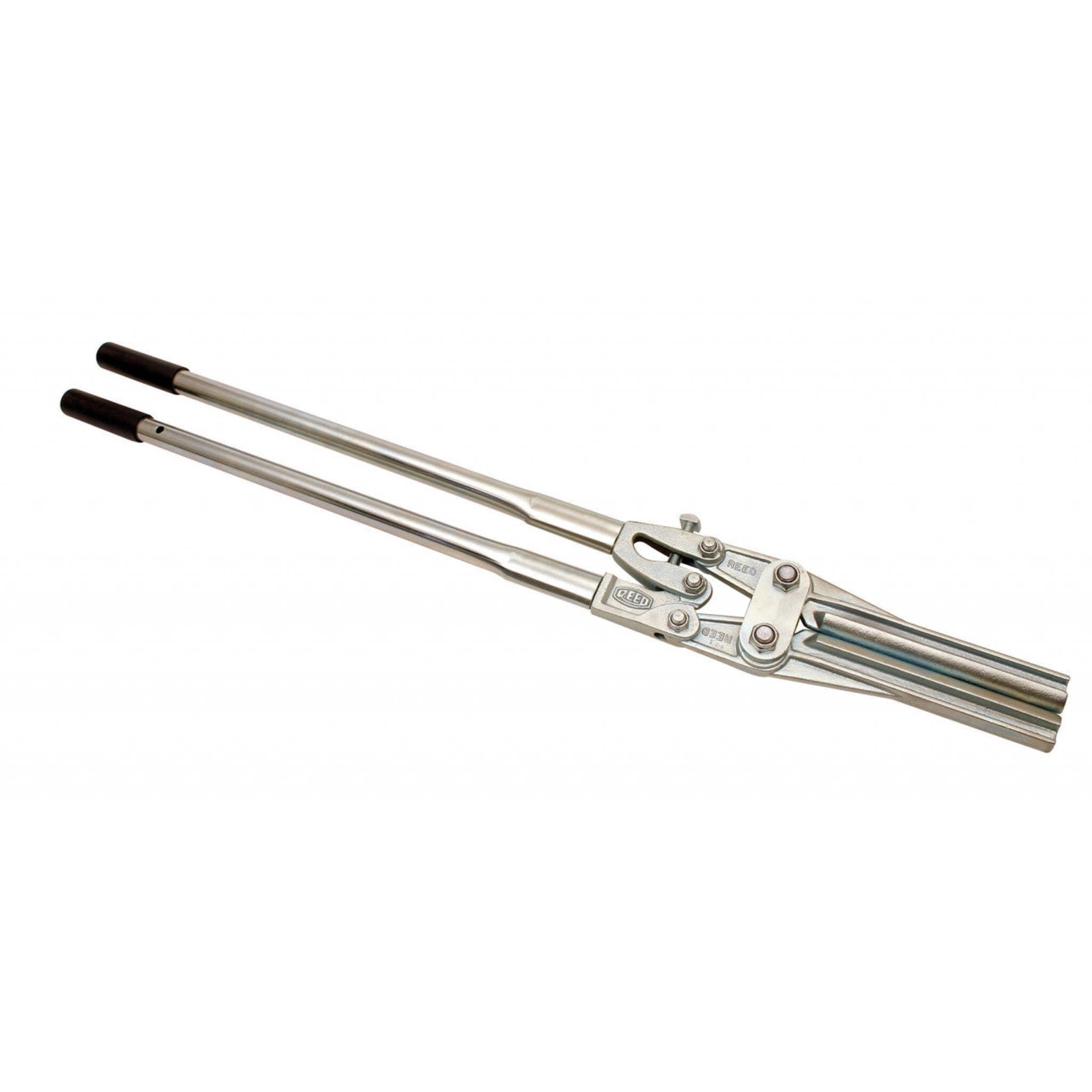

30-Inch Handle PE Pipe Shut Off Tool for Above-Ditch Water Service

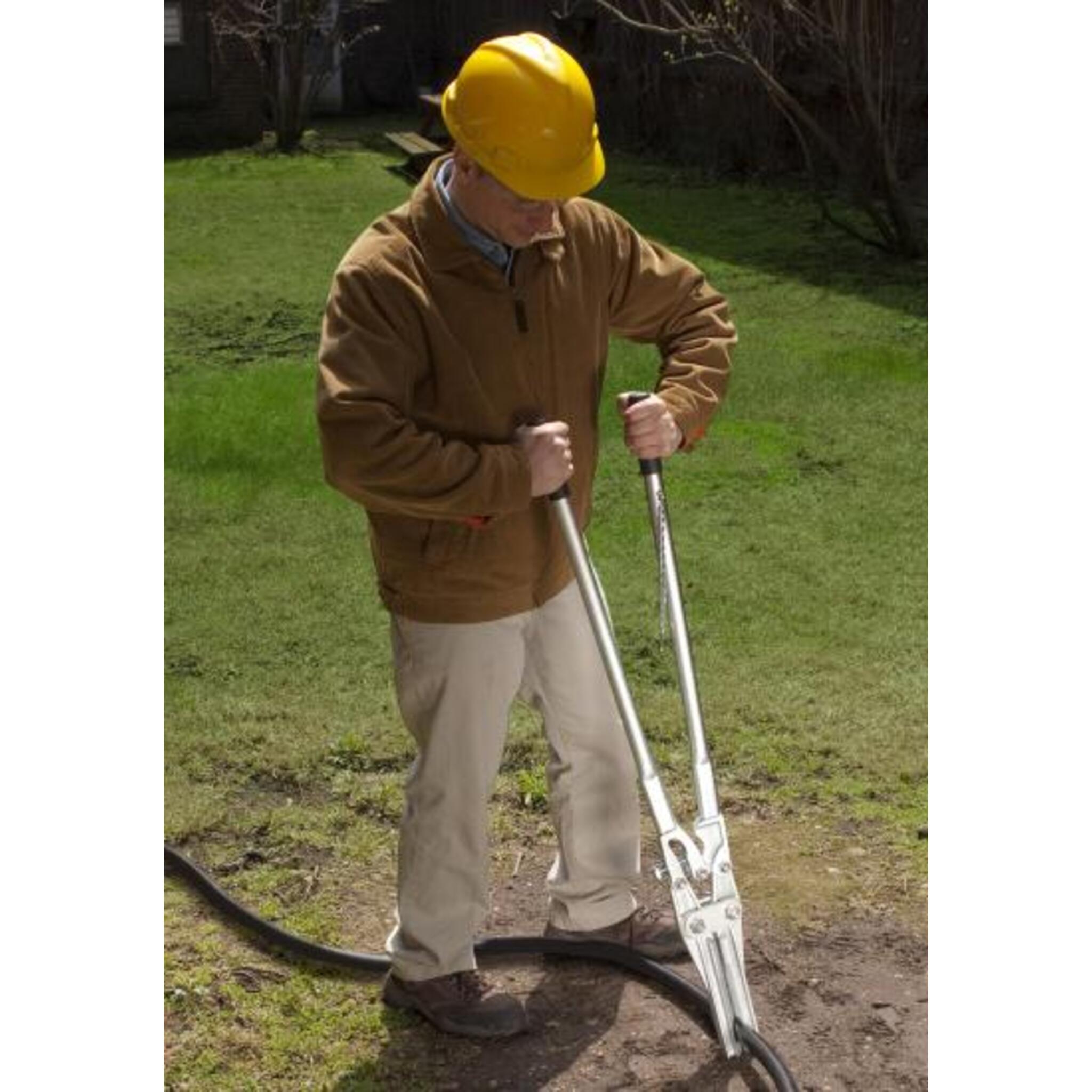

Water service line breaks don't wait for ideal conditions. The Reed SSO1C standing shut-off tool compresses 3/4" to 1" PE plastic tubes to stop water flow while you stay above the ditch. Its 30-inch handles generate bolt-cutter leverage, and a built-in chain holds the tool clamped in place for hands-free operation. At 17.7 lbs, it balances reach and portability for field crews.
Key Features
- The 30-inch handles on this standing shut-off tool for PE pipe produce the same leverage as a pair of bolt cutters. That force lets one operator compress the service line and lock it closed without crouching into the excavation.

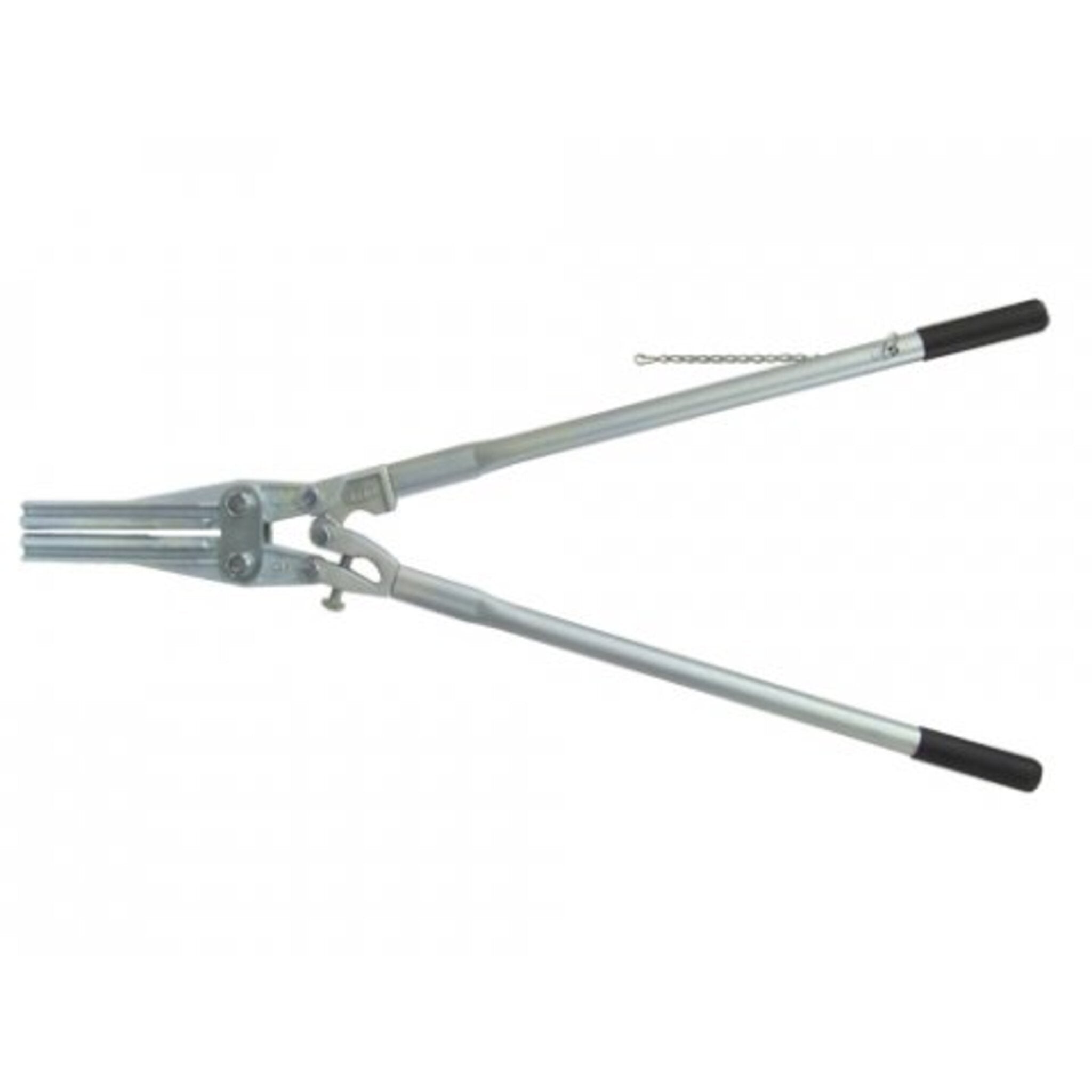

- A chain closure mechanism secures the tool around the compressed PE tube, keeping it clamped with no one holding it. This frees both hands for the repair and removes the need for a second worker to maintain compression.
- Cast jaws on this polyethylene pipe shut-off tool distribute clamping pressure evenly across the pipe wall to prevent point-loading damage. The jaw geometry matches the curvature of 3/4" to 1" nominal PE tubing.
- This PE pipe shut-off tool is rated for 3/4" to 1" nominal PE plastic tubes, covering 19 to 25 mm actual outside diameter. That range handles the most common residential and small commercial water service line sizes.
- The SSO1C is for PE water service shutoff only. Reed states it is not intended for gas service lines. Crews working on natural gas or propane PE piping should use a tool rated and approved for gas applications.
Specifications
The Reed SSO1C standing shut-off tool specifications below are sourced from Reed Manufacturing.
| Specification | Detail |
|---|---|
| Catalog Number | SSO1C |
| Item Code | 04281 |
| Pipe Capacity (Nominal) | 3/4" to 1" |
| Pipe Capacity (Actual O.D.) | 19 to 25 mm |
| Tool Length | 43.5 in (1,105 mm) |
| Handle Length | 30 in |
| Weight | 17.7 lbs (8.0 kg) |
| Jaw Type | Cast |
| Closure Mechanism | Chain |
| Intended Use | Water service lines only |
| Gas Line Use | Not intended for gas service |
| Pipe Life Impact | May reduce pipe service life at compression point (per Reed operating instructions) |
| Manufacturer | Reed Manufacturing, Erie, PA, USA |
Applications
Common field applications for a water service shut off tool with 30-inch standing reach include:
- Municipal water service line repair and maintenance where crews need to stop flow from above the excavation
- Residential water service connections requiring temporary shutoff of 3/4" or 1" PE lines during tap work or meter replacement
- Emergency water line shutoff on PE plastic tubing when a curb stop is buried, frozen, or inoperable
- Utility crew roadside repairs where the standing shut-off tool for PE pipe allows work from street level without entering the trench
- Contractor jobsites with limited excavation depth, where above-ditch operation speeds up the shut-off step
Buy Reed SSO1C Standing Shut Off Tool Online from Cleanflow
Cleanflow Utility Supply Company is an authorized Reed Manufacturing supplier. The Reed SSO1C PE pipe shut-off tool ships across Canada and the USA, with free shipping on orders over $199. For questions about this Reed shut-off tool or other Reed water service products, email info@cleanflow.ca.
For a lighter, hand-held option covering the same 3/4" to 1" pipe range, see the Reed PES0 PE Water Service Shut-Off Tool.
Browse more Reed shut-off tool options and squeeze tools in the Shut Off Tools collection. For complementary fittings and pipe accessories, see Pipe Tools, Waterworks Products, and the full Reed collection at Cleanflow.
Frequently Asked Questions
What size PE pipe fits the Reed SSO1C?
The SSO1C fits 3/4" to 1" nominal PE plastic tubes with 19 to 25 mm actual outside diameter. That covers most residential and small commercial water service shutoff tool applications in polyethylene pipe shutoff tool sizing.
How does a PE pipe shutoff tool work?
The SSO1C uses 30-inch handles to generate bolt-cutter leverage that compresses the PE tube flat and stops water flow. A chain locks the tool closed so you can work hands-free while the line stays clamped.
Can you use a shut-off tool on gas service lines?
No. Reed states this tool is not intended for gas service lines. Use it only on water PE piping. Gas shut-off requires a tool specifically rated and approved for gas applications.
What is the difference between the Reed SSO1C and a PE squeeze-off tool?
The SSO1C is a Reed SSO1C standing shut-off tool with 30-inch handles for above-ditch operation. PE squeeze-off tools like the Reed PES01 or PES2 are smaller, lighter, sized for in-trench use, and preserve pipe life at the compression point, while the SSO1C may degrade it.
What is the best tool to stop water flow in PE pipe?
For 3/4" to 1" PE service lines accessible from above the excavation, the Reed SSO1C standing shut-off tool provides the longest reach and hands-free chain closure. For larger pipe sizes or in-trench work, Reed offers several PE water service shut-off squeeze models.
