Description

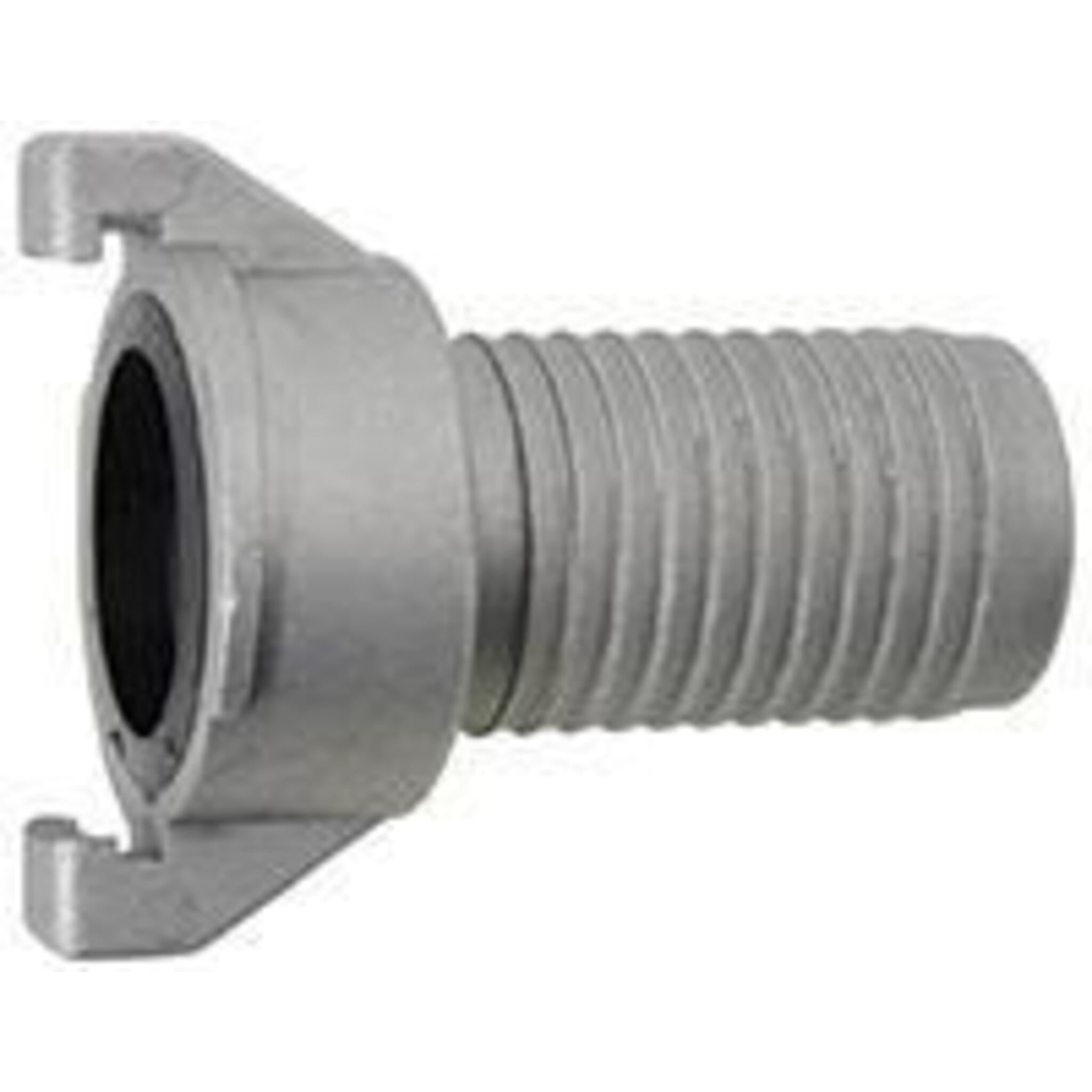

Aluminum Forestry Fitting for Hose Fabrication and Repair, Quarter-Turn, UL Listed
Fire Hose Shank Overview
Buying pre-assembled hose for every length on the truck costs more than building it yourself. A single fire hose shank and a length of bulk hose produce a finished forestry assembly at a fraction of the cost. This aluminum forestry fitting connects to any instantaneous line with a quarter turn and weighs just 0.36 lb per fitting.
Specifications
Specifications for the 1-1/2 inch fire hose shank:
| Specification | G95-150 |
|---|---|
| Hose Size | 1-1/2" |
| Fitting Type | Instantaneous Hose Shank |
| Connection | Forestry instantaneous (quarter-turn, genderless) |
| Material | Aluminum |
| Weight | 0.36 lb |
| Certifications | UL Listed, NFPA Compliant |
Key Features
Genderless Quarter-Turn Connection
The instantaneous end joins any forestry hose coupling with a quarter turn, and because all ends are interchangeable, there are no male or female parts to match. The quarter turn fire hose coupling eliminates threading and wrenching from every connection.
Lightweight Aluminum Construction
The aluminum hose shank weighs 0.36 lb, roughly half the weight of a brass equivalent. Aluminum resists corrosion from standing water and weather exposure while keeping the coupling end of the hose light enough for one-hand work.
Serrated Barb for Secure Hose Grip
The shank tail has machined serrations that bite into the inside of the hose jacket when installed. This fire hose repair fitting holds under pressure and vibration without backing out of the hose end.
UL Listed and NFPA Compliant
This UL listed fire hose fitting meets the procurement requirements of fire departments, municipalities, and forestry agencies across North America. Departments that specify UL-listed components can order the G95-150 against their standard purchasing specifications.
Built for Fabrication and Field Repair
The fire hose shank inserts into the end of 1-1/2" hose and secures with a crimped connection at the serrated barb. This instantaneous fire hose fitting lets crews fabricate custom-length assemblies or replace a single damaged coupling without discarding the hose.
When to Repair vs Replace a Fire Hose Assembly
Fire hose assemblies take damage in service. Jackets abrade on pavement and rock. Couplings dent from drops or vehicle runover. When the coupling fails but the hose jacket is still sound, a repair vs replace fire hose decision favors repair. Removing the damaged fitting and re-shanking with a new aluminum hose shank restores the assembly for a fraction of the cost of a new one.
Replace the full assembly when:
- The jacket shows exposed liner, cuts through both layers, or heat damage
- The hose fails a pressure test at its rated working pressure
- Multiple couplings on the same length are damaged
- The hose has exceeded its manufacturer-recommended service life
Repair with a new shank when:
- Only one coupling is damaged (dented lugs, bent cam arms, stripped serrations)
- The hose jacket passes visual inspection and pressure testing
- The hose is a non-standard length that would cost more to replace than repair
Cleanflow stocks the G95-150 shank alongside complete forestry assemblies in both single jacket (150 PSI) and double jacket (300 PSI) configurations for departments that need repair fittings and replacement hose.
Applications
- Custom fire hose assembly: aluminum forestry fitting paired with bulk hose to build lines to exact length
- Field repair of damaged couplings on wildland fire hose fitting stock without replacing the full assembly
- Forestry and wildland fire departments standardizing on instantaneous quarter-turn connections
- Volunteer and rural fire departments where a lightweight fire hose fitting keeps apparatus weight down
- Municipal water utilities and construction sites using 1-1/2" forestry hose for temporary supply
Buy Aluminum Fire Hose Shanks Online from Cleanflow
Cleanflow Utility Supply Company stocks fire hose shanks and forestry fittings for fire departments, forestry crews, and contractors across Canada and the United States. Order the G95-150 fire hose shank with free shipping on orders over $199 and a 30-day return policy. Pair this aluminum forestry fitting with single jacket forestry assemblies or double jacket forestry assemblies from the fire hose and fittings collection.
Email info@cleanflow.ca for volume pricing or to confirm hose compatibility.
Frequently Asked Questions
What does this fire hose shank connect to?
The instantaneous end connects to any forestry instantaneous fitting, cap, nozzle, adapter, or Y-valve with a genderless quarter turn. The hose shank end inserts into 1-1/2" fire hose and secures with a crimped connection.
Is this shank compatible with single jacket and double jacket hose?
The G95-150 fits both single jacket and double jacket 1-1/2" fire hose. Single jacket forestry hose at 150 PSI is the more common pairing for wildland use, while double jacket at 300 PSI suits higher-pressure applications.
Can I use this shank on 1" fire hose?
The 1-1/2 inch fire hose shank fits 1-1/2" hose only. There is no 1" version in the forestry instantaneous shank line. For 1" hose, a different shank type or thread adapter is needed.
Is this shank compatible with NPSH or NH threaded hose?
Forestry instantaneous and NPSH or NH threads are not interchangeable. This instantaneous fire hose fitting connects only to other forestry instantaneous fittings. An adapter is needed to bridge instantaneous and threaded systems.
What tools do I need to install this wildland fire hose fitting?
Installation requires a hose coupling machine or portable crimping tool to secure the shank into the hose end. The instantaneous end needs no tools to connect. Crews with a portable crimper can fabricate or repair assemblies in the field.
