Description

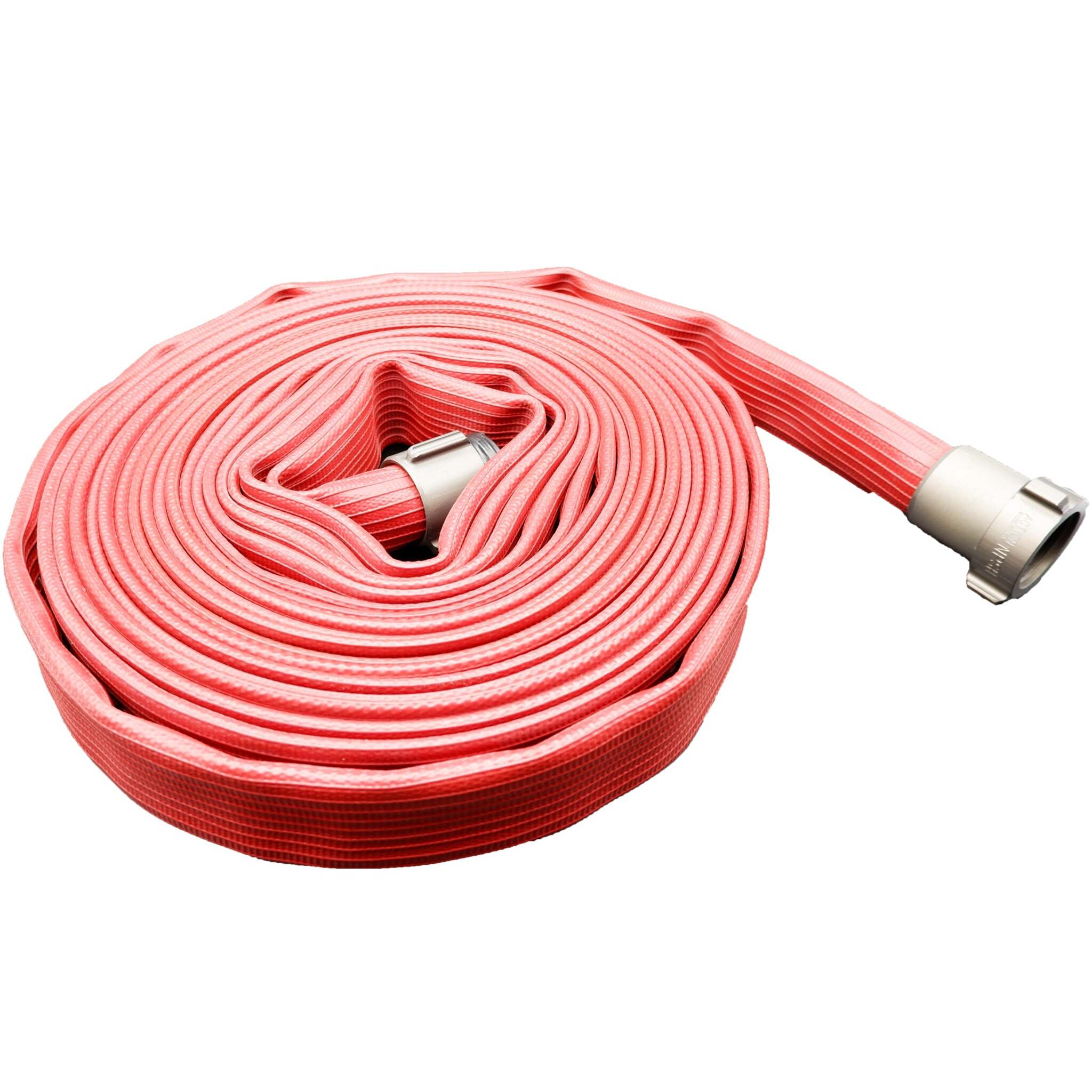

Through the Weave PVC Fire Hose, Nitrile/PVC, Red, 300 PSI, 50 and 100 Ft
This red nitrile fire hose assembly is a 1-1/2 inch through the weave layflat PVC fire hose for municipal fire departments, industrial facilities, petrochemical plants, and forestry operations. The nitrile/PVC compound is extruded through the woven reinforcement, encapsulating the jacket to create a solid-wall hose with no separate liner to delaminate.
Unlike conventional EPDM-lined fire hose, this through the weave fire hose permanently bonds the nitrile/PVC compound through the woven reinforcement. The result is a chemical resistant fire hose that handles abrasion, oil, fuel, weathering, and ozone while remaining lightweight and easy to deploy.

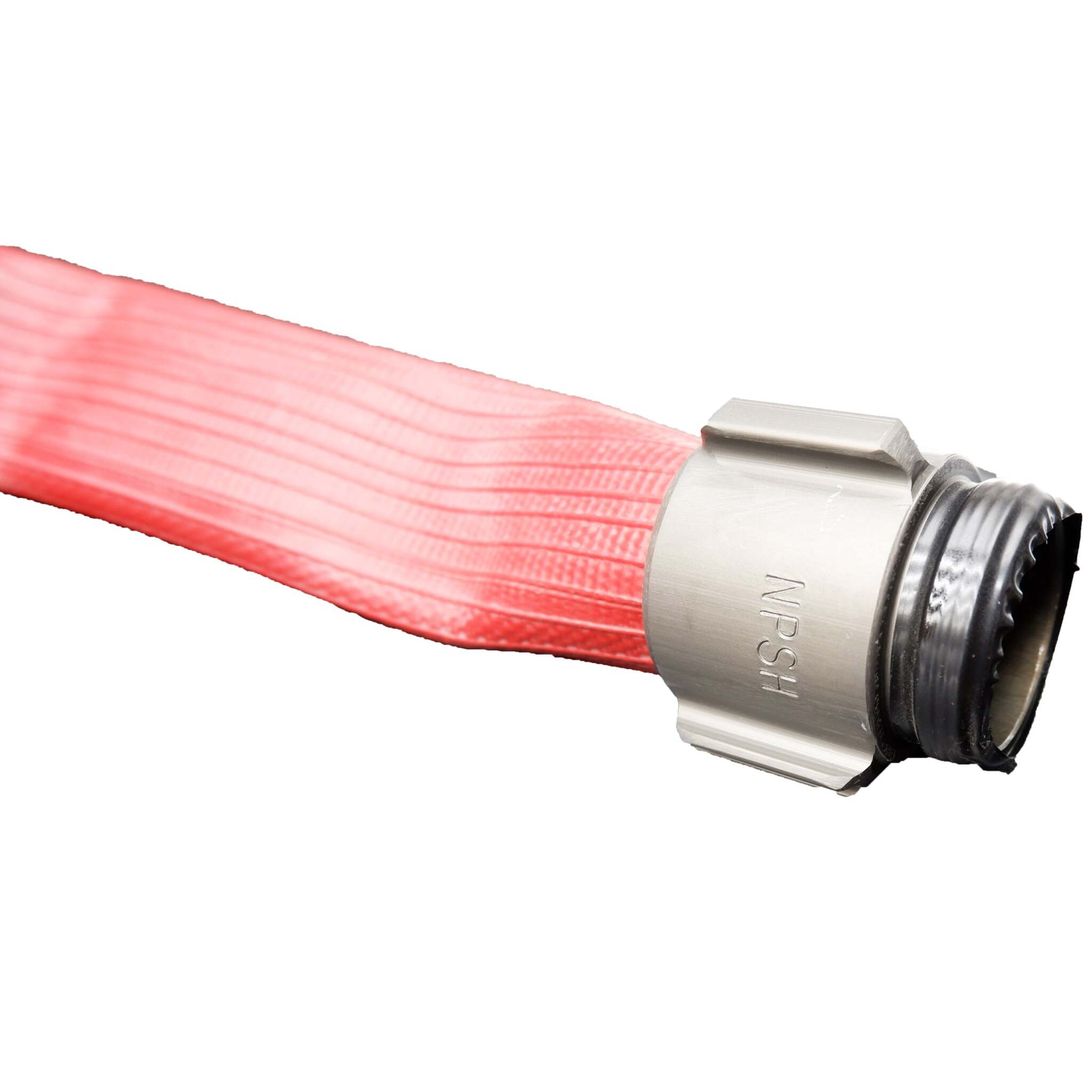

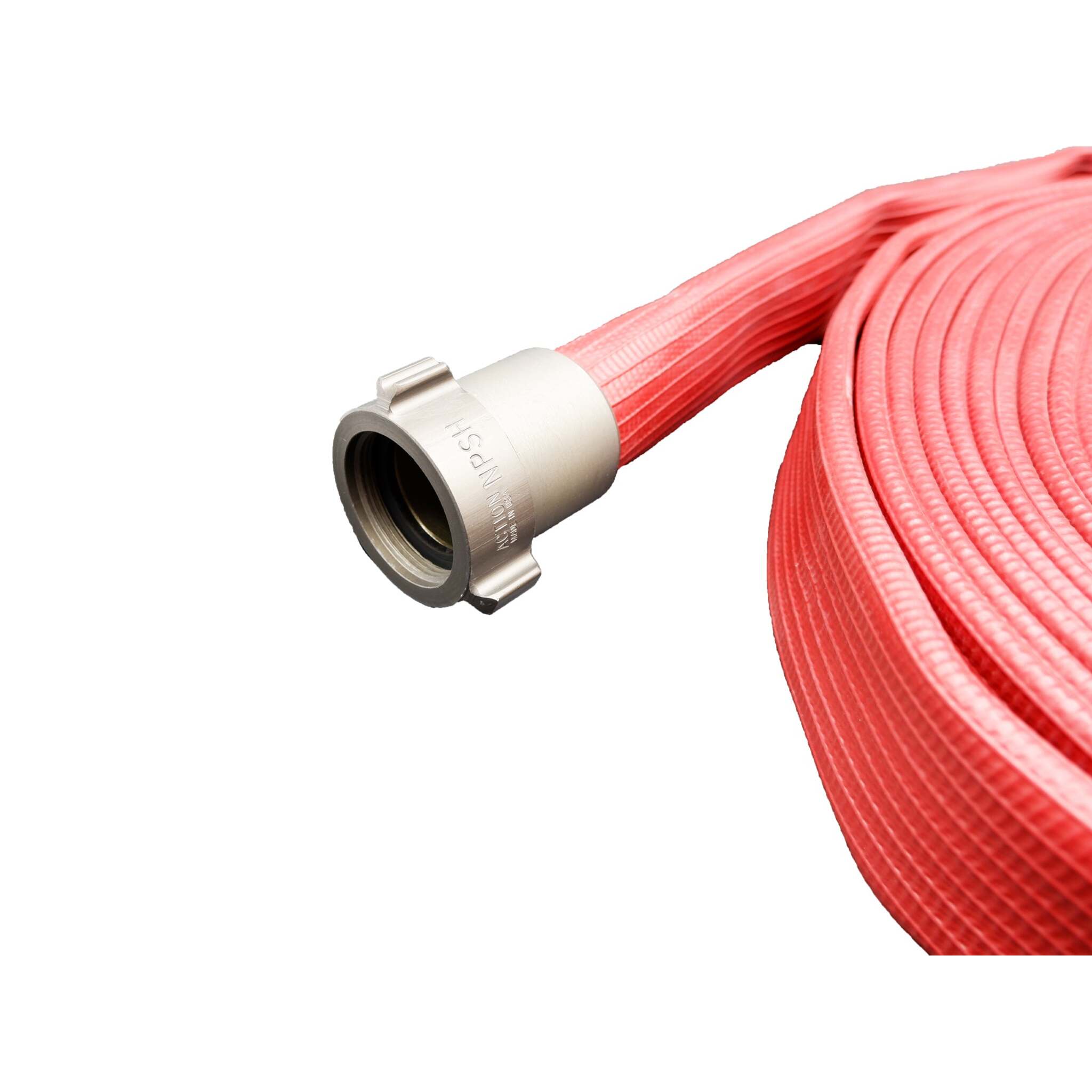

Each nitrile pvc fire hose assembly is fitted with 1-1/2" hardcoat aluminum NPSH threaded couplings, one male and one female swivel. These lightweight, corrosion-resistant couplings connect to pumps, hydrants, nozzles, and standard firefighting equipment.
This is a UL listed fire hose certified for fire service compliance across Canada and the United States. This nitrile fire hose operates at 300 PSI working pressure with 600 PSI test and 900 PSI burst.
Key Features
- Through-the-weave construction, nitrile/PVC extruded directly through woven reinforcement, single solid wall with no liner delamination risk
- Chemical resistant fire hose rated for oil, fuel, gasoline, hydraulic fluid, and industrial chemical environments
- Hardcoat aluminum NPSH couplings pre-installed, one male and one female swivel, lightweight and corrosion resistant
- Certified NFPA 1961 fire hose (2020 Edition), UL 19, ULC S511-14, FM 2111
- Lay-flat storage, 0.30 lbs per foot uncoupled, deploys from apparatus compartments
- Red nitrile fire hose, visible on the fire ground, standard color for municipal attack and supply lines
- 300 PSI working pressure, 600 PSI test pressure, 900 PSI burst pressure
- 10-year manufacturer warranty, outlasts standard EPDM in outdoor storage and UV exposure
Red Nitrile PVC Fire Hose Assembly Specifications
| Application | Municipal, Industrial, Forestry |
|---|---|
| Hose Type | Solid-Wall Through-the-Weave Fire Hose |
| Hose I.D. | 1-1/2" |
| Hose O.D. | 1.70" |
| Construction | Nitrile/PVC co-extruded through-the-weave |
| Liner/Cover Material | Nitrile/PVC rubber compound |
| Reinforcement | Circular woven high-tenacity synthetic yarn |
| Colour | Red |
| End Fitting #1 | 1-1/2" Male Hardcoat Aluminum NPSH |
| End Fitting #2 | 1-1/2" Female Hardcoat Aluminum NPSH Swivel |
| Working Pressure | 300 PSI |
| Test Pressure | 600 PSI |
| Burst Pressure | 900 PSI |
| Temperature Range | -20°C to 80°C (-4°F to 176°F) |
| Weight (Uncoupled Hose) | 0.30 lbs/ft |
| Bowl Size | 1-3/4" |
| Certifications | UL 19, ULC S511-14, NFPA 1961 (2020 Edition), FM 2111 |
| Warranty | 10 years |
| Country of Origin | Spain |
Applications
- Municipal fire departments connect this pvc fire hose as attack lines and hydrant supply connections during structural and wildland response.
- Industrial fire protection teams deploy this chemical resistant fire hose at petrochemical plants, refineries, and fuel storage facilities where oil contact is routine.
- Forestry and wildland firefighting crews connect this nitrile fire hose to portable pumps for brush fire suppression in remote terrain.
- Mine and construction site safety crews run this fire hose on standpipe systems in environments with diesel and hydraulic fluid.
- Building managers and facility operators store this nitrile pvc fire hose assembly on racks for emergency water supply and fire suppression standby.
Certified for Fire Safety Applications
- UL 19 and ULC S511-14 confirm this UL listed fire hose passes pressure, burst, and performance testing for U.S. and Canadian fire service use.
- NFPA 1961 (2020 Edition) is the national standard for new fire hoses. This NFPA 1961 fire hose meets all construction and acceptance requirements.
- FM 2111 is the Factory Mutual approval for industrial fire protection systems.
How Through the Weave Fire Hose Is Made
In traditional fire hose, a rubber liner is extruded separately, inserted through a woven jacket, and bonded with steam. The two layers can separate at fold points over time. In this hose, the nitrile/PVC compound is extruded directly through the circularly woven synthetic yarn during manufacturing.
The rubber flows through the gaps in the weave and forms a single solid wall. No separate liner exists to delaminate. No glues or adhesives are needed because the rubber mechanically locks into the weave.
Buy Nitrile PVC Fire Hose Assembly Online from Cleanflow
Armtex Jafrib® is manufactured by Kuriyama and has been in continuous production for over 40 years. The through-the-weave construction carries a 10-year warranty. Every length is tested to 600 PSI before shipping. Nitrile/PVC resists oil, fuel, and chemicals that degrade standard EPDM hose. Fire departments across Canada and the United States run Armtex Jafrib on front-line apparatus.
Cleanflow Utility Supply Company stocks this nitrile pvc fire hose assembly with hardcoat aluminum NPSH couplings in 50 ft and 100 ft lengths and ships across Canada and the USA with free shipping on orders over $199. For the same hose without couplings, see the red nitrile PVC fire hose (hose only, no ends).
Browse the fire hose and fittings collection for additional sizes, adapters, and nozzles. Email info@cleanflow.ca for questions.
Frequently Asked Questions
What Is Through the Weave Fire Hose Construction?
In through-the-weave construction, the rubber and the reinforcement become one solid wall instead of two separate layers bonded together. This eliminates liner delamination, the most common cause of fire hose failure. Hose built this way passes bend and kink tests that traditional lined hose fails, and holds up longer in outdoor rack storage.
Nitrile vs EPDM Fire Hose: Which Is Better?
Nitrile/PVC resists oil, fuel, and chemicals that degrade EPDM rubber, and carries a 10-year warranty versus 5 years typical for EPDM. EPDM handles higher sustained temperatures for interior structural firefighting. For attack lines, supply, wildland, and industrial use, nitrile fire hose is the more durable and chemical-resistant option.
What Is NFPA 1961?
NFPA 1961 is the National Fire Protection Association standard for fire hose design, construction, and performance testing. A fire hose that meets NFPA 1961 has passed flow, pressure, burst, and elongation tests under controlled conditions. This hose is certified to the 2020 Edition of NFPA 1961.
How to Connect NPSH Fire Hose Fittings?
NPSH (National Pipe Straight Hose) fittings thread together by hand and tighten with a spanner wrench. The male end threads into the female swivel coupling. NPSH is standard on many North American fire pumps, hydrant adapters, and nozzles. This fire hose ships with NPSH fittings pre-installed.
How Long Does Nitrile PVC Fire Hose Last?
This nitrile pvc fire hose assembly carries a 10-year manufacturer warranty. The solid-wall construction resists UV degradation, ozone cracking, and mildew that shorten the life of lined fire hose stored on outdoor racks and apparatus. Actual service life depends on use frequency, chemical exposure, and storage conditions.
