Description

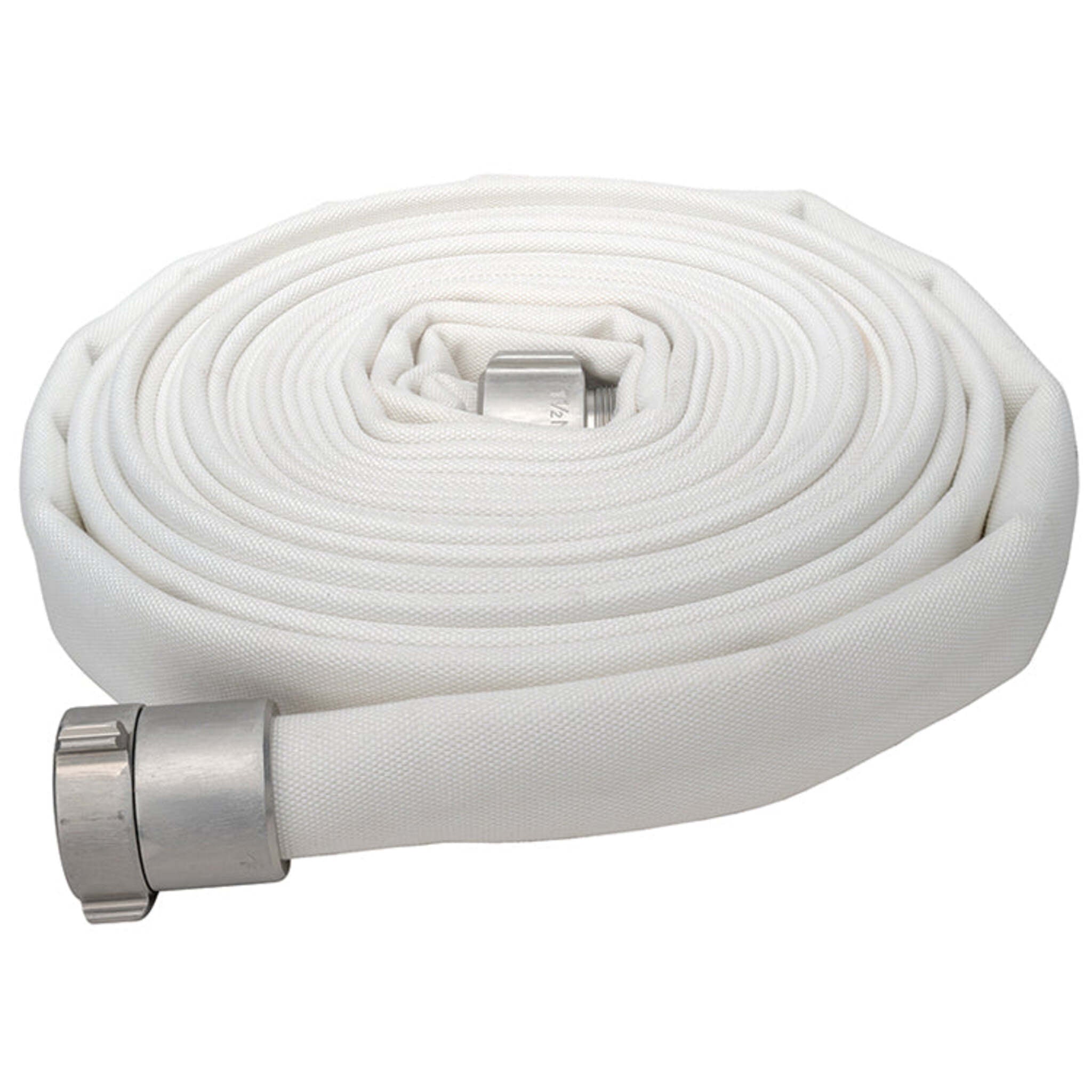

Industrial Fire Hose Assembly, 1-1/2" ID, Double Jacket, 300 PSI, Rubber Lined, Hard-Coat Aluminum NPSH Fittings, UL Listed
Two layers of woven polyester protect this NPSH fire hose from the abrasion of dragging across concrete, gravel, and steel decking on construction sites and processing floors. The 1-1/2 inch industrial fire hose threads onto portable pump outlets and fire department connections with standard NPSH couplings, and its rubber liner holds 300 PSI working pressure while resisting mildew and rot through seasonal storage.
Specifications
| SKU | G1942-150NP50 |
|---|---|
| Hose Inside Diameter | 1-1/2" |
| Length | 50 ft |
| Working Pressure | 300 PSI |
| Test Pressure | 600 PSI |
| Burst Pressure | 1,200 PSI* |
| Weight (Uncoupled) | 0.32 lb/ft |
| Tube (Liner) Material | EPDM rubber, ozone, mildew, and rot resistant* |
| Jacket Material | All-polyester double jacket, polymer-coated* |
| Jacket Type | Double jacket |
| Jacket Color | Orange |
| Coupling Material | Hard-coat anodized aluminum |
| Coupling Configuration | Male x female swivel NPSH |
| Thread Type | NPSH (National Pipe Straight Hose) |
| Bowl Size | 1-15/16" |
| Temperature Range | Pliable to -40°F (-40°C) |
| Certifications | UL Listed, NFPA Compliant |
| Standards | NFPA 1961 |
| Warranty | 10 years |
Key Features
- NPSH Swivel Fittings, Hard-Coat Aluminum, Male and Female: this NPSH fire hose connects to portable pump outlets, fire department connections, and standpipe inlets without adapters.
- Double Jacket, Two Layers of Woven Polyester: the outer jacket absorbs cuts and scuffs from dragging across pavement, gravel, and steel grating.
- 300 PSI Working Pressure, 600 PSI Test: handles the discharge pressure from centrifugal and diaphragm pumps on construction and industrial sites.
- 1,200 PSI Burst Rating: a 4:1 safety margin above the 300 PSI working pressure.
- EPDM Rubber Liner, Ozone and Mildew Resistant: holds its seal through repeated wetting, drying, and seasonal storage without degrading.
- Polymer-Coated Jacket for Abrasion Resistance: reduces snagging and extends jacket life when dragged across rough surfaces.
- Pump-Ready, 50-Foot NPSH Fire Hose Assembly: ships with fittings installed for immediate deployment from a truck bed or pump trailer.
- 0.32 lb/ft, 16 lb per 50-Foot Assembly: a portable fire hose for construction site deployment, manageable for a two-person crew.
- Pliable to -40°F (-40°C): retains flexibility for cold-weather pump operations and winter storage.
- UL Listed, NFPA 1961 Compliant: meets the pressure, abrasion, and liner standards required for fire service procurement.
Applications
- Construction crews connect this NPSH fire hose to portable pumps for dewatering, dust suppression, and washdown at active construction sites.
- Industrial facilities deploy this heavy duty fire hose for high-pressure washdown of processing floors, loading docks, and equipment bays.
- Fire departments carry this industrial fire hose as pump discharge hose for relay pumping and standpipe operations.
- Mining crews connect this fire hose with NPSH fittings to portable pumps for fire suppression standby and process water transfer.
- Agricultural operations run this fire hose for portable pump irrigation, livestock washdown, and seasonal water transfer across the property.
Buy Industrial Fire Hose Online from Cleanflow
Cleanflow Utility Supply Company stocks this industrial fire hose assembly and ships across Canada and the USA with free shipping on orders over $199. Pair this heavy duty fire hose with a brass 1-1/2" NPSH fog nozzle for adjustable spray from straight stream to full fog, or a thermoplastic 1-1/2" NPSH twin tip nozzle for fixed-orifice washdown.
Browse the fire hose and fittings collection for additional sizes, adapters, and accessories. For questions, email info@cleanflow.ca.
Frequently Asked Questions
Why Use NPSH Fittings on Fire Hose?
NPSH is the standard thread on portable pump inlets, fire department connections, and many industrial pump outlets. An NPSH fire hose connects to these ports without adapters. The swivel female end eliminates line twist during coupling. Choose NPSH when connecting to pumps rather than fire hydrants.
What Fire Hose for Industrial Washdown?
Choose a double jacket washdown fire hose rated at 300 PSI or higher with NPSH fittings to match standard pump connections. The double jacket resists abrasion from dragging across concrete and steel, and the rubber liner withstands daily wetting.
How to Connect Fire Hose to a Portable Pump?
Thread the female NPSH swivel onto the pump's discharge outlet by hand and tighten until the gasket seats. Lay the hose out straight before starting the pump, then open the discharge valve slowly. Confirm the fittings match: NPSH threads do not interchange with NST or NPT without an adapter.
How Long Does a Double Jacket Fire Hose Last?
A double jacket fire hose can last up to 10 years with proper care. The outer jacket absorbs surface abrasion that would damage a single jacket hose faster. Store the hose drained and loosely rolled out of direct sunlight. Inspect fittings and jacket for cuts before each use.
