Description

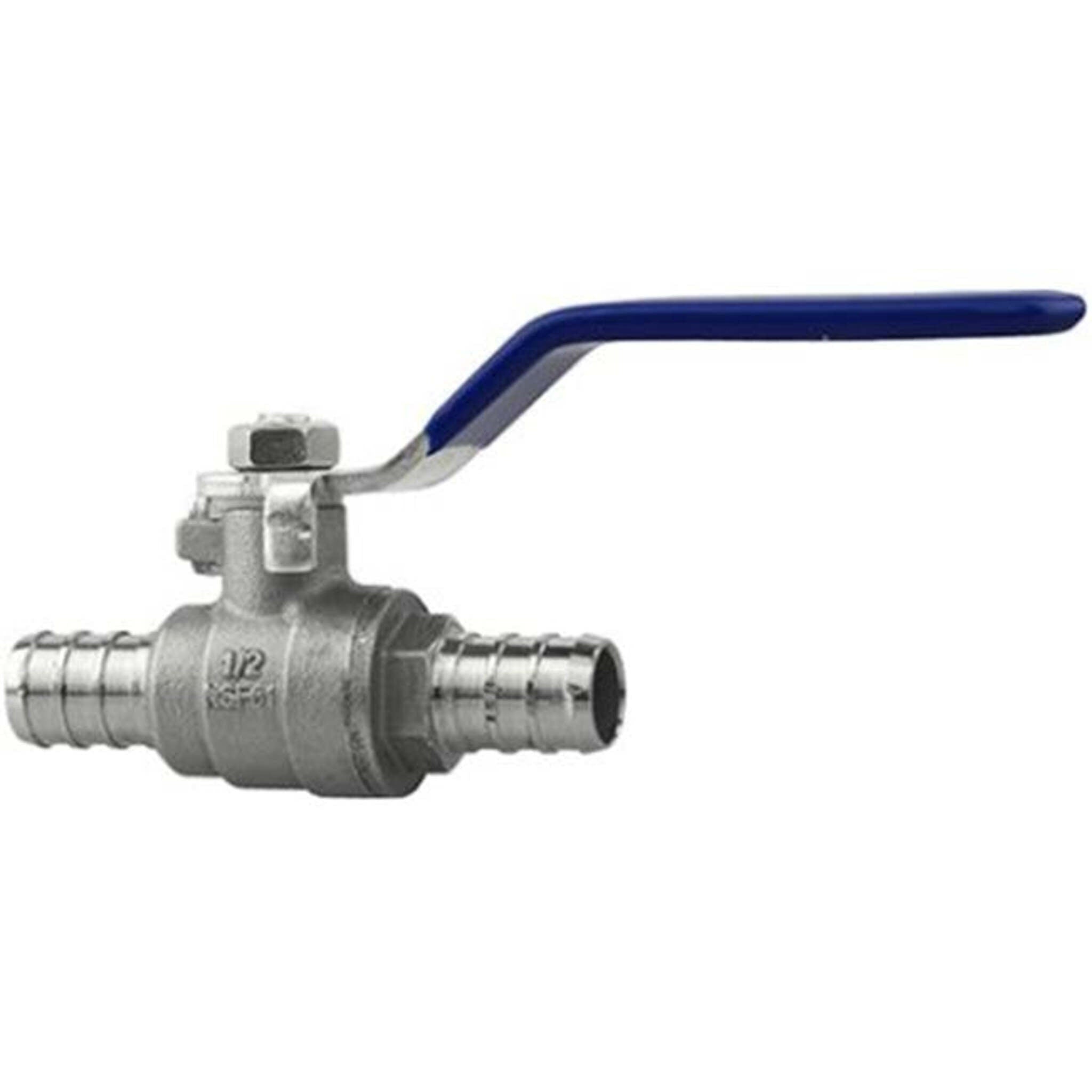

PEX-B Crimp-Compatible Stainless Steel Shut-Off Valves for Residential and Hydronic Systems
This Plumb-Eeze 304 Stainless Steel PEX Ball Valve is a high-performance shut-off valve designed for PEX B crimp tubing applications and rated to 600 PSI CWP (cold working pressure) with an operating temperature range of -40°F to 200°F (-40°C to 93°C). Made from corrosion-resistant 304 stainless steel, it provides superior durability compared to traditional brass alternatives. Designed for PEX-B crimp systems using ASTM F1807 copper crimp rings. Not compatible with ASTM F1960 cold expansion systems.
These stainless steel PEX fittings are the ideal choice for professional plumbers, contractors, and serious DIYers seeking a long-lasting and robust solution for modern plumbing installations. The design provides essential shut-off control, supporting reliable shut-off control for service and maintenance.
Quick Specs
- Connection Type: PEX Crimp
- Compatible Tubing: PEX-B
- Material: 304 Stainless Steel
- Pressure Rating: 600 PSI CWP
- Temperature Rating: -40°F to 200°F (-40°C to 93°C)
- Certification: NSF/ANSI 61, NSF/ANSI 372, cUPC Certified, ASTM F1807
Available In
- 1/2"
- 3/4"
- 1"
Key Features of Plumb-Eeze 304 Stainless Steel PEX Ball Valves
- Constructed from 304-grade stainless steel for exceptional strength and longevity in high-demand environments.
- Offers superior resistance to corrosion, outperforming high-zinc, yellow brass fittings in various water conditions.
- Stainless steel construction provides a durable valve body with reliable shut-off control for PEX crimp systems.
- Operates reliably in extreme temperatures ranging from -40°F to 200°F and withstands up to 600 PSI CWP.
- Suitable for diverse applications, including residential plumbing, hydronic heating, and specialty industries like maple syrup production.
- Certified to meet NSF, cUPC, and ASTM standards, ensuring it is safe for potable water systems.
- Backed by an impressive 30-year warranty for long-term confidence and system security.
Plumb-Eeze 304 Stainless Steel PEX Ball Valves Specifications
| Specification | Detail |
|---|---|
| Primary Material | 304 Stainless Steel |
| Connection Type | PEX |
| Design | Standard Port |
| Ball Material | Stainless Steel |
| Seat Material | PTFE |
| Handle Type | Rubber Grip |
| Handle Material | Stainless Steel |
| Maximum Pressure Rating | 600 PSI CWP |
| Temperature Range | -40°F to 200°F (-40°C to 93°C) |
| Certifications | NSF/ANSI 61, NSF/ANSI 372, cUPC Certified, No Lead, ASTM F1807 |
Dimensions
| Size | Width (in) | Height (in) | Length (in) | Weight (lb) |
|---|---|---|---|---|
| 1/2" | 0.850 | 1.600 | 4.550 | 0.160 |
| 3/4" | 1.000 | 1.800 | 4.550 | 0.225 |
| 1" | 1.350 | 2.300 | 5.900 | 0.440 |
Installation Method
Proper installation is critical for a secure, leak-free connection. These plumbing shut-off valves are designed for use with PEX B tubing and standard crimp connection tools.
Installation Requirements:
- Required Tools: PEX crimp tool or PEX clamp (cinch) tool (depending on ring/clamp type used).
- Compatible Rings/Collars: Copper crimp rings (ASTM F1807) or stainless steel cinch clamps (ASTM F2098).
Step Summary:
- Cut the PEX pipe squarely and ensure the end is clean.
- Slide a PEX crimp ring over the end of the pipe.
- Insert the PEX ball valve fitting into the pipe until it touches the pipe's shoulder.
- Position the crimp ring 1/8" to 1/4" from the end of the pipe, over the barbs of the fitting.
- Use a PEX crimp tool to secure the ring firmly in place.
This valve requires a PEX crimp tool. It is not compatible with PEX expansion tools or expansion-style fittings used for PEX-A tubing.
Applications & System Integration
This high-pressure PEX shut-off valve features a 304 stainless steel body, PTFE seats, and a rubber-grip handle.
- Residential potable water supply lines
- Commercial plumbing systems
- Hydronic heating and radiant floor systems
- Water system shut-off points
- Glycol-based fluid transfer systems
- Specialty industries requiring corrosion-resistant PEX ball valves
- Connections to fixtures and appliances
Compliance & Certification
These 304 stainless steel valves are manufactured to meet stringent industry standards for safety and performance. The product is certified to NSF/ANSI 61 for drinking water system components and NSF/ANSI 372 for lead-free compliance. It also adheres to ASTM F1807 for metal insert fittings using a crimp connection, and is cUPC certified, confirming its suitability for code-compliant plumbing projects across North America.
Get the Plumb-Eeze 304 Stainless Steel PEX Ball Valve from Cleanflow
This Plumb-Eeze PEX Ball Valve must be installed using the correct crimp method specified above. Proper tool selection and PEX type compatibility ensure leak-free performance and long-term system reliability. By choosing these stainless steel ball valves, you invest in superior durability and corrosion resistance for your plumbing projects.
Cleanflow supplies a wide range of certified PEX crimp fittings for potable water and hydronic systems across Canada and the USA. We are among the top-rated suppliers of stainless steel ball valves for industrial use, trusted by contractors, municipalities, and facility operators for code-compliant plumbing components. Find the stainless steel PEX fittings you need, available now for sale online.
Explore our full collection of PEX fittings to find everything you need for your project.
Frequently Asked Questions
Can I use this valve with PEX-A tubing and cold expansion fittings?
No, this valve is not compatible with ASTM F1960 cold expansion systems. It is designed strictly for PEX-B crimp installations using copper crimp rings and a crimp tool.
What happens if I use the wrong installation method?
Using a cold expansion tool, incorrect ring type, or incompatible tubing can result in installation failure, leaks, and may void the product warranty. Always ensure tubing and tools match the crimp requirements of this valve.
How do I select the correct size of ball valve for a plumbing project?
Select a valve size that matches the outer diameter of your PEX tubing. For example, 1/2 inch PEX tubing requires a 1/2 inch PEX ball valve. These valves are available in 1/2 inch, 3/4 inch, and 1 inch sizes to fit standard PEX dimensions.
What are the advantages of stainless steel ball valves over brass?
304 stainless steel offers superior corrosion resistance compared to traditional high-zinc brass fittings, especially in aggressive water conditions. It is less susceptible to dezincification and provides greater strength and durability, making it well suited for high-pressure applications.
Where can I buy high-quality stainless steel ball valves online in Canada?
You can purchase high-quality stainless steel ball valves directly from Cleanflow. Orders ship across Canada and the United States, providing access to certified plumbing components for residential, commercial, and industrial projects.
Are these 304 stainless steel PEX ball valves suitable for hydronic heating systems with glycol?
Yes, these valves are compatible with glycol-based hydronic heating systems and maintain reliable performance across their rated temperature range.
Can I use these PEX ball valves for both potable water and non-potable systems?
These valves are certified for potable water systems and are also suitable for non-potable water, glycol, and select chemical applications when used within their rated limits.
Do these ball valves require maintenance after installation?
Routine maintenance is not required under normal operating conditions. However, periodic inspection for leaks or wear is recommended as part of regular system checks.
