Description

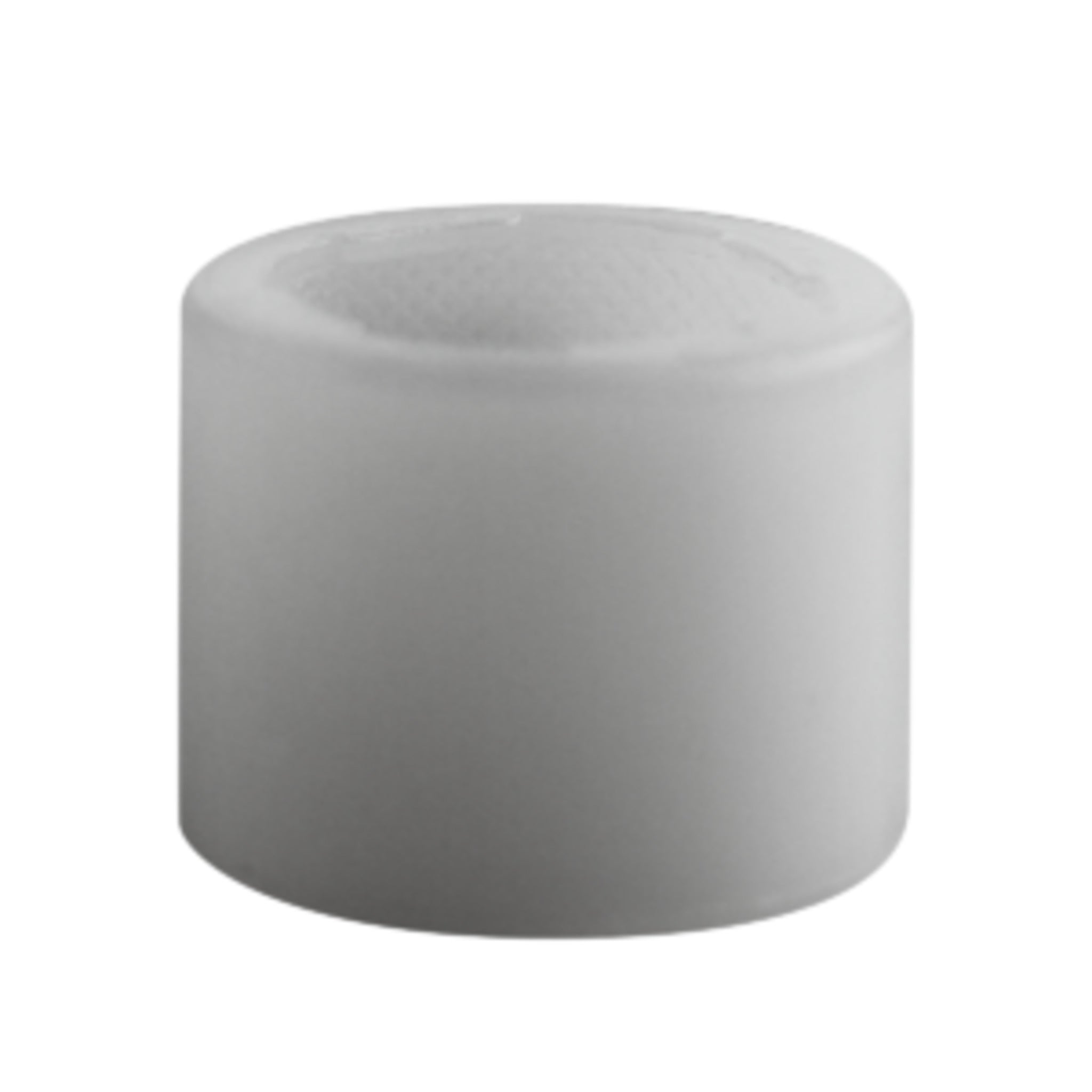

Cold Expansion PEX Collar for Residential and Commercial PEX Plumbing Fittings
Product Description
Compatible with PEX-A tubing using the ASTM F1960 cold expansion method only. Not compatible with crimp systems or PEX-B and PEX-C pipe. This cold expansion PEX collar provides a secure mechanical seal formed by the natural memory of PEX-A tubing.
Quick Specs
- Connection Type: Cold Expansion
- Compatible Tubing: PEX-A only
- Material: Lead-Free PEX / Polyalloy
- Pressure Rating: 150 PSI (system dependent on PEX tubing rating)
- Temperature Rating: Up to 180°F
- Certification: ASTM F1960, NSF/ANSI 61, NSF/ANSI 372
Available In
- 1/2"
- 3/4"
- 1"
Key Features of Boshart Cold Expansion PEX Collar
- The expansion connection method provides a positive and leak-free seal.
- This lead-free PEX collar ensures safe operation in potable water systems.
- When used with ASTM F1960 cold expansion fittings, the system maintains a larger internal diameter compared to insert-style crimp systems, helping reduce flow restriction.
- The collar is designed to work with fittings that feature an integral stop tab to ensure proper insertion depth.
- The collar conforms strictly to ASTM F1960 dimensional tolerances.
Boshart Cold Expansion PEX Collar Specifications
| Specification | Detail |
| Product Type | Expansion Collar |
| System Compatibility | PEX-A Cold Expansion Only |
| Standard | ASTM F1960 |
| Max Pressure | 150 PSI |
| Brand | Boshart |
Dimensions
| Size | D (in) | E (in) | F (in) |
| 1/2" | 0.63 | 0.12 | 0.63 |
| 3/4" | 0.87 | 0.12 | 0.88 |
| 1" | 1.10 | 0.14 | 1.13 |
Installation Method
- Slide the cold expansion collar over the end of the PEX-A pipe until it hits the stop tab.
- Insert the expansion tool head into the pipe and collar.
- Expand the pipe and collar using a power expansion tool or a manual hand tool.
- Insert the cold expansion PEX fittings and hold them in position.
- Allow the pipe and collar to shrink back down to create a secure connection.
Applications & System Integration
- Residential hot and cold water distribution
- Commercial plumbing systems
- Hydronic heating networks
- Potable water lines
- ASTM F1960-compliant PEX-A piping installations
Compliance & Certification
This cold expansion collar for PEX fittings ASTM F1960-compliant product that meets strict industry standards. It holds NSF certifications for safe use in potable water distribution. The lead-free construction ensures full compliance with modern plumbing codes across North America.
Get the Boshart Cold Expansion Collar from Cleanflow
This PEX expansion collar must be installed using the correct expansion method specified above. Proper tool selection and PEX type compatibility ensure leak-free performance and long-term system reliability.
Cleanflow supplies certified PEX Fittings for potable water and hydronic systems, as well as Cold Expansion Tools and Heads for proper installation of your fittings. Trusted by contractors, municipalities, and facility operators for code-compliant plumbing components. Explore more products from Boshart today.
Frequently Asked Questions
How does a cold expansion collar work with PEX plumbing?
The collar slides over the end of PEX-A tubing before expansion. When the pipe and collar are expanded and the fitting is inserted, the natural memory of PEX-A causes the material to shrink back down, forming a secure mechanical seal capable of withstanding rated system pressure.
What is the difference between PEX-A expansion rings and crimp rings?
PEX-A expansion rings require an expansion tool to stretch the pipe and ring before inserting the fitting. Crimp rings use a crimping tool to compress a metal band over the pipe. Expansion systems are compatible only with PEX-A tubing, while crimp systems are typically used with PEX-A, PEX-B, or PEX-C under different ASTM standards.
Is this cold expansion PEX collar safe for drinking water?
Yes. The collar is certified to NSF/ANSI 61 and NSF/ANSI 372 standards, confirming it is lead-free and safe for potable drinking water systems.
Can this ASTM F1960 PEX collar be used with PEX-B tubing?
No. ASTM F1960 expansion collars are compatible only with PEX-A tubing. PEX-B and PEX-C do not have the required thermal memory for safe cold expansion connections.
Is a special tool required to install this PEX expansion collar?
Yes. Installation requires a dedicated PEX expansion tool, either manual or battery-powered. Standard crimp or clamp tools are not compatible with cold expansion systems.
Does the collar restrict water flow?
No. Cold expansion systems maintain a larger internal diameter compared to insert-style crimp systems, helping reduce flow restriction and maintain optimal water performance.
