Description

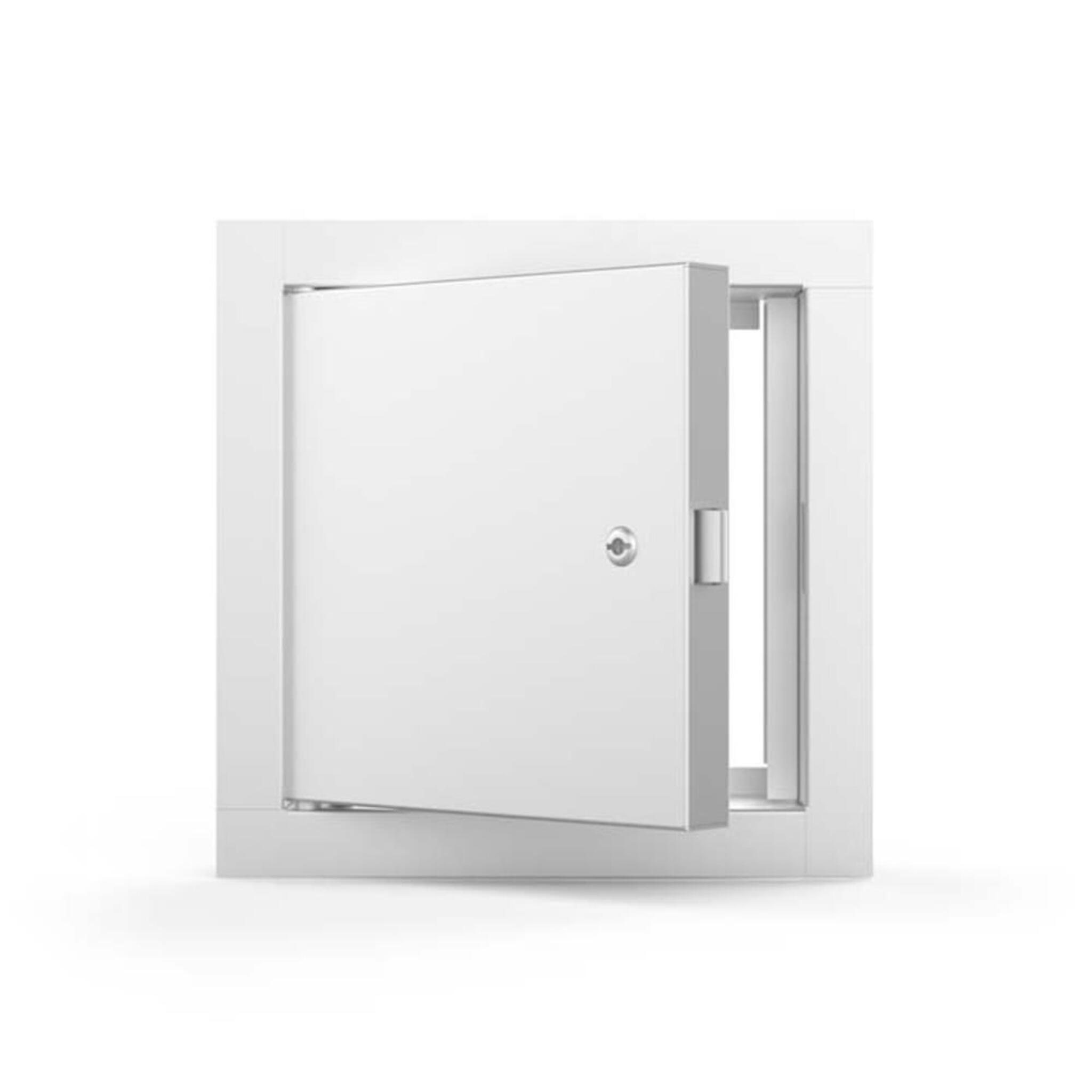

The Acudor FB-5060 is an uninsulated, fire-rated, metal access door for walls.

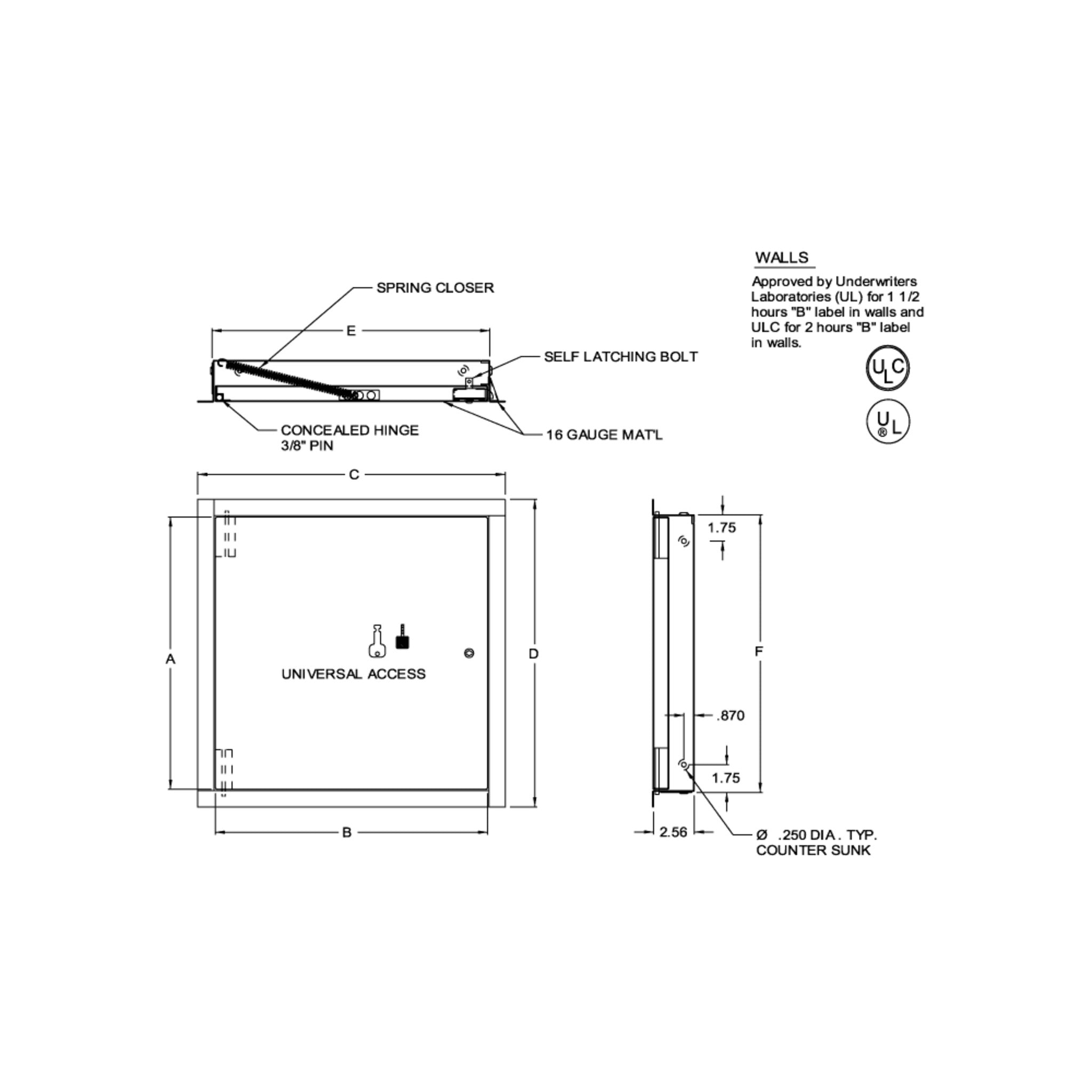

| Specifications | |
| Door/Door Frame | 16 gauge door, 16 gauge mounting frame. Flush to frame with reinforced edges, flange to be 1" wide |
| Hinge | Concealed |
| Standard Latch | Universal self-latching bolt, operated by either a knurled knob or flush key. |
| Finish | 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel |
| Fire Rating (Walls) | UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional). Max sizes 36 x 48 and 24” x 79” |
