Description

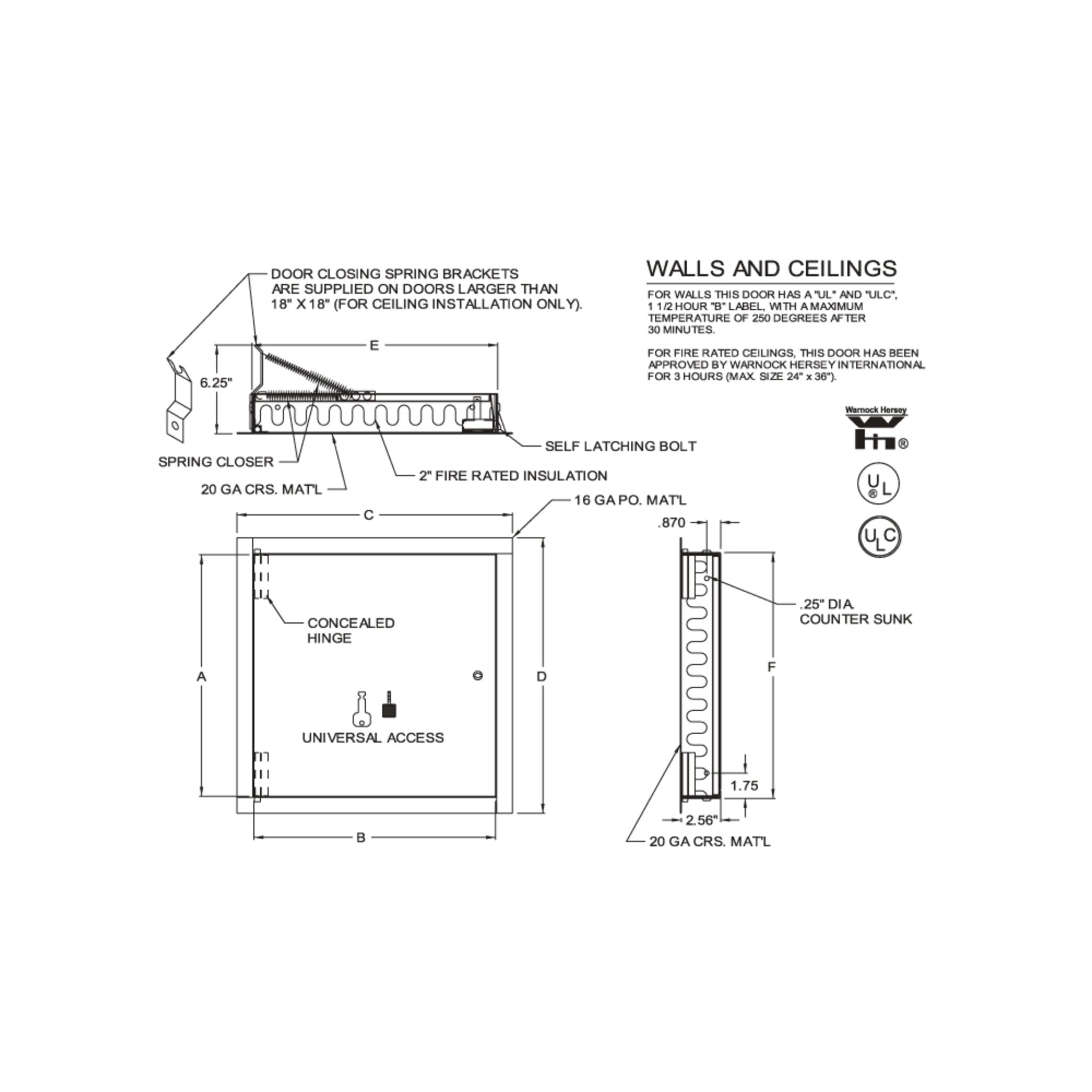

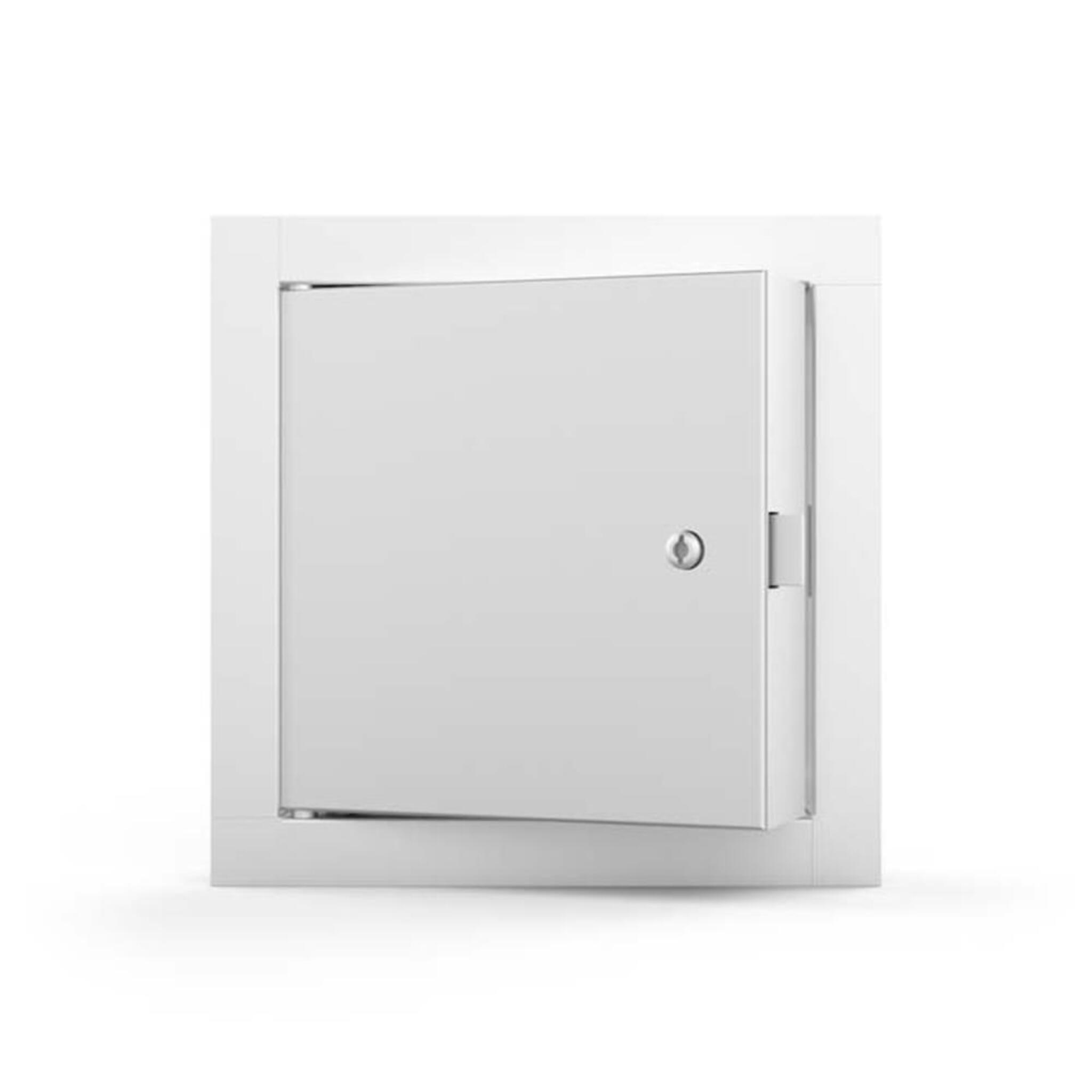

The Acudor FW-5050 is a fire-rated, insulated, metal access door. The FW-5050 is designed for walls and ceilings when temperature rise or heat transmission is a factor.
| Specifications | |
| Door/Door Frame | 20 gauge door, 16 gauge mounting frame. Door filled with 2" thick fire rated insulation, flange to be 1" wide |
| Hinge | Concealed |
| Standard Latch | Universal self-latching bolt, operated by either a knurled knob or flush key. |
| Finish | 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel |
| Fire Rating (Walls) | UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48. |
| Fire Rating (Ceilings) | Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36 |
