Description

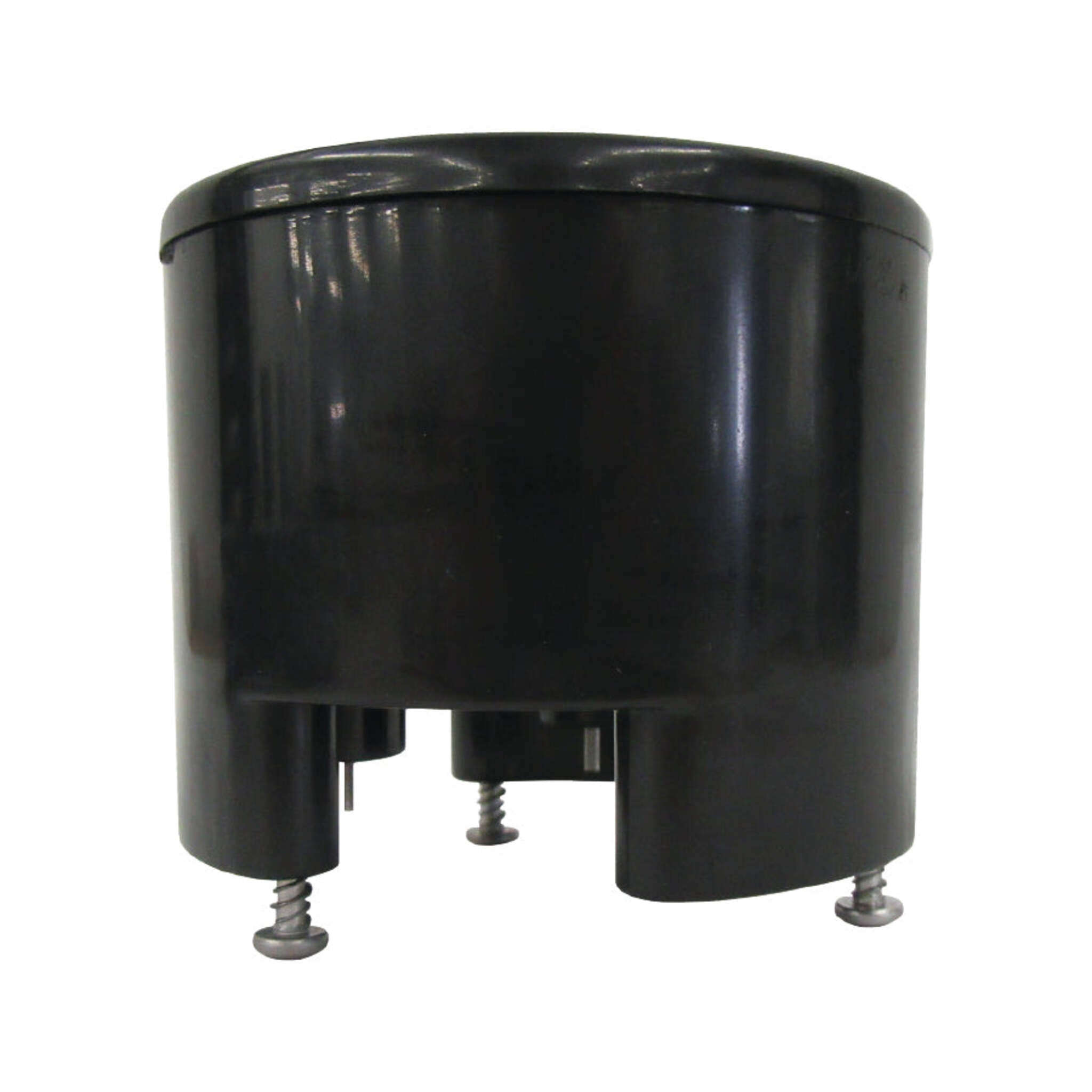

Low-Level Shallow Water Pump Switch for Reliable Pump Activation Where Float Switches Fail
The Alderon SurfaceMax™ shallow water pump switch is a highly effective piggyback pump control switch designed to automate utility and puddle pumps in ultra-low water conditions. Ideal for flat surfaces and minimal water accumulation, this puddle pump switch activates pumps at very low liquid levels where traditional float switches cannot operate.
This shallow water pump control switch integrates easily with existing systems using a plug-and-play piggyback design. Simply connect your pump and power source, and the switch automatically controls pump operation based on water levels, helping prevent flooding and water damage.
Key Features of the SurfaceMax™ Shallow Water Pump Switch
-
Ultra-Low Level Activation:
Activates at approximately 0.375" and shuts off at 0.125", making it ideal for shallow water applications -
Performs Where Float Switches Cannot:
Probe-based sensing allows operation on flat surfaces without the need for float movement -
Piggyback Pump Control Switch (Plug-and-Play):
Easy installation—plug your pump into the switch, then plug it into a standard 120VAC outlet (GFI compatible) -
10-Second Anti-Cycling Delay:
Prevents rapid pump cycling caused by ripples or wave action, improving pump longevity -
Probe-Based Water Detection:
Stainless steel probes detect water contact directly for accurate, reliable operation -
Fully Submersible Epoxy-Sealed Design:
Encapsulated construction allows the unit to operate fully submerged without failure -
Safe Low-Voltage Operation:
Uses a 12VDC isolated circuit for water detection with no shock hazard at probes -

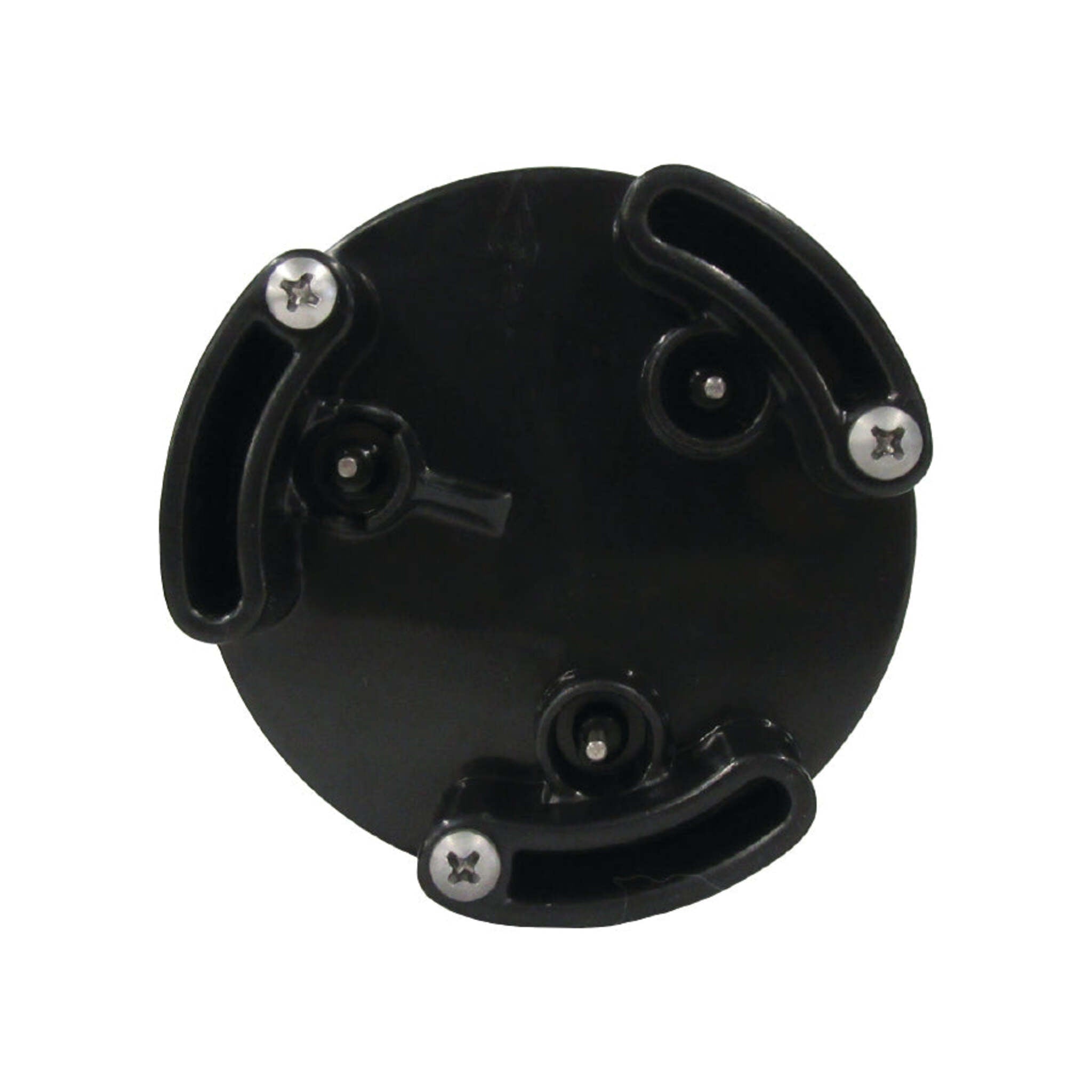

Adjustable Liquid Level Settings:
Optional leveling screws allow fine-tuning of ON and OFF activation points -
Durable Industrial Cable:

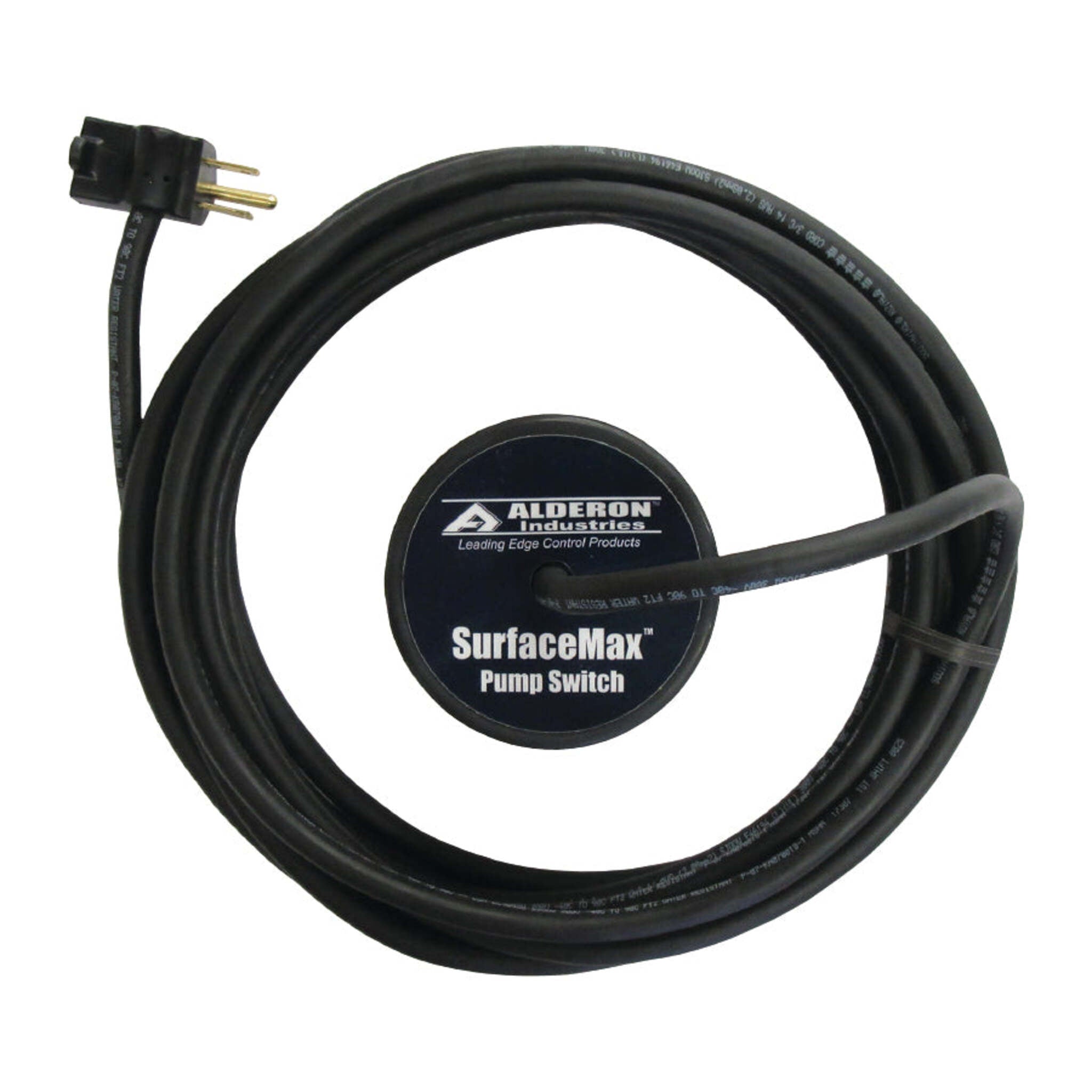

20-ft SJOOW cable, oil and water resistant, flexible, and UL/CSA rated
How the SurfaceMax™ Pump Switch Works

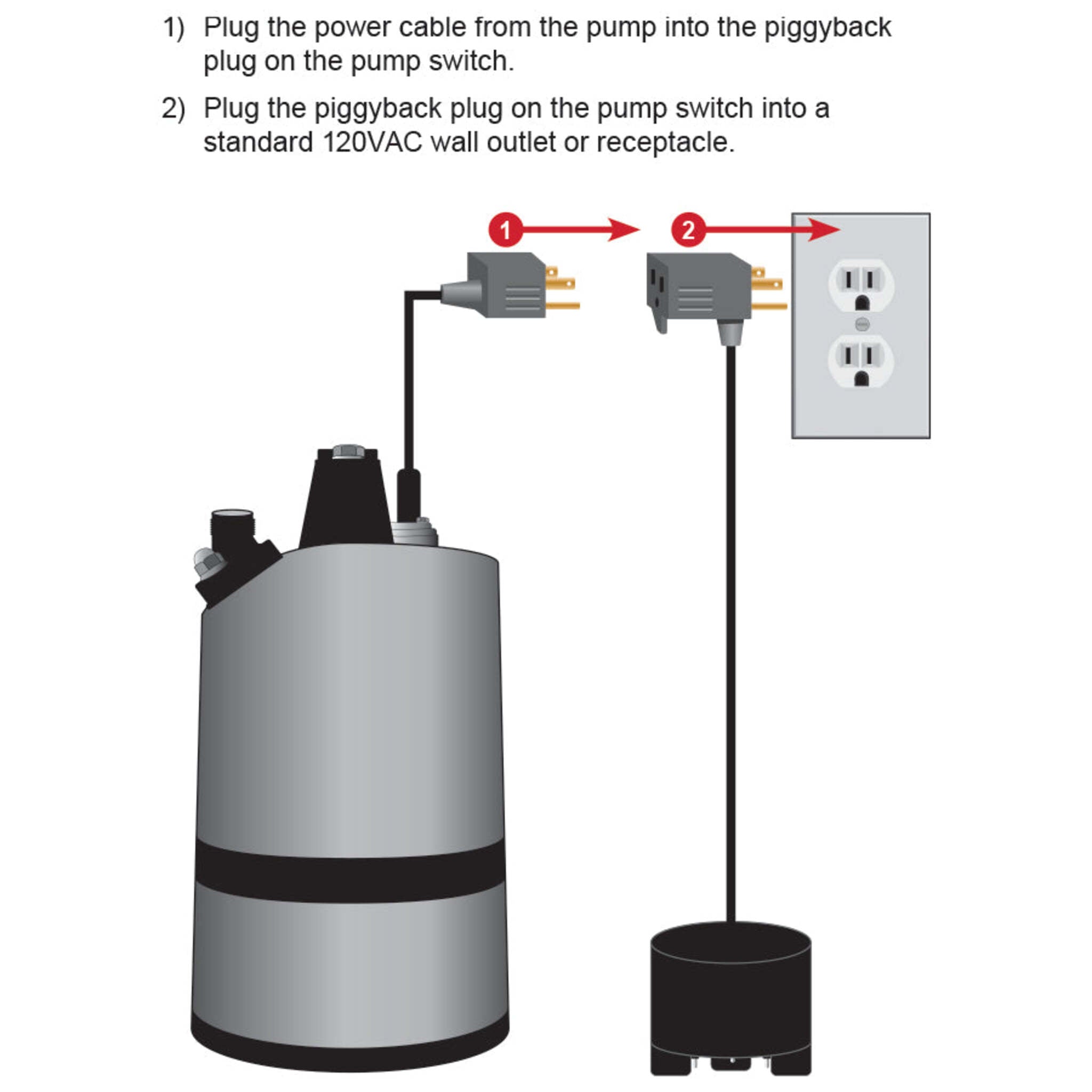

This low-level water pump switch uses a probe-based system instead of a float:
- Place the switch flat on the surface where water collects
- Plug your pump into the piggyback plug
- Plug the switch into a standard 120V outlet
- When water touches the ON probe, the pump activates
- When the water drops below the OFF probes, the pump shuts off
- A built-in delay keeps the pump running briefly to prevent short cycling
Why Choose a SurfaceMax™ Instead of a Float Switch?
Traditional float switches require space and water depth to operate properly. In shallow conditions, they often fail to activate.
The SurfaceMax™ shallow water pump switch:
- Works on flat surfaces
- Requires minimal water depth
- Has no moving parts
- Provides more precise low-level control
Ideal for applications where float switches are not effective.
Ideal Applications
This puddle pump switch is perfect for:
- Flat roof drainage
- Basement water accumulation
- Groundwater intrusion
- HVAC drain pans and condensate areas
- Mechanical rooms
- Utility pump applications
- Broken pipe or emergency water removal

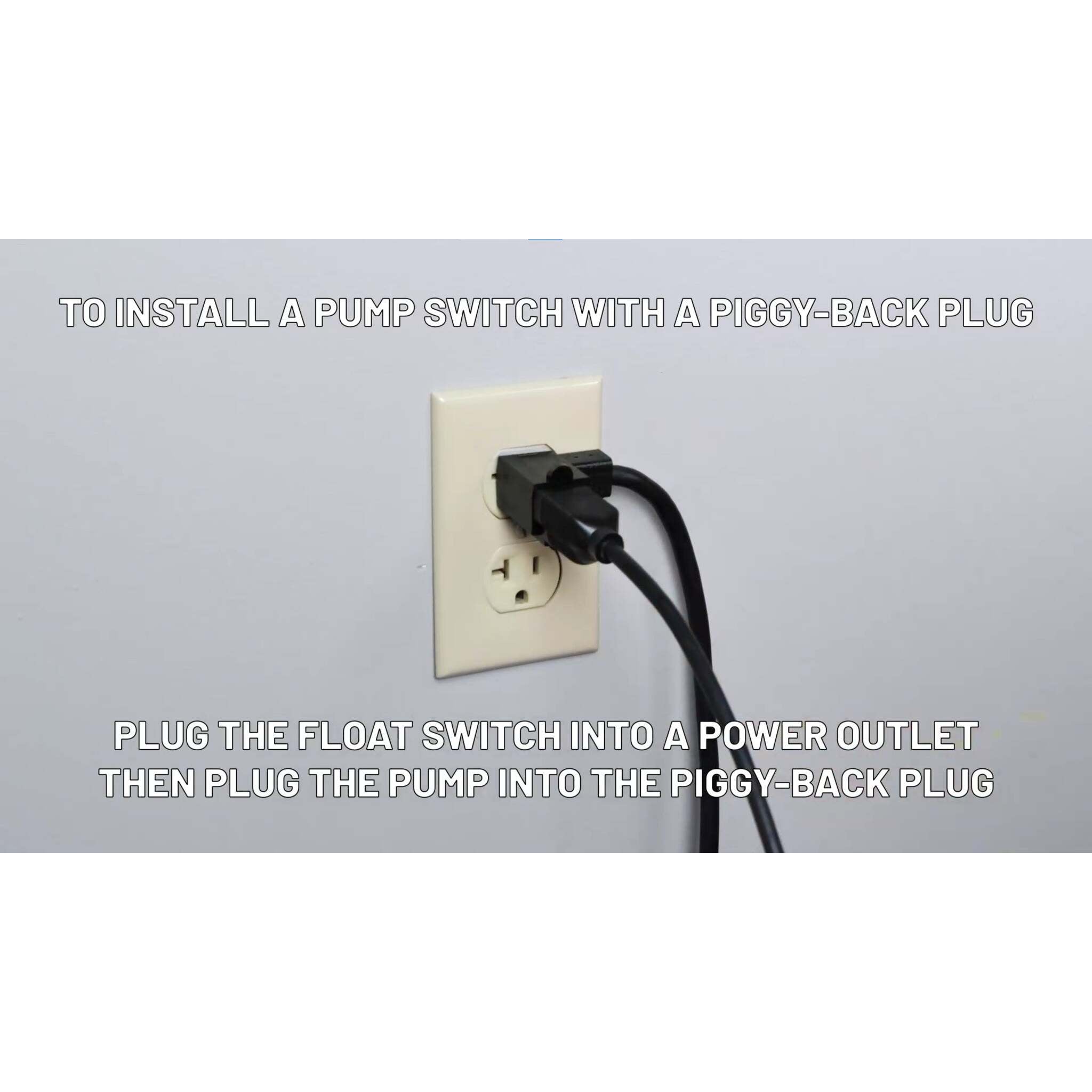

Installation Made Simple
- No wiring required
- Plug-and-play piggyback connection
- Compatible with standard and GFI outlets
- Quick setup for immediate operation
What’s Included
- Alderon SurfaceMax™ shallow water pump switch
- Integrated piggyback plug
- 20-ft industrial-grade cable
- Probe-based sensing system
Specifications
| Specification | Details |
|---|---|
| Electrical | 120V AC, 15 Amps |
| Plug Type | Piggyback (NEMA 5-15 PR) |
| Cable Type | SJOOW, 14 gauge, 3-conductor, water/oil resistant |
| Cable Length | 20 ft |
| Housing | ABS Plastic |
| Detection System | Stainless steel probes |
| Voltage on Probe | 12VDC (isolated transformer) |
| ON Level | 0.375" (adjustable up to 0.775") |
| OFF Level | 0.125" (adjustable up to 0.525") |
| Operation | Fully submersible |
| Warranty | 3-Year Limited Warranty |
Reliable Shallow Water Pump Control Starts Here
The Alderon SurfaceMax™ shallow water pump switch from Alderon Industries delivers reliable, low-level water detection and automatic pump control in applications where traditional solutions fall short. Available from Cleanflow across Canada and the USA, this piggyback pump control switch offers a simple, effective way to protect your property and equipment from water accumulation.
Frequently Asked Questions
What is a shallow water pump switch?
A shallow water pump switch activates a pump at very low water levels, making it ideal for puddles and flat surface drainage.
What is a piggyback pump control switch?
A piggyback pump control switch allows you to plug your pump directly into the switch, enabling automatic operation without wiring.
How low can this switch detect water?
The SurfaceMax™ can activate at approximately 0.375" and shut off at 0.125", making it ideal for ultra-low water conditions.
Can this replace a float switch?
Yes, this switch is specifically designed to perform better than float switches in shallow water applications.
Is the SurfaceMax™ fully submersible?
Yes, the switch is epoxy-encapsulated and can operate fully submerged.
Where is this pump switch used?
It is commonly used in basements, flat roofs, drain pans, and other shallow water areas.
