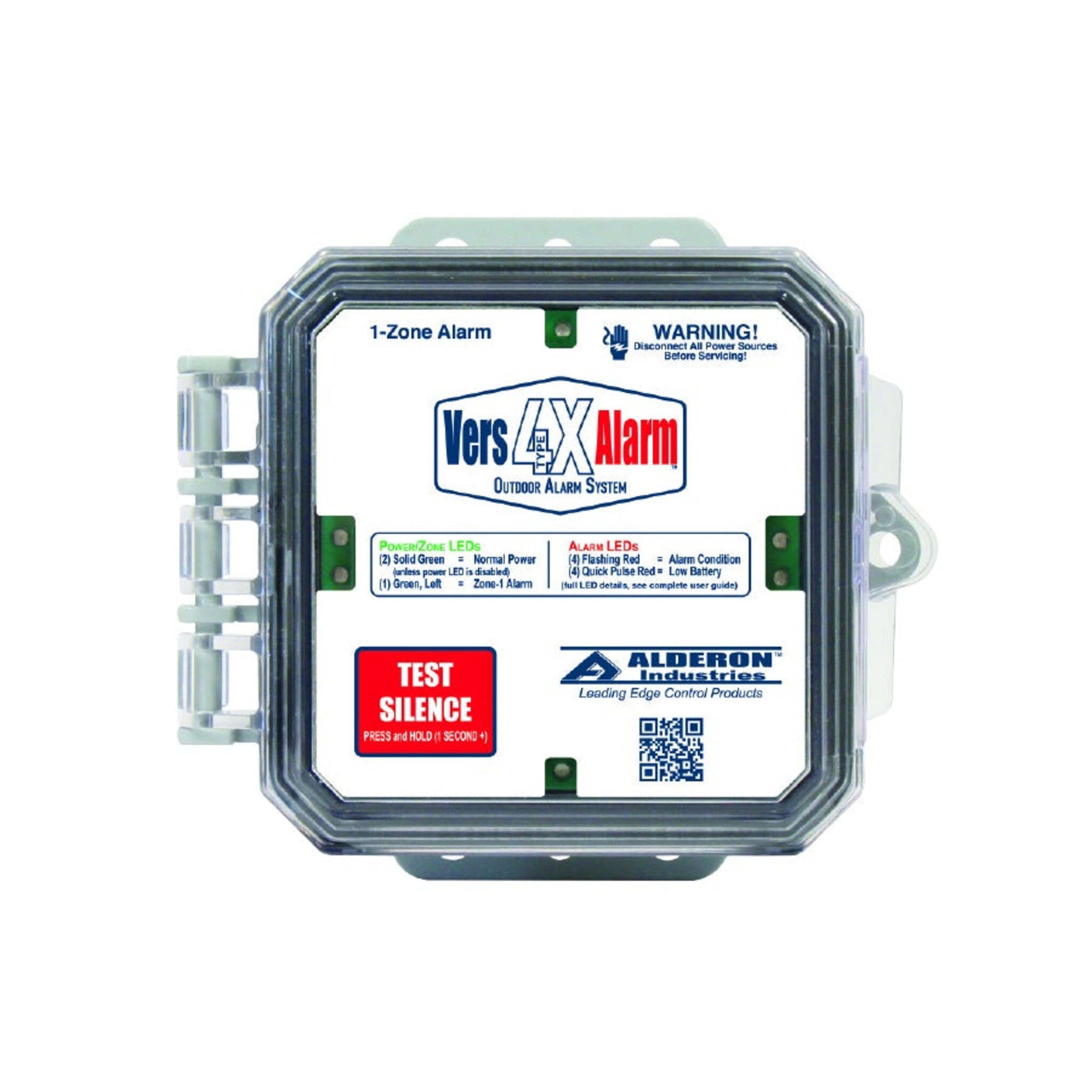

Alderon VersAlarm™ 4X Outdoor Rated Liquid Level Alarm System Panel
Take control of your liquid levels with the Alderon VersAlarm™ 4X, an outdoor rated 1-Zone tank alarm system. Engineered for optimal functionality, this alarm system features 120VAC power, making it a versatile choice for many outdoor liquid level monitoring applications. With its clear visual indicators, advanced auxiliary contacts, and a robust design, it serves as an essential tool for managing septic tanks, sump pits, holding tanks, pump chambers, and water tanks.
Product Features of the VersAlarm 4X Panel include:
-
Outdoor Rated System: Withstanding harsh weather conditions, this alarm is perfect for any outdoor setup.
-
Versatile Power Options: Runs on either 120VAC or 240VAC, to cater to your voltage requirements.
-
Green LED Indicators: Built-in LEDs provide clear, immediate alerts on the system's power status.
-
Two-Level Press-And-Hold Feature: Convenient option to disable LEDs when needed.
-
Battery Backup Support: 9VDC lithium battery slot for continuous monitoring during power outages.
-
Compatibility with Different Sensors: Float switch, pressure switch, or any "dry" type sensor can be used.
-
Auxiliary Contacts: Useful for connection to building automation systems and phone dialers.
-
Optional Pump Terminal Block: Allows integrating pump power, pump connections, and pump switch.
How It Works:
-
Powering the System: Connect the system to a 120VAC or 240VAC power source. Green LEDs will illuminate to indicate power status.
-
Alarm Activation: The alarm activates visually and audibly when the float switch or other sensor type contact is activated. The alarm condition continues until the sensor is deactivated.
-
Alarm Indication: The red LEDs flash and the buzzer pulses to signal an alarm condition. Auxiliary contacts also activate during this time.
-
Silencing the Alarm: Press and hold the touch button to silence the buzzer while the alarm LEDs continue flashing.
-
Alarm Reset: The silence condition will reset when the sensor deactivates and the alarm will automatically reset for the next cycle.
-
System Integrity Testing: Conduct monthly tests to ensure the system is functioning correctly.
| Specifications |
|
| Primary Power |
120VAC, 50/60 Hz |
Power
|
1.4 Watts maximum (alarm condition)
|
| Circuit board secondary power |
9V DC, (1) standard 9V battery (not included)
|
| Auxiliary contacts |
120V AC, 1 mA minimum (signaling device)
|
| Field connection sensor |
9-10V DC, 1 mA minimum (signaling device) |
| LEDs |
Green (power and zone indicator), Red (alarm condition and low battery) |
| Buzzer |
95 dB at 10 feet |
| Enclosure |
Thermoplatic 4 x 4 x 3 (inches). Type 4X, Outdoor. Lockable latch.
|
| Certifications |
CSA (US and Canada), FCC Part 15 (US and Canada) |
| Warranty |
Three-Year Limited Warranty
|
