Description
Smart WiFi Liquid Level Alarm System with Remote Monitoring & Alerts

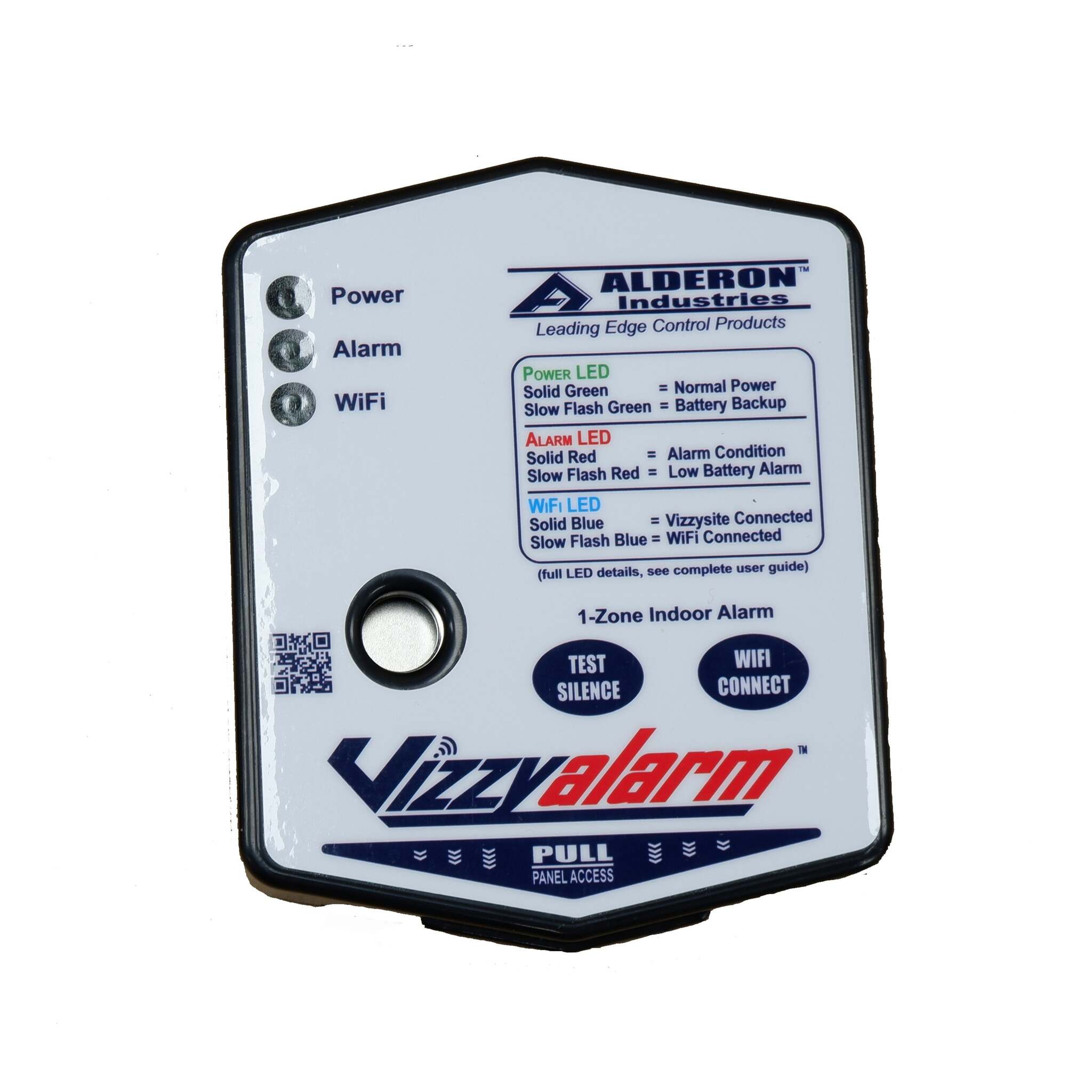

The Alderon VizzyAlarm™ 1-Zone WiFi Liquid Level Alarm System is an indoor-rated smart alarm panel designed to provide real-time monitoring and alerts for a wide range of liquid level applications. Powered by a standard 120VAC wall outlet, this WiFi-enabled water level alarm system delivers both local audible/visual alerts and remote notifications through Alderon’s cloud-based platform. For indoor use only; not intended for outdoor installation.
This system is ideal for septic tanks, sump pits, and other liquid level monitoring applications. It can also be used for flow, pressure, condensate, and temperature monitoring, where a “dry contact” sensor is available. Once connected, users can receive text and email alerts for system conditions, ensuring immediate awareness and protection.
WiFi Liquid Level Alarm System with Remote Monitoring
The VizzyAlarm™ 1-Zone Alarm is a smart water level alarm that connects to your WiFi. To get started, connect and register your device to the Vizzy.site™ cloud platform. Vizzy.site™ is Alderon’s cloud platform that enables remote monitoring, alerts, and device management. Once connected, you can begin monitoring your system and receiving text and email alerts. The green LED indicates the unit is powered.
The alarm panel is equipped with audible and visual alarm indications, activated by a field-installed sensor. A variety of sensors can be used, including float switches, pressure switches, or any “dry contact” device that closes during an alarm condition (normally open or normally closed).
During an alarm condition:
- The red alarm LED illuminates
- The 85 dB buzzer sounds
- Auxiliary contacts activate for BAS or external systems
The alarm condition remains active until the sensor is deactivated. If the test/silence push button is pressed during an alarm, the buzzer is silenced while the LED remains active. The system will automatically reset once the condition returns to normal, ensuring continuous monitoring.
Alderon VizzyAlarm™ 1-Zone WiFi Alarm System Features & Benefits
- WiFi Remote Monitoring: Connect to Vizzy.site™ to receive real-time text and email alerts from anywhere
- Indoor Alarm System Design: Type 1 enclosure ideal for basements, mechanical rooms, and indoor installations
- Clear Visual & Audible Alerts: Green (power), red (alarm), and blue (WiFi) LEDs with an 85 dB buzzer
- Universal Sensor Compatibility: Works with float switches, pressure switches, and dry-contact sensors
- BAS Compatible Alarm System: Auxiliary contacts (30VDC, 700mA max) enable integration with building automation systems and dialers
- Battery Backup Protection: Supports (3) AA batteries (not included) to maintain monitoring during power outages
- Test/Silence Function: Easily test the system or silence the buzzer during alarm conditions
- Expandable Monitoring: Supports multiple sensors (up to 3) for flexible applications
- Compact Indoor Design: Durable thermoplastic enclosure with removable cover for easy installation
Specifications
| Specification | Details |
| Primary Power | 120VAC, 50/60 Hz |
| Circuit Board Power | 11.1VDC, 500mA max |
| Battery Backup | 4.5VDC (3 AA batteries, not included) |
| Sensor Input | 3–10VAC/DC, 10mA minimum |
| Auxiliary Contacts | 30VDC, 700mA max (NO, SPST) |
| LEDs | Green (power), Red (alarm), Blue (WiFi) |
| Buzzer | 85 dB at 10 feet |
| Enclosure | Thermoplastic, 5" x 4" x 1.3", Type 1 Indoor |
| Certifications | CSA (US & Canada), FCC Part 15 |
| Warranty | 3-Year Limited Warranty |
Available Configurations – Alderon VizzyAlarm™ 1-Zone WiFi Alarm
Choose the configuration that fits your application:
| Option | Description |
| VizzyAlarm™ Panel Only (VZW-02) | WiFi liquid level alarm system without sensor (for use with existing float or dry-contact device) |
| VizzyAlarm™ w/ 15 Ft High Level Float Switch | Includes alarm panel + 15 ft float switch for high-level liquid detection |
| VizzyAlarm™ w/ 20 Ft 3-Wire High/Low Level Float Switch | Includes alarm panel + 20 ft float switch for high or low level monitoring |
| VizzyAlarm™ w/ 30 Ft 3-Wire High/Low Level Float Switch | Includes alarm panel + 30 ft float switch for high or low level monitoring |
| VizzyAlarm™ w/ 50 Ft 3-Wire High/Low Level Float Switch | Includes alarm panel + 50 ft float switch for high or low level monitoring |
What’s Included
| Component | Details |
| Alarm Panel | Alderon VizzyAlarm™ 1-Zone WiFi Alarm (VZW-02) |
| Power Supply | Wall-mounted 120VAC adapter with 6 ft cord |
| Terminals | Sensor input and auxiliary contact terminals |
| Enclosure | Type 1 indoor thermoplastic enclosure |
How the Alderon VizzyAlarm™ WiFi Liquid Level Alarm System Works
- Alarm Activation: The WiFi liquid level alarm system is triggered when the connected sensor (float switch or dry-contact device) is activated, detecting high or low liquid levels.
- Instant Audible & Visual Alerts: The red alarm LED illuminates (solid), the 85 dB buzzer sounds continuously, and auxiliary contacts activate for BAS or remote monitoring systems.
- Remote Monitoring Alerts: Once connected to Vizzy.site™, this smart water level alarm system sends real-time text and email notifications for alarm conditions.
- Continuous Alarm Condition: The alarm remains active until the sensor returns to normal, ensuring reliable monitoring.
- Test/Silence Function: Pressing the test/silence pushbutton silences the buzzer, while the alarm LED remains active.
- Automatic Reset: Once the condition clears, the system automatically resets.
- WiFi Connectivity Status: The blue LED indicates connection status.
Applications (Where This WiFi Alarm System Works Best)
- Septic tank monitoring
- Sump pump systems
- Pump chambers
- Holding tanks
- Water storage tanks and cisterns
- Flow and pressure monitoring systems
- Condensate and temperature monitoring
This tank level alarm with text alerts is ideal for residential, commercial, and light industrial use.
Order the Alderon VizzyAlarm™ 1-Zone WiFi Liquid Level Alarm System from Cleanflow
Get the Alderon VizzyAlarm™ 1-Zone WiFi Liquid Level Alarm System from Alderon Industries at Cleanflow for reliable liquid-level monitoring and remote alerts.
Cleanflow supplies and ships across Canada and the USA, offering fast delivery for your WiFi liquid level alarm system and septic tank alarm system needs.
This smart water level alarm system provides reliable monitoring for septic systems, sump pits, holding tanks, and other liquid applications, helping you stay informed and protected at all times.
FAQs
What is a WiFi liquid level alarm system?
A WiFi liquid level alarm system monitors tank levels and sends real-time alerts via text or email when abnormal conditions occur.
Can this be used as a septic tank alarm system?
Yes, the VizzyAlarm™ is commonly used as a septic tank alarm system with compatible float switches.
Does this include a float switch?
No, the alarm panel is sold separately; sensors and float switches are available as optional configurations.
Can I receive alerts remotely?
Yes, this system connects to Vizzy.site™ to provide remote monitoring with text and email notifications.
Is this a BAS-compatible alarm system?
Yes, auxiliary contacts allow integration with building automation systems and external dialers.
What happens during a power outage?
The system continues to operate using (3) AA battery backup (not included).
Can multiple sensors be connected?
Yes, up to three sensors can be connected for expanded monitoring.
