Description
Multi-Zone Liquid Level Alarm System with WiFi Connectivity and Remote Monitoring

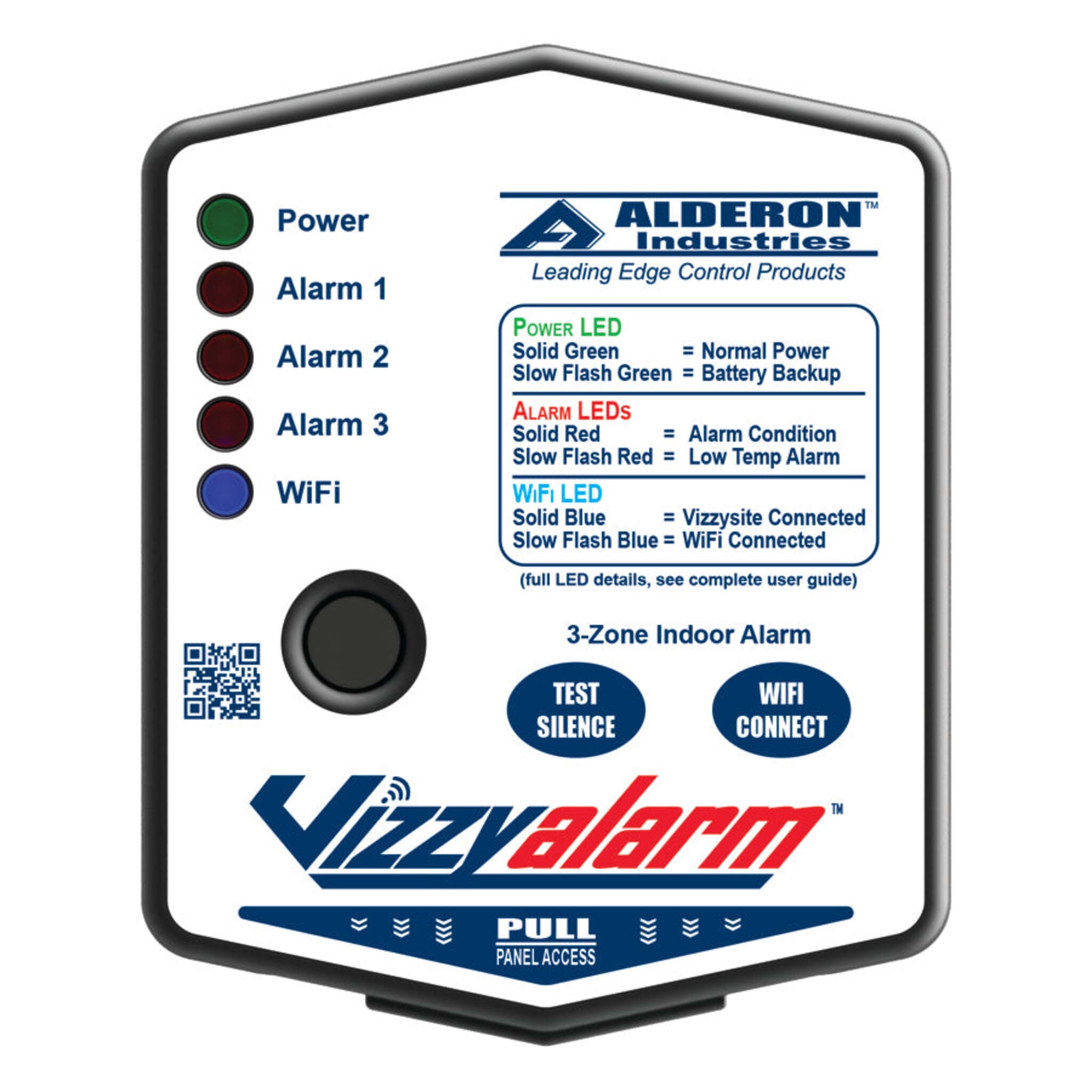

The Alderon VizzyAlarm™ WiFi 3-Zone Liquid Level Alarm is an indoor-rated alarm panel that provides reliable monitoring for liquid level conditions across multiple systems. It operates on a standard 120VAC wall outlet, with a green power LED indicating active status.
This WiFi-enabled liquid level alarm system allows monitoring of up to three separate zones and sends real-time text and email alerts when conditions change. It connects to float switches or other dry contact sensors, making it suitable for septic tanks, holding tanks, pump chambers, and other water or wastewater applications.
With support for multiple sensor inputs, auxiliary contacts for BAS integration, and battery backup during power outages, it offers consistent monitoring and notification across a wide range of residential, commercial, and industrial systems.
Why Choose the VizzyAlarm™ 3-Zone System
Unlike standard single-zone alarms, the VizzyAlarm™ offers multi-zone monitoring with remote connectivity, making it ideal for both residential and commercial systems.
- Monitor up to 3 tanks or systems simultaneously
- Receive real-time alerts via WiFi (text & email)
- Compatible with float switches and dry contact sensors
- Built-in battery backup for power outages
- Integrates with building automation systems (BAS)
Alderon VizzyAlarm™ 3-Zone WiFi Liquid Level Alarm System Key Features
- Multi-Zone Monitoring (3-Zone Alarm System): This multi-zone alarm system allows you to monitor up to three separate tanks or systems at once, making it ideal for facilities that require centralized liquid level control.
- WiFi Remote Monitoring System: This WiFi liquid level alarm connects to Alderon’s Vizzy.site™ platform, enabling real-time remote monitoring with text and email alerts for changing system conditions.
- Wide Application Compatibility: Suitable for septic tanks, sump pits, holding tanks, pump chambers, water tanks, and other applications where a dry contact sensor is used.
- Flexible Sensor Compatibility: Works with float switches, pressure switches, and other dry contact sensors (normally open or normally closed), allowing both high-level and low-level alarm configurations.
- Audible & Visual Alarm Indicators: When an alarm condition occurs, the system activates a loud buzzer and illuminated LED indicators for immediate on-site awareness.
- Battery Backup Protection: Includes a 3.7VDC LiPo rechargeable battery (not installed) to maintain operation during power outages.
- Expandable & Integration Ready: Supports multiple sensors and includes auxiliary contacts for integration with building automation systems (BAS), dialers, and external monitoring systems.
- Real-Time Alarm Detection: Detects alarm conditions instantly across zone-1, zone-2, and zone-3, triggering visual, audible, and auxiliary outputs simultaneously.
- Manual Silence with Active Status: Allows alarms to be silenced while keeping LED indicators active, so conditions remain visible until resolved.
- Auto Reset Functionality: Automatically resets after alarm conditions clear, ensuring continuous monitoring without manual intervention.
🔹 Smart Alarm Reactivation
If an alarm is silenced in one zone and a new condition occurs in another, the buzzer will reactivate automatically to ensure no new alarm condition is missed.
How It Works
The VizzyAlarm™ connects to one or more float switches or compatible sensors installed in your tank or system.
When liquid levels reach a critical point:
- The sensor activates (closes contact)
- The alarm panel triggers LED + buzzer alerts
- Notifications are sent via WiFi (text/email)
- Auxiliary outputs activate connected systems
Once the condition clears, the system automatically resets for the next cycle.
Specifications
| Specification | Details |
|---|---|
| Primary Power | 120VAC, 50/60 Hz |
| Circuit Board Primary Power | 11.1VDC, 500mA maximum |
| Circuit Board Secondary Power (Battery Backup) | 3.7VDC, 1800mAh LiPo battery (model LP683857) |
| Sensor Input (Signaling Device) | 3–10VAC/DC, 10mA minimum (normally open or normally closed) |
| Auxiliary Contacts | 30VDC, 700mA maximum, Normally Open (SPST) |
| LED Indicators | Green (power), Red (alarm), Blue (WiFi / Vizzy connection) |
| Audible Alarm (Buzzer) | 85 dB @ 10 feet |
| Wall-Mounted Power Supply | 120VAC input / 11.1VDC, 500mA output (6-foot cord) |
| Temperature Alarm Detection Range | -40°C / -40°F to 46°C / 115°F |
| Enclosure | Thermoplastic, 5 × 4 × 1.3 inches, Type 1 Indoor |
| Zones Supported | 3 Zones (Zone-1, Zone-2, Zone-3) |
| Connectivity | WiFi (WPS or HTTP setup) with Vizzy.site™ |
| Certifications | CSA (US & Canada), FCC Part 15 |
| Warranty | 3-Year Limited Warranty |
Best For Applications
This WiFi liquid level alarm system is ideal for:
- Septic tank monitoring
- Sump pump alarm systems
- Wastewater and sewage systems
- Pump chambers and lift stations
- Holding tanks and cisterns
- Commercial and industrial monitoring systems
Get Reliable Liquid Level Monitoring Today
Order the Alderon VizzyAlarm™ WiFi 3-Zone Liquid Level Alarm from Cleanflow, a trusted supplier across Canada and the USA. Backed by Alderon Industries, this multi-zone remote monitoring system provides dependable performance for a wide range of applications.
Frequently Asked Questions
What is a WiFi liquid level alarm?
A WiFi liquid level alarm monitors levels and sends alerts via text or email.
Can this alarm monitor multiple tanks?
Yes, it supports up to three zones.
Does this work with float switches?
Yes, it works with float switches and dry contact sensors.
What happens during a power outage?
Battery backup allows continued monitoring.
Can this connect to a building automation system?
Yes, auxiliary contacts allow BAS integration.
Is this a multi-zone alarm system?
Yes, it supports three independent zones.
How does the remote monitoring system send alerts?
It sends alerts via WiFi using text and email notifications.
Where can I buy the Alderon VizzyAlarm™ WiFi 3-Zone Liquid Level Alarm?
It is available from Cleanflow and other authorized suppliers.
