Description

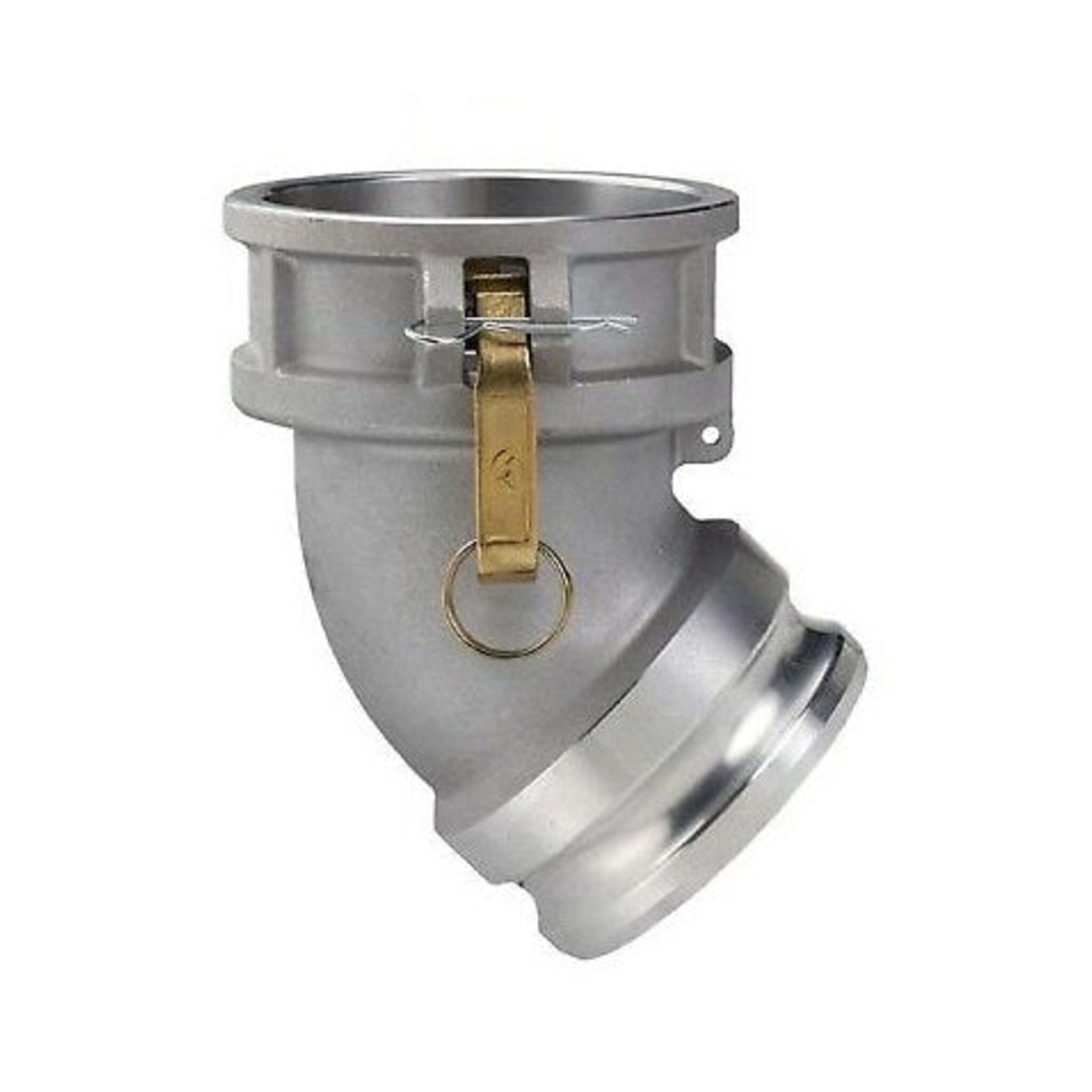

Navigate Angles with Ease: Aluminum Female X Male Camlock 45° Elbow
Enhance your fluid handling systems with the Aluminum Female X Male Camlock, featuring a 45° elbow design. This connector combines a male camlock insert on one end with a female camlock receptacle on the other, creating an efficient solution for managing hose angles and directions. Widely favored in the water and wastewater industries, these aluminum camlock connectors are valued for their lightweight durability and ease of use. Capable of withstanding temperatures up to 250°F, they are versatile yet not recommended for pressurized air service. Available in sizes from 2" to 6", they cater to a variety of hose dimensions.
Key Features: Flexibility and Durability in Fluid Management
- Male Camlock and Female Receptacle: Offers secure and adaptable connections.
- 45° Elbow Design: Ideal for managing hose angles and reducing strain on connections.
- Lightweight Aluminum Build: Ensures durability and ease of handling.
- Easy to Use: Simplifies hose coupling and uncoupling processes.
- Versatile Application: Perfect for water treatment, irrigation, and industrial fluid transfer.
- High Working Temperature Range: Functions effectively in environments up to 250°F.
- Size Availability: Comes in sizes ranging from 2" to 6".
- Not Suitable for Pressurized Air Service: Ensures appropriate usage in specific environments.
Master Angled Connections with Aluminum Camlock Elbow
The Aluminum Female X Male Camlock 45° Elbow is more than a fitting; it's a key component in effective fluid management. This elbow connector simplifies handling hoses in complex configurations, ensuring a seamless and secure connection. Opt for this camlock fitting to tackle angled connections with confidence and efficiency.
How to Measure Camlock Fittings
Choosing the right camlock size can be confusing if you’re only going by the nominal size stamped on the fitting. The actual diameter you measure won’t match the "named size" of the camlock. For example, a 2" camlock will actually measure about 2 1/2 inches across when you measure the diameter.
-
Grab a Measuring Tool – Use a tape measure, ruler, or (ideally) a micrometer for the best precision.
-
Measure the Fitting
-
Male Camlock Fittings → Measure the outside diameter at the widest point.
-
Female Camlock Fittings → Measure the inside diameter across the open end.
-
-
Match Your Measurement – Use the chart below to find the nominal camlock size based on your measurement.
Camlock Fittings Size Chart
How to Measure Camlock Fittings
Camlock sizes are “nominal” and won’t match what you measure with a ruler. For example, a 2" camlock typically measures about 2 1/2" across. Measure the outside diameter for male fittings and the inside diameter for female fittings, then match to the chart.
| Camlock Size | Male Outside Diameter (Inches) | Male Outside Diameter (Decimal) | Female Inside Diameter (Inches) | Female Inside Diameter (Decimal) |
|---|---|---|---|---|
| 2" | 2 1/2" | 2.480 | 2 1/2" | 2.519 |
| 3" | 3 5/8" | 3.622 | 3 11/16" | 3.661 |
| 4" | 4 3/4" | 4.724 | 4 3/4" | 4.782 |
Quick tip: Male size = measured by outside diameter. Female size = measured by inside diameter at the open end.
Tips for Accurate Sizing
-
The nominal camlock size does not equal the actual diameter you measure.
-
Always confirm your measurement against the chart before placing an order.
-
Using a micrometer or calipers will provide more reliable results than a basic ruler.
