Description

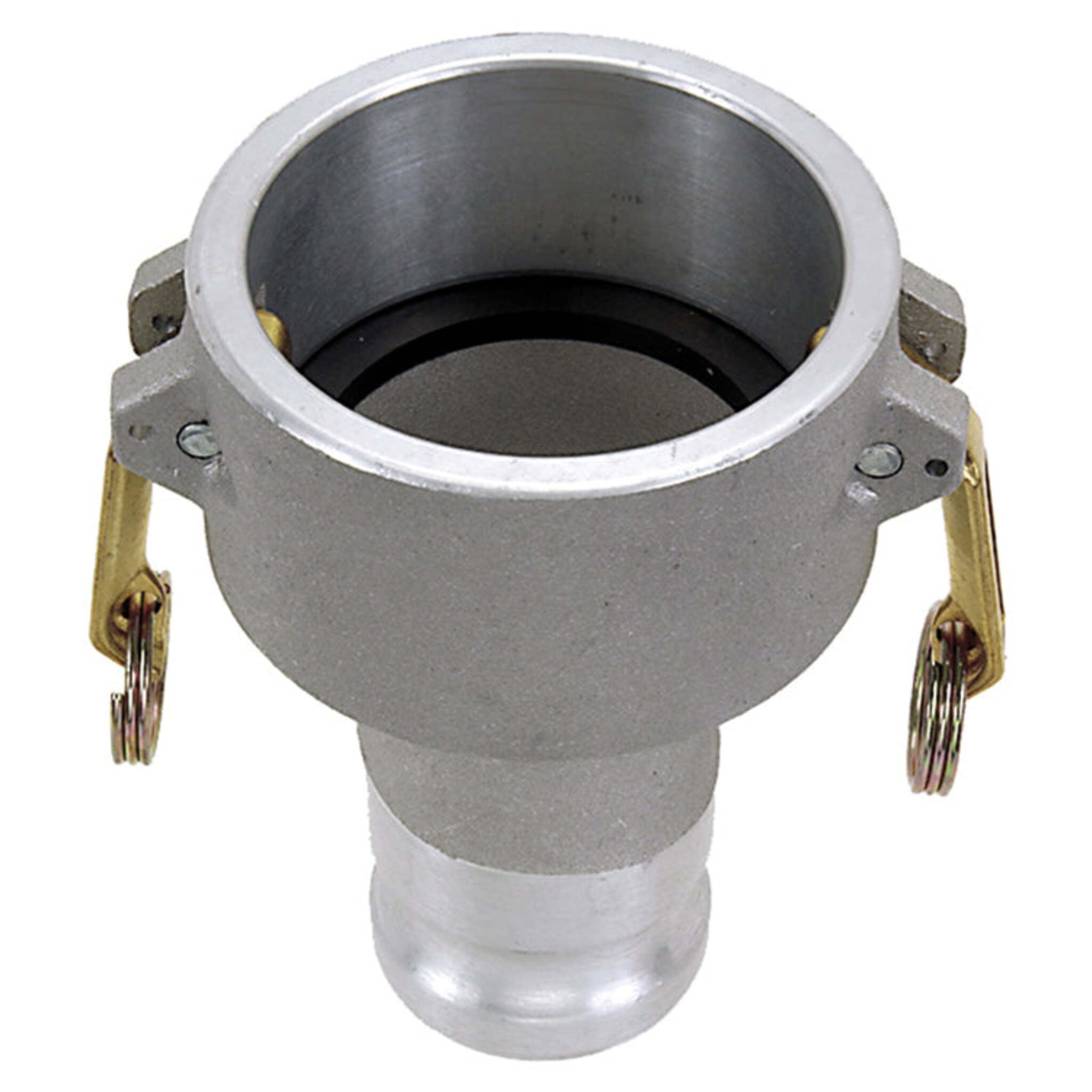

Adapt Hoses with Aluminum Male x Female Camlock Type CA
Type CA Aluminum Camlocks provide an efficient solution for connecting hoses of different sizes. These adapters feature a female camlock receptacle on one end and either a larger or smaller male camlock on the other, making them ideal for versatile hose connections. Lightweight, durable, and easy to use, these camlock connectors are widely used, especially in water and wastewater industries. They are effective in a working temperature range up to 250°F but are not suited for pressurized air service.
Key Features: Versatility, Lightweight, and Durability
- Female Camlock to Male Camlock Design: Enables connection of different size hoses.
- Lightweight Aluminum Construction: Offers ease of use and durability.
- Wide Range of Applications: Ideal for water and wastewater industries.
- Working Temperature Range: Effective up to 250°F.
- Variety of Size Combinations: Available in combinations from 1 1/2" to 6".
Streamline Fluid Management with Type CA Aluminum Camlock
Type CA Aluminum Camlocks are essential for adapting hose systems that require connection of different sizes. Whether used in industrial, commercial, or municipal settings, these camlocks offer the adaptability, strength, and ease of use necessary for efficient water and wastewater management.
How to Measure Camlock Fittings
Choosing the right camlock size can be confusing if you’re only going by the nominal size stamped on the fitting. The actual diameter you measure won’t match the "named size" of the camlock. For example, a 2" camlock will actually measure about 2 1/2 inches across when you measure the diameter.
-
Grab a Measuring Tool – Use a tape measure, ruler, or (ideally) a micrometer for the best precision.
-
Measure the Fitting
-
Male Camlock Fittings → Measure the outside diameter at the widest point.
-
Female Camlock Fittings → Measure the inside diameter across the open end.
-
-
Match Your Measurement – Use the chart below to find the nominal camlock size based on your measurement.
Camlock Fittings Size Chart
How to Measure Camlock Fittings
Camlock sizes are “nominal” and won’t match what you measure with a ruler. For example, a 2" camlock typically measures about 2 1/2" across. Measure the outside diameter for male fittings and the inside diameter for female fittings, then match to the chart.
| Camlock Size | Male Outside Diameter (Inches) | Male Outside Diameter (Decimal) | Female Inside Diameter (Inches) | Female Inside Diameter (Decimal) |
|---|---|---|---|---|
| 1 1/2" | 2 1/16" | 2.086 | 2 1/8" | 2.125 |
| 2" | 2 1/2" | 2.480 | 2 1/2" | 2.519 |
| 3" | 3 5/8" | 3.622 | 3 11/16" | 3.661 |
| 4" | 4 3/4" | 4.724 | 4 3/4" | 4.782 |
| 6" | 6 15/16" | 6.920 | 7" | 6.970 |
Quick tip: Male size = measured by outside diameter. Female size = measured by inside diameter at the open end.
Tips for Accurate Sizing
-
The nominal camlock size does not equal the actual diameter you measure.
-
Always confirm your measurement against the chart before placing an order.
-
Using a micrometer or calipers will provide more reliable results than a basic ruler.
