Boshart 1/2" PEX x 3/8" Compression Chrome Plated Straight Supply Stop Valve, 125 PSI

Crimp-Compatible PEX x Compression Valve for Appliance and Fixture Water Supply

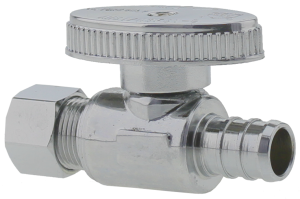

This chrome-plated straight supply stop valve (1/2" PEX × 3/8" compression) connects PEX water supply lines to residential and commercial plumbing fixtures. Installers use this plumbing shut-off valve to control water flow to appliances and fixtures. allowing maintenance or fixture replacement without shutting off water to the entire building.

Compatible with PEX-A, PEX-B, and PEX-C tubing when installed using ASTM F1807 crimp or ASTM F2098 clamp methods. Not compatible with ASTM F1960 cold expansion systems. Proper method matching prevents leaks and system failures.

Quick Specs

• Connection Type: Crimp / Clamp (1/2" PEX inlet x 3/8" Compression outlet)
• Compatible Tubing: PEX-A, PEX-B, and PEX-C
• Material: Chrome-plated body, PTFE seat, EPDM stem packing
• Pressure Rating: 125 PSI maximum
• Temperature Rating: Up to 180°F (82°C)
• Certification: ASTM F1807, NSF / ANSI 372, NSF / ANSI 61, CSA B125.1

Available In

• 1/2" PEX x 3/8" Compression

Key Features of the Boshart Chrome Plated Supply Stop

• This PEX shut-off valve features a straight design for direct inline connections to standard plumbing fixtures.
• The chrome-plated supply stop construction offers high durability and resistance to exterior wear in exposed locations.
• The PTFE seat material ensures a secure, long-lasting seal to minimize the risk of leaks over time.
• EPDM stem packing maintains internal integrity and halts seepage during valve operation.
• This corrosion-resistant PEX shut-off valve for commercial and residential use operates safely up to 125 PSI.

Boshart Chrome Plated Supply Stop 08SVS-05PNL Specifications

Dimensions

Installation Method

1. Cut the PEX tubing squarely.
2. Slide the copper crimp ring or stainless clamp over the tubing.
3. Insert the 1/2" PEX inlet of the compression shut-off valve fully into the tubing.
4. Position the ring over the fitting barbs and compress using the correct calibration tool.
5. Attach the 3/8" fixture supply line to the compression outlet and tighten.

Applications & System Integration

• Residential bathroom sink supply lines.
• Kitchen faucet water supply connections.
• Toilet water supply isolation.
• Low-pressure commercial fixture installations.
• General appliance maintenance shut-off points.

Compliance & Certification

This NSF certified shut-off valve meets strict industry standards for potable water. It is fully certified to ASTM F1807 for metal insert fittings, CSA B125.1, and SAE J512. It also qualifies as an NSF certified lead-free supply stop valve for PEX plumbing under NSF / ANSI 372 and NSF / ANSI 61 guidelines, confirming its safety for drinking water systems.

Get the Boshart Supply Stop Valve from Cleanflow

This lead-free supply stop must be installed using the correct crimp or clamp method specified above. Proper tool selection and PEX type compatibility ensure leak-free performance and long-term system reliability.

Available through Cleanflow across Canada and the USA. Cleanflow supplies certified PEX fittings and Boshart components for potable water systems. Trusted by contractors and facility operators for code-compliant plumbing components.
