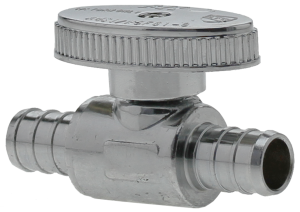

Boshart 1/2" PEX x 1/2" PEX Compression Chrome Plated Supply Stop – 125 PSI

Crimp-Compatible PEX Supply Stop Valve for Appliances and Low-Pressure Water Lines

Product Overview

This chrome-plated 1/2" PEX × 1/2" PEX supply stop valve connects two PEX tubing lines while providing a shut-off point for appliance or fixture water supply. It functions as a dependable low pressure water shut-off valve for maintenance and repairs. Plumbers and contractors use this valve for residential and commercial plumbing installations.

Compatible with PEX-A, PEX-B, and PEX-C tubing using ASTM F1807 crimp or ASTM F2098 clamp methods only. Not compatible with ASTM F1960 cold expansion systems.

Quick Specs

• Connection Type: Crimp / Clamp (PEX x PEX or PEX x Compression depending on model)
• Compatible Tubing: PEX-A, PEX-B, and PEX-C
• Material: Chrome-Plated
• Pressure Rating: 125 PSI
• Temperature Rating: 180°F (82°C)
• Certification: CSA B125.1, NSF/ANSI 372, NSF/ANSI 61

Available In

• 1/2" PEX x 1/2" PEX

Key Features of Boshart Chrome Plated Supply Stop

• The chrome-plated construction resists corrosion and provides a clean finish for exposed plumbing.
• The PTFE seat material delivers a secure, leak-resistant seal for dependable water control.
• The EPDM stem packing prevents leaks and maintains durability under regular operation.
• The valve functions effectively as a fixture shut-off valve for commercial and residential plumbing systems.
• The reliable 125 PSI pressure rating handles standard appliance water supply demands.
• The 1/2" PEX shut-off valve installs quickly with standard crimp or clamp tools.

Boshart Chrome Plated Supply Stop Specifications

Dimensions

• Width: 0.90 inches
• Height: 2.15 inches
• Length: 1.65 inches
• Weight: 0.17 lb

Installation Method

Requires standard PEX crimp tool with copper crimp rings or clamp tool with stainless steel cinch clamps. Not compatible with cold expansion tools.

• Ensure the PEX tubing is cut square and clean.
• Slide the copper crimp ring or stainless clamp over the pipe.
• Insert the PEX plumbing valve fully into the tubing.
• Position the ring properly and compress using the corresponding F1807 or F2098 tool.

Applications & System Integration

• Connecting refrigerator ice makers to the main water supply.
• Serving as an isolation valve for residential plumbing fixtures.
• Controlling water flow to dishwashers or washing machines.
• Upgrading worn appliance valves with a corrosion-resistant plumbing valve.
• Integrating into hydronic or potable water systems requiring standard shut-off points.
• Providing a secure shut-off in commercial washrooms or breakrooms.

Compliance & Certification

This NSF certified supply stop complies with strict safety and performance standards. It holds CSA B125.1 certification and complies with ASSE 1061-2006. The valve meets No Lead requirements and is certified to NSF/ANSI 372 and NSF/ANSI 61 for safe use in potable water applications.

Get the Boshart Chrome Plated Supply Stop from Cleanflow

This chrome-plated shut-off valve must be installed using the correct crimp or clamp method specified above. Proper tool selection and PEX type compatibility ensure leak-free performance and long-term system reliability.

Available through Cleanflow across Canada and the USA. Cleanflow supplies certified PEX fittings for potable water and hydronic systems. Trusted by contractors, municipalities, and facility operators for code-compliant plumbing components. Explore more reliable products from Boshart to complete your next plumbing project.
