Description

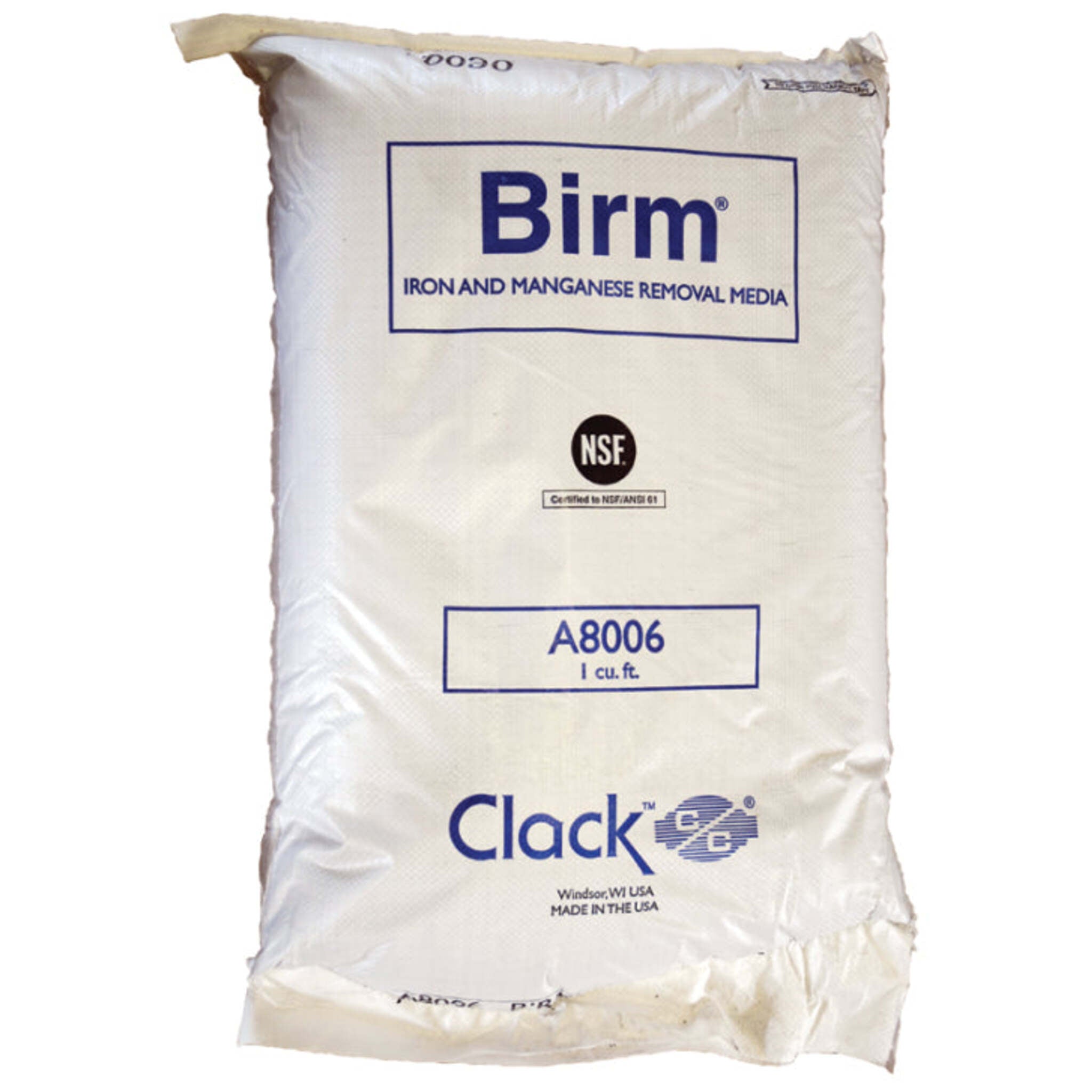

Clack Birm: Efficient Iron and Manganese Removal Media
Clack Birm is a highly effective and economical media designed for the reduction of dissolved iron and manganese from raw water supplies. It functions as an insoluble catalyst, enhancing the reaction between dissolved oxygen and iron compounds, making it easier to filter out iron and manganese from groundwater. Suitable for use in both gravity-fed and pressurized water treatment systems, Birm offers a long-lasting and maintenance-friendly solution for improving water quality.
Key Features: Cost-Effective Water Treatment
- Catalyst for Oxidation: Birm acts as an insoluble catalyst, facilitating the oxidation of dissolved iron (Fe++) to ferric hydroxide (Fe+++), which precipitates and can be easily filtered out.
- No Chemical Regeneration Needed: Under the right conditions, Birm does not require chemical regeneration, reducing ongoing maintenance costs.
- Durable and Long-Lasting: This robust media has a long lifespan and operates effectively across a wide temperature range.
- Efficient Iron Removal: Provides high efficiency in removing iron and manganese, ensuring cleaner water.
- Easy Maintenance: Requires only periodic backwashing to remove accumulated precipitates.
- NSF/ANSI Standard 61 Certified: Ensures that the media meets stringent standards for safety and performance in drinking water applications.
Physical Properties
- Color: Black
- Bulk Density: 40-45 lbs./cu. ft.
- Mesh Size: 10 x 40
- Specific Gravity: 2.0 gm/cc
- Effective Size: 0.48 mm
- Uniformity Coefficient: 2.7
Operational Conditions
- Alkalinity Requirement: Should be greater than twice the combined sulfate and chloride concentration.
- Maximum Water Temperature: 100°F (38°C)
- Water pH Range: 6.8-9.0 for optimal performance.
- Dissolved Oxygen (D.O.): Must be at least 15% of the iron or iron and manganese content.
- Bed Depth: 30-36 inches recommended.
- Freeboard: Minimum 50% of bed depth.
- Backwash Rate: 10-12 gpm/sq. ft.
- Backwash Bed Expansion: 20-40% of bed depth.
- Service Flow Rate: 3.5-5 gpm/sq. ft., with potential for higher rates under favorable conditions.
Influent and Backwash Limitations
- Free Chlorine: Concentration should be less than 0.5 ppm.
- Hydrogen Sulfide: Should be removed before water contacts Birm media.
- Oil: Should not be present.
- Polyphosphates: Should not be present.
Advantages of Using Clack Birm
- No Chemical Costs: Eliminates the need for chemicals for regeneration, lowering overall maintenance expenses.
- High Efficiency: Superior performance in removing iron and manganese from water supplies.
- Low Labor Requirements: Simple backwashing is all that is required to maintain the media's effectiveness.
- Versatile Application: Suitable for various water treatment setups, including gravity-fed and pressurized systems.
Ideal Applications
- Residential Water Systems: Perfect for homes with well water, where iron and manganese are common contaminants.
- Municipal Water Treatment: Effective for community water systems in need of reliable iron and manganese removal.
- Industrial Water Treatment: Ideal for industrial applications where large volumes of water require treatment to remove dissolved metals.
Invest in Reliable Water Quality Improvement
Clack Birm Iron/Manganese Removal Media provides an economical, efficient, and durable solution for reducing dissolved iron and manganese in water supplies. Its low-maintenance requirements and high effectiveness make it a top choice for both residential and industrial water treatment systems. Invest in Clack Birm today for dependable water quality improvement.
