Description

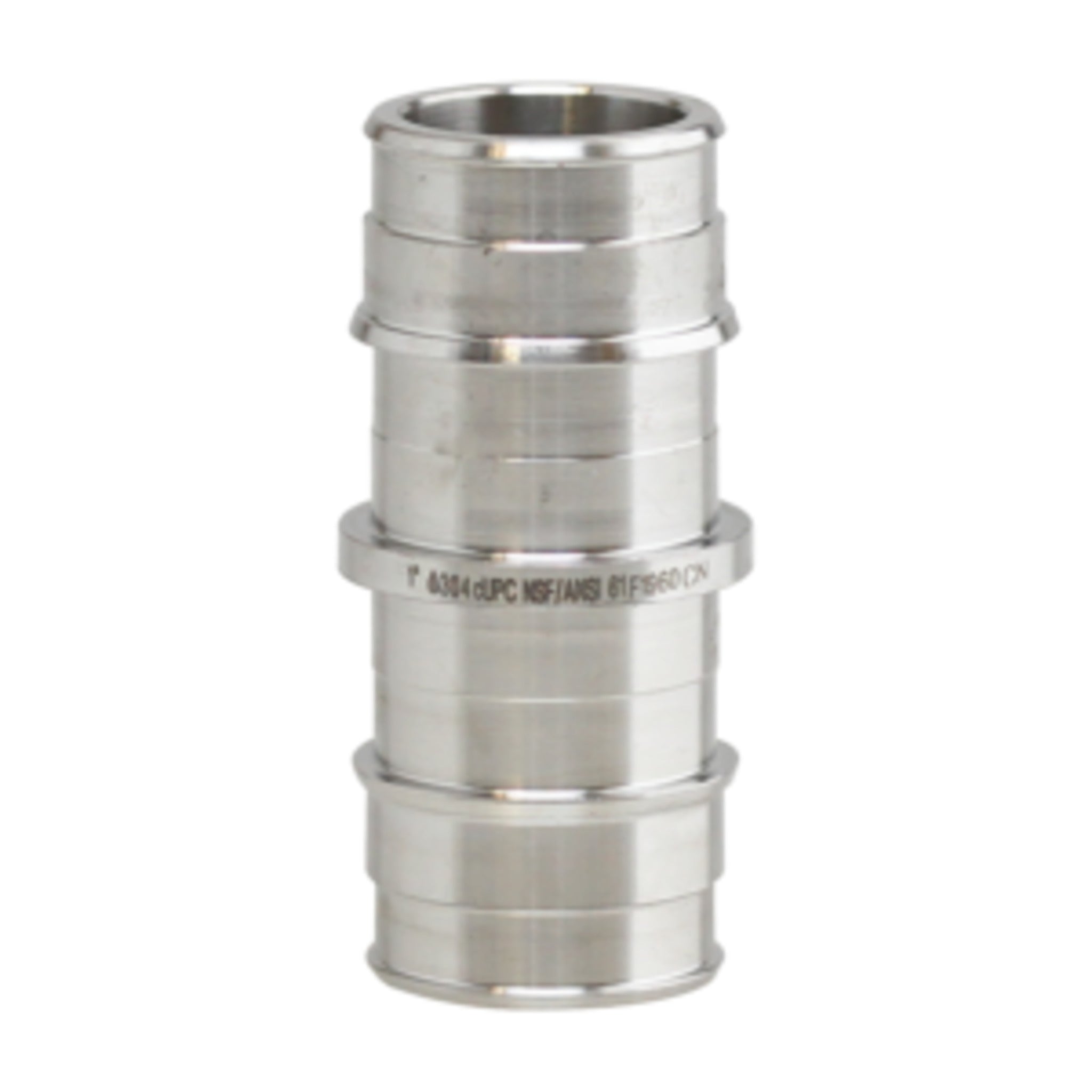

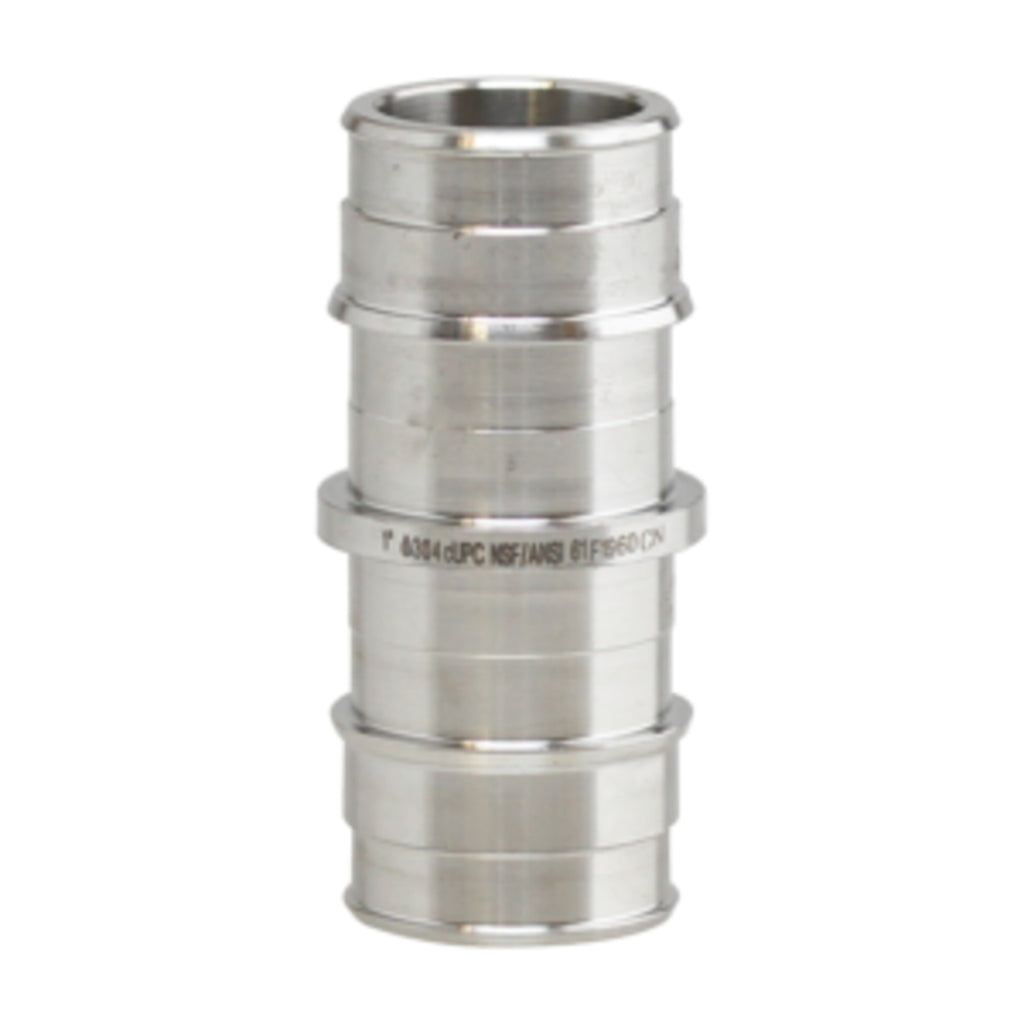

Cold Expansion PEX Coupling for Residential and Commercial Water Distribution
Product Overview
This cold expansion PEX coupling connects two sections of PEX tubing in residential and commercial water distribution systems. Plumbers and contractors use these 304 stainless steel PEX fittings for potable water and hydronic heating applications.
Compatible with PEX-A tubing using the ASTM F1960 cold expansion method only. Not compatible with crimp or clamp systems.
Quick Specs
- Connection Type: Cold Expansion
- Compatible Tubing: ASTM F876/F877 PEX-A; ASTM F2769 PE-RT (where approved)
- Material: 304 Stainless Steel
- Pressure Rating: 100 PSI at 180°F (82°C) (Dependent on PEX tubing rating)
- Temperature Rating: Up to 180°F (82°C)
- Certification: ASTM F1960, NSF/ANSI 61, NSF/ANSI 372, cUPC, CSA B137.5
Available In
- 1/2"
- 3/4"
- 3/4" x 1/2"
- 1"
- 1" x 3/4"
Key Features of Boshart Cold Expansion PEX Coupling
- These 304 stainless steel cold expansion PEX couplings offer high corrosion resistance for potable and hydronic systems.
- The 304 stainless steel material prevents dezincification in aggressive water conditions.
- A large internal diameter maximizes water flow through the PEX pipe fittings.
- The integral stop tab ensures proper installation of the PEX tubing.
- These lead-free PEX couplings meet safe potable water standards.
- Manufactured in accordance with ASTM F1960 standards for cold expansion PEX systems.
Boshart Cold Expansion PEX Coupling Specifications
| Specification | Detail |
| Fitting Material | 304 Stainless Steel (0.00% Lead) |
| Connection Standard | ASTM F1960 |
| Compatible Tubing Standard | ASTM F2769, ASTM F876, F3253, SDR9 |
| Working Pressure | 100 PSI at 180°F (82°C) (System dependent on tubing rating) |
| PEX System Temperature Limit | Up to 180°F (82°C) |
Dimensions
-
1/2"
- Length: 1.547 inches
- Width: 0.689 inches
-
3/4"
- Length: 2.020 inches
- Width: 0.945 inches
-
3/4" x 1/2"
- Length: 1.783 inches
- Width: 0.945 inches
-
1"
- Length: 2.492 inches
- Width: 1.181 inches
-
1" x 3/4"
- Length: 2.256 inches
- Width: 1.181 inches
Installation Method
Requires a PEX expansion tool and expansion collars. Not compatible with crimp tools, copper crimp rings, or stainless steel clamps. You must use Cold-X Tools and Heads for Cold Expansion PEX or equivalent expansion tools.
- Cut the PEX-A tubing squarely.
- Slide the cold expansion collar over the end of the PEX-A tubing.
- Expand the tubing and collar using the power or manual expansion tool.
- Insert the cold expansion PEX fitting.
- Hold the fitting in position until the tubing shrinks back to create a positive seal.
Applications & System Integration
- Residential potable water distribution
- Commercial plumbing systems
- Hydronic heating installations
- High-acidity water environments
- Corrosive water conditions
- ASTM F1960 PEX-A piping networks
Compliance & Certification
These fittings meet ASTM F1960 and CSA B137.5 standards. They hold cUPC certification and comply with NSF/ANSI 61 and NSF/ANSI 372 requirements for lead-free potable water systems.
Get the Boshart Cold Expansion PEX Coupling from Cleanflow
This cold expansion PEX coupling must be installed using the correct expansion method specified above. Proper tool selection and PEX type compatibility ensure leak-free performance and long-term system reliability.
Buy 304 stainless steel cold expansion PEX couplings online through Cleanflow across Canada and the USA. Cleanflow supplies certified Pex Fittings and Boshart components for potable water and hydronic systems. Trusted by contractors and facility operators for code-compliant plumbing components.
Frequently Asked Questions
Is PEX-A tubing compatible with stainless steel expansion couplings?
Yes. PEX-A tubing is fully compatible with ASTM F1960 cold expansion fittings. The tubing expands with a reinforcing ring and then shrinks back due to its thermal memory, creating a secure, leak-free mechanical seal.
What is the difference between stainless steel cold expansion couplings and other PEX couplings?
Cold expansion couplings require an ASTM F1960 expansion tool and are designed specifically for PEX-A tubing. Other PEX fittings use crimp or clamp methods with metal rings and are compatible with PEX-A, PEX-B, and PEX-C tubing.
What tools are required for cold expansion PEX installation?
An ASTM F1960-compatible PEX expansion tool and properly sized expansion collars are required. Crimp tools, copper crimp rings, and clamp tools are not compatible with cold expansion fittings.
Can I use these couplings with PEX-B tubing?
No. These couplings are designed exclusively for ASTM F1960 cold expansion systems using PEX-A tubing. PEX-B does not have the required expansion memory to form a proper seal.
What temperature can these corrosion-resistant PEX fittings handle?
The system is rated for 100 PSI at 180°F (82°C), which aligns with typical domestic hot water and hydronic heating requirements. Always follow the pressure and temperature limits specified by the PEX tubing manufacturer.
Are these 304 stainless steel PEX fittings lead-free?
Yes. These fittings are manufactured from 304 stainless steel containing 0.00% lead and are certified to NSF/ANSI 372 for potable water safety.
Why choose stainless steel over brass for PEX fittings?
304 stainless steel provides superior corrosion resistance in aggressive or high-acidity water conditions and is immune to dezincification. This results in greater long-term durability compared to some brass fittings.
