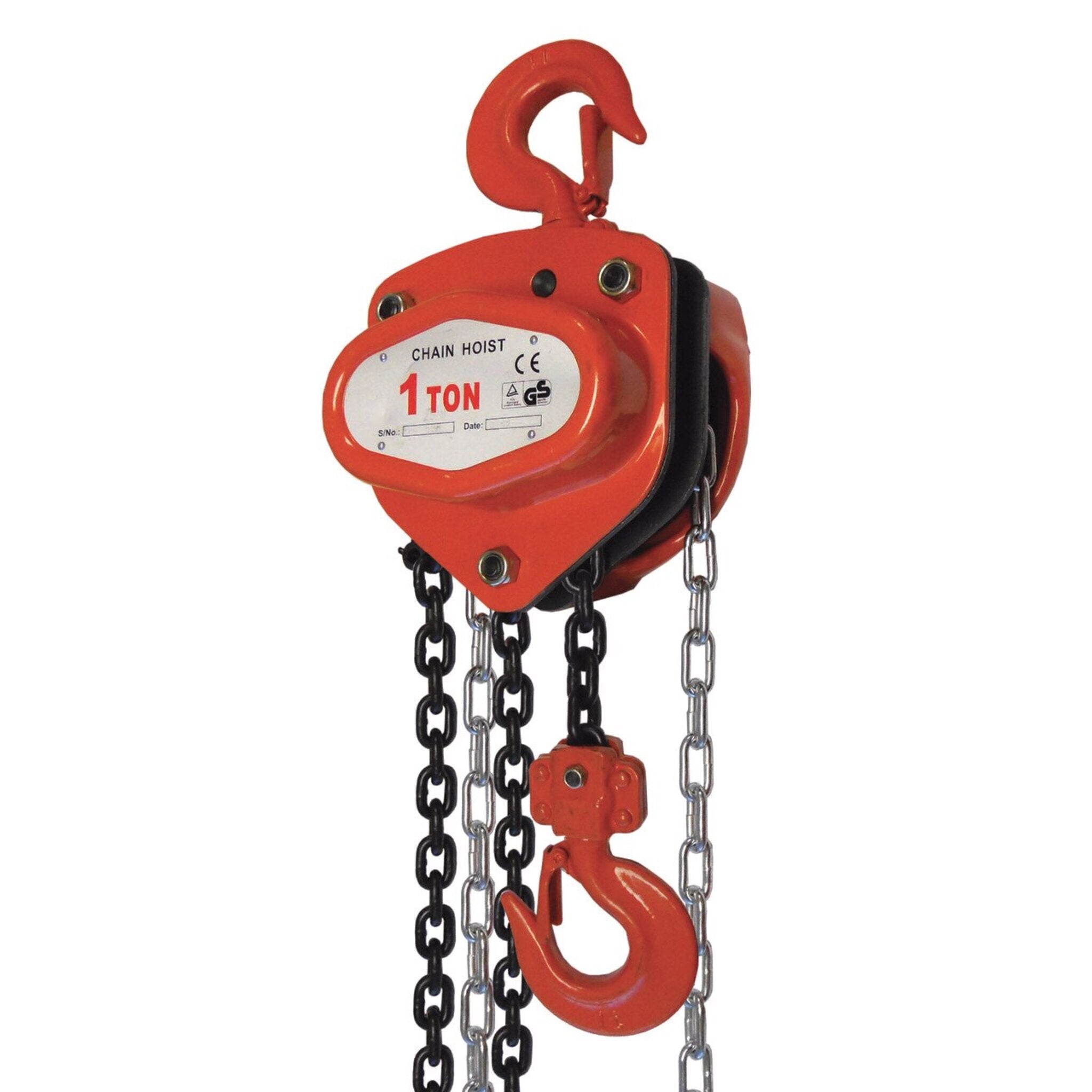

Lightweight, compact and portable. Impact-resistant, rugged steel body construction. Features short, low effort, 360ºrotating handle. Equipped with Easy Free chain, Latch-type swivel hooks, and high-tensile alloy chain.
- Steel Formed Case to protect both gear and hand chain wheel slides against external shock.
- Double Cover Protection to stop moisture and dirt from entering into the hand chain wheel case and the brake cover.
- Break Mechanism will activate instantly when operation is stopped, whether the load is light or heavy.
- Double Ratchet Pawls for extra safety. Should one pawl fail, the other restrains the load.
- Powder Metal Bushing to increase mechanical efficiency and reduce the hand chain pull strength.
- Load Chain Guide & Stripper to assure proper fit of load chain to load sheave. Also protects against dirt and moisture gathering in the load sheave.
- Slack End Anchorage that serves as a limit stopper to prevent any accidents caused by over-lowering heavy loads.
- Grade 80 Alloy Load Chain specially calibrated for hand chain block usage. All of the load chain meets or exceeds ISO and DIN standards.
- Hot forged, heat treated, swivel hooks with safety latches
| Standard Rated WLL |
Lift |
Headroom |
Handle Effort |
Test Load (Tons) |
| 1/2 Ton |
8.2 Ft |
10-3/4" |
48 lb |
3/4 |
| 1 Ton |
8.2 Ft |
11-3/4" |
57 lb |
1-1/2 |
| 1-1/2 Ton |
9.8 Ft |
14-3/4" |
66 lb |
2-1/4 |
| 2 Ton |
9.8 Ft |
14-3/4" |
77 lb |
3 |
| 3 Ton |
9.8 Ft |
20-3/4" |
77 lb |
4-1/2 |
