Description
Reliable Suction Intake Control for Trash Pumps & Dewatering

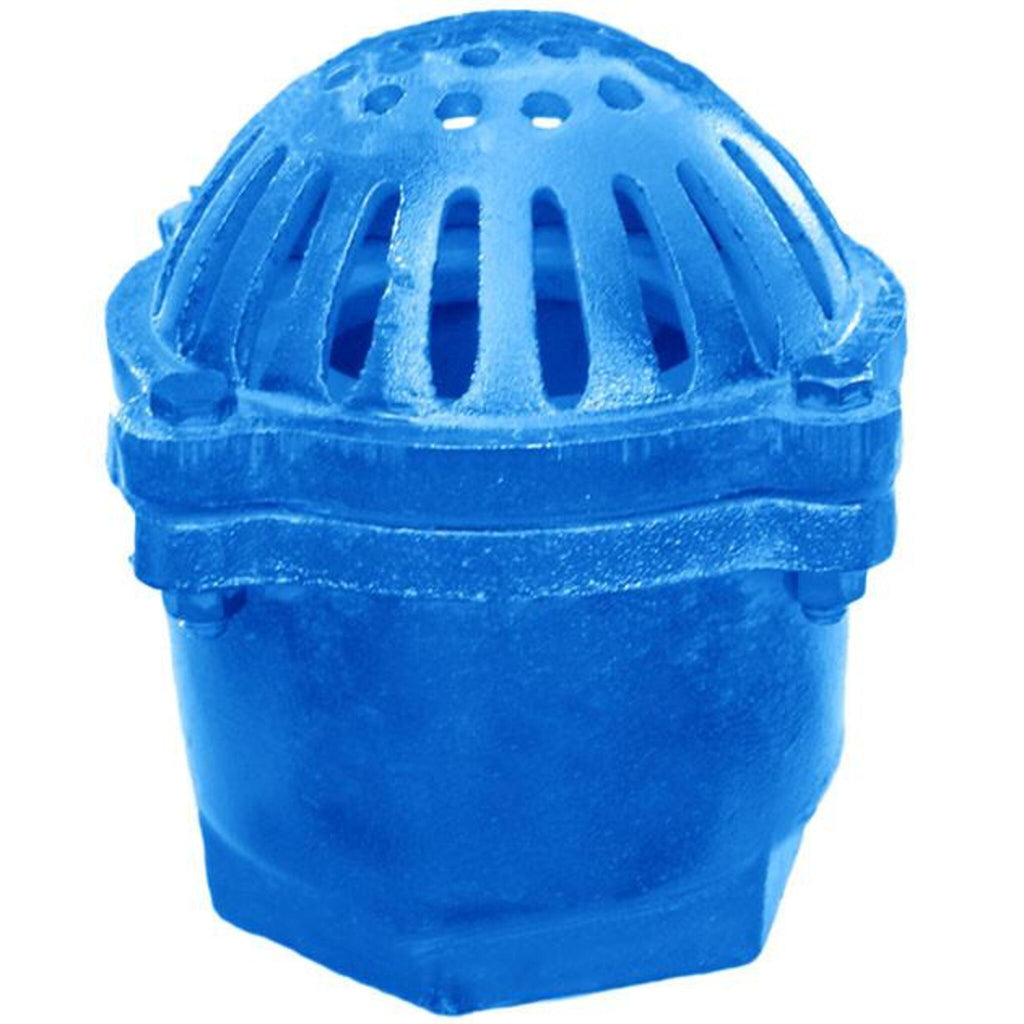

This Economy cast iron foot valve maintains pump prime by preventing backflow, ensuring systems start immediately. The integrated strainer blocks large debris, protecting your equipment during suction operations.
Specifically designed as a foot valve for trash pump applications, this economy foot valve allows pumps to sit unattended reliably. It offers a durable, cost-effective solution for agricultural and industrial water transfer.
Why This Economy Foot Valve Works
- Maintains Prime: The flapper creates a seal that keeps water in the suction line, preventing the pump from losing its prime.
- Cost-Effective Solution: An economy cast iron foot valve with strainer designed to match lower-priced alternatives without sacrificing function.
- Reliable Sealing: Uses a rubber flapper foot valve mechanism which is lighter and more responsive than traditional leather options.
- Debris Protection: Integrated strainer prevents rocks and large solids from entering and damaging the pump impeller.
- Unattended Operation: Ideal for setups where the pump must be left inactive for long periods but needs to restart instantly.
Construction & Design
| Component | Material |
| Body | Cast Iron |
| Flapper | Rubber |
| Strainer | Cast Iron |
| Finish | Painted (Blue) |
Performance Specifications
| Specification | Details |
| Fitting Category | Foot Valves |
| Fitting Type | Economy Foot Valve & Strainer |
| Material | Cast Iron & Rubber |
| Connection Type | Female NPT Thread |
Size & Dimensional Data
| Part Number | Size | Weight (lb) |
| G34EFV-150 | 1-1/2" | 2.75 |
| G34EFV-200 | 2" | 4.50 |
| G34EFV-300 | 3" | 11.00 |
| G34EFV-400 | 4" | 20.05 |
| G34EFV-600 | 6" | 50.75 |
Key Features
- Rubber Flapper: Replaces heavier leather flaps for a lighter action and consistent seal.
- Cast Iron Body: Provides heavy-duty durability for rugged environments.
- Integrated Strainer: Built-in perforated guard acts as the first line of defense against trash and solids.
- Threaded Connection: Standard female NPT threads for easy attachment to suction nipples or hose fittings.
Applications
- Trash Pumps: Essential intake component for dewatering sites.
- Agricultural Irrigation: Keeps lines primed for water transfer from ponds or canals.
- Construction Dewatering: Durable enough for job site usage.
- Industrial Water Supply: Reliable suction control for non-corrosive fluids.
Uses
- For vacuum/suction applications only, not high-pressure discharge.
- Suitable for industrial/agricultural water; check fluid compatibility.
- Use with matching NPT pipe threading.
Ready to Order? Get Reliable Supply from Cleanflow
Purchase your Economy Cast Iron Foot Valve with Strainer today and keep your operations moving. Cleanflow delivers dependable, high-quality foot valves quickly across Canada and the USA, so you can count on stock when you need it most.
Shop and experience a trusted supply for every job.
FAQs
What is the main purpose of a foot valve?
A foot valve is a check valve installed at the end of a suction line. It prevents water from flowing back into the source, keeping the pump primed and ready to start.
Why choose a rubber flapper foot valve over leather?
We use a rubber flapper foot valve design because it is lighter than leather, offering a more responsive seal and a lower price point for economy applications.
Is this foot valve for trash pump applications suitable for heavy debris?
Yes, this foot valve for trash pumps use includes a strainer basket that blocks large rocks and trash, though it is designed to let water pass through freely.
What materials is this economy foot valve made of?
This economy cast iron foot valve with strainer is constructed from durable cast iron with a rubber flapper mechanism.
Can I use this valve for potable water?
This product is designed for industrial and agricultural applications, such as trash pumps and dewatering. It is not rated for potable (drinking) water systems.
Does Cleanflow ship this product internationally?
Yes, Cleanflow supplies this foot valve with a strainer and other industrial products to customers across Canada and the USA.
