Description

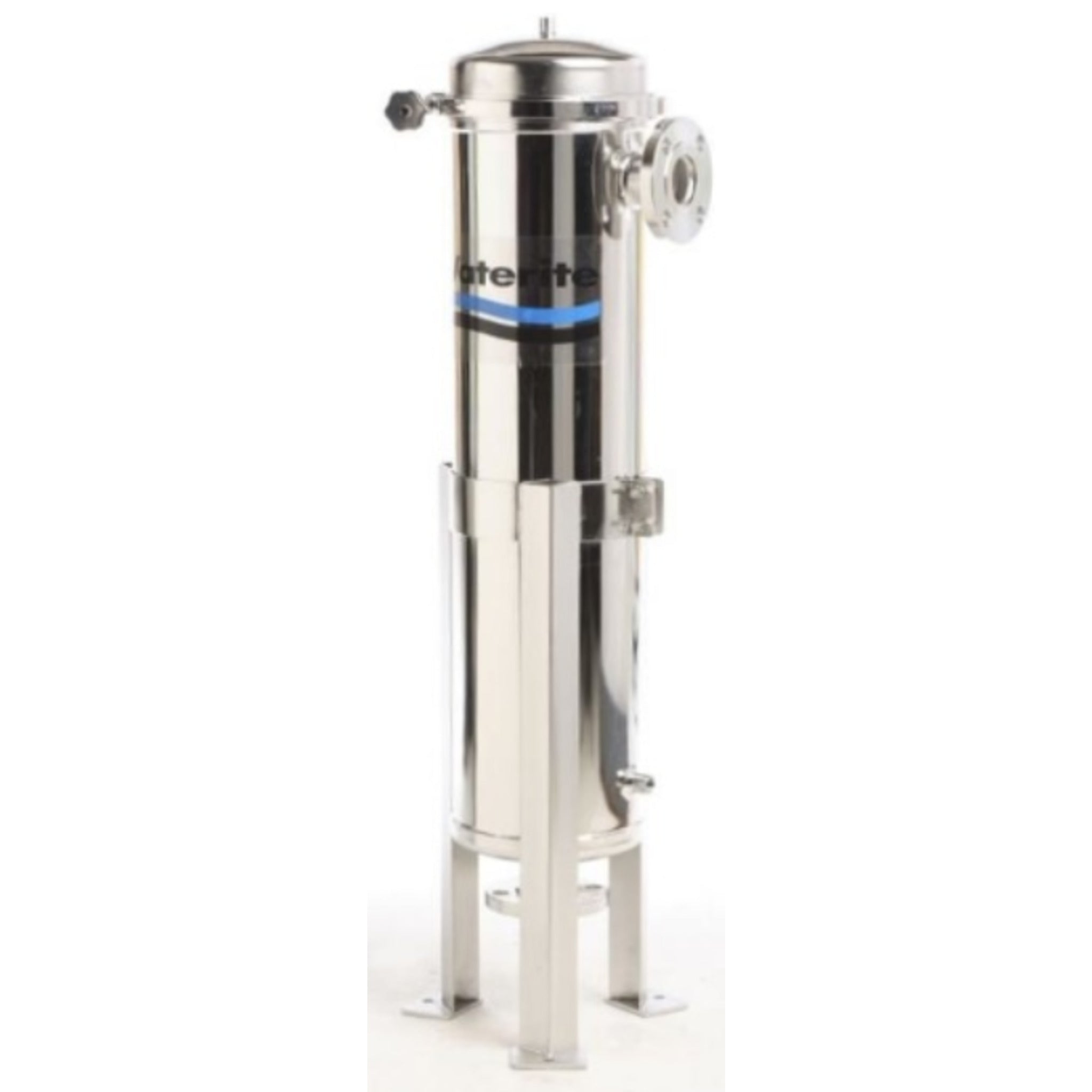

Excelflow JF Series Stainless Steel Jumbo Filter Housing
The Excelflow JF Series is a heavy-duty filtration solution built for demanding industrial and commercial applications. Engineered from corrosion-resistant Series 304 stainless steel, these housings deliver reliable, high-capacity performance where water quality and equipment protection are critical. Whether you're operating a municipal water treatment plant, a food and beverage processing facility, or a large-scale agricultural system, the JF Series provides the durability and efficiency needed to maintain clean water flow, reduce operational downtime, and support industry-standard 7.75" OD jumbo filter cartridges for maximum compatibility.
With impressive flow rates up to 130 GPM and a design that simplifies installation, these jumbo filter housings are a smart investment for any facility looking to enhance its filtration capabilities.
Features
- Industrial-Grade Durability: Constructed from polished Series 304 stainless steel, these housings are built to withstand harsh industrial environments, offering superior resistance to corrosion and wear compared to plastic or mild steel alternatives. A Series 316 stainless steel option is available on request for even greater durability.
- High Flow Capacity: Designed to handle high-demand applications, the JF Series supports flow rates of up to 130 GPM in the 30-inch model and is optimized for 7.75" OD jumbo filters, ensuring efficient, high-volume filtration without sacrificing performance.

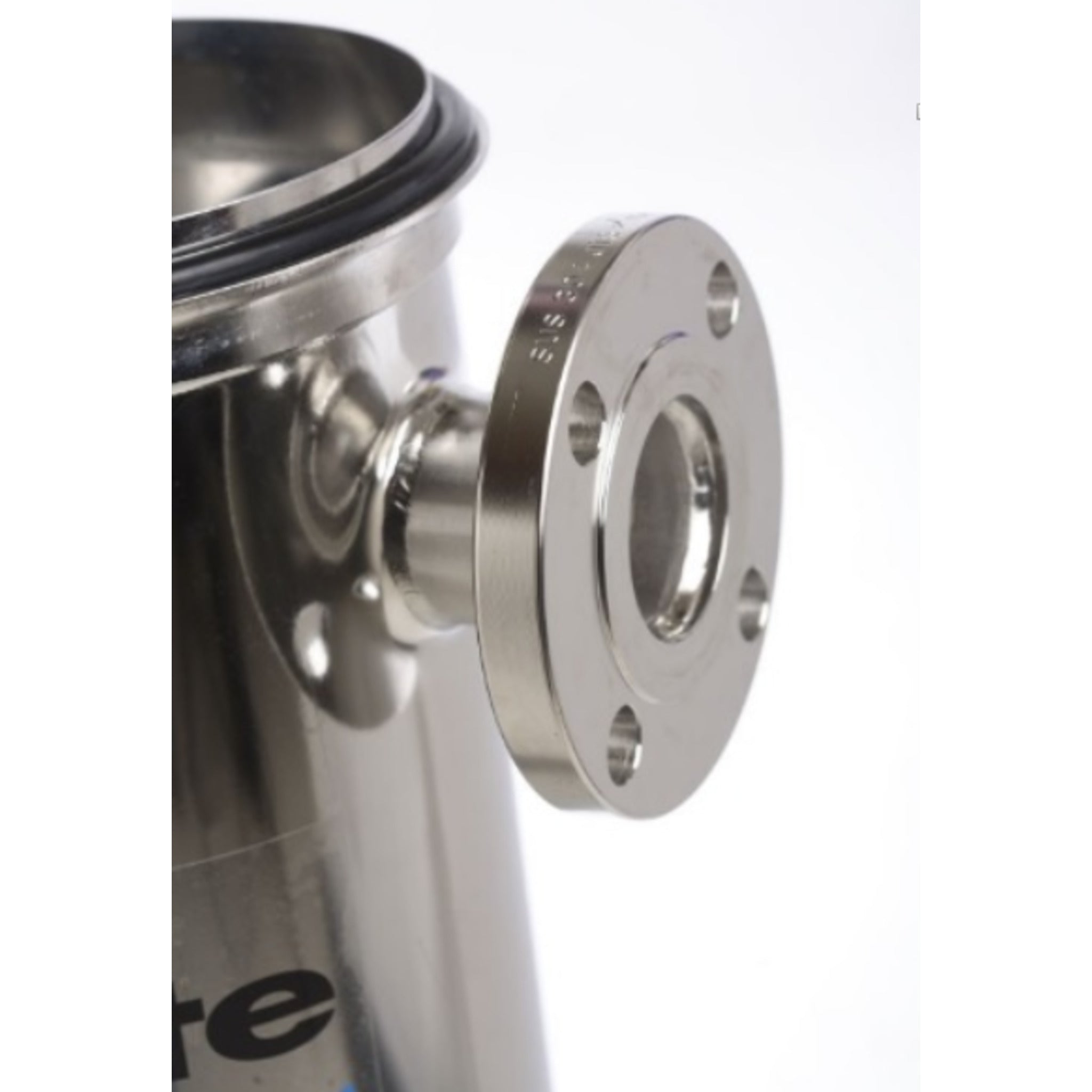

- Versatile Compatibility: Equipped with standard 2-inch ANSI Class 150 flanged ports and engineered to fit 7.75" OD jumbo filters in 10", 20", and 30" lengths, these housings integrate seamlessly into existing industrial piping systems. This universal design simplifies installation and makes system upgrades straightforward. For other connection needs, options like FIP, MIP, or Victaulic ports are available on request.

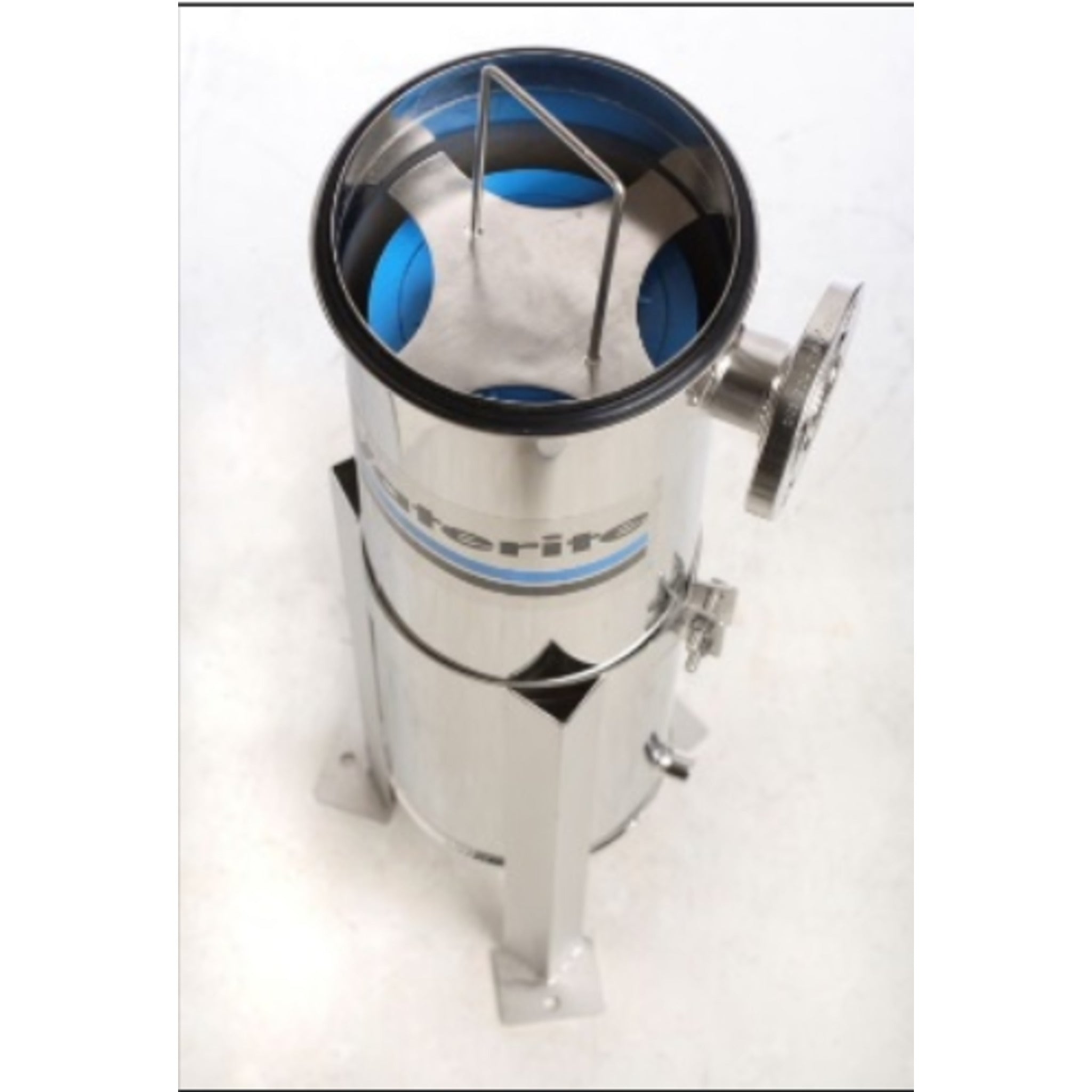

- Reliable and Safe Operation: The standard heavy-duty band clamp closure ensures a secure seal, with an operating pressure tolerance of up to 100 psi. For higher pressure needs, an optional swing bolt closure is available, rated for 150 psi.
-
Wide Range of Applications: Capable of handling temperatures up to 65°C (150°F), the JF Series is ideal for a variety of industries, including food and beverage, chemical manufacturing, agriculture, pharmaceuticals, and municipal water treatment. It’s an excellent choice for any large-scale commercial water filter system.
Specifications
| Specification | Details |
| Trade Name | Excelflow |
| Model | JF Series |
| Material | Series 304 Stainless Steel (Series 316 available on request) |
| Finish | Polished |
| Operating Pressure | Standard Band Clamp Closure: 100 psi (7 kg/cm²) Optional Swing Bolt Closure: 150 psi (10 kg/cm²) |
| Operating Temperature | 65°C (150°F) maximum |
| Porting | 2” ANSI Flange, Class 150 (Standard) FIP, MIP, and Victaulic (Grooved End) available on request |
| Compatible Filters | Accepts 7.75" OD Jumbo Water Filters |

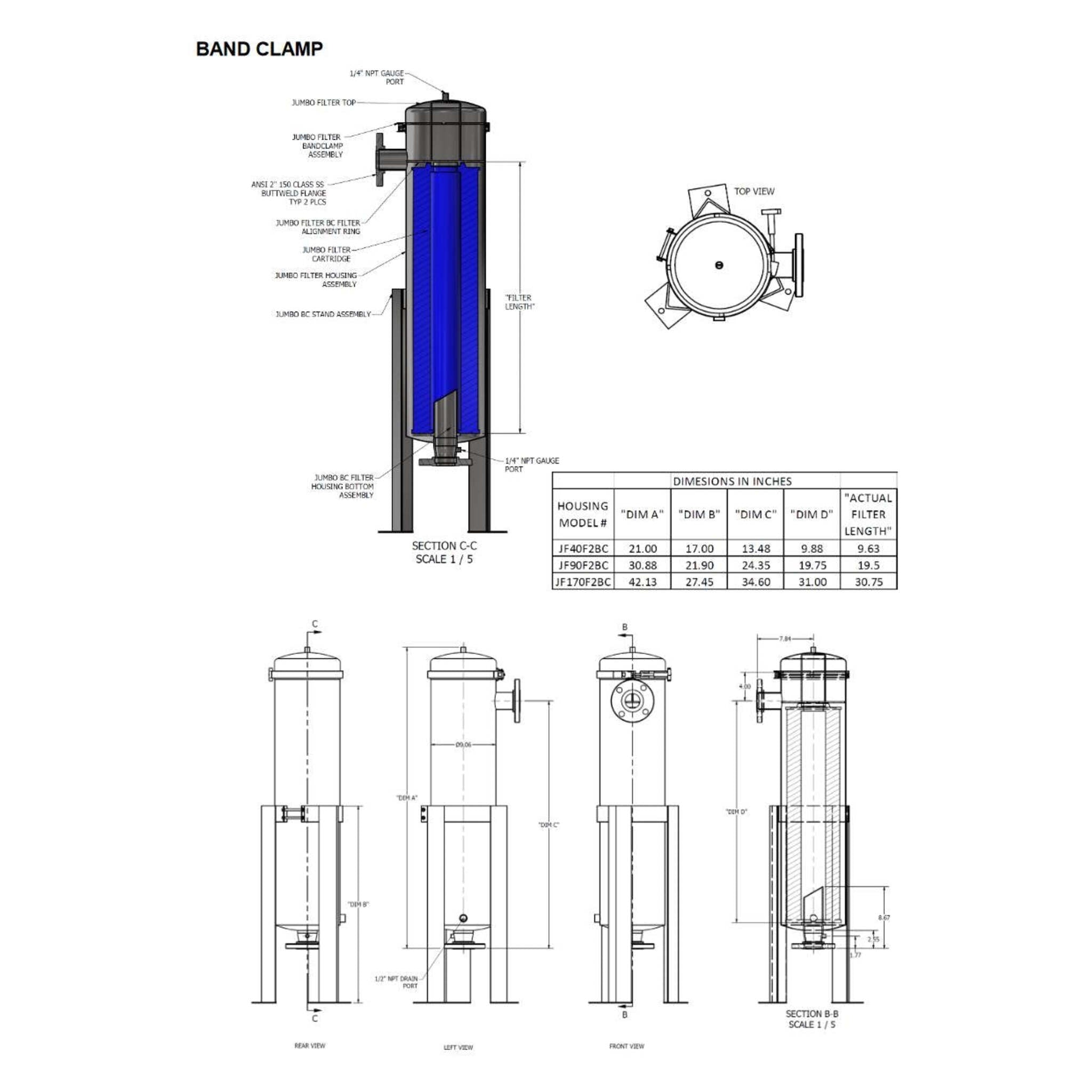

Flow Rate and Dimensions by Housing Size
| Housing Model | Housing Size | Max Flow Rate |
DIM A (in) |
DIM B (in) | DIM C (in) | DIM D (in) | Actual Filter Length (in) |
| JF40F2BC | 10" | 40 GPM | 21.00 | 17.00 | 13.48 | 9.88 | 9.63 |
| JF90F2BC | 20" | 90 GPM | 30.88 | 21.90 | 24.35 | 19.75 | 19.5 |
| JF170F2BC | 30" | 130 GPM | 42.13 | 27.45 | 34.60 | 31.00 | 30.75 |
Applications
Municipal Water Treatment
- High-capacity filtration for water treatment facilities
- Compliance with regulatory standards
- Reduced maintenance downtime
Food & Beverage Processing
- Safe, sanitary water filtration
- Maintains product quality standards
- Corrosion-resistant construction for food safety
Industrial Manufacturing
- Protects equipment from sediment damage
- Extends machinery lifespan
- Reduces operational costs
Agricultural Operations
- Large-scale irrigation filtration
- Protects sprinkler systems and equipment
- Handles varying water quality conditions
Order the Excelflow JF Series Stainless Steel Jumbo Filter Housing
The Excelflow JF Series Stainless Steel Jumbo Filter Housing delivers the durability and performance your facility needs. Cleanflow Utility Supply Company is your premier source for water and wastewater treatment products across Canada and the USA, delivering the quality and service you deserve.
Frequently Asked Questions
What is the main advantage of 304 stainless steel construction?
Series 304 stainless steel provides excellent corrosion resistance and durability, making it ideal for industrial water filtration where longevity and reliability are crucial. It significantly outlasts plastic and mild steel, reducing replacement costs over time.
Can this housing be used for applications other than water filtration?
While primarily designed for water, its robust construction and material make it suitable for filtering various fluids in industries like chemical processing and food & beverage, provided the fluids are compatible with 304 stainless steel.
What is the difference between a band clamp and a swing bolt closure?
The standard band clamp closure is rated for 100 psi and offers a secure, easy-to-use seal. The optional swing bolt closure is designed for higher-pressure systems, rated up to 150 psi, and provides a more robust mechanical seal.
How do I select the right housing size (10", 20", or 30")?
The choice depends on your required flow rate and filtration capacity. The 10" housing handles up to 40 GPM, the 20" up to 90 GPM, and the 30" up to 130 GPM. Higher-capacity housings also allow for longer intervals between filter changes.
Is the housing compatible with filter cartridges from other brands?
Yes. The Excelflow JF Series is universally compatible with standard 7.75" OD jumbo filter cartridges in 10", 20", or 30" lengths. This ensures easy replacement, even if you're using filters from other manufacturers.
Are different port configurations available?
While the standard configuration features 2" ANSI Class 150 flanged ports, FIP, MIP, and Victaulic grooved end ports are available on request to accommodate various piping systems.
