Description

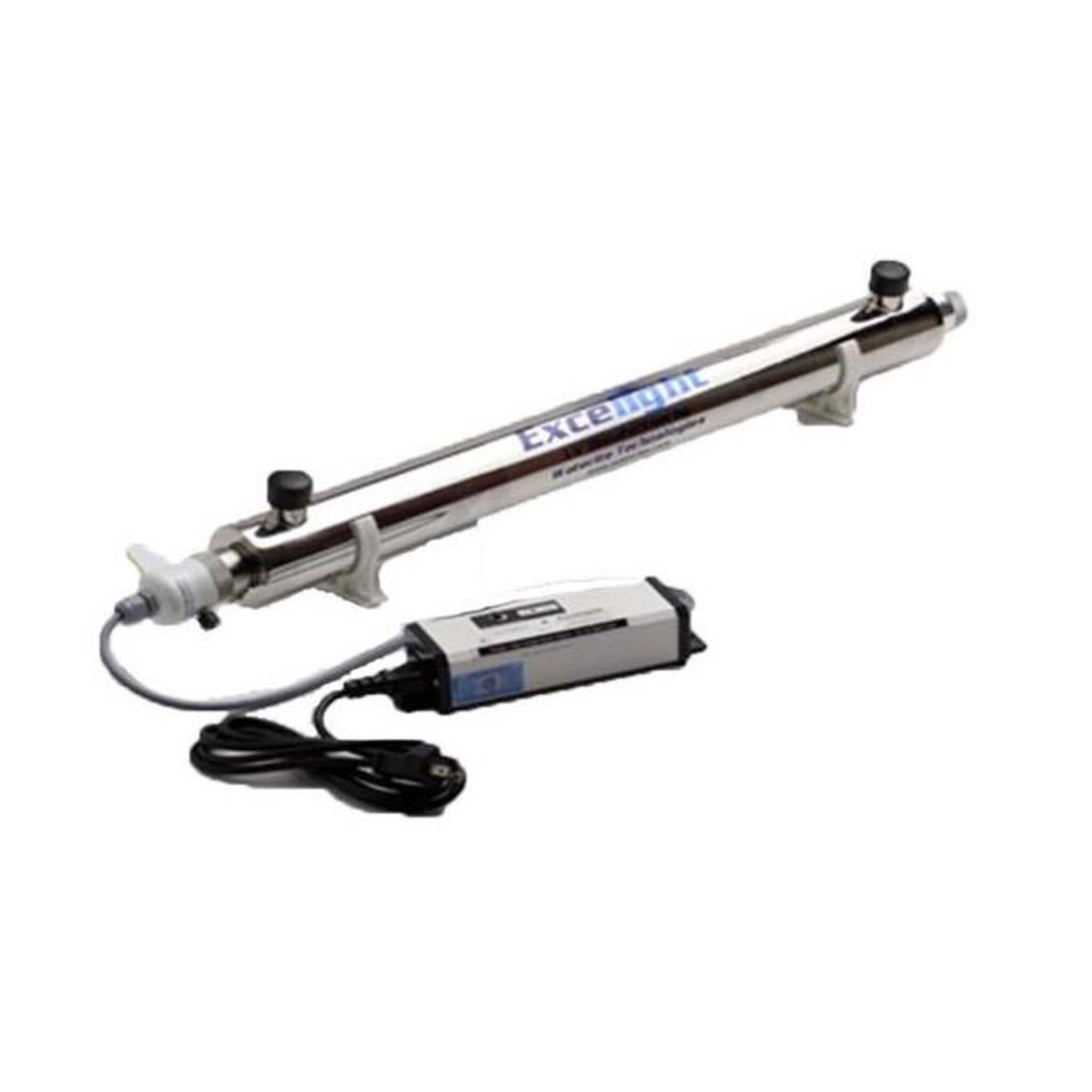

Excelight Complete UV Disinfection Systems – Safeguard Your Water with Reliable UV Protection
The Excelight Complete UV Disinfection System is meticulously designed to neutralize harmful bacteria, including total coliform, fecal coliform, and E. coli, as well as cryptosporidium and giardia cysts, ensuring that your home water supply is safe and clean. The system features a Canadian-made 115v/60 Hz CSA-certified ballast, providing top-tier reliability, while the rest of the system is constructed with high-quality components, including a 304 polished mirror stainless steel lamp chamber for maximum efficiency and durability. Ideal for use with reverse osmosis systems, drinking fountains, or small filtration systems, this complete package includes everything you need for easy installation and maintenance.
Key Features:
- Effective Disinfection: Neutralizes bacteria, cryptosporidium, and giardia cysts to ensure safe drinking water.
- Canadian-Made Ballast: Equipped with a 115v/60 Hz CSA-certified ballast, made in Canada, ensuring reliable performance and meeting all applicable CSA approvals.
- Easy Installation: Includes a full installation manual and all necessary hardware, including easy wall mount clips and mounting hardware.
- Comprehensive Package: Comes with the lamp, sleeve, and all other components needed to get started right away.
- User-Friendly Features: Includes an audible and visual lamp failure alarm, lamp countdown clock, and 7-day override for added convenience.
- Durable Construction: Features a 304 polished mirror stainless steel lamp chamber for long-lasting performance.
- Ideal Applications: Perfect for home or cottage use, as well as reverse osmosis systems, drinking fountains, and small filtration setups.
- Easy Maintenance: Inexpensive replacement parts and easy-to-follow instructions make maintenance a breeze.
Understanding UV Dosage and Flow Rates:
The intensity of UV light exposure, or UV dosage, varies with the flow rate through the system. The hydraulic performance of the disinfection chamber may limit the maximum flow rate. Flow restrictors can be used to ensure a minimum UV dosage by controlling the flow rate through the system.
- 16 mJ/cm²: Suitable for reducing non-pathogenic nuisance organisms, though many pathogens will also be eliminated at this dosage.
- 30 mJ/cm²: The standard dosage typically produced by systems designed using the 1966 US Department of Health Policy Statement. This is the dosage our systems are advertised with.
- 40 mJ/cm²: The dosage required by NSF/ANSI Standard 55 for more rigorous disinfection.
Model Specifications:
EL12AK UV Disinfection System Specifications::
- Flow Rate: 1 GPM @ 30 mJ/cm²
- Lamp: EL12L
- Dimensions: 11" overall length of chamber
- In/Out Port Size (MNPT): 1/4"
- Pressure Max: 125 PSI
- Light Lifetime: 9,000 hours or one year of continuous use
- Casing Construction: 304 stainless steel
- Certification: 115V – 60HZ CSA Approved Transformer Included
- Warranty: Full manufacturer's warranty
-
Flow Rates:
- 16 mJ/cm²: 2 GPM
- 30 mJ/cm²: 1 GPM
- 40 mJ/cm²: 0.5 GPM
EL411AK UV Disinfection System Specifications:
- Flow Rate: 6 GPM @ 30 mJ/cm²
- Lamp: EL411L
- Dimensions: 23" overall length of chamber
- In/Out Port Size (MNPT): 3/4"
- Pressure Max: 125 PSI
- Light Lifetime: 9,000 hours or one year of continuous use
- Casing Construction: 304 stainless steel
- Certification: 115V – 60HZ CSA Approved Transformer Included
- Warranty: Full manufacturer's warranty
-
Flow Rates:
- 16 mJ/cm²: 11 GPM
- 30 mJ/cm²: 6 GPM
- 40 mJ/cm²: 4 GPM
EL720AK UV Disinfection System Specifications::
- Flow Rate: 8 GPM @ 30 mJ/cm²
- Lamp: EL720L
- Dimensions: 28" overall length of chamber
- In/Out Port Size (MNPT): 3/4"
- Pressure Max: 125 PSI
- Light Lifetime: 9,000 hours or one year of continuous use
- Casing Construction: 304 stainless steel
- Certification: 115V – 60HZ CSA Approved Transformer Included
- Warranty: Full manufacturer's warranty
-
Flow Rates:
- 16 mJ/cm²: 15 GPM
- 30 mJ/cm²: 8 GPM
- 40 mJ/cm²: 6 GPM
EL1129AK UV Disinfection System Specifications:
- Flow Rate: 12 GPM @ 30 mJ/cm²
- Lamp: EL1129L
- Dimensions: 37" overall length of chamber
- In/Out Port Size (MNPT): 3/4"
- Pressure Max: 125 PSI
- Light Lifetime: 9,000 hours or one year of continuous use
- Casing Construction: 304 stainless steel
- Certification: 115V – 60HZ CSA Approved Transformer Included
- Warranty: Full manufacturer's warranty
-
Flow Rates:
- 16 mJ/cm²: 22 GPM
- 30 mJ/cm²: 12 GPM
- 40 mJ/cm²: 9 GPM
Enhance Your Water Safety with Multiple Barriers
For water sources with indicated microbiological activity, it is recommended to use additional disinfection barriers alongside your UV system. This can include water well chlorination, inline chlorine injection, <1-micron absolute filtration, or ozone injection. Using multiple barriers ensures safe drinking water even if one method fails.
