Description

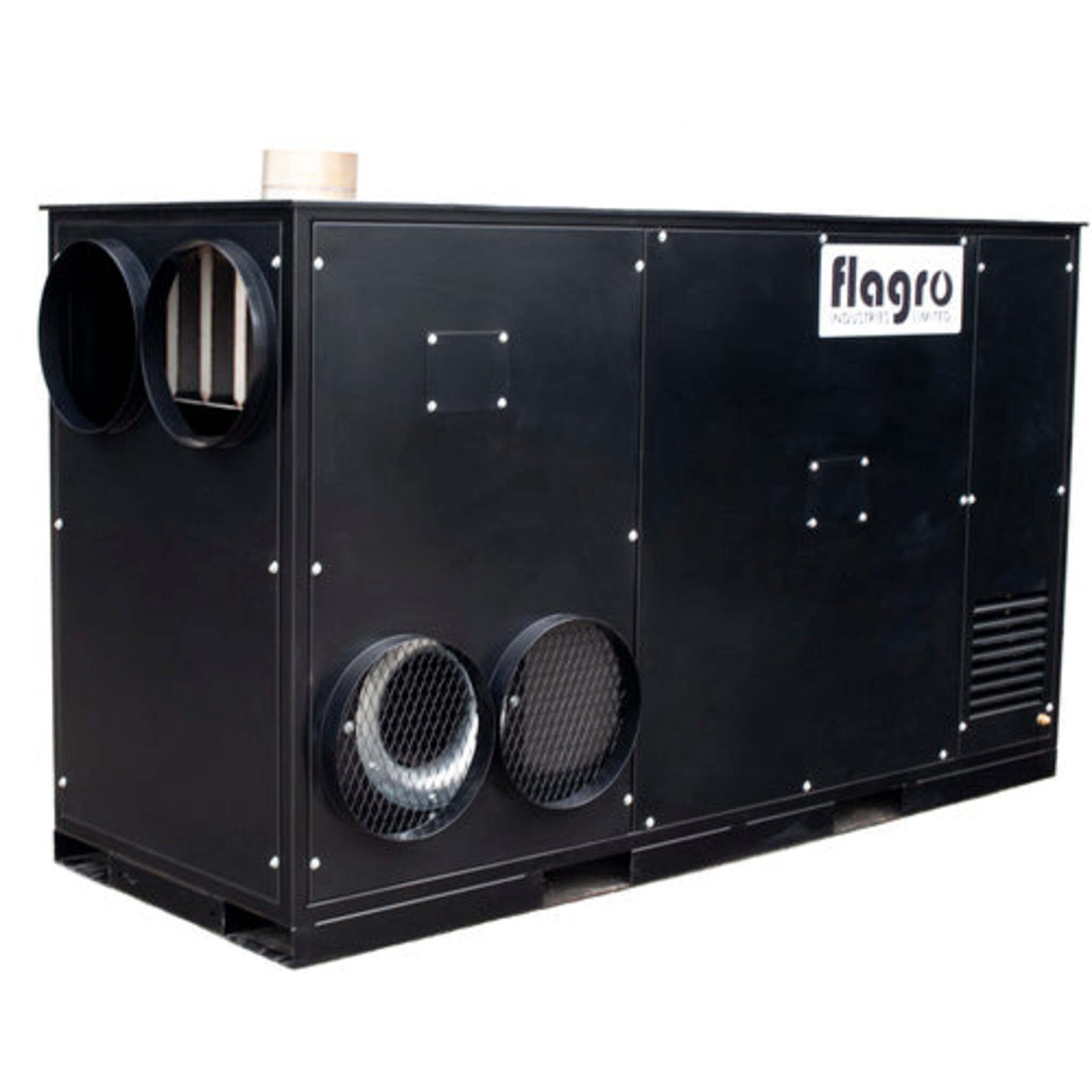

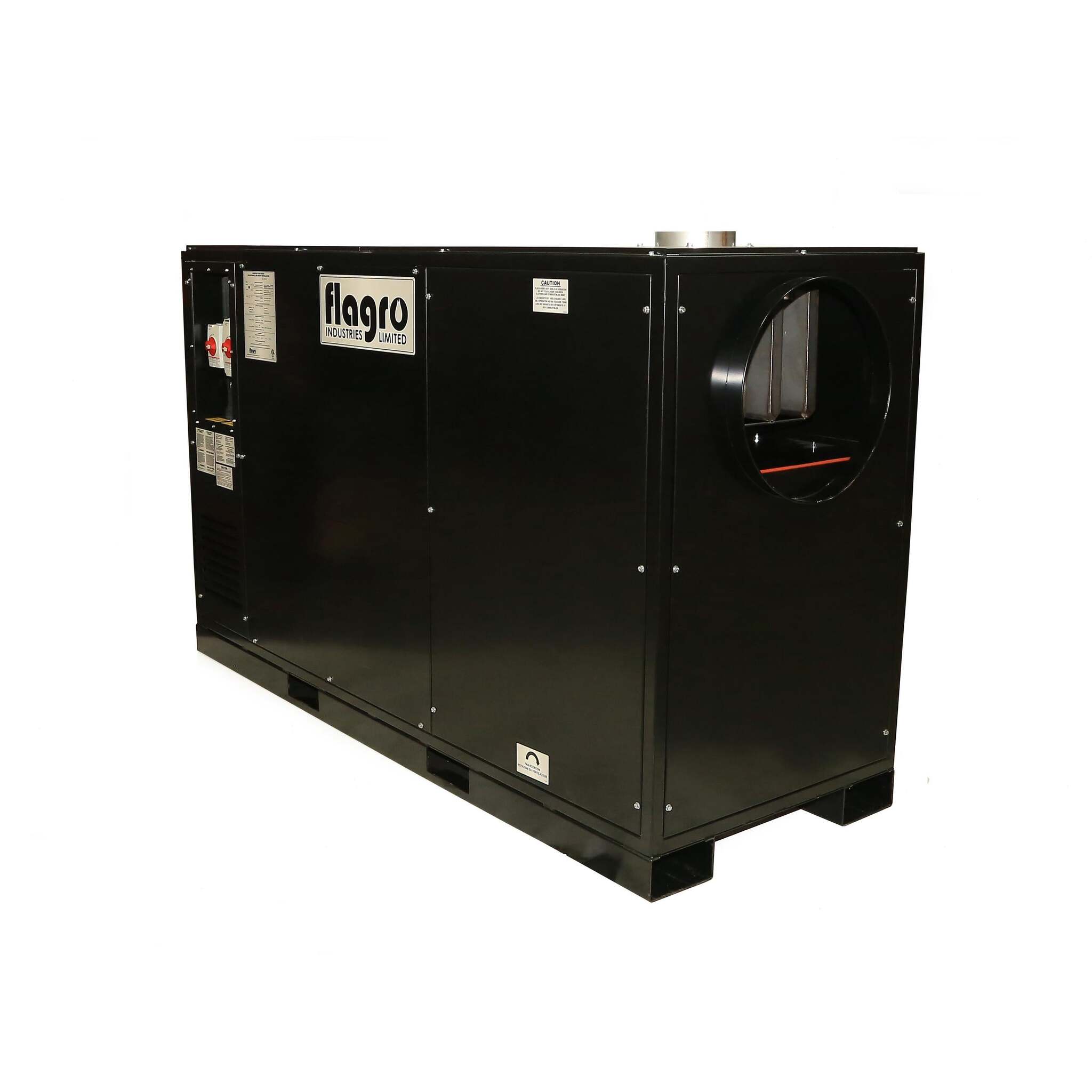

Flagro FVO-750 Oil Indirect Fired Heater | 750,000 BTU
Introducing the Flagro FVO-750 Oil Indirect Fired Heater, a high-capacity heating solution designed for powerful and efficient performance. This heater features an indirect fired heat exchanger that allows for the external exhaust of combustion products, ensuring a cleaner and safer operation. With standard 208/230 Volt 1 phase or 208/230 Volt 3 phase options, and equipped with waterproof and emergency disconnect provisions, the FVO-750 is built for reliability and ease of use in demanding environments.
Key Features: Powerful and Efficient Heating
- Indirect Fired Heat Exchanger: Allows external exhaust of combustion products for safer operation.
- Standard 208/230 Volt Options: Available in both 1 phase and 3 phase with waterproof and emergency disconnect.
- Reillo Burner Technology: Ensures reliable and efficient ignition and combustion.

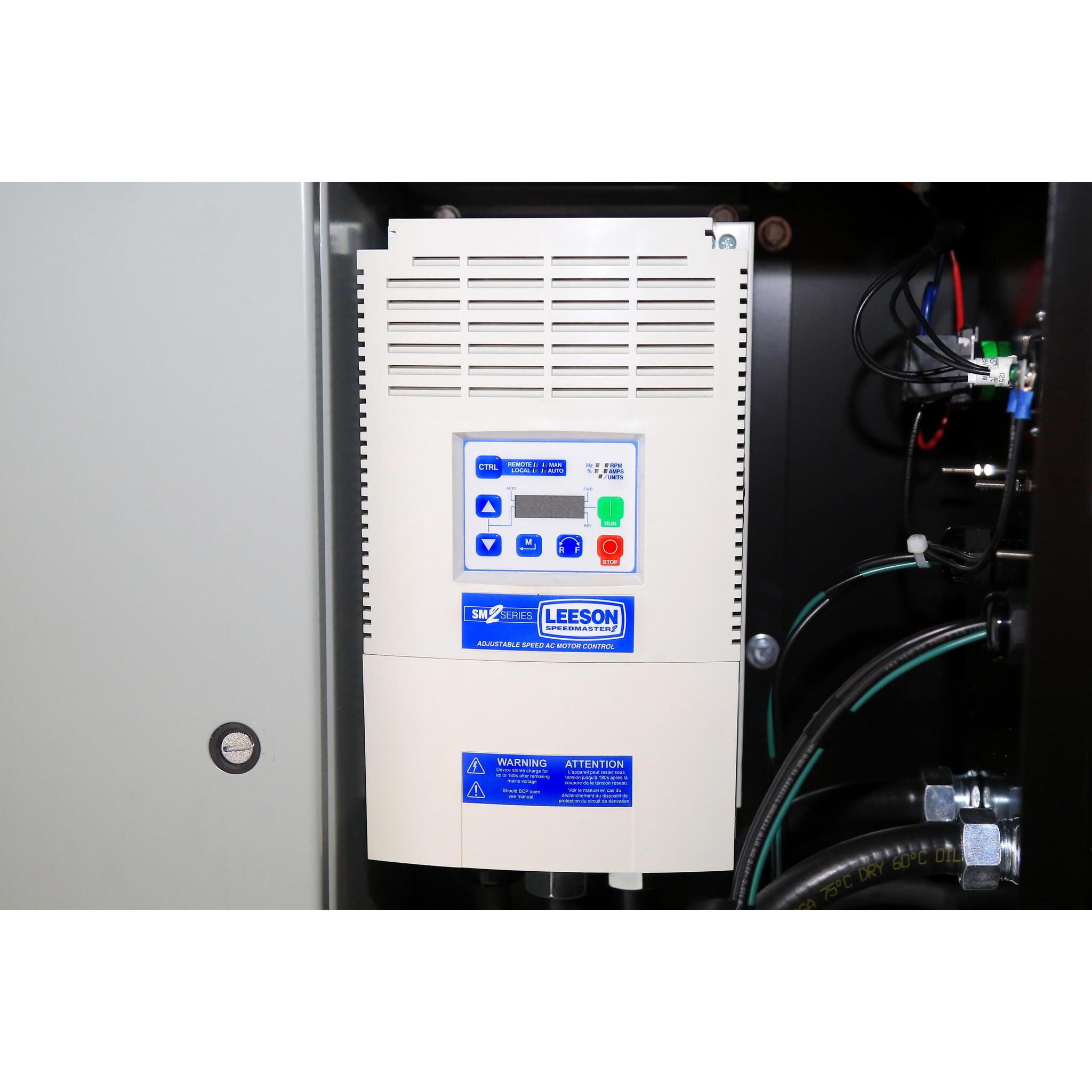

- VFD (Variable-Frequency Drive): Provides a soft start for the fan motor, reducing wear and energy consumption.
- Reverse Inclined Blower: Allows for outlet ducting over 100 feet.
- Proven Flagro Heat Exchanger: 16 gauge 304 stainless steel construction for durability and efficiency.
- 130°F Temperature Rise: At 7,000 CFM, ductable up to 200 feet.
- High Static Blower and Integrated Forklift Pockets: For easy transportation and installation.
- Easily Accessible Design: Convenient access to burner, fuel lines, and electrical controls.
- Tiger Loop Fuel System: Enhances fuel efficiency and reliability.
-
Return Air Duct Inlet: Enhances air circulation efficiency by allowing for the recirculation of heated air, ensuring a consistent and controlled temperature environment.
-

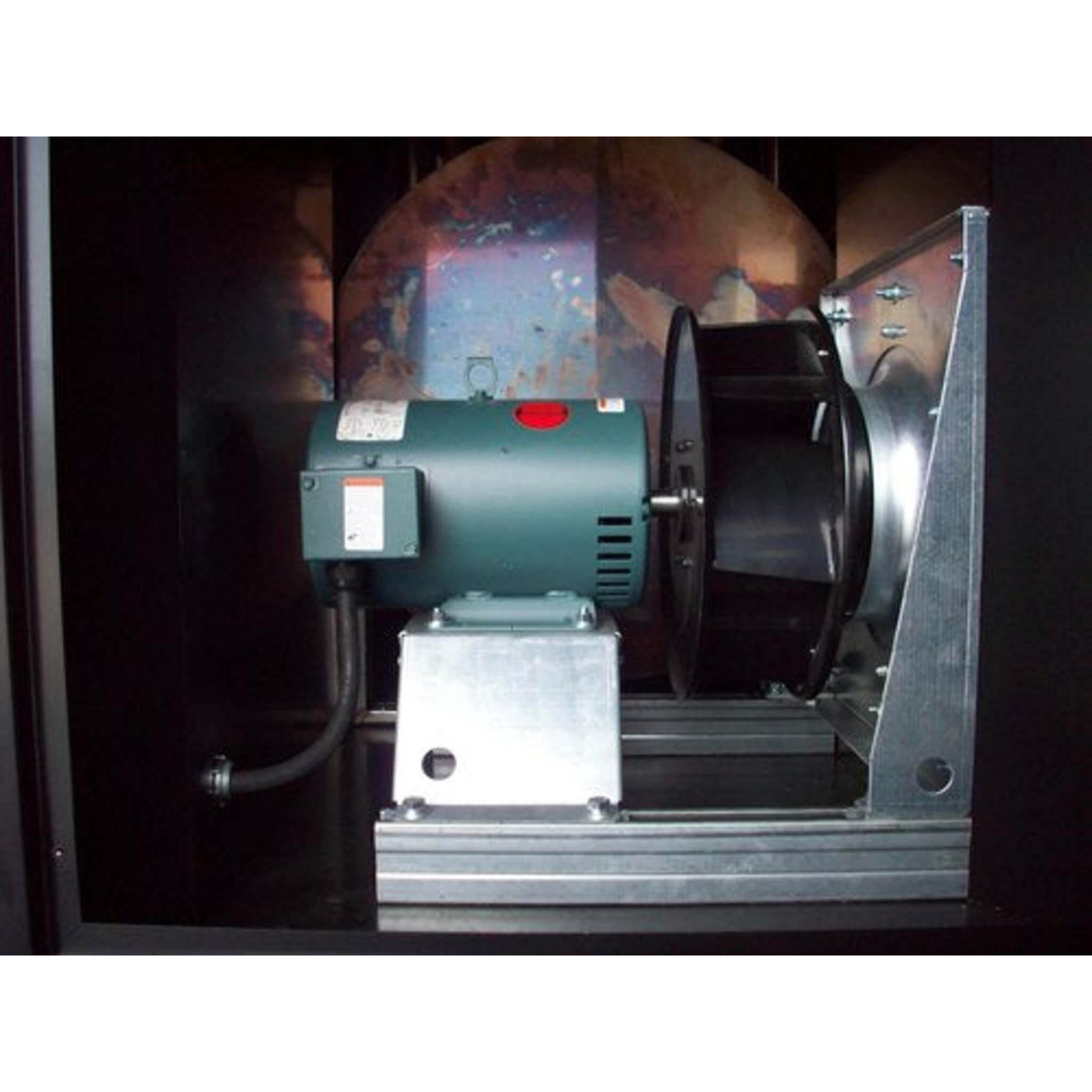

High Static Blower: Provides powerful airflow, ensuring optimal heat distribution even in large spaces. This feature is essential for maintaining consistent temperatures and improving overall heating efficiency.
-
Integrated Forklift Pockets: Skid mount with fork pockets for easy transportation. This design feature simplifies the relocation of the heater, making it easy to move and position exactly where needed, reducing setup time and effort.
-

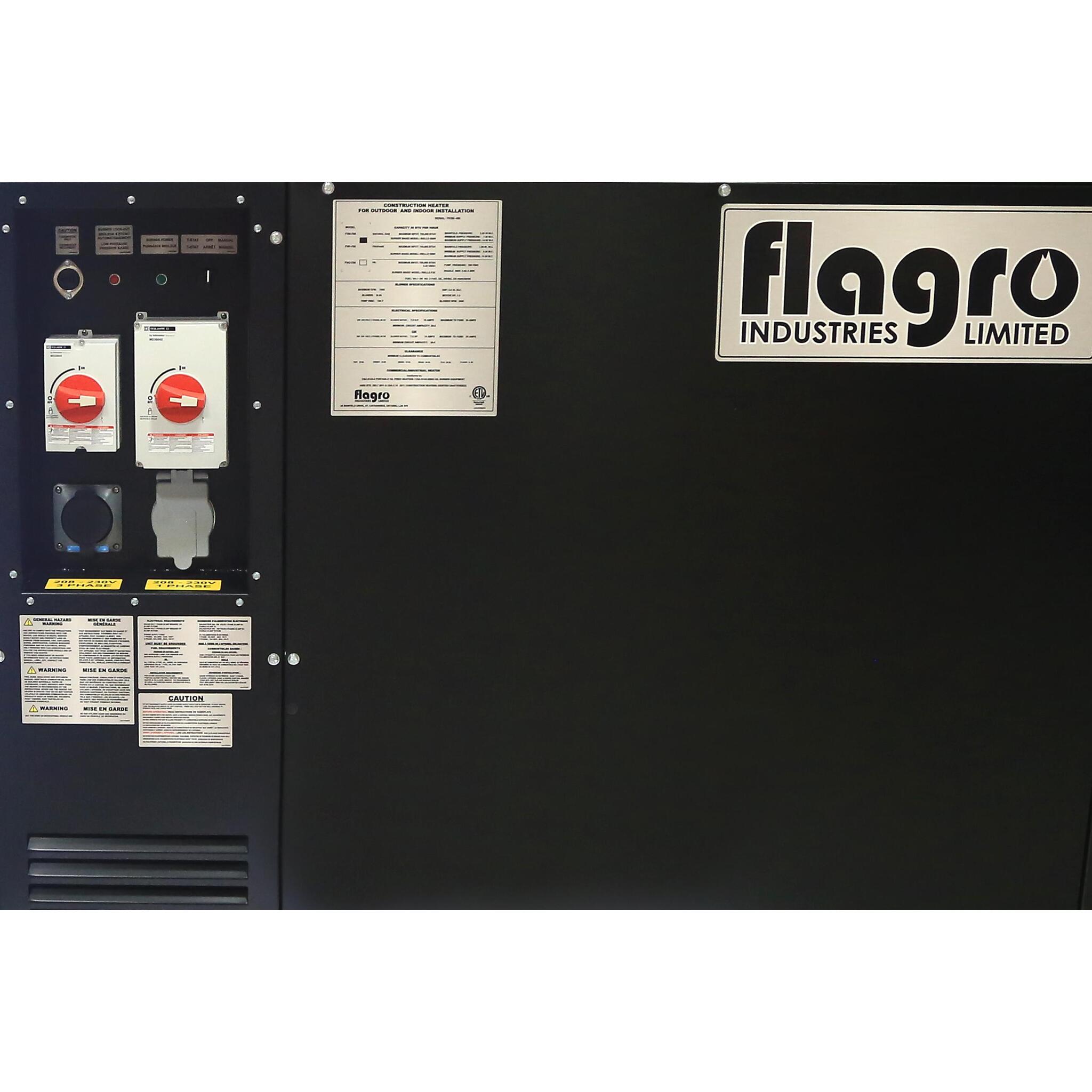

Easily Accessible Design: Offers convenient access to the burner, fuel lines, and electrical controls. This feature simplifies maintenance and servicing, ensuring that the heater remains in optimal working condition with minimal downtime.
-
Tiger Loop Fuel System: Enhances fuel efficiency and reliability by ensuring a continuous fuel supply to the burner. This system helps maintain consistent heater performance and reduces the risk of fuel-related issues.
The Ideal Heating Solution for Industrial Applications
The Flagro FVO-750 Oil Indirect Fired Heater is designed for large-scale heating requirements, providing robust performance and efficiency. Its advanced features, such as the variable-frequency drive and reverse inclined blower, ensure optimal operation and longevity. Ideal for industrial applications, the FVO-750 delivers powerful, reliable, and safe heating, making it the perfect choice for any demanding environment.
Specifications | |
Heat Capacity | 750,000 BTU/H |
CFM | 7,000 |
Fuel Consumption | 5.2 GAL/HR |
Power Requirements | 1 Phase 208-230V 50A (18 AMP Draw) |
Power Requirements | 3 Phase 208-230V 30A (14 AMP Draw) |
Fan Motor/ Air Circulation | 7.5 H.P. / 7000 CFM |
Fan Control | VFD Standard |
Heat Exchanger | 16 Gauge 304 Stainless Steel |
Ignition | Direct Spark |
Nozzle Size/Pump Pressure | 4.50 x 60W/ 160PSI |
Air Outlet | 2 x 16” Dia. |
Air Inlet | 2 x 16” Dia. |
Wheels | Skid Base |
Dimensions / Weight (Uncrated) | 98” x 36” x 61” / 1400 LBS. |
Approvals | cETLus |
Outlet Ducting | FV-HDG16 - 16” x 25 |
Inlet Ducting | FV-HDV16 - 16” x 25 |
