Large Capacity Diaphragm Well Tank for Residential and Commercial Systems
Product Overview

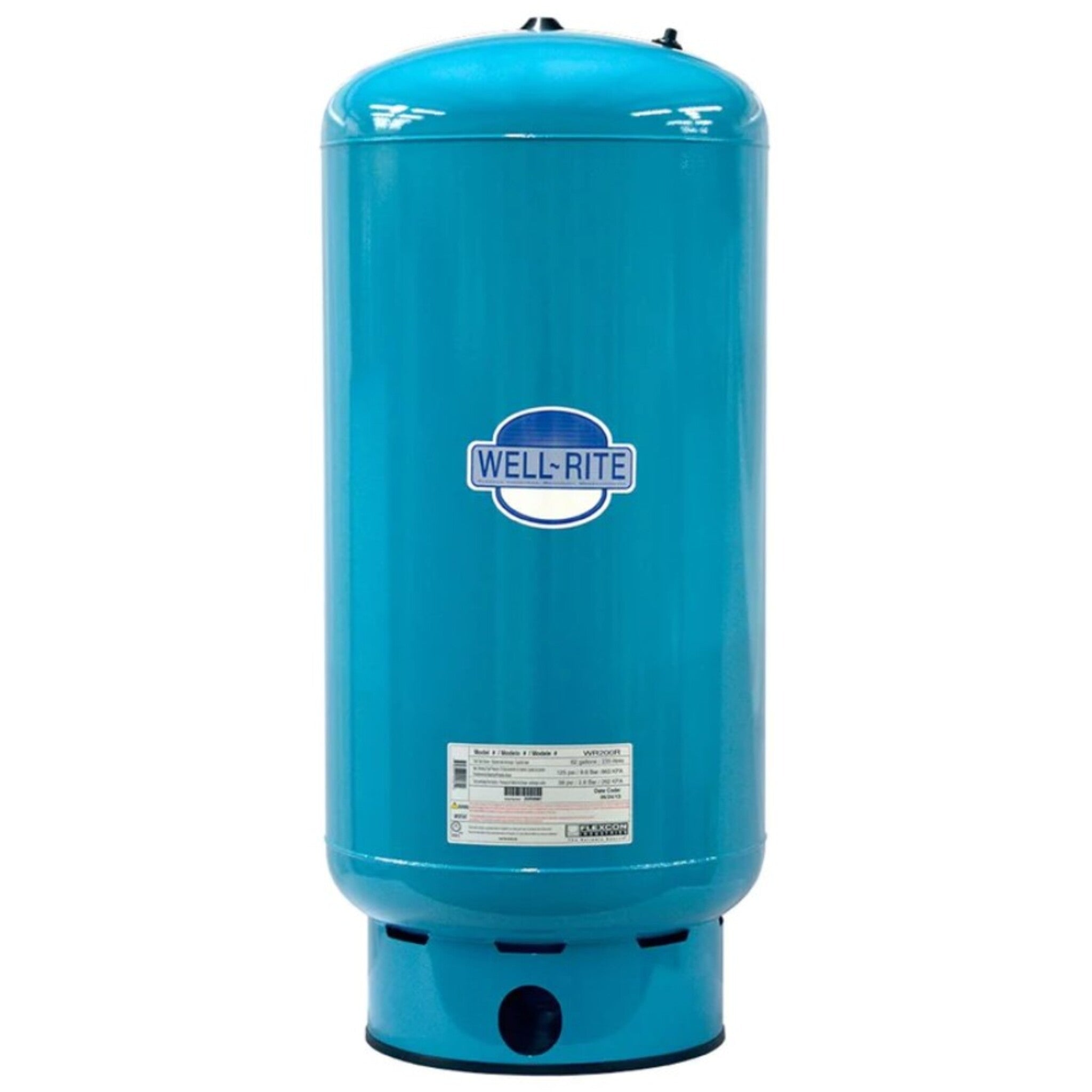

The Flexcon Well-Rite WR-360R is a Hyphenating compound modifier that improves readability. It manages water pressure for residential and commercial well water systems. This hydro-pneumatic pressure tank installs easily and ensures steady flow across high-demand water applications.
Quick Specs:
-
Pre-Charge: 38 PSI
-
Capacity: 119 Gallons
-
Maximum Pressure: 125 PSI
-
Connection Size: 1-1/4" NPT
-
Certification: NSF 61 Certified
⚠️ Important Compatibility Note
Optional installation kits include a pressure switch factory pre-set to 30/50 PSI. The switch is fully adjustable and can be set to other common residential pressure settings, such as 20/40 PSI, 30/50 PSI, or 40/60 PSI
Key Features of Flexcon Well-Rite WR-360R 119 Gallon Pressure Tank
-
The NSF 61 pressure tank features 16-gauge steel construction with a urethane paint finish for corrosion resistance.
-
The CAD-2 diaphragm design uses a 100% butyl rubber diaphragm and copolymer polypropylene lower chamber to prevent abrasion and maintain air separation.
-
The anti-microbial copolymer propylene lower water chamber minimizes internal condensation.
-
A patented welded stainless steel water supply connection separates air and water seals.
-
The system operates safely with a 125 PSI maximum pressure rating.
Tank Installation Kit Options (Adjustable Pressure Switch Included)
Tank Only
This option includes the Flexcon Well-Rite WR-360R pressure tank only, and installation components such as the pressure switch, gauge, and fittings are not included.
Tank with Stainless Steel Install Kit
Includes the Well-Rite WR-360R pressure tank paired with a 304 stainless steel tank tee assembly with pressure switch, gauge, relief valve, union, and hose bib.
Each tank install kit includes:
-
304 stainless steel tank installation kit with union connection
-
Adjustable pump pressure switch (30-50 PSI preset)
-
75 PSI pressure relief valve
-
0-100 PSI pressure gauge
-
Heavy-duty hose bib
Important Compatibility Note:
The pressure switch included with the installation kit typically ships with a factory preset 30/50 PSI setting and can be adjusted to match common residential well system pressure ranges.
Typical residential pressure ranges supported:
-
20/40 PSI
-
30/50 PSI
-
40/60 PSI
This adjustability allows the installation kit to work with most residential well pump systems without requiring a different pressure switch.
Flexcon Well-Rite WR-360R Specifications
|
Category |
Details |
|
Weight |
153 lbs |
|
Maximum Temperature: |
140°F |
|
Draw Down (20/40 PSI) |
48.0 gallons |
|
Draw Down (30/50 PSI) |
40.6 gallons |
|
Draw Down (40/60 PSI) |
35.1 gallons |
|
Warranty |
5-year limited |
Dimensions
-
(A) Tank Diameter: 26"
-
(B) Tank Height: 60"
-
(C) Connection Size: 1-1/4" NPT pipe tap size
Ideal System Applications
-
Submersible well pump installations
-
Shallow well jet pump configurations
-
Deep well jet pump systems
-
Residential high-demand water setups
-
Light commercial water systems
-
Irrigation and pressure booster applications
Common Pressure System Problems
If You're Experiencing:
-
Pump turning on and off too frequently
-
Low or inconsistent water pressure
-
Pressure drops while using multiple fixtures
-
Premature pump failure or overheating
-
Air sputtering from faucets
This Flexcon Well-Rite WR-360R pressure tank stabilizes system pressure, reduces pump cycling, and helps extend the lifespan of your well pump and water system.
Key Benefits of this Pre-Charged Pressure Tank
-
Corrosion-resistant 16-gauge steel construction
-
Urethane finish for long-term protection
-
Anti-microbial liner for cleaner water storage
-
Stainless steel water connection for leak resistance
-
Reduces electricity use and pump wear
Installation & Maintenance
-
Pre-charged to 38 PSI (adjustable)
-
Compatible with 20/40, 30/50, and 40/60 pressure switch settings
-
Works seamlessly with booster pumps and tank tee kits
Maintenance Guidelines:
-
Check air pressure annually
-
Maintain pre-charge 2 PSI below cut-in setting
-
Monitor for signs of waterlogging or pressure loss
Accessories & Add-Ons
Maximize your well tank's performance by pairing it with our compatible accessories, including:
-
Pressure Tank Accessories: Everything you need for a complete setup.
-
Booster Pumps: Enhance your system's water flow and pressure.
-
304 Stainless Steel Pressure Tank Installation Kit: A complete, durable kit for easy setup.
-
Stainless Steel Fittings and Valves: Heavy-duty components for a reliable connection.
-
Bronze Pipe Fittings and Nipples: General-purpose fittings for various plumbing needs.
Get the Flexcon Well-Rite WR-360R from Cleanflow
Buy 119-gallon diaphragm pressure tank NSF-certified models directly through Cleanflow. As a trusted Flexcon supplier, we offer distribution across Canada and the USA. Secure your new pressure tank online today for reliable water flow and access to our dedicated customer support.
Frequently Asked Questions
Is the pressure switch adjustable, or is it locked at 30/50 PSI?
The optional pressure switch ships with a factory default setting of 30/50 PSI but is field-adjustable to other ranges, such as 40/60 PSI.
Does the tank come pre-charged?
Yes, this diaphragm well tank comes factory pre-charged to 38 PSI for immediate installation on 40/60 PSI systems.
How should the tank pre-charge be set?
The pressure tank pre-charge must be set exactly 2 PSI below your pressure switch's cut-in setting (e.g., 38 PSI for a 40/60 switch).
What is the difference between total volume and drawdown?
Total volume is the physical size of the tank (119 gallons). Drawdown is the actual amount of usable water stored before the pump turns on (e.g., 40.6 gallons at 30/50 PSI).
Can I use this tank with a submersible well pump?
Yes, it is fully compatible with submersible well pumps, as well as shallow and deep well jet pumps.
Is the lower water chamber safe for potable water?
Yes, the tank uses an anti-microbial copolymer propylene water chamber and is NSF 61 certified for safe potable water use.
Why choose a stainless steel installation kit over brass?
304 stainless steel provides superior corrosion resistance, higher tensile strength, and contains zero zinc, eliminating dezincification risks in aggressive water.
What is the warranty on the Flexcon Well-Rite WR-360R?
This well pressure tank is backed by a 5-year limited manufacturer warranty.
