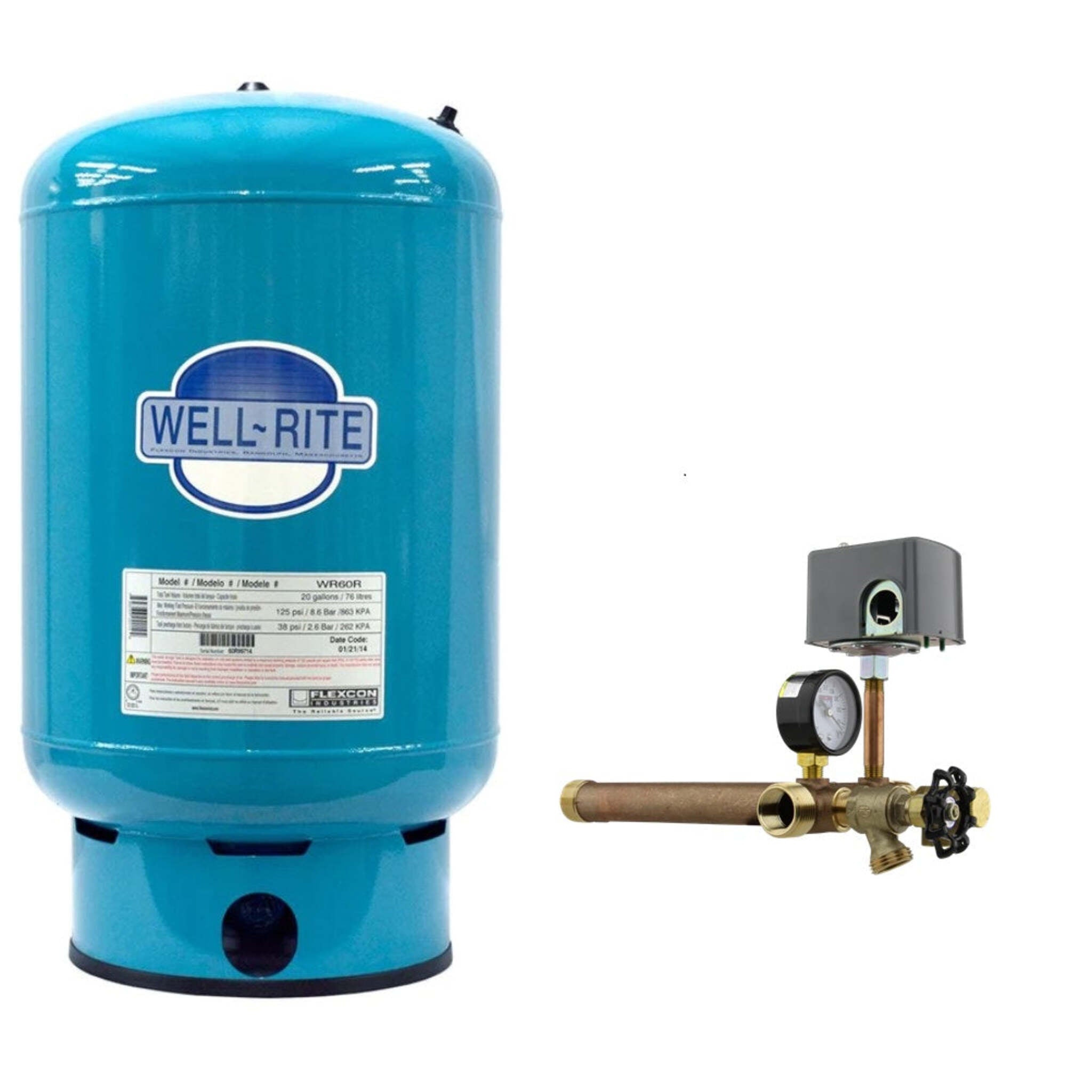

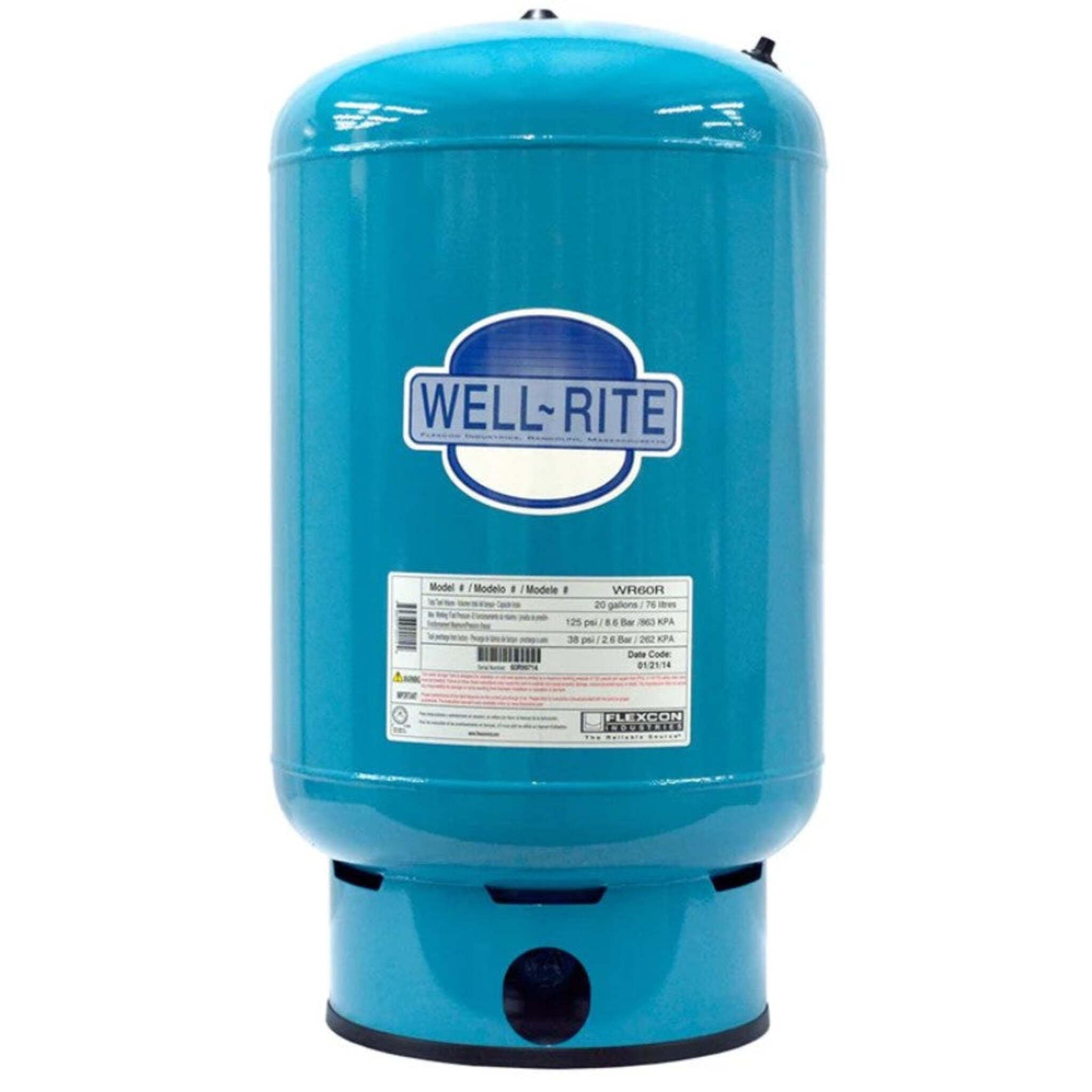

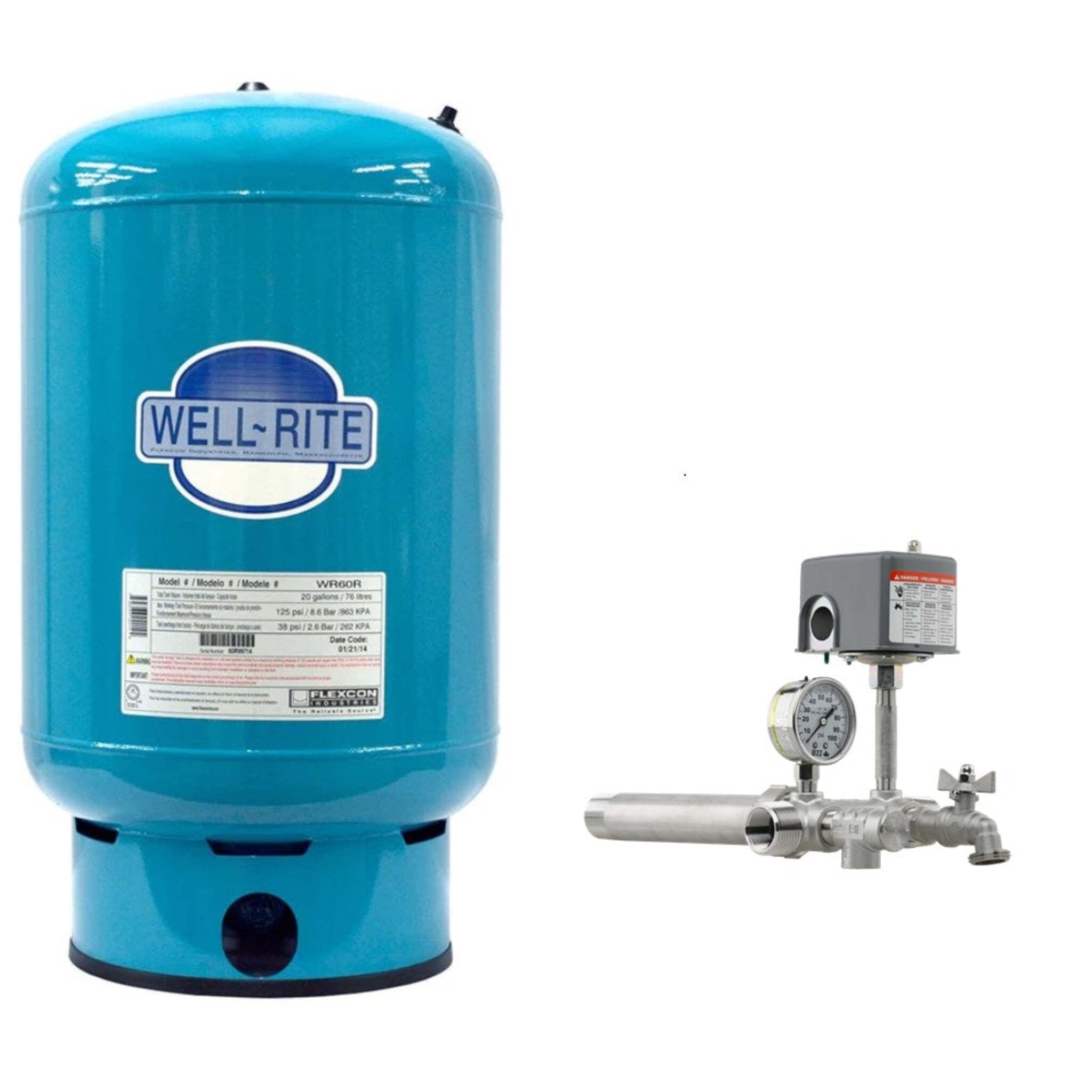

Well-Rite WR-60R Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial well water systems. An internal butyl rubber bladder with an anti-microbial copolymer propylene lower water chamber minimizes condensation on the outside of the tank and prevents chafing of the bladder against the interior of the tank. A patented welded stainless steel water supply connection has separate air and water seals.
It is important that the well tank size has been calculated to match the output of the pump and the number of persons and fixtures in the building. WR-60R tanks are generally used with pump outputs of 5 - 7 GPM in homes with up to 7 water fixtures.
Well-Rite WR-60R Well Pump Pressure Tank features include:
BODY CONSTRUCTION: 16 Gauge Steel
BODY FINISH: Urethane Paint
TANK PRECHARGE: 38 psi Pre-Charge (adjustable)
TANK CAPACITY: 20 gal
DRAW DOWN WITH 20/40 SWITCH: 8.1 gal
DRAW DOWN WITH 30/50 SWITCH: 6.8 gal
DRAW DOWN WITH 40/60 SWITCH: 5.9 gal
TANK DIAMETER: 16"
TANK HEIGHT: 29"
PIPE TAP SIZE: 1" NPT
MAXIMUM PRESSURE RATING: 125 PSI
NSF 61 Certified
5 Year Limited Warranty
