The

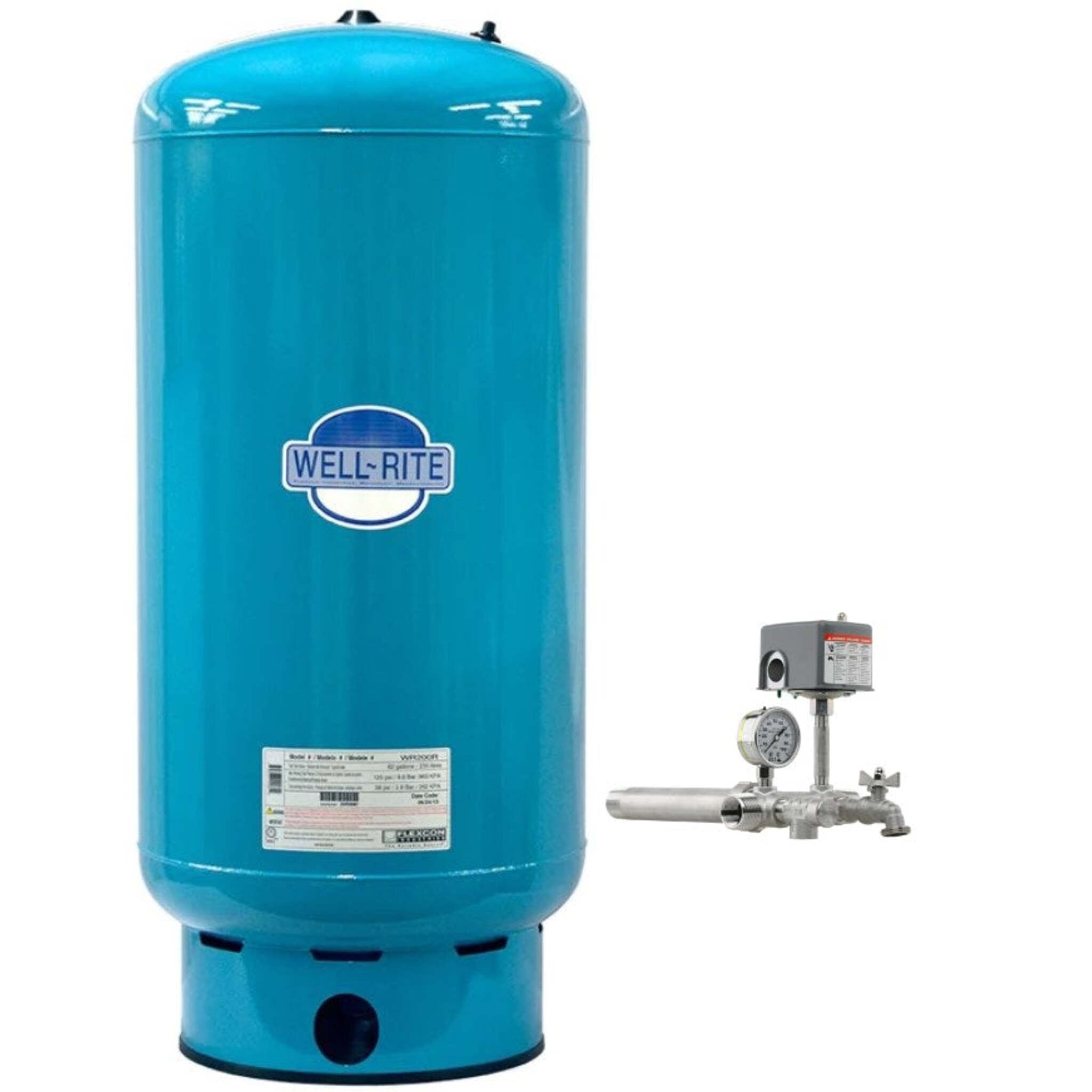

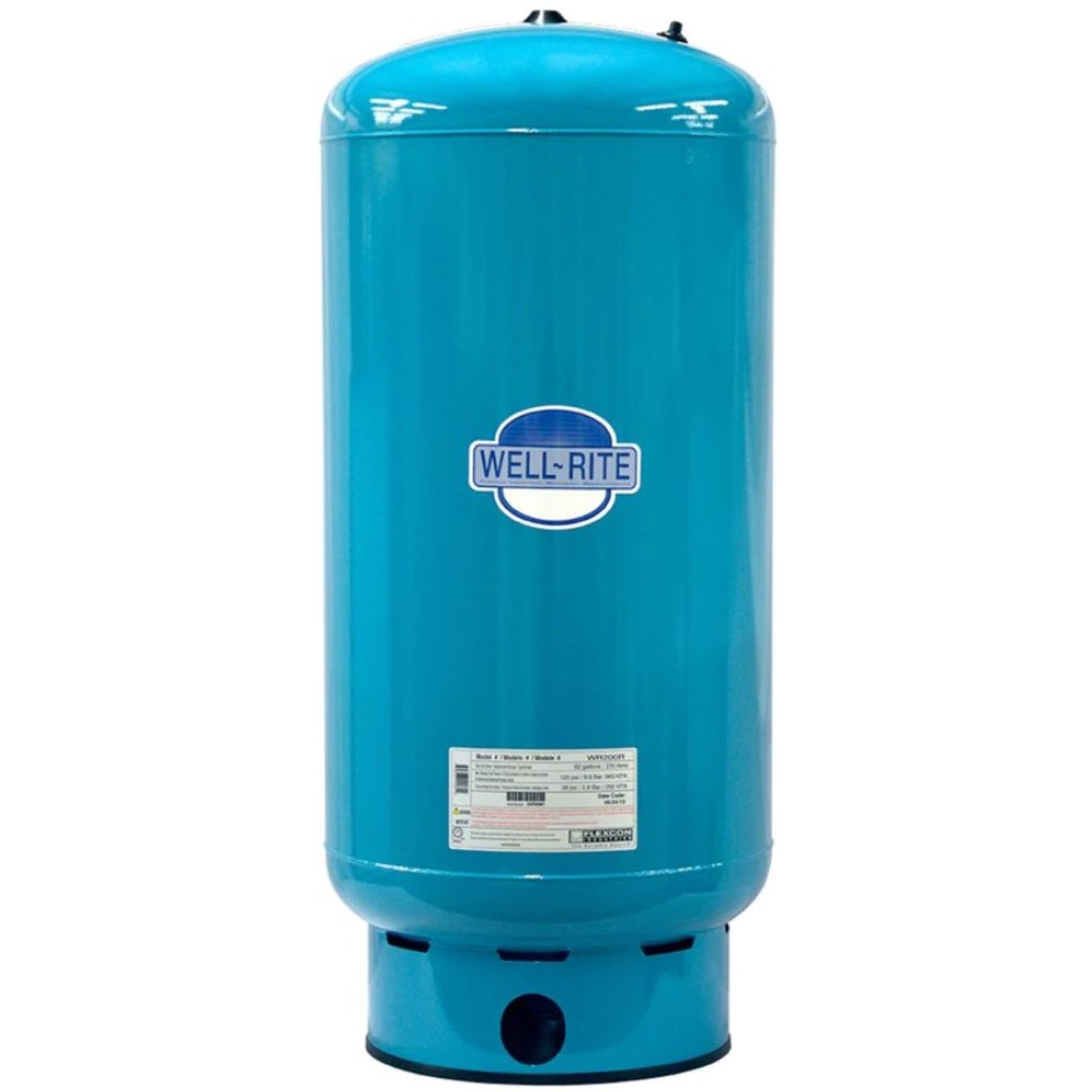

Well-Rite WR-200R Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial well water systems. An internal butyl rubber bladder with an anti-microbial copolymer propylene lower water chamber minimizes condensation on the outside of the tank and prevents chafing of the bladder against the interior of the tank. A patented welded stainless steel water supply connection has separate air and water seals.
WR-200R tanks are generally used with pump outputs of 16 to 20 GPM in large homes and commercial establishments with 13 to 16 water fixtures.
Well-Rite WR-200R Well Pump Pressure Tank features include:
BODY CONSTRUCTION: 16 Gauge Steel
BODY FINISH: Urethane Paint
TANK PRECHARGE: 38 psi Pre-Charge (adjustable)
TANK CAPACITY: 62 gal
DRAW DOWN WITH 20/40 SWITCH: 25 gal
DRAW DOWN WITH 30/50 SWITCH: 21.1 gal
DRAW DOWN WITH 40/60 SWITCH: 18.3 gal
TANK DIAMETER: 21"
TANK HEIGHT: 48"
PIPE TAP SIZE: 1-1/4" NPT
MAXIMUM PRESSURE RATING: 125 PSI
NSF 61 Certified
5 Year Limited Warranty
