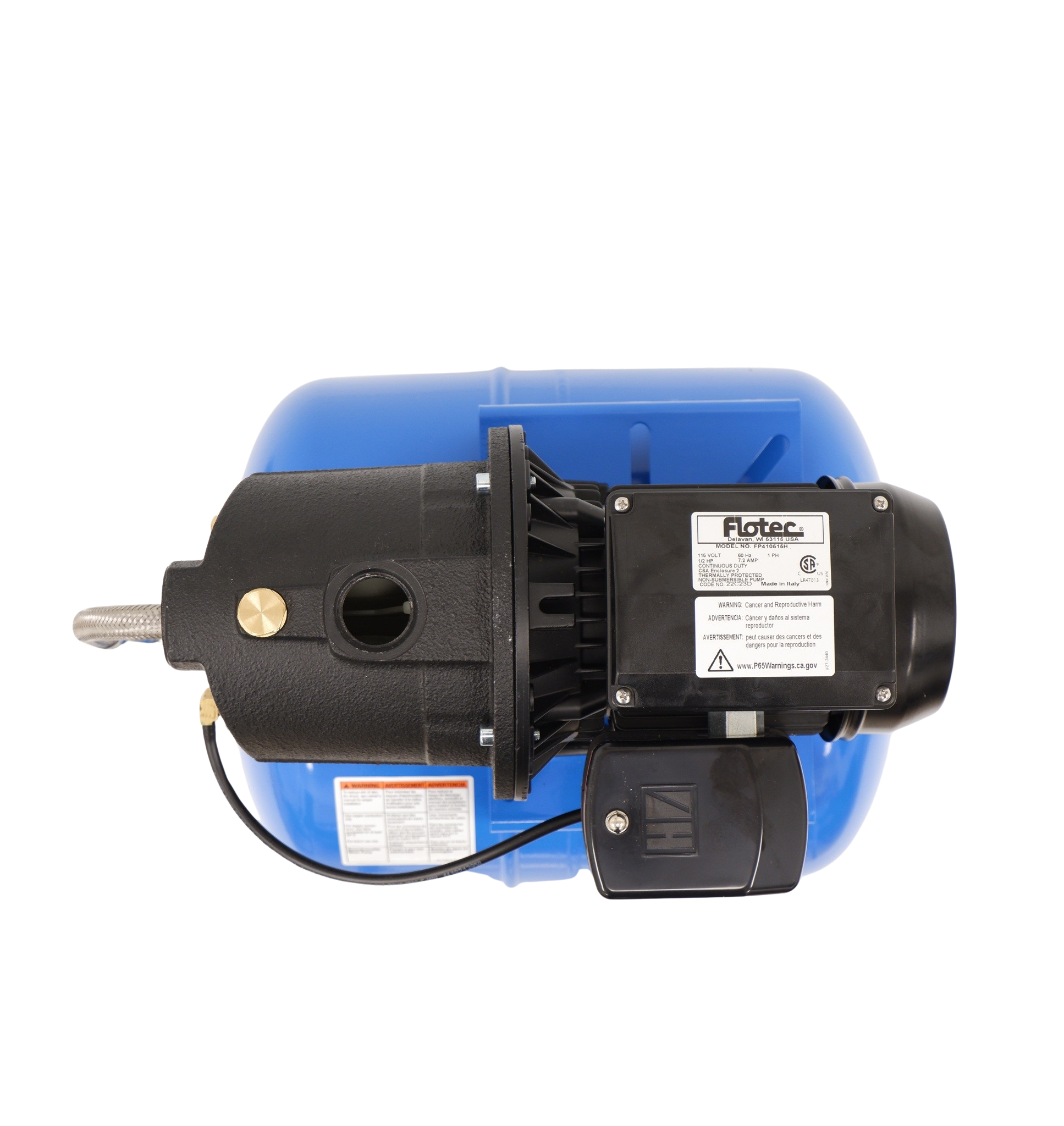

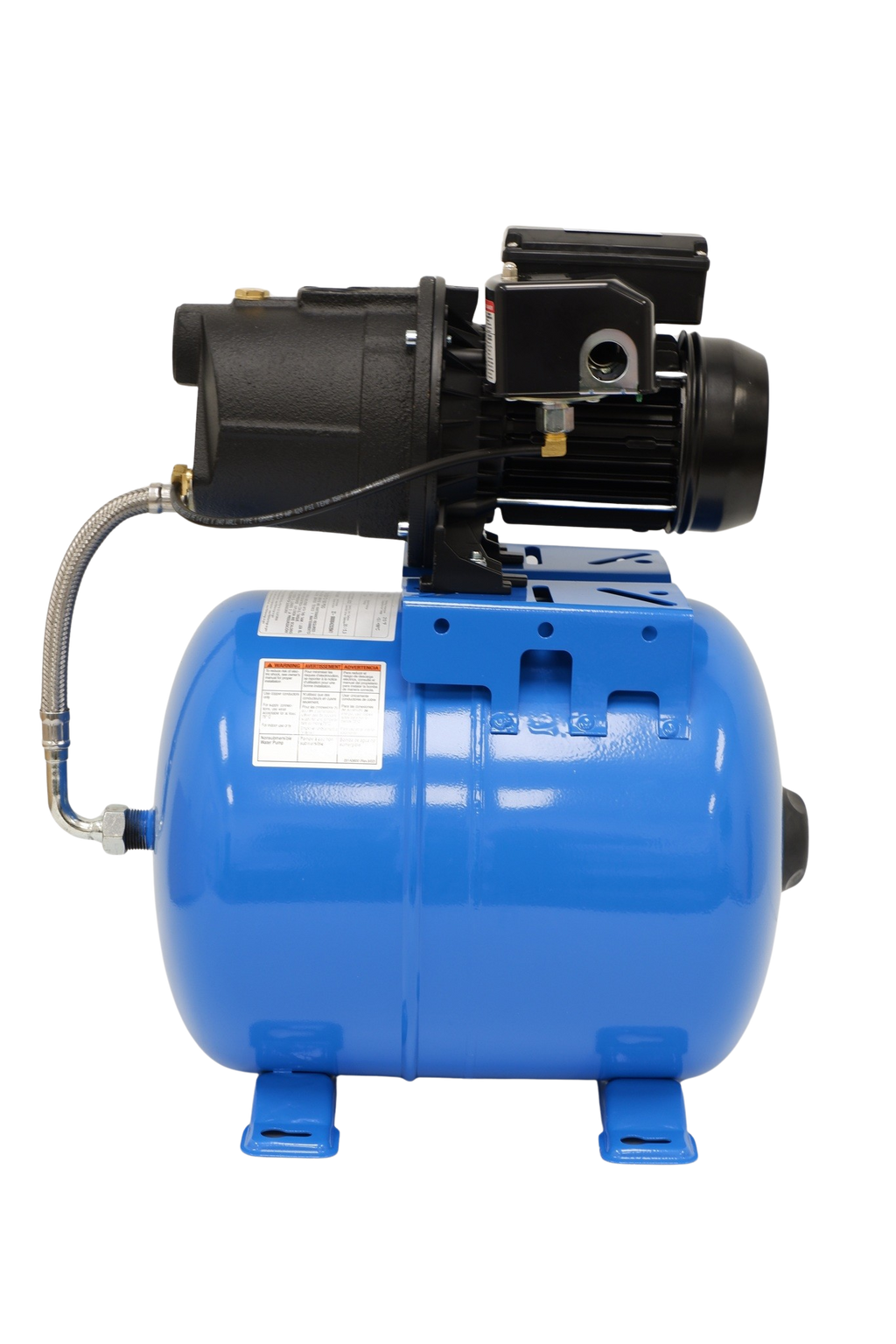

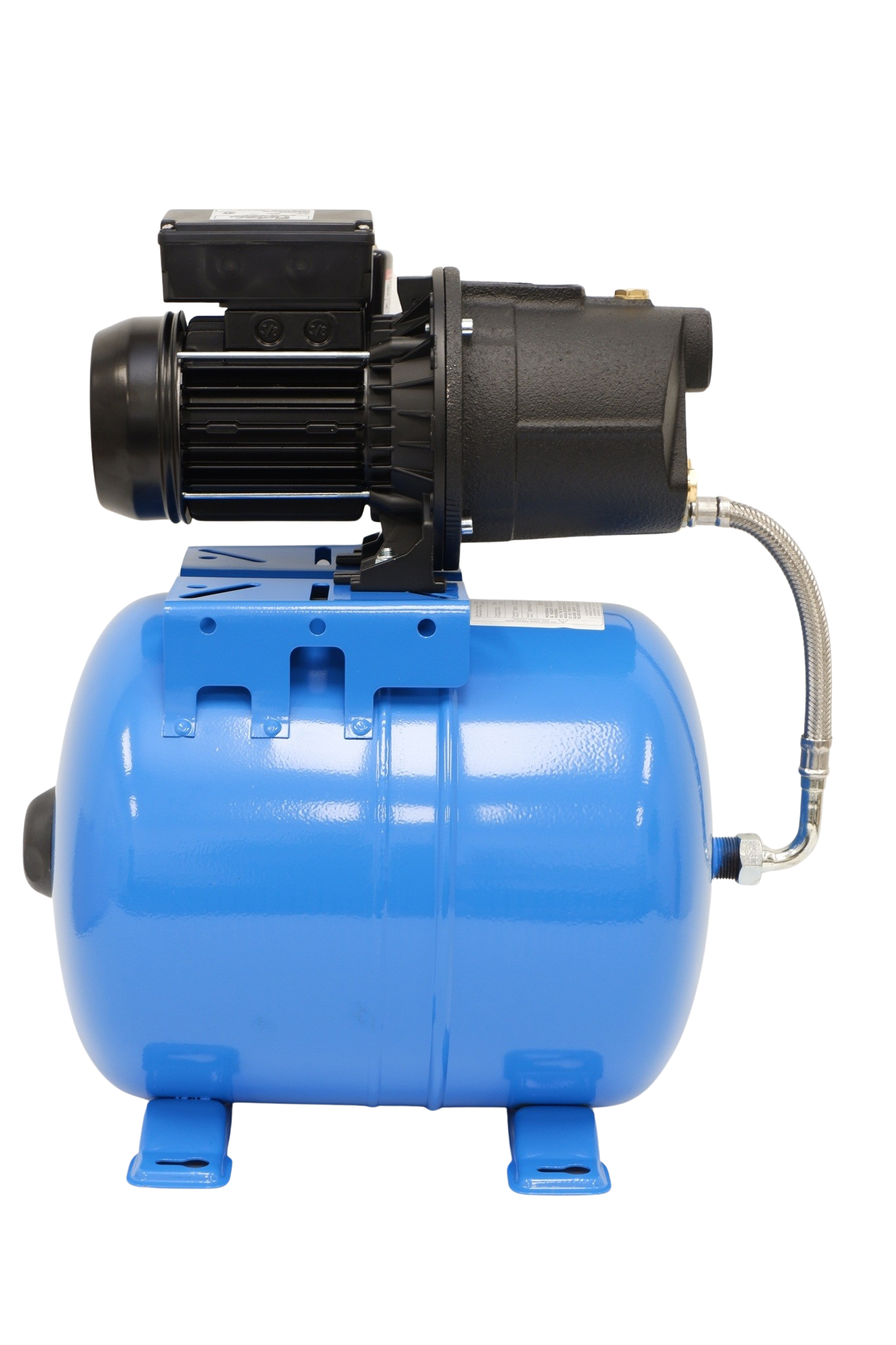

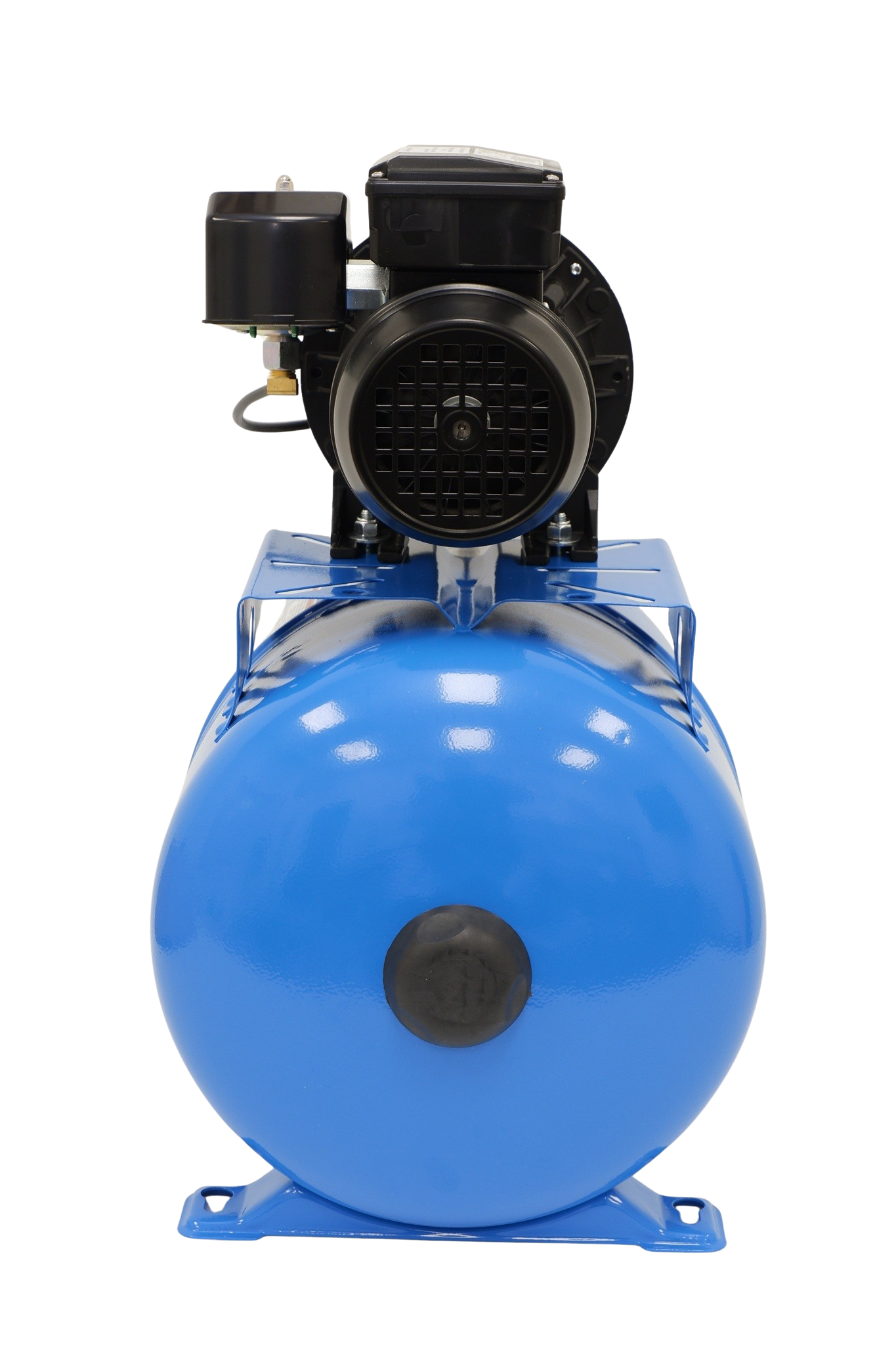

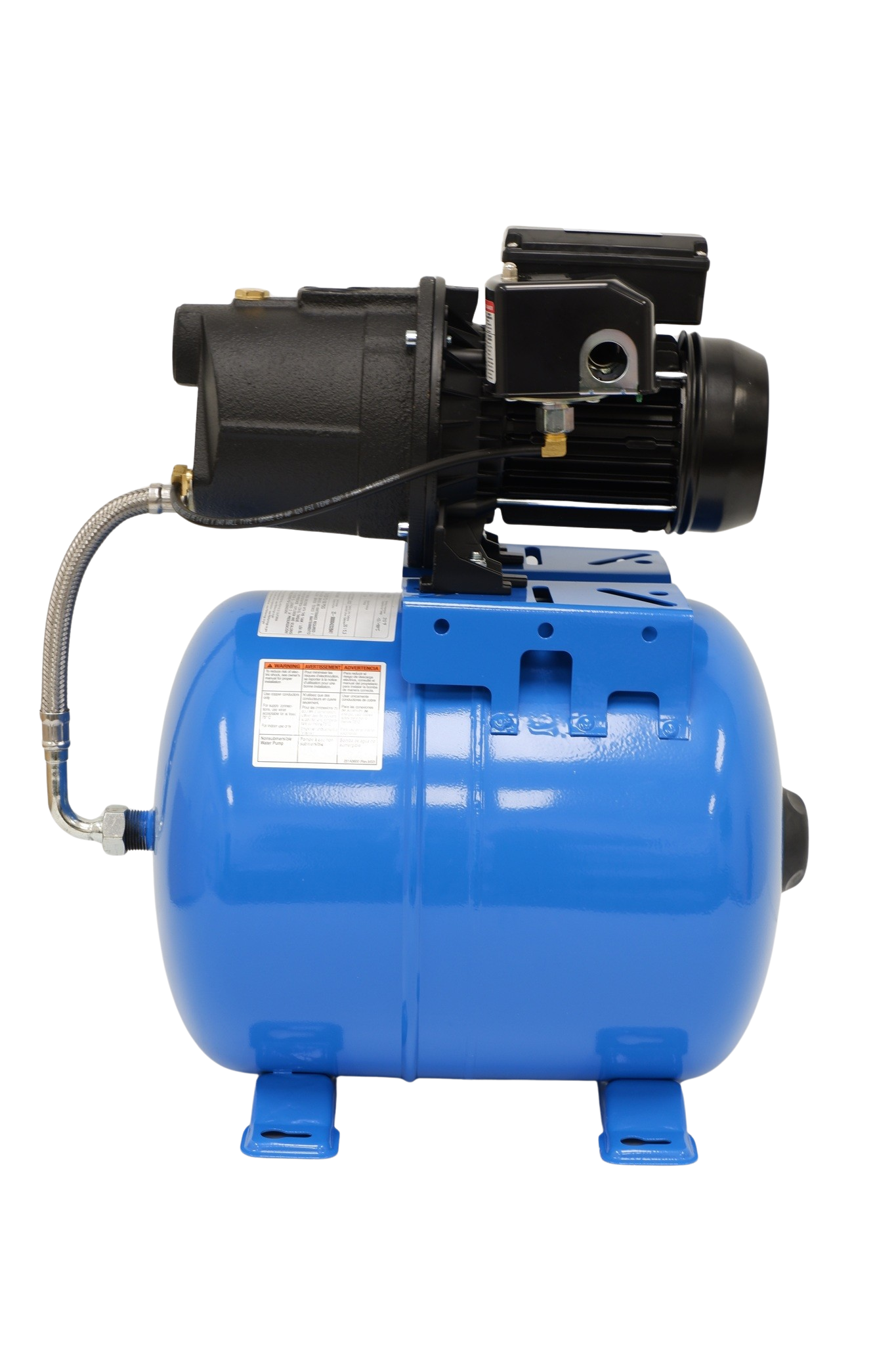

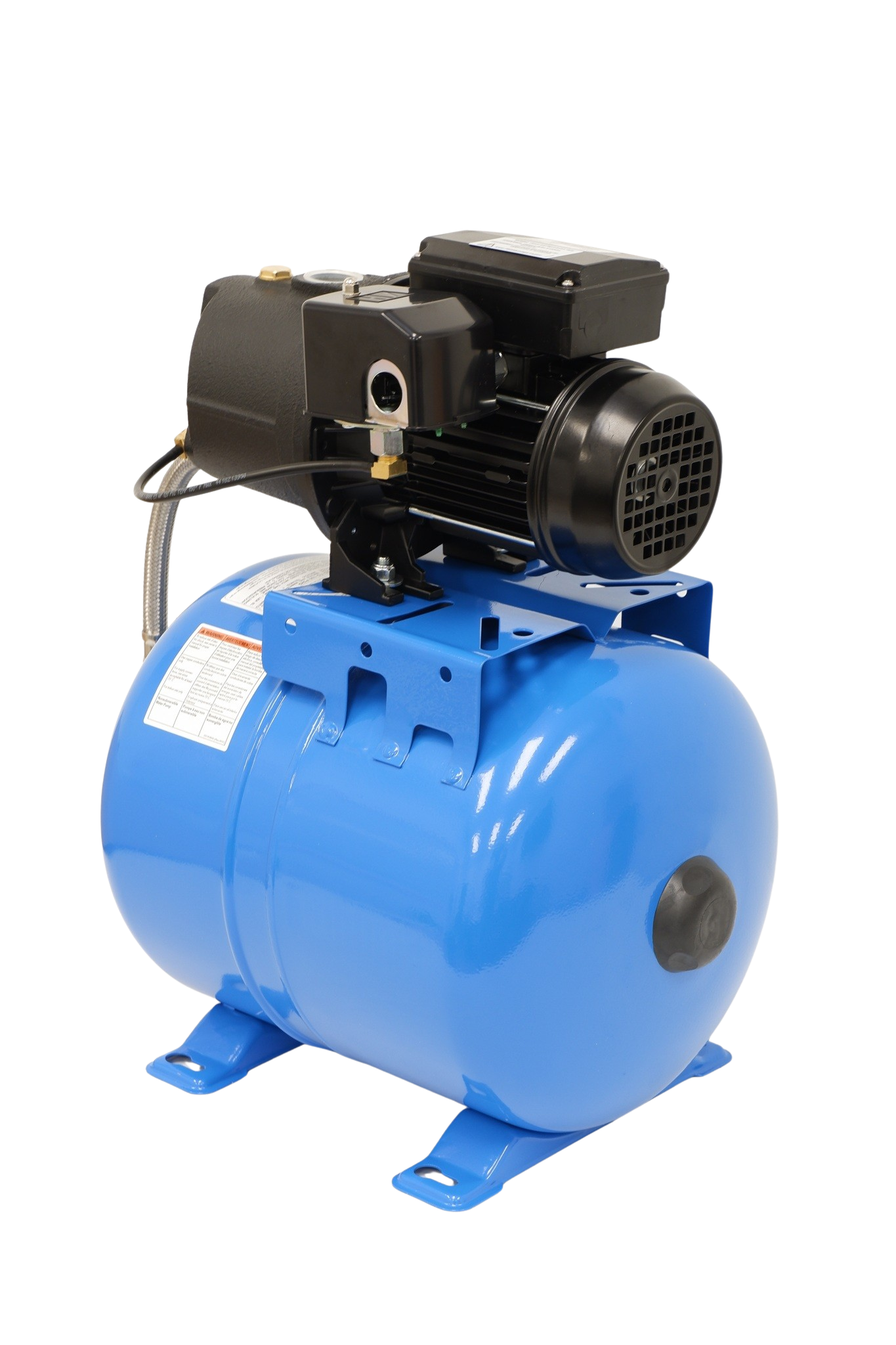

The Flotec 1/2 HP FP410515H Cast Iron Jet Pump/Pressure Tank System is a quiet and compact all-in-one home water pressure supply system for homes that are not connected to a municipal water supply system.
The Flotec cast iron jet pump and pressure switch are pre-mounted on the 5 gallon horizontal pressure tank base, providing a compact and ready to install home water pressurization system.
Flotec Cast Iron Pump/Pressure Tank System features:
BODY CONSTRUCTION: Cast Iron
MAXIMUM CAPACITY: 5.6 GPM
MAX LIFT: 25'
MAXIMUM PRESSURE: 63 psi
PRESSURE SWITCH SETTING: 30/50
SUCTION PIPE SIZE: 1" NPT
DISCHARGE PIPE SIZE: 1" NPT
AMP DRAW (full load): 7.2 amps
VOLTAGE: 115v, 60 Hz
RECOMMENDED BREAKER: 15 amps
MAXIMUM WATER TEMPERATURE: 140 F (60 C)
TANK DRAWDOWN: .6 gal
WARRANTY: 1 year
|DEPTH TO WATER
