Description

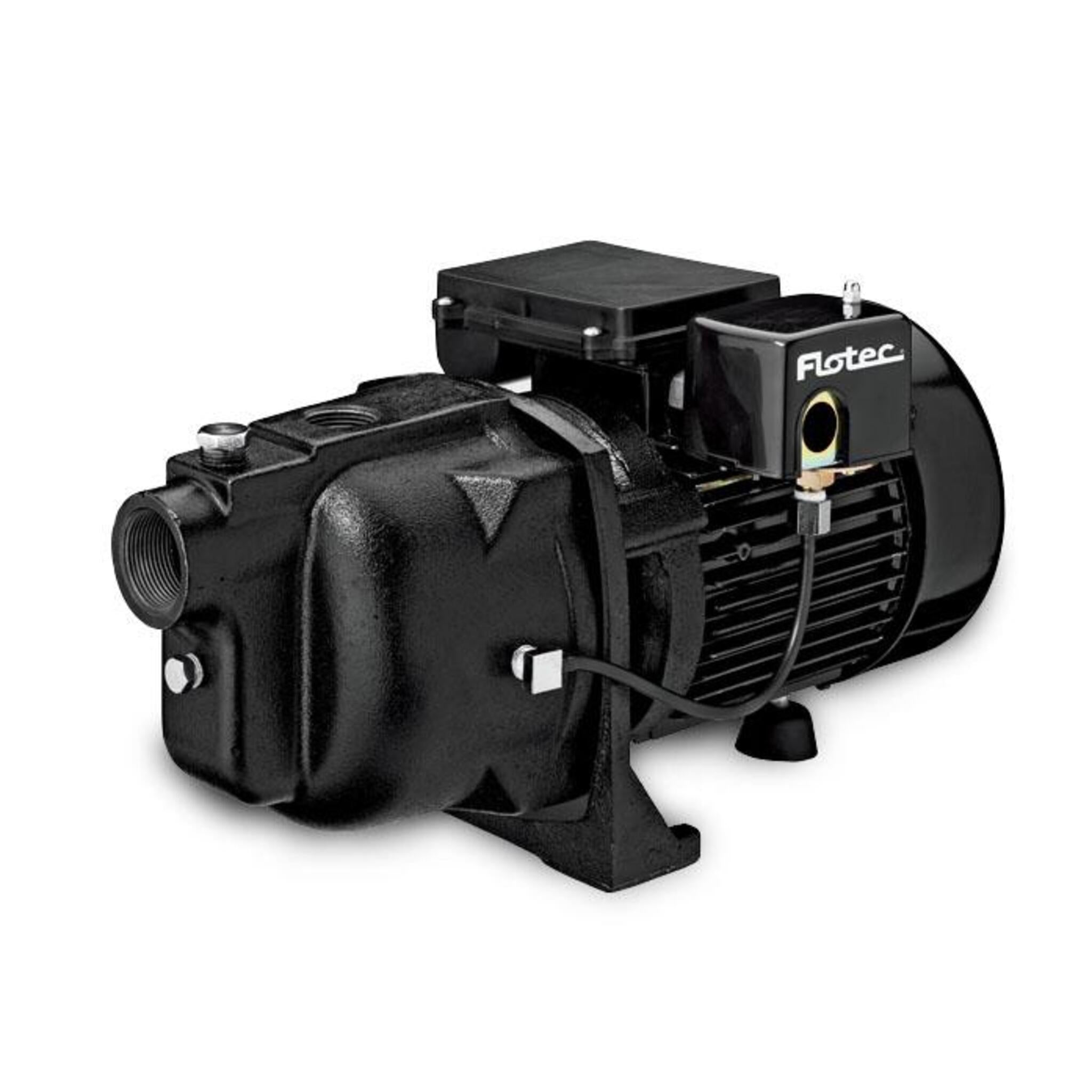

Dual Voltage Flotec Cast Iron Shallow Well Jet Pumps
The Flotec Cast Iron Shallow Well Jet Pumps provide a reliable and efficient water supply for residential shallow well systems. Designed for wells with a depth-to-water of 25’ or less, these pumps are ideal for new installations or system upgrades in homes, cabins, trailers, and light commercial applications.
Built with heavy-duty cast iron, this dual-voltage (120V/240V) pump offers lasting durability, quiet operation, and reliable performance. It includes a factory-installed 30/50 pressure control switch for easy installation and consistent water pressure. These features allow Flotec shallow well jet pumps to meet a wide range of household water demands with efficient operation and strong pressure delivery.
Key Benefits - Dual Voltage 120/240V Well Jet Pumps
- Cast iron shallow well jet pumps designed for wells up to 25 feet deep
- Durable cast iron housing for quiet, long-lasting performance
- Pre-wired 30/50 pressure switch for consistent pressure control
- Dual voltage 120/240V motor for flexible electrical compatibility
- Available in multiple horsepower options to match water demand
- Large 1-1/4" suction and 1" discharge ports for improved flow
- Ideal for residential water supply, cabins, and small structures
Available Models
- FP4155 – 1/2 HP / 8.5 GPM: Ideal for small homes or cabins with modest water demand.
- FP4157 – 3/4 HP / 19 GPM: Well-suited for homes, camps, or trailers requiring higher flow.
- FP4150 – 1 HP / 21 GPM: Designed for medium to large homes needing strong, consistent water delivery.
Flotec Cast Iron Pump Specifications
| Specifications | 1/2 HP - FP4155 | 3/4 HP - FP4157 | 1 HP - FP4150 |
| Pump Body | Cast Iron | Cast Iron | Cast Iron |
| Horsepower | 1/2 HP | ¾ HP | 1HP |
| Maximum Capacity | 8.5 GPM | 19 GPM | 21 GPM |
| Flow at 10' Lift and 40 PSI | 6.5 GPM | 14 GPM | 18 GPM |
| Maximum Lift | 25-Ft | 25-Ft | 25-Ft |
| Max Shut-Off Pressure | 65 PSI | 67 PSI | 70 PSI |
| Suction Pipe Size | 1-1/4" NPT | 1-1/4" NPT | 1-1/4" NPT |
| Discharge Pipe Size | 1" NPT | 1" NPT | 1" NPT |
| Amp Draw (Full Load) | 4.2 amps on 230V / 8.5 amps on 115V | 5.5 amps on 230V / 11 amps on 115V | 6 amps on 230V / 12 amps on 115V |
| Voltage | 230V / 115V AC, 60 Hz (Factory Preset to 230V) | 230V / 115V AC, 60 Hz (Factory Preset to 230V) | 230V / 115V AC, 60 Hz (Factory Preset to 230V) |
| Recommended Breaker | 15 amps | 15 amp on 230V / 20 amp on 115V | 15 amp on 230V / 20 amp on 115V |
| Maximum Water Temperature | 140°F (60°C) | 140°F (60°C) | 140°F (60°C) |
| Warranty | 1 Year Limited | 1 Year Limited | 1 Year Limited |
Flotec Cast Iron Shallow Well Jet Pumps excel for their dual-voltage flexibility, rugged cast iron construction, and factory-installed pressure switch. Choose the right horsepower and enjoy reliable household water pressure. Get yours now.
Key Features - 120/240V Well Jet Pumps
Heavy-Duty Cast Iron Construction
Provides superior durability, reduced vibration, and quiet operation for long-term use.
Pre-Wired Pressure Control
Factory-installed 30/50 pressure switch ensures consistent system pressure and easy installation.
Dual Voltage Motor
Supports both 120V and 240V electrical systems for installation flexibility.
High Flow Performance
Moves up to 21 GPM depending on model, supporting multiple fixtures and appliances.
Large Diameter Ports
1-1/4" suction and 1" discharge ports improve flow efficiency and system performance.
Performance
Applications
- Residential shallow well water systems
- Homes, cabins, and trailers
- New shallow well installations
- Replacement of existing jet pumps
- Pressure tank-based water systems
Get the Flotec Cast Iron Shallow Well Jet Pumps That Fit Your Needs
Flotec Cast Iron Shallow Well Jet Pumps from Cleanflow deliver the durability, performance, and flexibility needed for a reliable household water supply. With multiple horsepower options, dual voltage capability, and proven Flotec engineering, these pumps are built to perform day after day.
Power your water system with confidence using Flotec Cast Iron Jet Pumps by Flotec. Select the horsepower that fits your needs, and enjoy durable construction, consistent pressure, and dependable performance. Buy now.
FAQs
What well depth are these pumps designed for?
These pumps are designed for shallow wells with a depth-to-water of 25 feet or less.
Is the pressure switch included?
Yes. All models come pre-wired with a 30/50 pressure control switch.
Can the voltage be changed?
Yes. The motor supports both 120V and 240V and ships factory preset to 230V.
Do these pumps work with pressure tanks?
Yes. They are compatible with most standard pressure tanks.
Which model should I choose?
The correct model depends on your water demand, number of fixtures, and household size.
