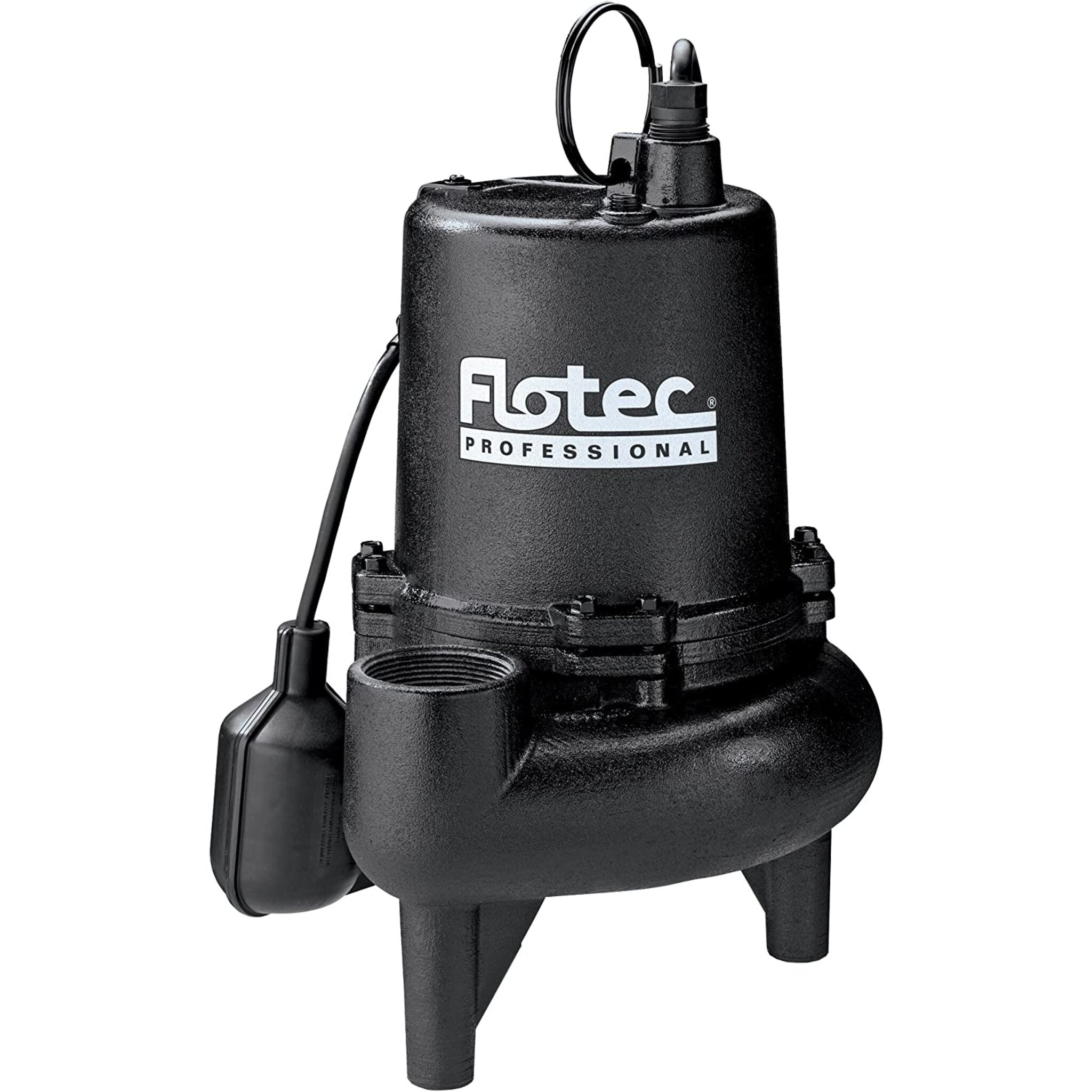

Flotec E75STVT 3/4 HP Professional Series Cast Iron Sewage Pump – 170 GPM / 115V

High-Capacity Cast Iron Sewage Pump For Demanding Residential Waste Removal

Product Overview

The Flotec E75STVT sewage pump is a professional series submersible unit engineered for residential sewage or septic system applications. It operates in sewage basins to eject wastewater containing solids up to 2 inches in diameter. Constructed with heavy-duty cast iron, this 3/4 hp sewage pump is ideal for below-grade installations that require reliable waste transfer. The tethered float switch provides automatic operation for standard sump pits.

Key Benefits – Flotec E75STVT Sewage Pump

• Delivers up to 170 GPM maximum capacity for rapid waste removal

• Passes spherical solids up to 2 inches in diameter to prevent clogging

• Features automatic operation with a reliable tethered float switch

• Fits standard sewage basins with a minimum diameter of 18 inches

• Connects easily to standard 2-inch NPT discharge pipes

• Operates efficiently with a PSC motor designed for smoother, quieter performance

Product Specifications

What’s Included

• Flotec E75STVT Sewage Pump

• Attached Tethered Float Switch with Piggyback Plug

• 10' Power Cord

Key Features – Flotec E75STVT

Cast Iron Construction

The rugged cast iron housing dissipates heat effectively and resists damage during installation, ensuring a longer service life in harsh environments.

PSC Motor Technology

The Permanent Split Capacitor (PSC) motor draws fewer amps (9A) while providing high starting torque, resulting in energy efficiency and quieter operation compared to standard shaded pole motors.

Rust-Proof Impeller

The durable impeller design resists corrosion and wear, maintaining consistent performance when moving wastewater and solids.

Tethered Float Switch

The integrated sewage ejector pump with tethered float switch allows for automatic cycling with a piggyback plug for manual override capabilities during troubleshooting.

2-Inch Discharge

Standard 2" NPT discharge meets plumbing codes for Sewage Pumps and allows for the free passage of 2-inch solids.

Performance Curve

This 3/4 hp sewage pump provides high-volume performance suitable for standard residential lifts. It moves 125 GPM at a 10-foot vertical lift and maintains flow up to a maximum head of 23 feet. The pump is rated for intermittent duty in residential sewage applications.

Applications

• Residential sewage ejection

• Septic system tank transfer

• Basement bathroom additions

• Below-grade laundry drainage

• High-capacity dewatering

• Effluent transfer

Important Use Notes

• Solids Handling: This is a sewage pump that handles 2-inch solids; do not use for fluids containing larger debris.

• Basin Size: Requires a minimum sump pit diameter of 18" and a minimum depth of 30" to allow the tethered switch to swing freely.

• Check Valve: A 2-inch check valve must be installed in the discharge line to prevent backflow.

• Venting: A 3/16" vent hole must be drilled in the discharge pipe below the check valve to prevent air-locking.

• Liquid Temperature: Designed for pumping liquids between 32°F and 70°F.

Get the Cast Iron Sewage Pump from Cleanflow

Flotec Pumps are one of the most widely available retail pump brands, leading residential water management for over 30 years. Ensure reliable waste management for your home with the Flotec E75STVT sewage pump. Cleanflow delivers this professional series cast-iron unit directly to your door across Canada and the USA, providing authentic Flotec products with accurate technical support.
