Description

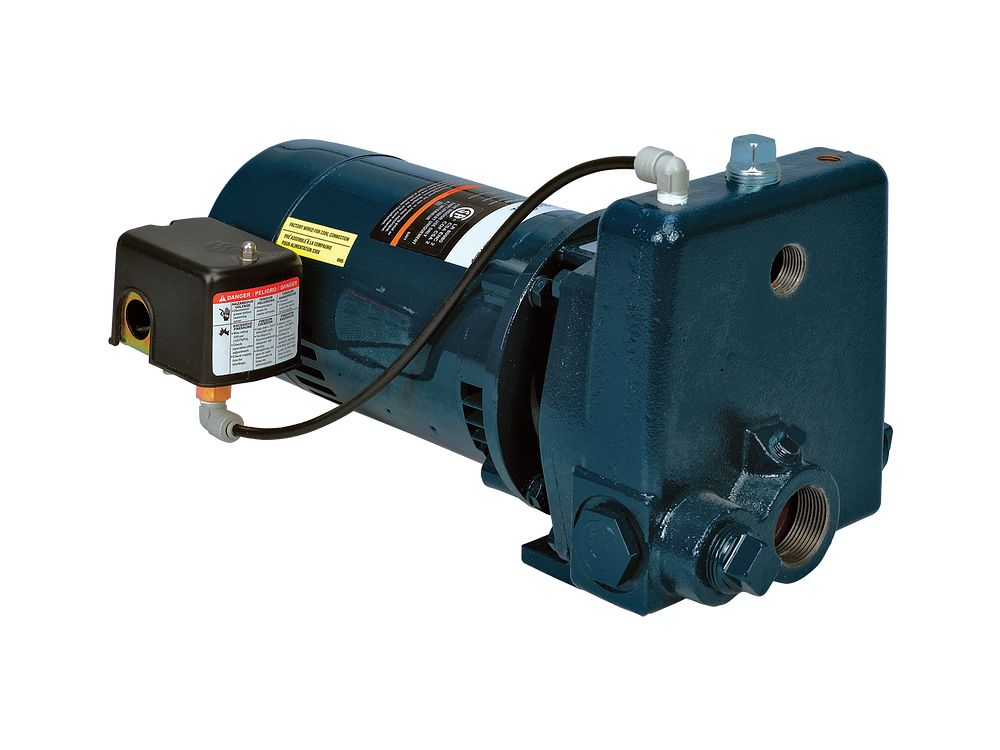

Cast Iron Convertible Pump for Shallow and Deep Well Applications
The Franklin C Series Cast Iron Convertible Jet Pump is a high-performance water pump for residential, agricultural, and light commercial water systems. It functions as a single unit for either shallow well (to 25 ft) or deep well (to 120 ft) installations, delivering a flow rate of up to 16 gallons per minute.
Its heavy-duty cast iron body and stainless steel impeller provide durability for demanding pressure systems. The reliability of a Franklin Electric well pump makes it a practical choice for supplying fresh water to homes, farms, and cabins.
Key Benefits of the Convertible Jet Pump
- Provides a dependable fresh water supply to homes, cabins, and farms.
- Adapts easily from shallow well to deep well use with included parts.
- Delivers consistent pressure for modern plumbing and appliances.
- The cast iron construction ensures a long service life and stable operation.
- A stainless steel impeller resists corrosion and wear for sustained performance.
- Certified to NSF/ANSI/CAN 372 for safe use in potable water systems.
Product Specifications
Ratings
-
Horsepower:
- 1/2 HP (FE05CI-C)
- 3/4 HP (FE07CI-C)
- Voltage: 115 / 230 VAC (Dual Voltage)
- Phase: Single-Phase
- Frequency: 60 Hz
-
Amperage (at 230V):
- 4.8 A (1/2 HP)
- 6.4 A (3/4 HP)
Materials of Construction
- Pump Body: Cast Iron
- Impeller: Stainless Steel
- Diffuser: Thermoplastic
- Mechanical Seal: Carbon / Ceramic Face, Nitrile Elastomer
Operation
- Pump Type: Convertible Jet Pump
- Maximum Flow Rate: 16 GPM
- Pressure Switch: Factory set to 30–50 PSI (Adjustable)
- Maximum Working Pressure: 75 PSI
- Maximum Fluid Temperature: 140°F (60°C)
Dimensions
-
Suction Inlet:
- 1-1/4" NPT (FE05CI-C)
- 1.25" NPT (FE07CI-C)
- Pressure Port: 1" NPT
-
Discharge Outlets:
- (2) 3/4" NPT
- (1) 1" NPT
Available Models
Cleanflow offers the following specific models to suit your horsepower and depth requirements:
- 1/2 HP Convertible Well Pump – Model # FE05CI-C
- 3/4 HP Convertible Well Pump – Model # FE07CI-C
What’s Included
- C Series Cast Iron Convertible Jet Pump
- Factory-Installed 56J Frame Motor
- Shallow Well Injector (pre-installed)
- Bypass Plug (for deep well conversion)
Key Features – C Series
Convertible Design
A screw-in injector allows for straightforward shallow well use. For a convertible jet pump deep well installation, the injector is replaced with an included bypass plug, simplifying the setup for greater depths.
Heavy-Duty Cast Iron Construction
The pump volute and motor bracket are made from heavy-duty cast iron, providing durability and vibration resistance for a long equipment life.
High-Performance Impeller
A stainless steel impeller offers superior wear resistance and maintains consistent hydraulic performance over time.
Precision-Molded Diffuser
The thermoplastic diffuser is molded for high efficiency, maximizing water output and pressure.
Versatile Plumbing Connections
The pump includes a 1-1/2" inlet, two 3/4" outlets, and one 1" outlet, offering adaptability for various plumbing configurations.
Factory-Installed Pressure Switch
Comes with an adjustable pressure switch pre-set to a 30–50 PSI range, reducing installation complexity.
Common Applications
- Supplying water to residential homes
- Farm and agricultural water systems
- Water supply for cabins and remote dwellings
- Lawn and garden irrigation systems
- General water transfer and pressure boosting
C Series Convertible Jet Pump Installation and Operation Guidance
- This pump must be fully primed before operation to avoid damage.
- For deep well applications (over 25 feet), a separate deep well jet kit is required.
- The motor is equipped with an automatic resetting thermal protector and may restart without warning.
- Ensure all pipe connections on the suction line are airtight to prevent the pump from losing prime.
- A foot valve or check valve is required on the suction line to maintain prime.
- The motor is dual-voltage (115/230V) and is factory-set to 230V; verify your power source and set the voltage accordingly.
Get the Franklin C Series Convertible Jet Pump from Cleanflow
Cleanflow Utility Supply Company is a prime source for water and wastewater infrastructure products across Canada and the USA. We provide high-quality products like these Franklin Electric pumps with quick, attentive service. Our mission is to supply your facility with the reliable components it needs at a competitive and fair price.
Frequently Asked Questions
What is the difference between a shallow well and a deep well setup?
A shallow well setup (0–25 ft) uses the factory-installed screw-in injector. A deep well setup requires replacing the injector with a bypass plug and installing a deep well jet assembly, which is sold separately and selected based on well depth.
How do I choose between the 1/2 HP and 3/4 HP models?
The 1/2 HP model is suitable for smaller homes, shorter piping runs, and lower water demand. The 3/4 HP model is recommended for deeper wells, higher flow requirements, multiple fixtures, or irrigation systems.
Can this pump be used for potable drinking water?
Yes. The pump is certified to NSF/ANSI/CAN 372, confirming it meets low-lead requirements for use in potable water systems.
Does the pump include a pressure switch?
Yes. The pump comes with a factory-installed adjustable pressure switch set to operate between 30 and 50 PSI.
Are deep well injector kits included?
No. Deep well jet kits must be purchased separately and are selected based on well depth and pipe size.
What plumbing connection sizes does the pump have?
The pump features a 1-1/2 inch suction inlet, two 3/4 inch discharge outlets, and one 1 inch discharge outlet, along with accessory ports for gauges and control devices.
What is the maximum working pressure?
The pump is rated for a maximum working pressure of 75 PSI.
What is the maximum fluid temperature?
The maximum allowable fluid temperature for this pump is 140°F (60°C).
Are the motors suitable for outdoor installation?
Yes. The pump uses a 56J-frame motor designed for indoor or outdoor installation when provided with appropriate weather protection.
Does the pump require priming before operation?
Yes. As with all jet pumps, the unit must be fully primed before operation to prevent damage and ensure proper performance.
Is the impeller corrosion resistant?
Yes. The pump is equipped with a stainless steel impeller that resists corrosion and maintains consistent performance over time.
Can this pump be used for irrigation or sprinkler systems?
Yes. With flow rates up to 16 gallons per minute, the pump is suitable for lawn irrigation, garden watering, and small agricultural systems.
What is a convertible jet pump?
A convertible jet pump is a surface-mounted pump that can be configured for either shallow or deep well operation by using a shallow well injector or a bypass plug with a deep well jet assembly.
What is the maximum depth this pump can be used for?

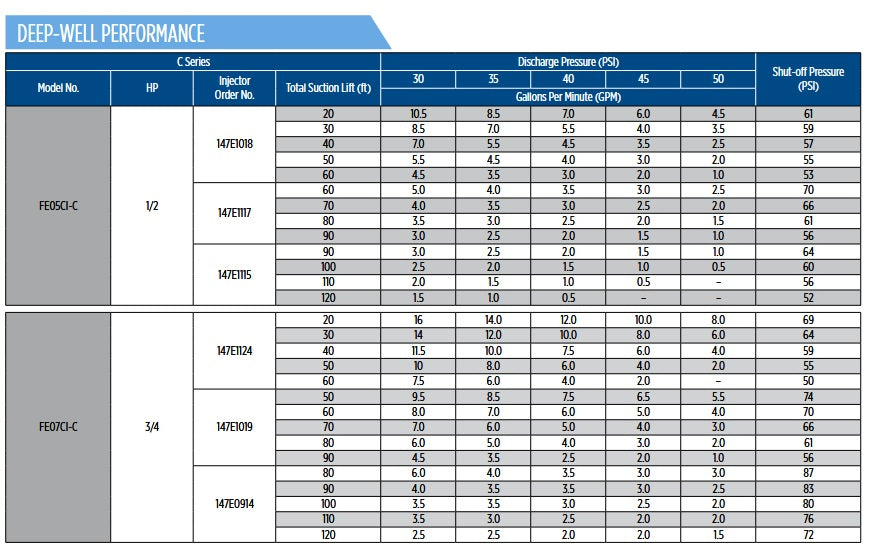

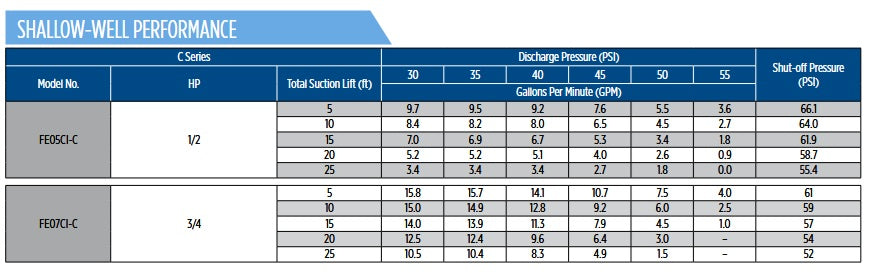

The pump is suitable for shallow wells up to 25 feet. With a deep well jet kit installed, it can draw water from depths up to 120 feet, depending on the configuration.
Does this pump come with a warranty?
Yes. The pump is covered by a manufacturer’s warranty of 12 months from installation or 24 months from the manufacturing date.
