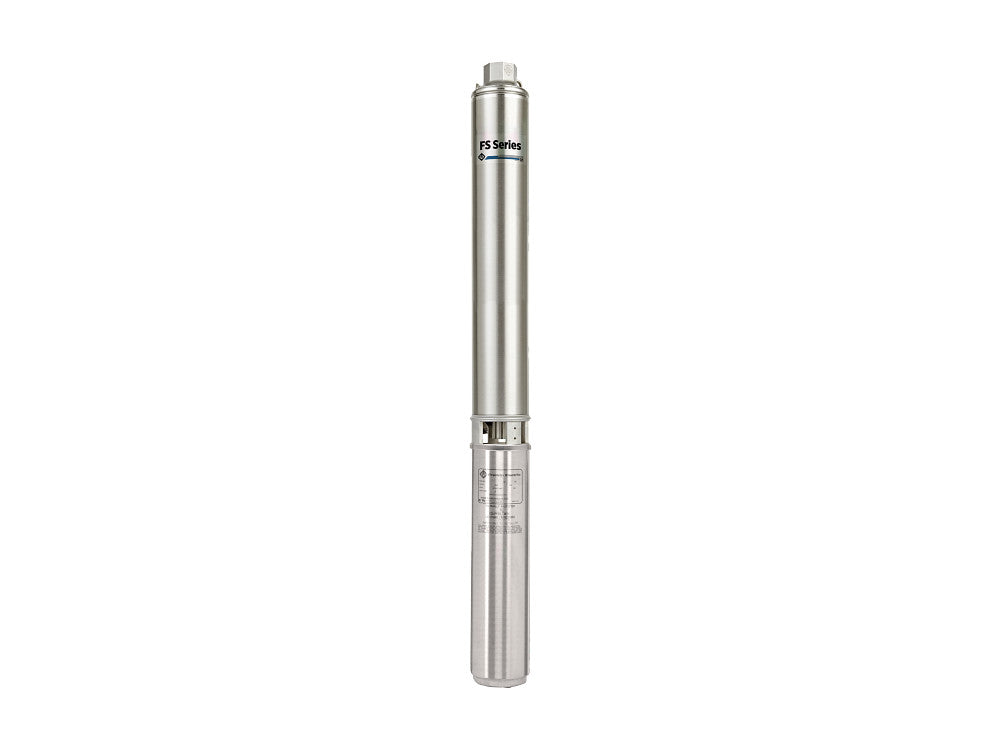

Franklin Electric FS Series 1/2 HP Submersible Well Pump | Model 10FS05S4-3W230

1/2 HP Residential Submersible Well Pump for Clean Water Supply

This Franklin Electric submersible well pump, model 10FS05S4-3W230, is a 1/2 hp 10 GPM submersible well pump for residential wells and private water systems. It is intended for potable drinking water applications, with stainless steel construction and an encapsulated motor for continuous duty. The submersible well pump floating stage design ensures efficient operation and durability. For advanced pressure control and enhanced efficiency, a VFD (Variable Frequency Drive) option is available to maintain constant water pressure throughout your system.

Key Benefits of the 1/2 HP Submersible Well Pump

• Delivers consistent water flow for residential applications.
• Reduces internal wear and tear even when pumping abrasives.
• Minimizes downward thrust on the motor, extending its operational life.
• Meets safety standards for use in potable drinking water systems.
• Provides corrosion resistance for long-term installation in wells.
• Allows for easier maintenance with an external control box design.

Product Specifications

What’s Included

• 1/2 HP Submersible Well Pump
• Factory-installed motor

Available Options

You can choose from three product configurations to fit your installation needs:

• Pump + Motor Only
  Comes with the submersible well pump and motor. You will need to get a control box separately.

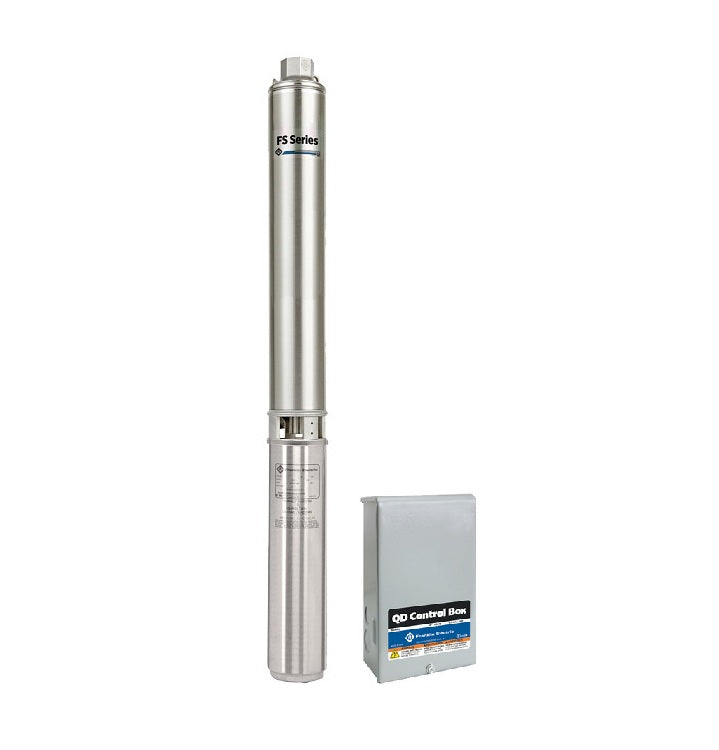

• Pump + Motor with Control Box
  Includes the submersible well pump, motor, and a compatible external control box (Part Number 2801074915) for the 3-wire system.

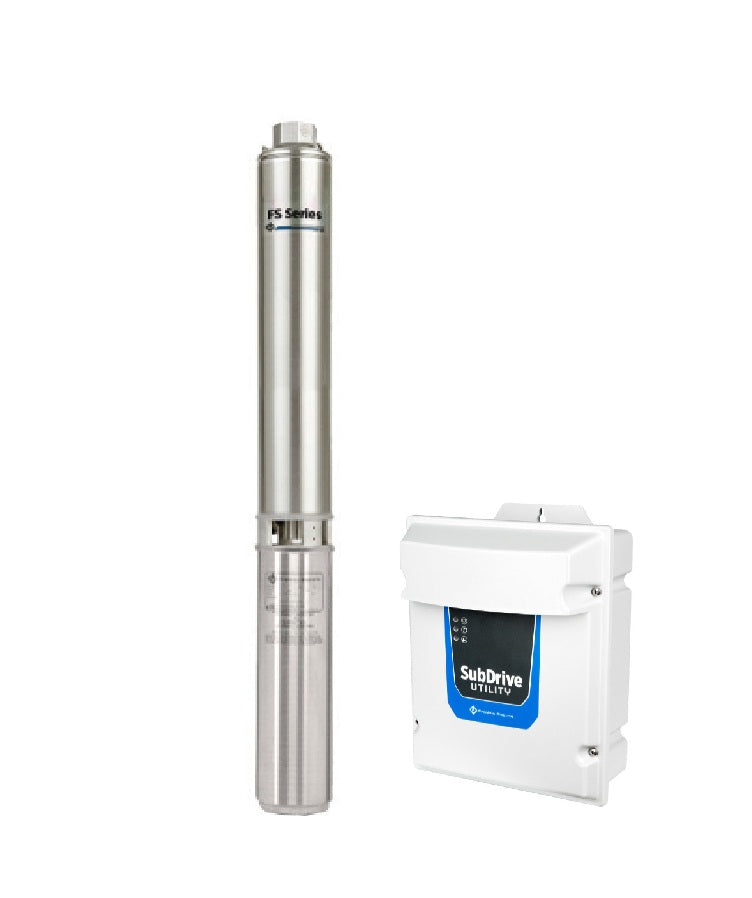

• Pump + Motor + VFD (Constant Pressure Kit)
  Includes the submersible well pump, motor, and a variable frequency drive (VFD) kit to maintain constant water pressure.

Key Features – 1/2 HP Submersible Well Pump 10FS05S4-3W230

• Floating Stage Hydraulics
  The submersible well pump floating stage design reduces wear and protects the motor from vertical downthrust, increasing pump longevity, especially in water with abrasives.
• NSF 61 Certified
  This certification confirms the pump is safe for use in potable drinking water applications, meeting strict public health and safety standards.
• Stainless Steel Construction
  The AISI 304 stainless steel pump body, intake screen, motor bracket, and discharge provide superior corrosion resistance for a long service life.
• Efficient 3-Wire Design
  This 1/2 hp submersible well pump 3-wire model uses an external control box (sold separately), simplifying access for maintenance and service compared to 2-wire models.
• Integrated Check Valve
  A built-in check valve protects the system from backflow and potential damage from water hammer.
• Encapsulated Motor
  The motor is fully encapsulated to prevent leaks and ensure reliable, continuous operation with a Kingsbury-type thrust bearing to handle downthrust loads.

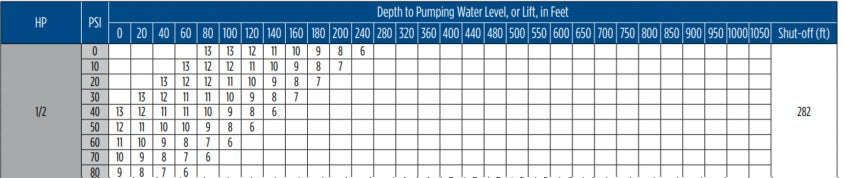

Performance Overview

This Franklin Electric well pump 1/2 hp model provides a nominal flow of 10 gallons per minute, making it suitable for many standard residential households. It can achieve a maximum shut-off head of 282 feet, allowing it to serve a range of well depths effectively. The pump provides consistent pressure and flow for home water systems.

Common Applications

• Residential well water supply
• Private water systems
• Water pressure boosting systems
• Small-scale irrigation
• Potable drinking water applications

Important Use Notes

• This is a 3-wire well pump without a control box; one must be purchased separately.
• This pump is intended for use with clean, potable water.
• Installation must adhere to all local electrical and plumbing codes.
• Ensure the well diameter is sufficient for the pump's 3.9" diameter.
• Complete your system with correctly sized pressure tanks to optimize performance.

Get The Franklin 1/2 HP Submersible Well Pump 10FS05S4-3W230 From Cleanflow

Cleanflow is a trusted supplier of Franklin Electric products across Canada and the USA. We offer a wide range of submersible well pumps for sale to meet your system's needs.

You can find this Franklin 1/2 hp submersible well pump and all the necessary well pump accessories to complete your installation.

Frequently Asked Questions

Why can’t I see an intake screen on this pump?

The intake screen on Franklin Electric FS Series submersible well pumps is internal, not an external wrap-around screen. This design helps protect the pump and maintain efficient operation. Because the intake screen is built into the pump’s internal motor bracket, it is not visible from the outside unless the pump is partially disassembled.

What is the main advantage of a floating stage design?

The floating stage design improves efficiency and minimizes wear from abrasives by reducing downthrust on the motor, which helps extend the pump’s operational life.

Is this a complete kit?

No. This product includes the Franklin Electric submersible well pump and motor only. The required 3-wire control box is sold separately.

Can this pump be used for a new well installation?

Yes. This 1/2 HP submersible well pump is well-suited for new residential well installations and is commonly paired with pitless adapters for a frost-proof connection.

What does NSF 61 certification mean?

NSF 61 certification confirms that the pump is safe for use in potable drinking water systems and that no harmful substances leach into the water supply.

What are the voltage requirements for this pump?

This is a single-phase 230V submersible pump. The supplied voltage must remain within ±10% of the rated voltage for proper and safe operation.

How does a VFD (Variable Frequency Drive) benefit my system?

A VFD automatically adjusts pump speed to maintain constant water pressure, improving energy efficiency and delivering a more consistent water supply throughout the home.
