Franklin Electric 10FS07S4-3W230 FS Series 3/4 HP Submersible Well Pump | 10 GPM | 230V

Residential Submersible Well Pump for Clean Water Supply Systems

This Franklin Electric 4-inch submersible well pump is for well applications that require reliable water delivery. It is primarily used in residential potable water systems, providing a consistent 10 GPM flow rate. The submersible, stainless steel construction includes a floating stage hydraulic design for durability, especially in abrasive water conditions. Its NSF 61 certification confirms its suitability for drinking water.

Key Benefits of the Submersible Well Pump

• Supplies consistent water pressure for residential well systems.
• Minimizes internal wear and tear from abrasive particles.
• Reduces downthrust on the motor for extended operational life.
• Ensures safe use in potable water applications with NSF/ANSI 61 certification.
• Provides durable, corrosion-resistant service in demanding well environments.
• Prevents backflow and protects the system from water hammer damage.

Product Specifications

What’s Included

• Submersible well pump
• Factory-installed 3/4 HP, 230V encapsulated motor

Purchase Options

We offer two convenient ways to purchase this Franklin Electric well pump to suit your installation needs:

• Pump + Motor Only:
  This includes the 3/4 HP pump and motor. You will need a specific 3-wire control box (Part Number 2801074915) to run it. If you don't already have one, you'll need to buy it separately.
• Pump + Motor with Control Box:
  Choose the complete kit for an easy, all-in-one solution. It includes the FS Series 3/4 HP submersible well pump, motor, and 3-wire control box, making installation simple and hassle-free.

Key Features – 10FS07S4-3W230

• Floating Stage Hydraulics
  Improves efficiency and longevity by minimizing wear when pumping abrasives and reducing motor downthrust.
• AISI 304 Stainless Steel Construction
  Stainless steel pump body, discharge, motor bracket, and intake screen provide corrosion-resistant performance for drinking water.
• Integrated Check Valve
  Wafer disc-style check valve prevents backflow and protects against water hammer.
• 3-Wire Motor Design
  Requires an external control box for easier above-ground maintenance and troubleshooting.
• Kingsbury-Type Thrust Bearing
  Encapsulated motor design supports smooth operation and extended service life.
• NEMA Motor Connection
  Industry-standard bracket ensures compatibility and secure installation.

Performance Overview

The Franklin FS Series 3/4 HP pump is designed for residential water systems with a nominal flow of 10 GPM. Its optimal efficiency range is between 6 GPM and 13 GPM, delivering strong flow with minimal energy use and reduced wear. The pump supports up to 15 GPM and features a maximum shut-off head of 406 feet.

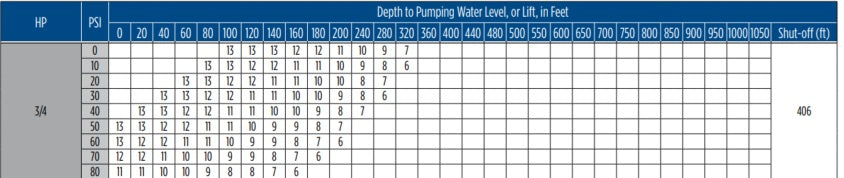

For precise sizing based on your system’s flow and head requirements, always refer to the pump performance chart.

Common Applications

• Residential potable water systems
• Private well water supply
• New well installations
• Replacement of existing submersible well pumps
• Irrigation and agricultural water transfer
• Water pressure boosting systems

Important Use Notes

• Designed for use in 4-inch and larger diameter water wells.
• Requires a compatible 3-wire control box (Part Number 2801074915).
• Certified for a maximum fluid temperature of 120°F.
• Ensure voltage supply is 230V with a tolerance of ±10%.
• For frost-proof connections, use high-quality pitless adapters.

Get the Franklin Electric Submersible Well Pump (10FS07S4-3W230) from Cleanflow

Cleanflow is a reliable supplier of water system components across Canada and the USA. We stock a wide range of Franklin Electric products and other submersible well pumps to meet your project needs.

Need help finding the right part? All necessary well pump accessories are also available.

Frequently Asked Questions

Why can’t I see an intake screen on this pump?

The intake screen on Franklin Electric FS Series submersible well pumps is internal, not an external wrap-around screen. This internal design helps protect the pump and supports efficient operation. Because the intake screen is built into the motor bracket, it is not visible from the outside unless the pump is partially disassembled. Please refer to the image below for a visual reference of where the internal intake screen is located.

Is this a complete pump and motor package?

Yes, this Franklin Electric 10FS07S4-3W230 includes both the submersible pump end and the factory-installed 3/4 HP, 230V encapsulated motor.

Can this pump be used for drinking water?

Yes, this is an NSF/ANSI Standard 61 certified submersible well pump, making it suitable for potable drinking water applications.

What is a floating stage hydraulic well pump?

A floating stage hydraulic design allows internal pump stages to move slightly, helping manage abrasives and sand while reducing internal wear and extending pump service life.

What is the flow rate of this pump?

This is a 10-gallon-per-minute submersible well pump with optimal efficiency between 6 and 13 GPM under typical residential operating conditions.

What size well casing is this pump designed for?

This Franklin Electric residential submersible well pump is designed for installation in water well casings with a minimum diameter of 4 inches.
