Franklin Electric 10FS1S4-3W230 FS Series 1 HP Submersible Well Pump | 10 GPM | 230V | 3-Wire

Stainless Steel Submersible Well Pump for Residential Potable Water Wells

This Franklin Electric submersible pump provides reliable water delivery for residential systems requiring a durable solution. The Model 10FS1S4-3W230 operates as a 1 HP well pump, using a 3-wire configuration for consistent starting torque. It features stainless steel construction and fits inside standard 4-inch or larger well casings.

The unit is NSF/ANSI 61 certified, making it a safe potable water well pump for household use. With a nominal flow rate of 10 GPM and robust corrosion resistance, this pump suits private water systems needing long-term performance.

Key Benefits of the FS Series 1 HP Submersible Well Pump

• Stainless steel components resist corrosion in harsh water environments.
• Floating stage hydraulics handle sand and abrasives without locking up.
• Efficient hydraulic design reduces energy consumption during operation.
• NSF 61 certification ensures materials are safe for drinking water.
• The submersible well pump 230V motor includes built-in lightning protection.
• Standard NEMA motor connection ensures compatibility with existing power systems.

Product Specifications

What’s Included

• Franklin Electric 10FS1S4-3W230 Pump End
• Franklin Electric 1 HP 230V 4-inch Submersible Motor

Available Kit Options

Pump + Motor Only

This package includes the submersible pump and compatible 1 HP, 230V 4-inch submersible motor. Ideal for users who already have a suitable control box in place.

Pump + Motor with Control Box

This kit includes the pump, motor, and a matching Franklin Electric 3-wire control box (Part Number 2801074915) , providing a complete solution for new installations or full system replacements. A control box is required for operation.

Key Features – FS Series

• Floating Stage Hydraulics
  The floating impeller design allows sand and small abrasives to pass through the pump without causing excessive wear, extending the life of the unit in private wells.
• 304 Stainless Steel Construction
  High-grade stainless steel is used for the shell, discharge, and bracket, ensuring the 10 GPM stainless steel well pump remains rust-free and hygienic for decades.
• 3-Wire Motor Configuration
  This 3-wire submersible pump 1 HP model separates the starting components from the motor, placing them in an external control box for easier maintenance and higher starting torque.
• NSF/ANSI 61 Certification
  Third-party certification verifies that all materials in contact with water are safe for human consumption and free from lead or hazardous leaching.
• Encapsulated Motor Design
  The motor windings are hermetically sealed in a stainless steel casing, protecting internal components from moisture intrusion and electrical failure.
• Lightning Protection
  The motor utilizes a specialized arrestor system to protect against high-voltage surges, which is critical during storms.

Performance Overview

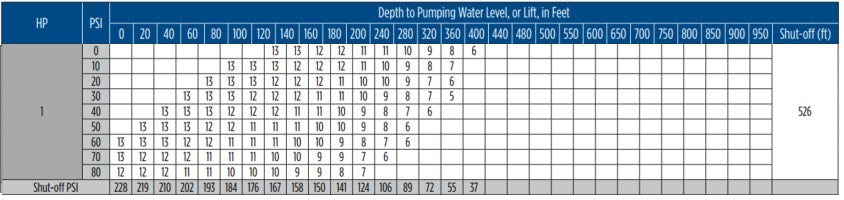

The Franklin Electric 10FS1S4-3W230 is engineered to deliver a nominal flow of 10 gallons per minute (GPM). It offers a maximum shut-off head of 526 feet, making it an effective residential deep well pump. The pump performs optimally in wells where the static water level and lift requirements align with the 10 GPM curve, ensuring adequate pressure for household fixtures.

Common Applications

• Residential potable water supply
• Private wells with 4-inch casing
• Farm and agricultural water needs
• Irrigation systems requiring moderate flow
• Pressure boosting applications
• Cistern water transfer

Important Installation and Use Notes

• This pump requires a compatible control box to operate correctly.
• Verify your well casing is at least 4 inches in diameter before installation.
• Ensure your electrical supply matches the 230V requirement.
• Install well pump accessories like torque arrestors to protect the drop pipe.
• Use pitless adapters for a frost-proof connection to the water line.
• Check that pressure tanks are sized correctly to prevent rapid cycling.

Get the Product from Cleanflow

Secure your Franklin Electric FS Series Submersible Well Pump from Cleanflow, your trusted source for authentic well pumps across Canada and the USA. We offer the 1 HP well pump, Model 10FS1S4-3W230, and related Franklin Electric submersible pump solutions, with fast shipping and expert support for your potable water well system needs.

Frequently Asked Questions

Why can’t I see an intake screen on this pump?

The intake screen on Franklin Electric FS Series submersible well pumps is internal, not an external wrap-around screen. This internal design helps protect the pump and supports efficient operation. Because the intake screen is built into the motor bracket, it is not visible from the outside unless the pump is partially disassembled. Please refer to the image below for a visual reference of the internal intake screen’s location.

What is the difference between 2-wire and 3-wire well pumps?

A 2-wire well pump has its starting components built directly into the motor, while a 3-wire pump uses an external control box. The 3-wire design allows easier servicing because the starting components are accessible above ground.

How deep can a 1 HP submersible well pump operate?

This 1 HP submersible well pump has a maximum shut-off head of 526 feet. For efficient household water pressure, it should be installed in wells with operating depths below the maximum lift to maintain consistent flow.

Is the Franklin Electric FS Series pump approved for drinking water?

Yes, the FS Series submersible well pump is NSF/ANSI 61 certified, confirming it is approved for potable drinking water applications.

Does a 3-wire submersible well pump require a control box?

Yes, this is a 3-wire submersible pump, and it requires a compatible Franklin Electric control box to start and operate properly.

What breaker size is recommended for a 1 HP 230V well pump?

Breaker size should be selected based on the motor data plate and local electrical codes. In many installations, a 230V 1 HP well pump typically uses a dedicated 15-amp or 20-amp double-pole breaker.

Is a pump performance curve available for this 10 GPM model?

Yes, detailed pump performance curves are available in the technical documentation. These charts show the relationship between flow rate and head to help ensure proper system sizing.

Where can I find other Franklin Electric well pump products?

You can browse the full selection of Franklin Electric motors, pumps, and accessories through the Franklin Electric product collection available from Cleanflow.
