Franklin VersaJet Shallow Well Jet Pump – Cast Iron – ½–1.5 HP – 25 Ft Suction Lift, Quick-Change Jet Nozzles

Franklin VersaJet Cast Iron Shallow Well Jet Pumps – ½ HP, ¾ HP, 1 HP, 1.5 HP

The Franklin VersaJet® Cast Iron Shallow Well Jet Pump Series delivers outstanding performance, reliability, and flexibility for residential, agricultural, and light commercial water systems. Engineered for shallow well applications up to 25 ft suction lift, VersaJet pumps position all key components—including the motor, impeller, diffuser, nozzle, and electrical controls—above ground for easy access and simplified maintenance.

What sets the VersaJet apart is its revolutionary Quick-Change jet nozzle system, allowing users to rapidly alter pump performance without disconnecting plumbing or opening the pump housing. Whether the application requires higher pressure or increased flow, adjusting the pump is fast, clean, and tool-friendly.

With a heavy-duty cast iron casing, Modified PPO hydraulic components, a stainless steel eye seal, and a phenolic/ceramic shaft seal, the VersaJet provides long service life and dependable operation. Each model comes with a 30/50 psi pressure switch, NSF/ANSI/CAN 372 certification, and a UL778-approved motor designed for indoor/outdoor use.

Available in four horsepower options (½ HP, ¾ HP, 1 HP, and 1.5 HP), VersaJet pumps offer a complete range of performance capabilities to match any shallow well installation.

Key Features

Quick-Change Jet Nozzle System

• Switch between high-pressure and high-flow setups without opening the pump or removing plumbing.

Engineered for Efficiency

• Impeller, diffuser, nozzle, and venturi molded from Modified PPO, increasing hydraulic performance.

Durable Construction

• Heavy-duty cast iron casing, complete with pressure and drain ports for easy servicing.

Premium Seal & Hardware

• Phenolic/ceramic shaft seal with nitrile elastomers for long life.

• Floating stainless steel eye seal improves efficiency and consistent performance.

Industry-Proven Motors

• UL778-approved, single-phase, square-flange motors suitable for indoor/outdoor installations.

Factory-Set Performance

• Includes a 30/50 psi pressure switch for typical residential system pressures.

Versatile Operating Capabilities

• Maximum water temperature: 120°F (49°C)

• Maximum working pressure: 75 psi

• Suction lift: Up to 25 ft

• Standard plumbing connections: 1¼" inlet / 1" outlet

NSF/ANSI/CAN 372 Certified

• Meets low-lead compliance requirements for potable water systems.

Electrical Information

• All models use dual-voltage motors that are field convertible between 115 VAC and 230 VAC single-phase operation.

• Amp ratings listed above are at 230V; amperage is higher when wired for 115V.

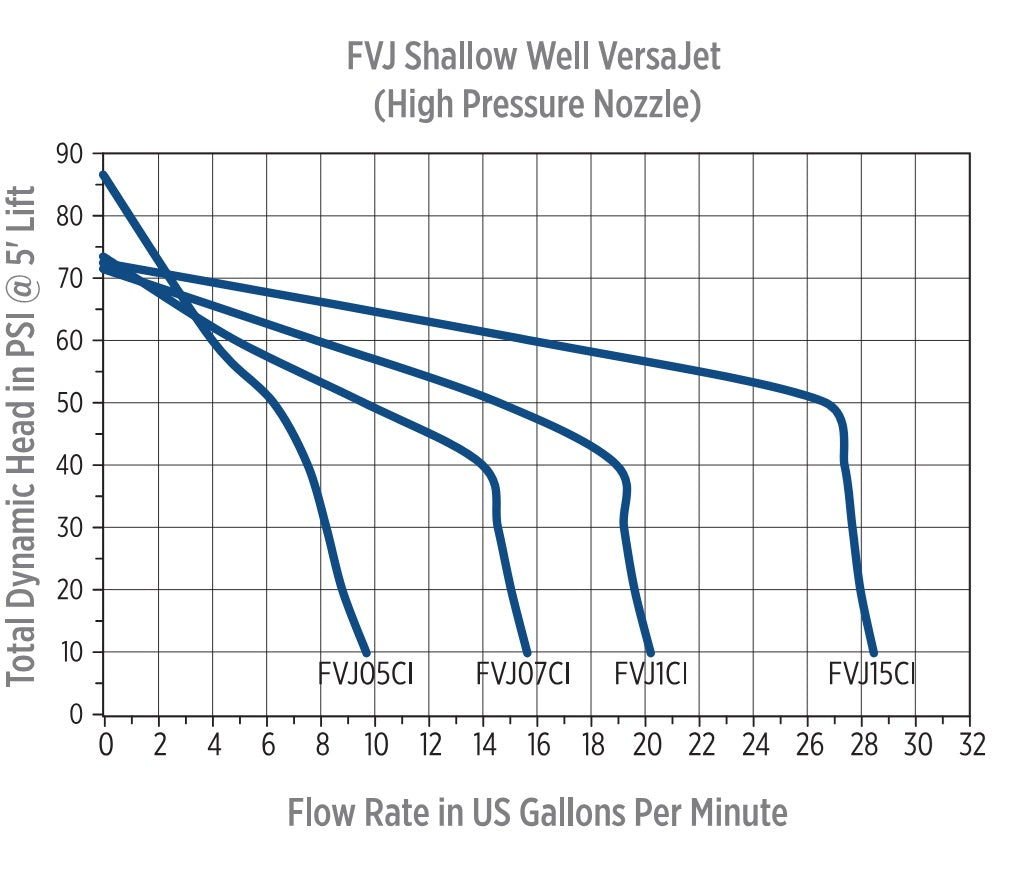

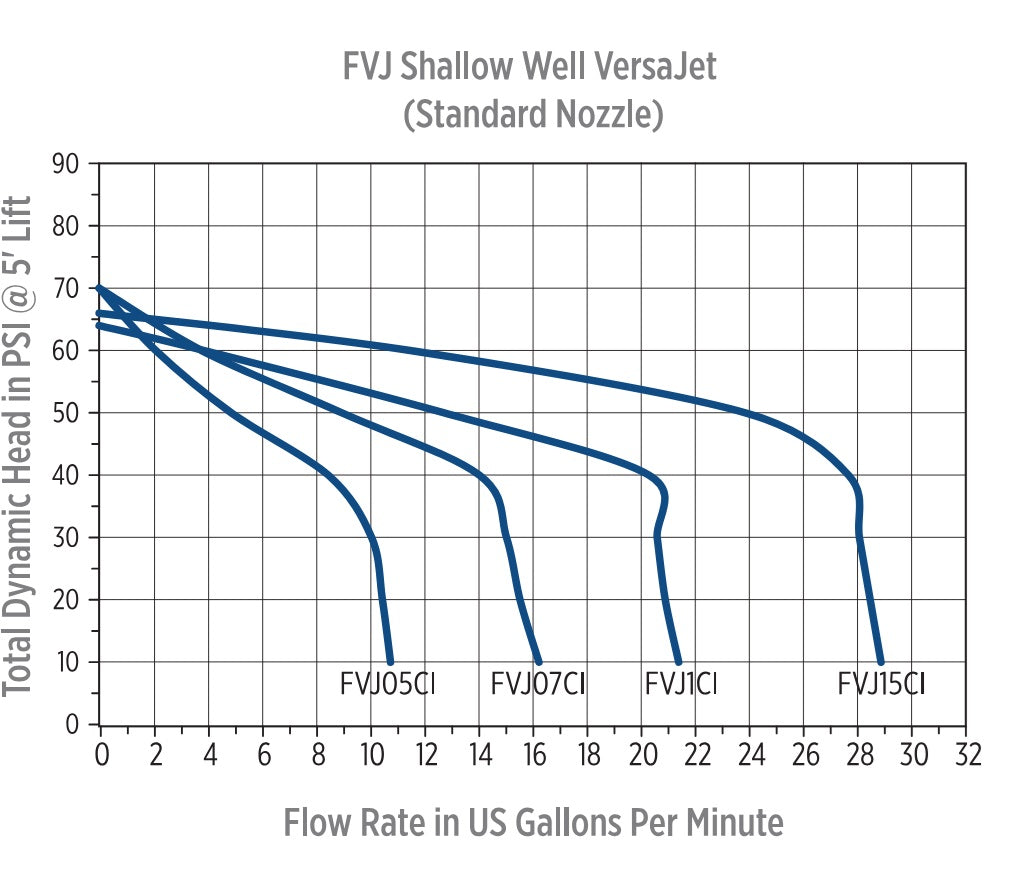

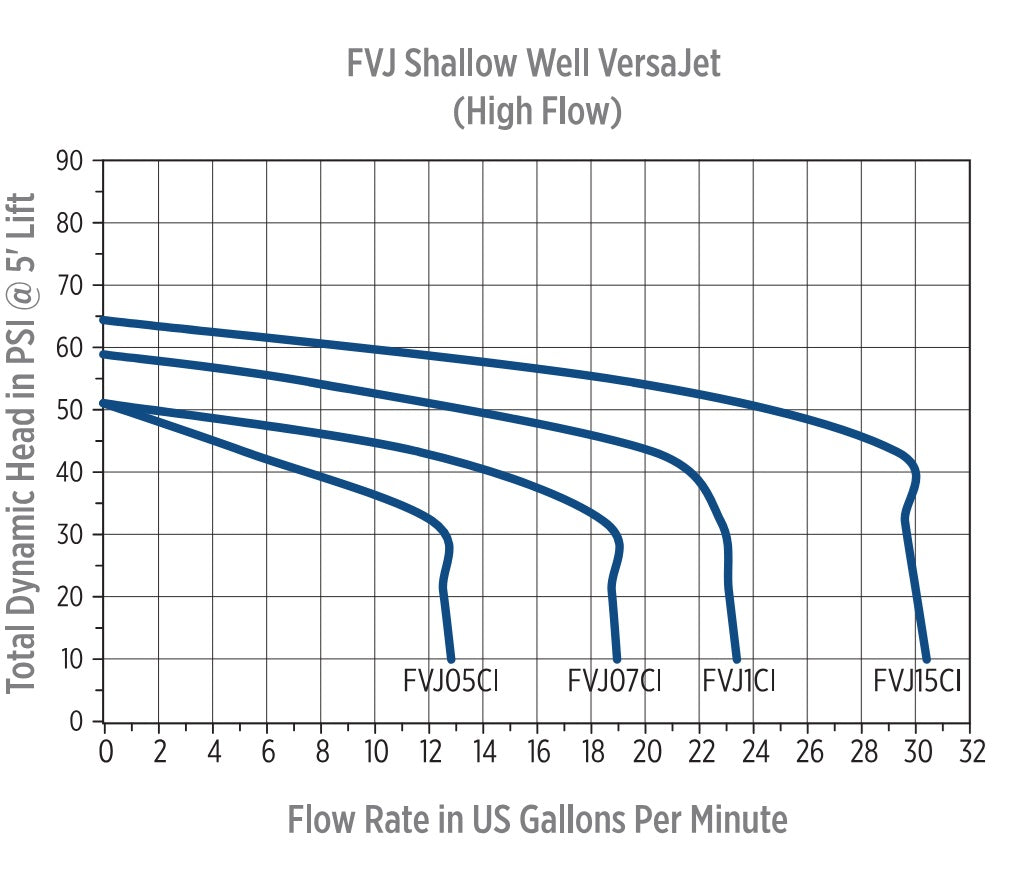

Change the Nozzle to Change your Flow - The Standout Feature of VersaJet Pumps

Exactly as it sounds - change the nozzle to one of three provided with the pump to change the flow based on your pumping requirements. These flow charts illustrate the difference in flow depending on which nozzle you attach to your pump.

Frequently Asked Questions (FAQs)

What is the maximum suction lift for these pumps?

All VersaJet shallow well models—½ HP through 1.5 HP—are rated for up to 25 ft of suction lift.

How does the Quick-Change jet nozzle system work?

The system allows you to easily swap nozzles to adjust pump performance:

• High-Pressure Nozzle → Increases pressure for long runs or elevation changes.

• High-Flow Nozzle → Maximizes volume for large demand applications.
  No plumbing disassembly or pump housing removal is required.

Which horsepower size do I need?

General guidance:

• ½ HP – Small homes, cabins, low-demand systems

• ¾ HP – Medium homes, moderate water usage

• 1 HP – Larger homes or systems with multiple fixtures

• 1.5 HP – High-demand applications, long distribution lines, or irrigation
  For sizing accuracy, consider total dynamic head and fixture demand.

Are these pumps suitable for potable water?

Yes. The pumps are NSF/ANSI/CAN 372 certified for low-lead compliance and safe use in drinking water systems.

Can the pump handle warm water?

Yes. They support water temperatures up to 120°F (49°C).

Are the motors outdoor rated?

Yes. The motors are UL778 approved and suitable for indoor or outdoor installations, provided they are shielded from direct weather exposure.

What are the plumbing connection sizes?

All horsepower models use:

• 1¼" suction inlet

• 1" discharge outlet

Is the pressure switch included and preset?

Yes. Each pump comes with a factory-installed 30/50 psi pressure switch.

What materials are used in the hydraulic components?

The impeller, diffuser, nozzle, and venturi are molded from Modified PPO, a premium thermoplastic known for strength, stability, and high hydraulic efficiency.

Is the pump housing corrosion resistant?

The pump features a cast iron casing, which provides excellent durability. Regular maintenance and environmental protection (such as avoiding standing water) will ensure long service life.

Can the VersaJet be used for irrigation or garden systems?

Yes. The adjustable nozzle system makes it suitable for lawn irrigation, garden watering, and light agricultural use, depending on the horsepower selected.

Does the pump require priming?

Like all shallow well jet pumps, the VersaJet must be primed before operation. Follow Franklin Electric’s priming instructions during installation.
